| Marketing Description |

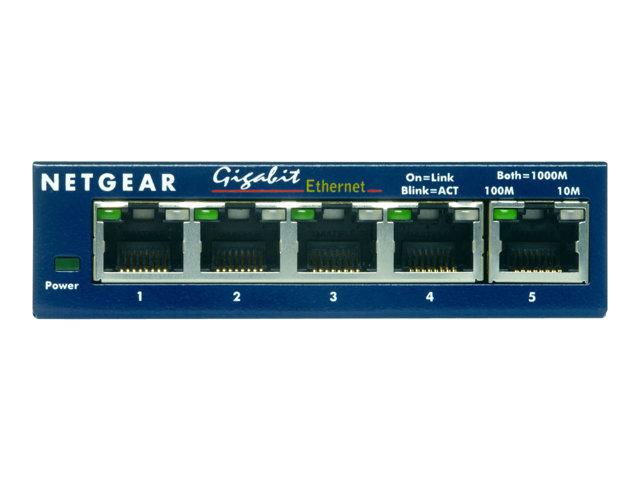

| For a high-speed network on a small scale, nothing delivers likes these compact powerhouses. Equipped with five auto-sensing 10/100/1000 Mbps UTP ports, NETGEAR ProSafe GS105 switches give your network the capacity to handle huge workloads. If your network is configured to support jumbo frames, ProSafe GS105 switches will forward them, as well as honoring priority tags at both the layer 2 and layer 3 level. This means they move very large files across your network instantly, and keep the high priority traffic moving. Packed with ease-of-use features to simplify your networking experience, its trim design makes it an easy fit for a desk or mounted on a wall. The durable metal chassis protects interior working parts and the fanless design results in silent operation. Matched with NETGEAR's thorough testing, the ProSafe GS100 series switches provide long-lasting performance you can count on. |
| Product Features |
- Potent
Moves huge files fast! Features up to eight high-speed, auto-switching 10/100/1000 Mbps Ethernet connections. And because Gigabit Ethernet is a full duplex standard, you get up to 2000 Mbps on each port. The GS100 Series provides jumbo frame support up to 9,000 byte frames.
- Capable
Integrates 10-, 100-, and 1000-Mbps devices on the same network. Every port automatically senses the right speed and full/half duplex mode, and Auto Uplink technology automatically adjusts for straight-through or crossover cables.
- Trim
Sized to save space, this sturdy metal switch is compact and fits easily on a desk or mounts on a wall, making it ideal for home and small office environments.
- Easygoing
LEDs embedded in RJ-45 jacks make for easy monitoring. Provides noiseless operation. Supports PC or Mac O/S (operating system).
|
| General |
| Device Type |
Switch - 5 ports |
| Enclosure Type |
Desktop |
| Subtype |
Gigabit Ethernet |
| Ports |
5 x 10/100/1000 |
| MAC Address Table Size |
4K entries |
| Features |
Flow control, full duplex capability, auto-sensing per device, auto-negotiation, auto-uplink (auto MDI/MDI-X), store and forward, Jumbo Frames support |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x |
| Status Indicators |
Collision status, port transmission speed, port duplex mode, power, link/activity |
| Expansion / Connectivity |
| Interfaces |
5 x 1000Base-T RJ-45 |
| Power |
| Power Device |
External power adapter |
| Power Consumption Operational |
14.4 Watt |
| Miscellaneous |
| Mounting Kit |
Included |
| MTBF |
87,600 hours |
| Compliant Standards |
FCC Class A certified, TUV, C-Tick, cUL, EN 60950, VCCI Class A ITE, UL 60950 |
| Localisation |
Europe |
| Software / System Requirements |
| OS Required |
Apple MacOS, Novell NetWare, Linux, Microsoft Windows |
| Dimensions & Weight |
| Width |
9.3 cm |
| Depth |
10.5 cm |
| Height |
2.7 cm |
| Weight |
300 g |
| Manufacturer Warranty |
| Service & Support |
NETGEAR lifetime warranty |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
10 - 90% |
