| Marketing Description |

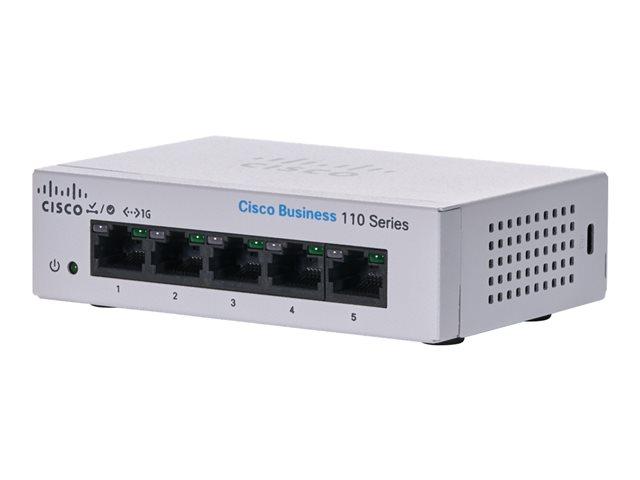

| The Cisco Business 110 Series Unmanaged Switches are affordable, plug-and-play entry-level switches that provide gigabit Ethernet switching with key features like Power over Ethernet (PoE), energy efficiency, and traffic prioritization for a fast and resilient small business network. |
| Product Features |
- SWITCH PORTS
5 -Port 10/100/1000
- SIMPLE
Plug-and-play without a need for IT know-how or support.
- FLEXIBLE
Extensive portfolio provides ultimate flexibility from 5 to 24 ports and PoE combinations
- PERFORMANCE
Gigabit Ethernet and integrated quality-of-service (QoS) intelligence optimize delay-sensitive services and improve overall network performance.
- INNOVATIVE DESIGN
Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
|
| General |
| Device Type |
Switch - 5 ports - unmanaged |
| Enclosure Type |
Desktop, rack-mountable, wall-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
5 x 10/100/1000 |
| Performance |
Forwarding performance (64-byte packet size): 7.4 Mpps
Switching capacity: 10 Gbps |
| Capacity |
Buffer capacity (MB): 1 |
| MAC Address Table Size |
2K entries |
| Jumbo Frame Support |
9216 bytes |
| Features |
Flow control, auto-uplink (auto MDI/MDI-X), Quality of Service (QoS), Cable Diagnostics Function, fanless, Energy Efficient Ethernet, Head-of-line (HOL) blocking, Weighted Round Robin (WRR), loopback detection, security slot (Kensington security lock compatible) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3az |
| Processor |
X ARM: 400 MHz |
| RAM |
64 MB |
| Flash Memory |
8 MB |
| Status Indicators |
Power, link/activity |
| Expansion / Connectivity |
| Interfaces |
5 x 10/100/1000 Base-T RJ-45 |
| Power |
| Power Provided |
1 A |
| Voltage Required |
DC 12 V |
| Power Consumption Operational |
2.74 Watt |
| Miscellaneous |
| Included Accessories |
Mounting kit |
| MTBF |
4,243,002 hours |
| Compliant Standards |
FCC Class B certified, UL 60950, CSA 22.2, FCC CFR47 Part 15 A |
| Localisation |
United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Switzerland, Turkey, European Economic Area |
| Dimensions & Weight |
| Width |
11 cm |
| Depth |
7.5 cm |
| Height |
3 cm |
| Weight |
230 g |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - lifetime
Technical support - web support - 1 year
Technical support - phone consulting - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Min Storage Temperature |
-20 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
5 - 90% (non-condensing) |
