| Marketing Description |

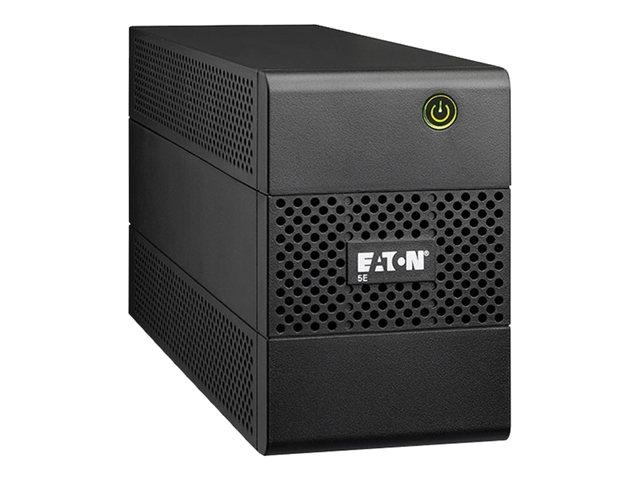

| The Eaton 5E is an essential line interactive UPS that provides cost effective and reliable power protection against power outages and bad power quality. Thanks to its small size the 5E can be installed easily either in a business environment or at home. |
| Product Features |
- Work through under and overvoltage without wasting battery thanks to Automatic Voltage Regulation (AVR)
- Rely on batteries anytime: 5E batteries are permanently recharged (even when off) and UPS can start without mains
- Avoid back door damages coming through phone lines: 5E USB models are equipped with data line surge protection
- Plug easily any equipment to the UPS thanks to IEC and Schuko outlets
- Install 5E anywhere thanks to its small size
- Easily manage your UPS from your PC
|
| General |
| Device Type |
UPS - external |
| Power Device |
| UPS Technology |
Line interactive |
| Input Voltage |
AC 230 V |
| Input Voltage Range |
AC 170 - 280 V |
| Frequency Required |
50/60 Hz |
| Input Connectors |
1 x power IEC 60320 C14 |
| Power Output Connectors Details |
6 x power IEC 60320 C13 (UPS and surge) |
| Output Voltage |
AC 230 V |
| Power Capacity |
900 Watt / 1500 VA |
| Dataline Surge Protection |
Network/phone line - 1 input line / 1 output line |
| Battery |
| Run Time (Up To) |
52 min at 90 Watts
21 min at 225 Watt
13 min at 360 Watts
8 min at 450 Watts
1 min at 720 Watts |
| Networking |
| Remote Management Interface |
USB |
| Expansion / Connectivity |
| Interfaces |
1 x USB - 4 pin USB Type B |
| Miscellaneous |
| Features |
Audible alarm, Automatic Voltage Regulation (AVR), cold-start function |
| Compliant Standards |
TUV, CB |
| Software / System Requirements |
| Software Included |
Eaton UPS Companion |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 2 years |
| Environmental Parameters |
| Min Operating Temperature |
0 °C |
| Max Operating Temperature |
40 °C |
| Sound Emission |
45 dBA |
| Dimensions & Weight |
| Width |
18 cm |
| Depth |
33 cm |
| Height |
13.3 cm |
| Weight |
10.46 kg |
