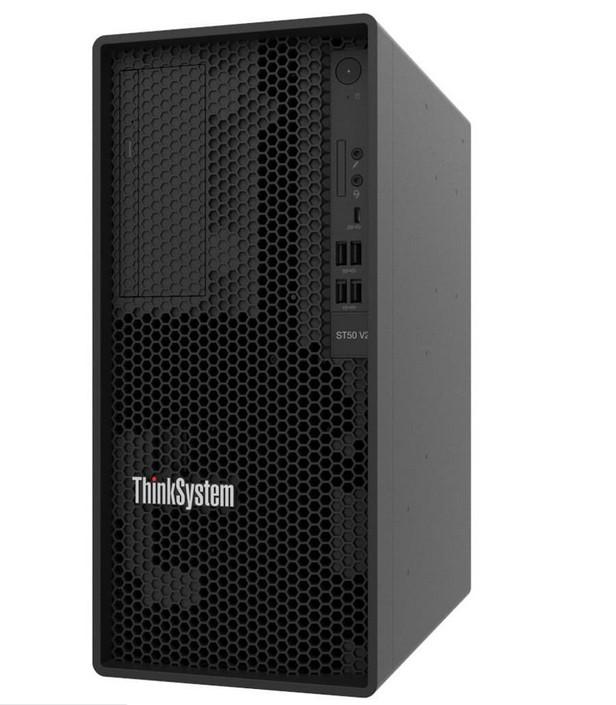

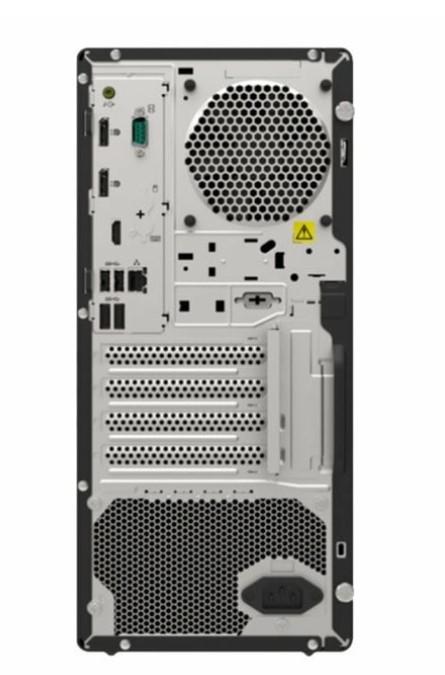

Сървър Lenovo ThinkSystem ST50 V2, Intel Xeon E-2324G 4C (3.1/4.6GHz, 8MB Cache), 16GB DDR4 ECC UDIMM, 2x 1TB HDD, 1x I219-LM LAN, 500W PSU, Free DOS

SKU: 7D8JA045EA

ID: #41208

Цена: 1 990,00 лв.

Цената е с вкл. ДДС

Характеристики

Серия: ThinkSystem ST50

Чипсет: Intel C256

Процесор, серия: Intel Xeon (4-ядрен)

Процесор: Intel Xeon E-2324G (4C/4T, 3.10 GHz, up to 4.5 GHz, 3,200 MHz, 8MB Intel Smart Cache, 65 W)

Брой процесори: 1

Поддържани процесори: Intel Xeon E-2300 product family

Памет, GB: 16GB DDR4 3200MHz

Памет, слотове: 4 (Общо) / 3 (празно)

Максимална памет, GB: up to 128GB

Брой поддържани дискове: до 2 бр. 3.5” LFF

Твърд диск, GB: 2 x 1TB

Поддръжка на RAID: SATA RAID 0, 1, 5, 10

Видео карта, модел: Intel UHD Graphics P750

Оптично устройство: Не

Видео интерфейс: 2 DisplayPort ports, 1 VGA port

Мрежа: Gigabit Ethernet (RJ-45)

Мощност на захранващ блок (W): 500W

Форм-фактор: 4U Tower

Софтуер: Free DOS

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

LENOVO ThinkSystem ST50 V2 Xeon E-2324G 4C 3.1GHz 8MB Cache 1x16GB UDIMM 2x1TB SATA SW RAID 500W No DVD 3 year


Manufacturer	LENOVO
Manufacturer Part No	7D8JA045EA

Marketing Description
The ThinkSystem ST50 V2 offers enterprise-class reliability features such as error correcting code (ECC) memory, the onboard RAID controller, and enterprise-class hard drives and network adapters. The server has Intel Active Management Technology (AMT) built-in, along with support for industry-standard management tools. The ST50 V2 runs a wide range of server operating systems and is quiet enough and small enough to fit under or beside an office desk.
Product Features
Improved single-socket processor performance Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 64 GB Three PCIe slots for I/O expansion, one of which has a PCIe Gen4 interface to maximize I/O performance Support for an NVMe M.2 drive for OS boot operations Up to three non-hot-swap (NHS) drive bays, two 3.5-inch and one 2.5-inch, supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity
General
Type	Server
Product Form Factor	Tower - 5U
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability	1-way
Internal Bays Qty	2
Localisation	Region: EMEA
Processor / Chipset
CPU	Intel Xeon E-2324G
Clock Speed	3.1 GHz
Max Turbo Speed	4.6 GHz
Number of Cores	Quad-Core
CPU Qty	1
Max CPU Qty	1
CPU Socket	LGA1200 Socket
Chipset Type	Intel C256
Cache Memory
Installed Size	8 MB
Cache Per Processor	8 MB
RAM
Installed Size	16 GB / 128 GB (max)
Technology	DDR4 SDRAM - ECC
Effective Memory Speed	3200 MHz
Rated Memory Speed	3200 MHz
Form Factor	DIMM 288-pin
Slots	4 (Total) / 3 (empty)
Features	Unbuffered
Configuration Features	1 x 16 GB
Hard Drive
Type	HDD
Capacity	2 x 1 TB
Storage Controller
Type	1 x SATA
Controller Interface Type	SATA 6Gb/s
Channel Qty	3
RAID Level	JBOD
Optical Storage
Type	No optical drive
Monitor
Monitor Type	None.
Graphics Controller
Graphics Processor	Intel UHD Graphics P750 Shared Video Memory (UMA)
Video Interfaces	DisplayPort
Networking
Ethernet Controller	Intel I219-LM
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Features	Wake on LAN (WoL), Teaming support, Intel Active Management Technology (AMT) 15
Compliant Standards	DASH 1.1
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 5.25" 2 (total) / 0 (free) x internal 3.5"
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode)
Interfaces	1 x USB-C 3.2 Gen 2 (1 in front) 2 x USB 3.2 Gen 2 (2 in front) 6 x USB 3.2 Gen 1 (2 front, 4 rear) 2 x DisplayPort 1 x LAN (Gigabit Ethernet) 1 x serial 1 x audio line-out 1 x VGA (on supplied cable)
Miscellaneous
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Security Slot Type	Kensington security slot
Compliant Standards	TUV GS, BSMI, IEC 60950-1, GB 17625.1, VCCI Class A, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, TP TC 004/2011, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, TP EAC 037/2016, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM
Power
Device Type	Power supply
Voltage Required	AC 100-240 V (50/60 Hz)
Power Provided	500 Watt
80 PLUS Certification	80 PLUS Platinum
Efficiency	94%
Operating System / Software
OS Provided	No operating system
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Width	17 cm
Depth	31.6 cm
Height	37.6 cm
Weight	9.4 kg
Dimensions & Weight (Shipping)
Shipping Width	28 cm
Shipping Depth	42 cm
Shipping Height	54 cm
Environmental Parameters
Min Operating Temperature	10 °C
Max Operating Temperature	35 °C
Humidity Range Operating	8 - 80%
