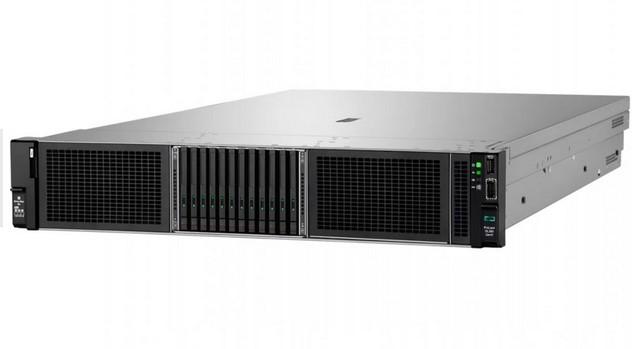

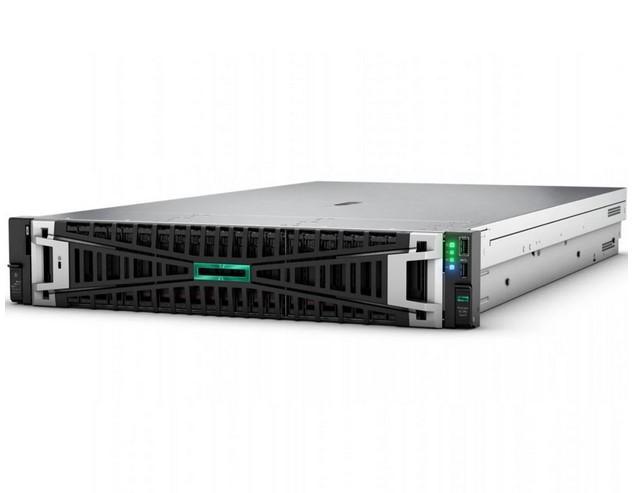

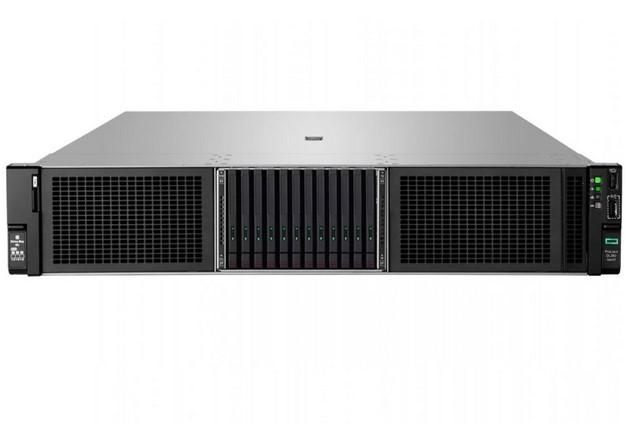

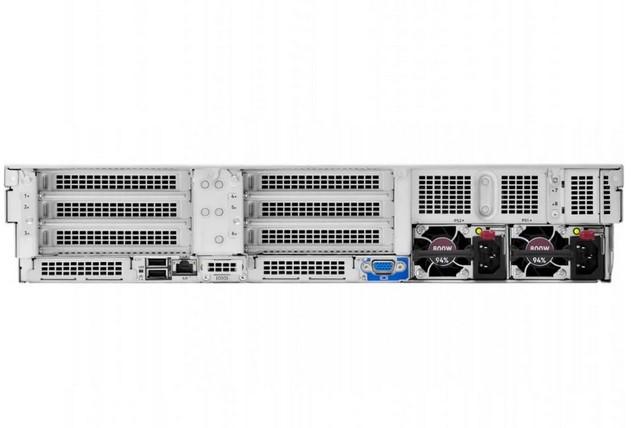

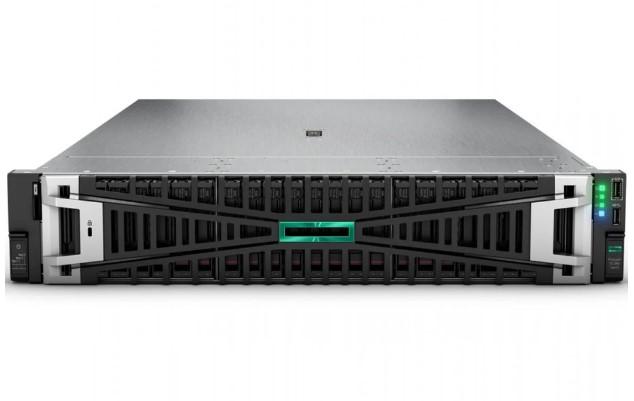

Сървър HPE ProLiant DL380 Gen11, Sapphire Rapids Intel Xeon Silver 12C (2.4/4.1GHz, 30MB Cache), 64GB DDR5, 2x 960GB SATA SSD, 1x RJ45 GbE LAN, 2x 1000W PSU Titanium, Free DOS

SKU: P71674-425

ID: #41443

Характеристики

Серия: DL380 Gen11

Чипсет: Intel C741

Процесор, серия: Intel Xeon Gold (12-ядрен)

Процесор: Intel Xeon Gold 4510 12C (2.1/2.2GHz, 30MB Cache)

Памет, GB: 64GB DDR5 5600MHz

Памет, слотове: 32 (Общо) / 30 (празно)

Максимална памет, GB: 8 TB (max)

Брой поддържани дискове: до 8 x 2.5” LFF

Твърд диск, GB: 2 x 960GB

Поддръжка на RAID: SATA RAID 0, 1, 5, 6, 10, 50, 60

Оптично устройство: Не

Видео интерфейс: VGA

Мрежа: 4 x Gigabit Ethernet

Мощност на захранващ блок (W): 2x 1000W

Форм-фактор: 2U Rack

Софтуер: Free DOS

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

HPE ProLiant DL380 Gen11
P71674-425

Type:	Server
Product Form Factor:	Rack-mountable - 2U
Built-in Devices:	Led panel
Embedded Security:	Trusted Platform Module (TPM) Security Chip
Server Scalability:	2-way
Hot-Swap Bays Qty:	8
Localisation:	Region: Germany, Switzerland, Austria, France, United Kingdom, Scotland, Ireland
Processor / Chipset
CPU:	Intel Xeon Silver 4510
Clock Speed:	2.4 GHz
Max Turbo Speed:	4.1 GHz
Number of Cores:	12-core
CPU Qty:	1
Max CPU Qty:	2
CPU Upgradability:	Upgradable
Chipset Type:	Intel C741
Cache Memory
Installed Size:	30 MB
Cache Per Processor:	30 MB
RAM
Installed Size:	64 GB (installed) / 8 TB (max)
Technology:	DDR5 SDRAM
Effective Memory Speed:	4400 MHz
Rated Memory Speed:	5600 MHz
Form Factor:	DIMM 288-pin
Slots:	32 (Total) / 30 (empty)
Features:	HPE SmartMemory, registered, slots 17 - 32 are available in two-processor configuration only
Configuration Features:	2 x 32 GB
Hard Drive
Type:	SSD - 2.5"
Capacity:	2 x 960 GB
Interface Type:	SATA
Storage Controller
Type:	1 x RAID - OCP
Controller Interface Type:	Serial ATA-600 / SAS 3.0 / PCI Express (NVMe)
Storage Controller Name:	HPE MR408i-o Gen11 SPDM
Channel Qty:	8
RAID Level:	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Buffer Size:	4 GB
Optical Storage
Type:	No optical drive
Monitor
Monitor Type:	None.
Graphics Controller
Video Memory:	16 MB
Video Interfaces:	VGA
Networking
Interface (Bus) Type:	Open Compute Project mezzanine (OCP) 3.0
Ethernet Ports:	4 x Gigabit Ethernet
Ethernet Controller:	Broadcom BCM5719
Data Link Protocol:	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller:	Integrated Lights-Out 6
Features:	Wake on LAN (WoL), PXE support
Compliant Standards:	OCP 3.0
Expansion / Connectivity
Bays:	1 (total) / 1 (free) x external Universal Media Bay 8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots:	2 (total) / 2 (free) x FlexibleLOM 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height 1 (total) / 1 (free) x PCIe 5.0 x16 - full-length, full-height (x8 mode) 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x8 mode)
Interfaces:	1 x USB 3.0 (1 in front) (HPE iLO Service Port) 4 x USB 3.0 (2 rear, 2 internal) 1 x HPE iLO - RJ-45 (1 rear) 1 x VGA (1 rear) 4 x LAN (Gigabit Ethernet)
Miscellaneous
Included Accessories:	HPE Easy Install Rails
Compliant Standards:	AES, TLS v1.2, ACPI 6.3, ASHRAE Class A3, ASHRAE Class A4, ErP Lot 9, WEEE 2002/95/EC, FIPS 140-2, low halogen, Triple DES, SMBIOS 3.2, Redfish API
Manufacturer Selling Program:	HPE Smart Choice
Power
Device Type:	Power supply - hot-plug
Power Redundancy:	Yes
Power Redundancy Scheme:	1+1
Installed Qty:	2
Max Supported Qty:	2
Voltage Required:	AC 100-240 V
Power Provided:	1000 Watt
80 PLUS Certification:	80 PLUS Titanium
Operating System / Software
OS Provided:	No operating system
OS Certified:	Microsoft Windows Server, VMware ESXi, Red Hat Enterprise Linux, Canonical Ubuntu, Oracle Linux
Software:	HPE Server UEFI
Manufacturer Warranty
Service & Support:	Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Width:	44.8 cm
Depth:	72.7 cm
Height:	8.75 cm
Weight:	16 kg
Environmental Parameters
Min Operating Temperature:	10 °C
Max Operating Temperature:	35 °C
Humidity Range Operating:	8 - 90% RH (non-condensing)
