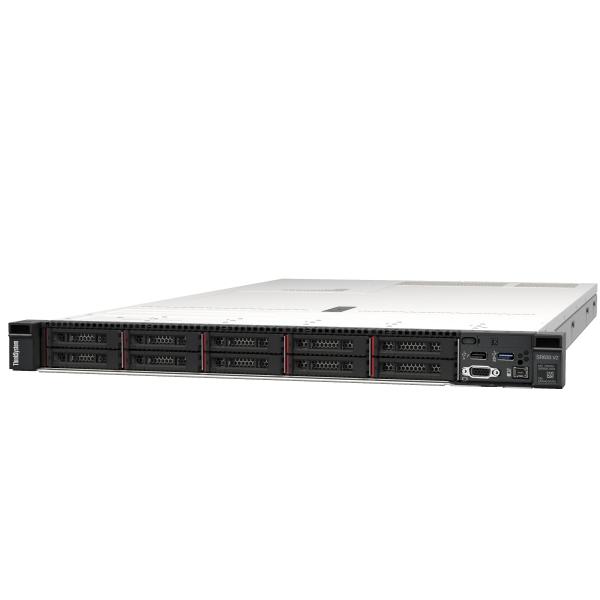

Сървър Lenovo ThinkSystem SR630 V2, Intel Xeon Silver 4310 12C (2.1/3.3GHz, 18MB Cache/120W), 32GB DDR4 RDIMM, 8x SAS/SATA без HDD, RAID контролер 930-8i, 1x 1GbE XCC Remote Management RJ45, 1x1100W Titanium PSU, Free DOS
изчерпан
Сървър Lenovo ThinkSystem SR630 V2, Intel Xeon Silver 4310 12C (2.1/3.3GHz, 18MB Cache/120W), 32GB DDR4 RDIMM, 8x SAS/SATA без HDD, RAID контролер 930-8i, 1x 1GbE XCC Remote Management RJ45, 1x1100W Titanium PSU, Free DOS

Сървър Lenovo ThinkSystem SR630 V2, Intel Xeon Silver 4310 12C (2.1/3.3GHz, 18MB Cache/120W), 32GB DDR4 RDIMM, 8x SAS/SATA без HDD, RAID контролер 930-8i, 1x 1GbE XCC Remote Management RJ45, 1x1100W Titanium PSU, Free DOS

SKU: 7Z71A089EA
ID: #37379

Характеристики

Серия: Think System SR630
Чипсет: Intel C621A
Процесор, серия: Intel Xeon Silver (12-ядрен)
Процесор: Intel Xeon Silver 4310 (12 core, 2.1 GHz, 18 MB, 120W)
Брой процесори: 1
Поддържани процесори: 2
Памет, GB: 32GB DDR4 3200MHz
Памет, слотове: 32 (Общо) / 31 (празно)
Брой поддържани дискове: до 8 x 2.5” LFF
Поддръжка на RAID: SATA RAID 0, 1, 5, 6, 10, 50, 60
Видео карта, модел: Matrox G200
Оптично устройство: Не
Съвместими операционни системи: Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Разширителен слот: 2x LP Gen4
Интерфейс: Front: 1x USB 3.1 G1 (5 Gb/s), 1x USB 2.0 (also for XCC local management), External diagnostics port, optional VGA; Rear: 3x USB 3.1 G1 (5 Gb/s), 1x VGA, 1x RJ-45 1GbE systems management port for XCC remote management. Internal: 1x USB 3.1 G1
Мрежа: Dedicated OCP 3.0 SFF slot with PCIe 4.0 x16 host interface. Supports a variety of 2-port and 4-port adapters with 1GbE, 10GbE and 25GbE network connectivity. 1 port can optionally be shared with the XClarity Controller (XCC) management processor
Порт за отдалечено управление: 1x RJ-45 1GbE for XCC remote management
Тип на шасито: Hot-Plug
Мощност на захранващ блок (W): 1100 W
Форм-фактор: 1U Rack
Софтуер: Free DOS
Гаранция (месеца): 36

Направи запитване

Описание

LENOVO ThinkSystem SR630 V2 Xeon Silver 4310 12C 2.1GHz 18MB 32GB 3200MHz RDIMM 8x 2.5in 930-8i 2GB NoLAN 1x1100W Titanium XCC Ent

Manufacturer LENOVO
Manufacturer Part No 7Z71A089EA

General
Type Server
Product Form Factor Rack-mountable - 1U
Built-in Devices 6 x fans
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability 2-way
Hot-Swap Bays Qty 8
Localisation Region: EMEA
Processor / Chipset
CPU Intel Xeon Silver 4310
Clock Speed 2.1 GHz
Max Turbo Speed 3.3 GHz
Number of Cores 12-core
CPU Qty 1
Max CPU Qty 2
Chipset Type Intel C621A
Cache Memory
Installed Size L3 Cache - 18 MB
Cache Per Processor 18 MB
RAM
Installed Size 32 GB / 8 TB (max)
Technology DDR4 SDRAM - ECC
Effective Memory Speed 2667 MHz
Rated Memory Speed 3200 MHz
Form Factor DIMM 288-pin
Slots 32 (Total) / 31 (empty)
Features Registered, Memory Mirroring, mixing of different types of memory modules is not supported, slots 17 - 32 are available in two-processor configuration only
Configuration Features 1 x 32 GB
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - PCIe 3.0 x8
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name ThinkSystem RAID 930-8i
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Buffer Size 2 GB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Graphics Processor Matrox G200
Video Memory 16 MB
Video Interfaces VGA
Networking
Remote Management Controller XClarity Controller (XCC) Enterprise
Expansion / Connectivity
Bays 8 (total) / 8 (free) x hot-swap 2.5"
Slots 1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0
2 (total) / 2 (free) x PCIe 4.0 x16 (low-profile)
Interfaces 4 x USB 3.1 Gen 1 (1 front, 3 rear)
1 x USB 2.0 (1 in front)
2 x VGA (1 front, 1 rear)
1 x management
1 x diagnostics
1 x USB 3.1 Gen 1 (1 internal)
Miscellaneous
Theft/Intrusion Protection Chassis intrusion switch
Compliant Standards BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC Part 15 A, GB 17625.1, CECP, VCCI Class A, EN 50581, GB 4943.1, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, CELP, HJ 2507-2011, CNS 15663 section 5, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135
Power
Device Type Power supply - hot-plug
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 100-240 V (50/60 Hz)
Power Provided 1100 Watt
80 PLUS Certification 80 PLUS Titanium
Operating System / Software
OS Provided No operating system
Sustainability Information
EPEAT Compliant EPEAT Bronze
ENERGY STAR Certified Yes
ENERGY STAR Version 3.0
Manufacturer Warranty
Service & Support Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Dimensions & Weight Details 58.7 cm - 99.8 cm - 22.5 cm
Width 44 cm
Depth 77.3 cm
Height 4.3 cm
Weight 20.8 kg

https://lenovopress.lenovo.com/lp1391-thinksystem-sr630-v2-server#comparing-the-sr630-v2-to-the-sr630

Technical data provided by third party. We assume no liability for errors within these data.
