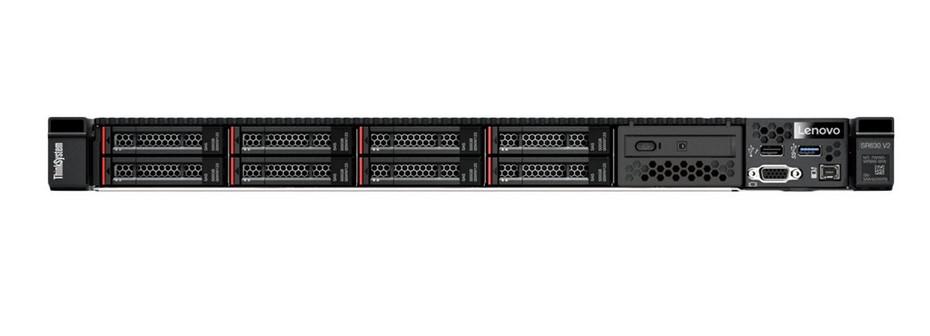

Сървър Lenovo ThinkSystem SR630 V2, Intel Xeon Silver 4309Y 8C (2.8/3.6GHz, 12MB Cache/105W), 32GB DDR4 RDIMM, 8x SAS/SATA без HDD, RAID контролер 930-8i, 1x 1GbE XCC Remote Management RJ45, 1x1100W Titanium PSU, Free DOS

SKU: 7Z71A088EA

ID: #41219

Характеристики

Серия: Think System SR630

Чипсет: Intel C621A

Процесор, серия: Intel Xeon Silver (8-ядрен)

Процесор: Intel Xeon Silver 4309Y 2.80 GHz, 8-core, 12MB Cache

Брой процесори: 1

Поддържани процесори: 2

Памет, GB: 32GB DDR4 3200MHz

Памет, слотове: 32 (Общо) / 31 (празно)

Максимална памет, GB: 8 TB (max)

Брой поддържани дискове: до 8 x 2.5” LFF

Поддръжка на RAID: SATA RAID 0, 1, 5, 6, 10, 50, 60

Видео карта, модел: Matrox G200

Оптично устройство: Не

Видео интерфейс: VGA

Мрежа: Gigabit Ethernet (RJ-45)

Мощност на захранващ блок (W): 1100 W

Форм-фактор: 1U Rack

Софтуер: Free DOS

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

LENOVO SR630 V2 Xeon Silver 4309Y 8C 2.8GHz 12MB Cache/105W 32GB 1x32GB 3200MHz 2Rx4 RDIMM 8 SAS/SATA 930-8i 1x1100W Titanium 6


Manufacturer	LENOVO
Manufacturer Part No	7Z71A088EA

General
Type	Server
Product Form Factor	Rack-mountable - 1U
Built-in Devices	6 x fans
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability	2-way
Hot-Swap Bays Qty	8
Localisation	Region: EMEA
Processor / Chipset
CPU	Intel Xeon Silver 4309Y
Clock Speed	2.8 GHz
Max Turbo Speed	3.6 GHz
Number of Cores	8-core
CPU Qty	1
Max CPU Qty	2
Chipset Type	Intel C621A
Cache Memory
Installed Size	L3 Cache - 12 MB
Cache Per Processor	12 MB
RAM
Installed Size	32 GB / 8 TB (max)
Technology	DDR4 SDRAM - ECC
Effective Memory Speed	2667 MHz
Rated Memory Speed	3200 MHz
Form Factor	DIMM 288-pin
Slots	32 (Total) / 31 (empty)
Features	Registered, Memory Mirroring, mixing of different types of memory modules is not supported, slots 17 - 32 are available in two-processor configuration only
Configuration Features	1 x 32 GB
Hard Drive
Type	No HDD
Storage Controller
Type	1 x RAID - PCIe 3.0 x8
Controller Interface Type	SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name	ThinkSystem RAID 930-8i
Channel Qty	8
RAID Level	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, JBOD, RAID 60
Buffer Size	2 GB
Optical Storage
Type	No optical drive
Monitor
Monitor Type	None.
Graphics Controller
Graphics Processor	Matrox G200
Video Memory	16 MB
Video Interfaces	VGA
Networking
Remote Management Controller	XClarity Controller (XCC) Enterprise
Expansion / Connectivity
Bays	8 (total) / 8 (free) x hot-swap 2.5"
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 / Open Compute Project mezzanine (OCP) 3.0 2 (total) / 2 (free) x PCIe 4.0 x16 (low-profile)
Interfaces	4 x USB 3.1 Gen 1 (1 front, 3 rear) 1 x USB 2.0 (1 in front) 2 x VGA (1 front, 1 rear) 1 x management 1 x diagnostics 1 x USB 3.1 Gen 1 (1 internal)
Miscellaneous
Theft/Intrusion Protection	Chassis intrusion switch
Compliant Standards	BSMI CNS 13438 Class A, EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC Part 15 A, GB 17625.1, CECP, VCCI Class A, EN 50581, GB 4943.1, KN35, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, EN 55035, CISPR 35, CELP, HJ 2507-2011, CNS 15663 section 5, TP EAC 037/2016, AS/NZS 62368.1, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135
Power
Device Type	Power supply - hot-plug
Power Redundancy	Optional
Power Redundancy Scheme	1+1 (with optional power supply)
Installed Qty	1
Max Supported Qty	2
Voltage Required	AC 100-240 V (50/60 Hz)
Power Provided	1100 Watt
80 PLUS Certification	80 PLUS Titanium
Operating System / Software
OS Provided	No operating system
Sustainability Information
EPEAT Compliant	EPEAT Bronze
ENERGY STAR Certified	Yes
ENERGY STAR Version	3.0
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Dimensions & Weight Details	58.7 cm - 99.8 cm - 22.5 cm
Width	44 cm
Depth	77.3 cm
Height	4.3 cm
Weight	20.8 kg

https://lenovopress.lenovo.com/lp1391-thinksystem-sr630-v2-server#comparing-the-sr630-v2-to-the-sr630

Technical data provided by third party. We assume no liability for errors within these data.
