Сървър LENOVO ThinkSystem ST50 V2 Intel Xeon E-2324G 4C 3.1GHz 65W, 1x8GB 3200MHz UDIMM, 2x1TB 7200 SATA SW RD, 1x500W, 7D8JA00PEA

SKU: 4535011

ID: #27057

Характеристики

Серия: ThinkSystem ST50

Чипсет: Intel C256

Процесор, серия: Intel Xeon (4-ядрен)

Процесор: Intel Xeon E-2324G (4C/4T, 3.10 GHz, up to 4.6 GHz, 3,200 MHz)

Памет, GB: 8GB DDR4 3200MHz

Памет, слотове: 4 (Общо) / 3 (празно)

Максимална памет, GB: 64 GB (max)

Твърд диск, GB: 2 x 1TB

Видео карта, модел: Intel UHD Graphics P750

Оптично устройство: Не

Мрежа: 1 Gigabit Ethernet 10/100/1000T network

Мощност на захранващ блок (W): 500W 80+ Platinum

Форм-фактор: 5U Tower

Софтуер: Не

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

LENOVO ThinkSystem ST50 V2 Intel Xeon E-2324G 4C 3.1GHz 65W 1x8GB 3200MHz UDIMM 2x1TB 7200 SATA SW RD 1x500W


Manufacturer	LENOVO
Manufacturer Part No	7D8JA00PEA

Marketing Description
The ThinkSystem ST50 V2 offers enterprise-class reliability features such as error correcting code (ECC) memory, the onboard RAID controller, and enterprise-class hard drives and network adapters. The server has Intel Active Management Technology (AMT) built-in, along with support for industry-standard management tools. The ST50 V2 runs a wide range of server operating systems and is quiet enough and small enough to fit under or beside an office desk.
Product Features
Improved single-socket processor performance Up to four 3200 MHz DDR4 ECC UDIMMs provide speed and capacity of up to 64 GB Three PCIe slots for I/O expansion, one of which has a PCIe Gen4 interface to maximize I/O performance Support for an NVMe M.2 drive for OS boot operations Up to three non-hot-swap (NHS) drive bays, two 3.5-inch and one 2.5-inch, supporting hard disk drives (HDDs) or solid-state drives (SSDs) provide flexible internal storage capacity
General
Type	Server
Product Form Factor	Tower - 5U
Built-in Devices	Rear system fan
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability	1-way
Internal Bays Qty	3
Front Accessible Bays Qty	1
Localisation	Region: EMEA
Processor / Chipset
CPU	Intel Xeon E-2324G
Clock Speed	3.1 GHz
Max Turbo Speed	4.6 GHz
Number of Cores	Quad-Core
CPU Qty	1
Max CPU Qty	1
Processor Main Features	Intel Turbo Boost Technology 2
CPU Socket	LGA1200 Socket
Chipset Type	Intel C256
Cache Memory
Installed Size	8 MB
Cache Per Processor	8 MB
RAM
Installed Size	8 GB / 64 GB (max)
Technology	DDR4 SDRAM - ECC
Effective Memory Speed	3200 MHz
Rated Memory Speed	3200 MHz
Form Factor	DIMM 288-pin
Slots	4 (Total) / 3 (empty)
Features	Unbuffered
Configuration Features	1 x 8 GB
Hard Drive
Type	HDD
Capacity	2 x 1 TB
Interface Type	SATA
Storage Controller
Type	1 x SATA
Controller Interface Type	SATA 6Gb/s
Channel Qty	3
RAID Level	JBOD
Optical Storage
Type	No optical drive
Monitor
Monitor Type	None.
Graphics Controller
Graphics Processor	Intel UHD Graphics P750
Video Interfaces	DisplayPort
Networking
Ethernet Controller	Intel I219-LM
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Features	Wake on LAN (WoL), Teaming support, Intel Active Management Technology (AMT) 15
Compliant Standards	DASH 1.1
Expansion / Connectivity
Bays	1 (total) / 1 (free) x external 5.25" 2 (total) / 0 (free) x internal 3.5" 1 (total) / 1 (free) x internal 2.5"
Slots	1 (total) / 1 (free) x PCIe 4.0 x16 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x1 - half-length, full-height 1 (total) / 1 (free) x PCIe 3.0 x16 - half-length, full-height (x4 mode)

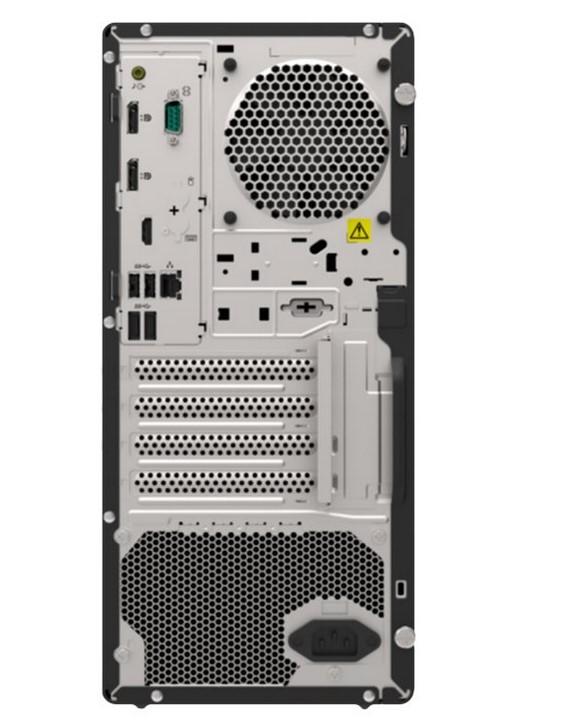

Interfaces	1 x USB-C 3.2 Gen 2 (1 in front) 2 x USB 3.2 Gen 2 (2 in front) 6 x USB 3.2 Gen 1 (2 front, 4 rear) 2 x DisplayPort 1 x LAN (Gigabit Ethernet) 1 x serial 1 x audio line-out
Miscellaneous
Cables Included	DisplayPort-VGA adapter
Theft/Intrusion Protection	Security lock slot (cable lock sold separately), padlock loop
Security Slot Type	Kensington security slot
Compliant Standards	TUV GS, BSMI, IEC 60950-1, GB 17625.1, VCCI Class A, GB 4943.1, INMETRO, NOM-019, EK1-ITB2000, UL 2819, AS/NZS CISPR 32 Class A, KN32 Class A, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, TP TC 004/2011, HJ 2507-2011, Energy-Related Products (ErP) Lot 9, TP EAC 037/2016, ANSI/UL 62368-1, ICES-003 issue 7 Class A, GB/T9254, CQC3135, CSA C22.2 No. 62368-1, CMIM
Power
Device Type	Power supply
Voltage Required	AC 100-240 V (50/60 Hz)
Power Provided	500 Watt
80 PLUS Certification	80 PLUS Platinum
Efficiency	92%
Operating System / Software
OS Provided	No operating system
Manufacturer Warranty
Service & Support	Limited warranty - 3 years - on-site - response time: next business day
Dimensions & Weight
Width	17 cm
Depth	31.6 cm
Height	37.6 cm
Weight	9.4 kg
Dimensions & Weight (Shipping)
Shipping Width	28 cm
Shipping Depth	42 cm
Shipping Height	54 cm
Environmental Parameters
Min Operating Temperature	10 °C
Max Operating Temperature	35 °C
Humidity Range Operating	8 - 80%
