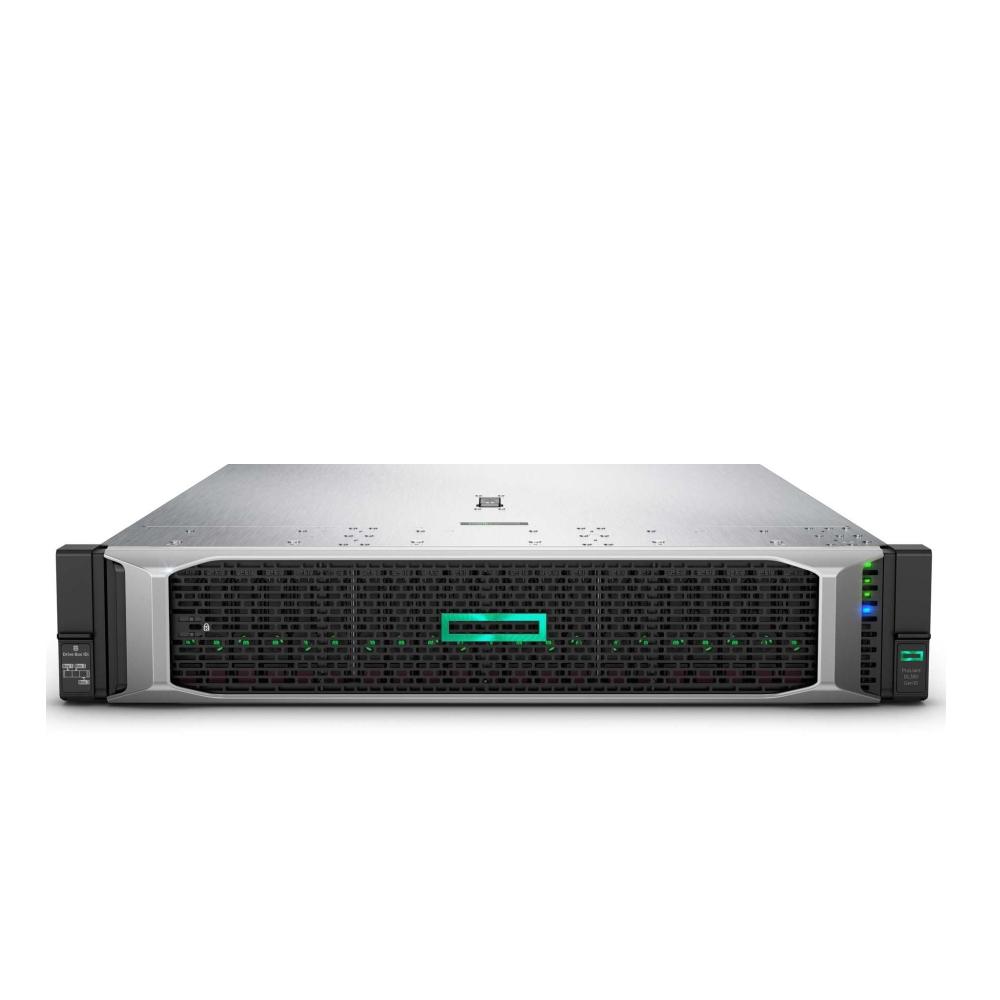

Сървър HPE DL380 G10, Cascade Lake Intel Xeon 4210R 10C (2.4/3.2 GHz, 13.75MB Cache), 32GB RDIMM DDR4, без HDD 24x 2.5” SFF, RAID контролер HPE Smart Array P408i-a, 1x 1GbE, 800W PSU, Free DOS
изчерпан
Сървър HPE DL380 G10, Cascade Lake Intel Xeon 4210R 10C (2.4/3.2 GHz, 13.75MB Cache), 32GB RDIMM DDR4, без HDD 24x 2.5” SFF, RAID контролер HPE Smart Array P408i-a, 1x 1GbE, 800W PSU, Free DOS

Сървър HPE DL380 G10, Cascade Lake Intel Xeon 4210R 10C (2.4/3.2 GHz, 13.75MB Cache), 32GB RDIMM DDR4, без HDD 24x 2.5” SFF, RAID контролер HPE Smart Array P408i-a, 1x 1GbE, 800W PSU, Free DOS

SKU: P24840-B21
ID: #25186

Характеристики

Серия: DL380 G10
Чипсет: Intel C621
Процесор, серия: Intel Xeon Silver (10-ядрен)
Процесор: Intel Xeon-Silver 4210R (2.4GHz/10-core/100W/13.75MB)
Памет, GB: 32GB DDR4 2400MHz
Памет, слотове: 24 (Общо) / 23 (празно) DDR4 ECC
Максимална памет, GB: 1.5 TB (max)
Брой поддържани дискове: 24 SFF (upgradeable + 6SFF rear)
Поддръжка на RAID: RAID 0, RAID 1, RAID 5, RAID 10, RAID 50, RAID 60
Оптично устройство: Не
Съвместими операционни системи: Windows Server 2012 R2, Windows Server 2016, VMware ESXi 6.0 U3, VMware ESXi 6.5 and U1, Red Hat Enterprise Linux (RHEL) 6.9 and 7.3, SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2, ClearOS, CentOS
Разширителен слот: 3-slots (x8, x16, x8 with dual m.2) as standard; upgradeable to 8-slots in a 2 processor configuration
Интерфейс: 5xUSB (Front: 1x USB 3.0 + iLO service port, Rear: 2x USB 3.0, Internal: 2x USB 3.0); 1 MicroSD slot; 2x Video (1 Front - Display port, 1 Rear - VGA port), 4x 1GbE embedded NIC, FlexibleLOM slot
Мрежа: HPE Ethernet 1Gb 4-port FLR-T I350-T4V2 Adapter (665240- B21) plus optional stand-up card; Notes: No embedded networking
Порт за отдалечено управление: 1 Gb Dedicated
Тип на шасито: Hot-Plug
Мощност на захранващ блок (W): 800 W
Форм-фактор: 2U Rack
Софтуер: Free DOS
Гаранция (месеца): 36

Направи запитване

Описание

HPE ProLiant DL380 Gen10 2HE Xeon-S 4210R 10-Core 2.4GHz 1x32GB-R 24xSFF Hot Plug NC P408i-a 800W Server

Manufacturer HEWLETT PACKARD ENTERPRISE
Manufacturer Part No P24840-B21

Marketing Description
Adaptable for diverse workloads and environments, the secure ProLiant DL380 Gen10 delivers world-class performance with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, it is ideal for multiple environments.
Product Features
  • Defend applications and data
    The line of defense against cyber-attackers with select servers built to the tough security standards in secured facilities, bringing together security, processes, and people to deliver protection for your most sensitive applications and data even before your server is built.
  • Flexible design making your investment expand as your business needs grow
    The HPE ProLiant DL380 Gen10 server has an adaptable chassis, including Hewlett Packard Enterprise modular drive bay configuration. Adapting and growing to changing business needs, Networking Choice (NC) server models provide flexibility in the primary networking choice.
General
Type Server
Product Form Factor Rack-mountable - 2U
Server Scalability 2-way
Hot-Swap Bays Qty 24
Localisation Region: Worldwide (excluding China, Japan)
Processor / Chipset
CPU Intel Xeon Silver 4210R
Clock Speed 2.4 GHz
Max Turbo Speed 3.2 GHz
Number of Cores 10-core
CPU Qty 1
Max CPU Qty 2
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket FCLGA3647 Socket
Chipset Type Intel C621
Cache Memory
Installed Size L3 Cache - 13.75 MB
Cache Per Processor 13.75 MB
RAM
Installed Size 32 GB / 1.5 TB (max)
Technology DDR4 SDRAM - Advanced ECC
Effective Memory Speed 2400 MHz
Rated Memory Speed 2933 MHz
Form Factor DIMM 288-pin
Slots 24 (Total) / 23 (empty)
Features Registered, dual rank, slots 13 - 24 are available in two-processor configuration only, HPE SmartMemory
Configuration Features 1 x 32 GB
RAM Supported 3 TB Load-Reduced - ECC
1.5 TB registered - ECC
192 GB Non-Volatile - ECC
6 TB - HPE Persistent Memory - Optane DC Persistent
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID - PCIe 3.0 x8
Controller Interface Type SATA 6Gb/s / SAS 12Gb/s
Storage Controller Name HPE Smart Array P408i-a
Channel Qty 8
RAID Level RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM
Buffer Size 2 GB
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Video Memory 16 MB
Video Interfaces VGA
Networking
Ethernet Ports 4 x Gigabit Ethernet
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller Integrated Lights-Out 5
Features Wake on LAN (WoL), ACPI support, PXE support
Expansion / Connectivity
Bays 24 (total) / 24 (free) x hot-swap 2.5" SFF
Slots 1 (total) / 1 (free) x PCIe 3.0 x8 - full-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x16 - full-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height
Interfaces 1 x HPE iLO - Type A (1 in front)
5 x USB 3.0 (1 front, 2 rear, 2 internal)
1 x HPE iLO - RJ-45
4 x LAN (Gigabit Ethernet) - RJ-45
1 x VGA
Miscellaneous
Included Accessories Cable management arm, 6 performance fans, SFF Easy install rails
Compliant Standards AES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1
Power
Device Type Power supply - hot-plug
Power Redundancy Scheme 1+1 (with optional power supply)
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 120/230 V (50/60 Hz)
Power Provided 800 Watt
80 PLUS Certification 80 PLUS Platinum
Operating System / Software
OS Certified CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5, SuSE Linux Enterprise Server 12 SP2, ClearOS
Sustainability Information
ENERGY STAR Certified Yes
ENERGY STAR Version 3.0
Manufacturer Warranty
Service & Support Limited warranty - parts and labour - 3 years - on-site
Dimensions & Weight
Width 44.55 cm
Depth 73.03 cm
Height 8.74 cm
Weight 14.76 kg
Environmental Parameters
Min Operating Temperature 10 °C
Max Operating Temperature 35 °C
Humidity Range Operating 8 - 90% (non-condensing)
Technical data provided by third party. We assume no liability for errors within these data.
