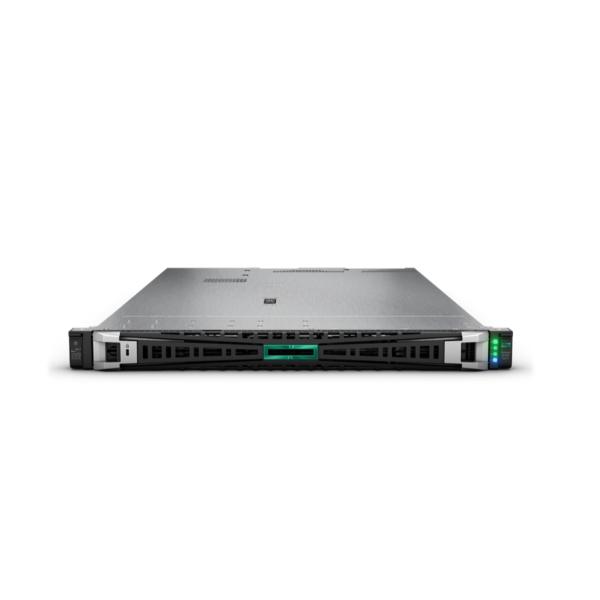

Сървър HPE DL360 G11, Xeon 5416S, 2GB-R, NC, 8SFF, 800W PS Server
Сървър HPE DL360 G11, Xeon 5416S, 2GB-R, NC, 8SFF, 800W PS Server

Сървър HPE DL360 G11, Xeon 5416S, 2GB-R, NC, 8SFF, 800W PS Server

SKU: P51931-421
ID: #35512
Цена: 10 482,00 лв.
Цената е с вкл. ДДС

Характеристики

Серия: DL360 G11
Процесор: Intel Xeon Gold 5416S (16 core, 2.0 GHz, 30 MB L3, 150W)
Памет, GB: 32 GB RDIMM 2Rx8 4800 MT/s (1x 32 GB) (P43328-B21) Notes: Runs at 4400 MT/s due to processor limitation.
Памет, слотове: 32 DIMM slots (16 DIMM slots per processor, 8 channels per processor, 2 DIMMs per channel), RDIMM< Max 8.0 TB
Твърд диск, GB: Няма
Брой поддържани дискове: 8 SFF NC CTO Server (upgradeable to 8+2 SFF front)
Дисков контролер: Embedded Intel VROC SATA for HPE ProLiant Gen11, with 14 SATA ports (10-ports accessible)
Оптично устройство: Не
Съвместими операционни системи: Microsoft Windows Server, VMware ESXi , Red Hat Enterprise Linux (RHEL), SUSE Linux Enterprise Server (SLES), Canonical Ubuntu, Oracle Linux and Oracle VM, SAP Linux
Разширителен слот: 2-slots (x16 FH, x16 HH)
Интерфейс: 5 USB (Front: 1 USB 3.2 Gen1 + iLO service port, Rear: 2 USB 3.2 Gen1, Internal: 1 USB 3.2 Gen1 + 1 USB 2.0); 1 Front iLO Service Port, 1 VGA
Мрежа: Broadcom BCM57416 Ethernet 10Gb 2-port BASE-T Adapter for HPE (P26253-B21) Notes: No embedded networking
Порт за отдалечено управление: 1 GbE Dedicated
Тип на шасито: Hot-Plug
Форм-фактор: 1U Rack
Гаранция (месеца): 36

Бърза Поръчка

Описание

Technical data provided by third party. We assume no liability for errors within these data.
Type Server
Product Form Factor Rack-mountable - 1U
Built-in Devices Led panel
Embedded Security Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability 2-way
Hot-Swap Bays Qty 8
Localisation Region: European Union
Processor / Chipset
CPU Intel Xeon Gold 5416S
Clock Speed 2 GHz
Max Turbo Speed 4 GHz
Number of Cores 16-core
CPU Qty 1
Max CPU Qty 2
CPU Upgradability Upgradable
Processor Main Features Hyper-Threading Technology, Intel Turbo Boost Technology 2
CPU Socket LGA4677 Socket-E
Chipset Type Intel C741
Cache Memory
Installed Size L3 Cache - 30 MB
Cache Per Processor 30 MB
RAM
Installed Size 32 GB / 4 TB (max)
Technology DDR5 SDRAM - Advanced ECC
Effective Memory Speed 4400 MHz
Rated Memory Speed 4800 MHz
Form Factor DIMM 288-pin
Slots 16 (Total) / 15 (empty)
Features Registered, dual rank, 8-channel memory architecture, HPE SmartMemory, slots 17 - 32 are available in two-processor configuration only
Configuration Features 1 x 32 GB
Hard Drive
Type No HDD
Storage Controller
Type 1 x RAID
Controller Interface Type SATA 6Gb/s
Storage Controller Name Intel VROC SATA Software RAID
Channel Qty 14
RAID Level RAID 0, RAID 1, RAID 5, RAID 10
Optical Storage
Type No optical drive
Monitor
Monitor Type None.
Graphics Controller
Video Memory 16 MB
Video Interfaces VGA
Networking
Interface (Bus) Type PCI Express 3.0 x8
Ethernet Ports 2 x 10 Gigabit Ethernet
Ethernet Controller Broadcom BCM57416
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Remote Management Protocol SNMP 3, IPMI 2.0, SMASH CLP
Remote Management Controller Integrated Lights-Out 6
Features Wake on LAN (WoL), PXE support
Expansion / Connectivity
Bays 1 (total) / 1 (free) x external Universal Media Bay
8 (total) / 8 (free) x hot-swap 2.5" SFF
Slots 2 (total) / 2 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode)
Interfaces 1 x HPE iLO - Type A (1 in front)
1 x HPE iLO - RJ-45
4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal)
1 x VGA
2 x LAN (10Gigabit Ethernet)
1 x USB 2.0
Miscellaneous
Included Accessories 5 x standard fans, HPE Easy Install Rail 3 Kit withot CMA
Compliant Standards AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ErP Lot 9, ACPI 6.4
Power
Device Type Power supply - hot-plug
Power Redundancy Optional
Power Redundancy Scheme 1+1 (with optional power supply)
Installed Qty 1
Max Supported Qty 2
Voltage Required AC 100-240 V
Power Provided 800 Watt
80 PLUS Certification 80 PLUS Titanium
Operating System / Software
OS Provided No operating system
Software HPE Server UEFI
Sustainability Information
ENERGY STAR Certified Yes
ENERGY STAR Version 3.0
Manufacturer Warranty
Service & Support Limited warranty - parts and labour - 3 years - on-site - response time: next business day
Dimensions & Weight
Width 43.46 cm
Depth 75.31 cm
Height 4.29 cm
Weight 14.56 kg
Environmental Parameters
Min Operating Temperature 10 °C
Max Operating Temperature 35 °C
Humidity Range Operating 8 - 90% RH (non-condensing)
