Серия:

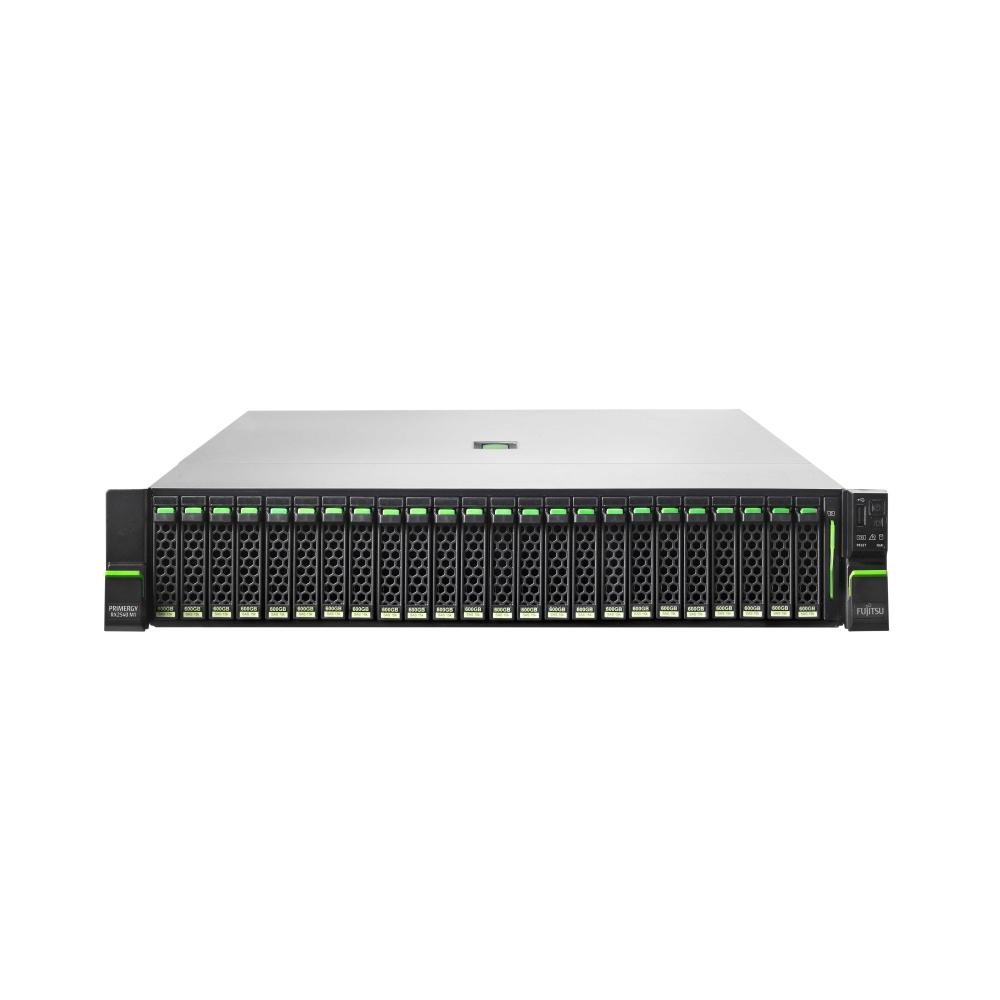

PRIMERGY RX2520 M5
Процесор:
Intel Xeon Silver 4210 (10C, 2.20 GHz, TLC: 13.75 MB, Turbo: 2.70 GHz, 9.6 GT/s, Mem bus: 2,400 MHz, 85 W, AVX Base 1.90 GHz, AVX Turbo 2.30 GHz); Two Socket
Памет, GB:
32GB (2x16 GB RG ECC 2933 1R)
Памет, слотове:
12 slots (6 DIMMs per CPU, 6 channels with 1 DIMM per channel), DIMM (DDR4), Memory capacity (min. - max.): 8 GB - 768 GB
Брой поддържани дискове:
8x 2.5-inch SAS/SATA/ PCIe
Твърд диск, GB:
2x Fujitsu SSD SATA, 6 Gb/s, 480 GB, Read-Intensive, hot-plug, 2.5-inch, enterprise, 1.5 DWPD (Drive Writes Per Day for 5 years)
Оптично устройство:
Не
Съвместими операционни системи:
Windows Server, Hyper-V Server 2016, VMware vSphere, SUSE Linux Enterprise Server, Red Hat Enterprise Linux, Univention Corporate Server
Разширителен слот:
PCI-Express 3.0 x8 - 3 x Low profile; PCI-Express 4.0 x16 - 1 x (190 mm) low profile
Интерфейс:
1x USB 2.0 internal for backup devices, 7x USB 3.0 (2x front, 4x rear, 1x internal type A), 1x VGA rear, 1x serial RS-232-C (optional), 2 x Gbit/s Ethernet (RJ45 based on Intel X722
Мрежа:
2 x 1 Gbit/s onboard, PXE-Boot via LAN from PXE server, iSCSI boot (also diskless)
Порт за отдалечено управление:
1x dedicated management LAN port for iRMC S5 (10/100/1000 Mbit/s); Management LAN traffic can be switched to shared onboard Gbit LAN port
Тип на шасито:
Hot-Plug
Форм-фактор:
2U Rack
Гаранция (месеца):
36
