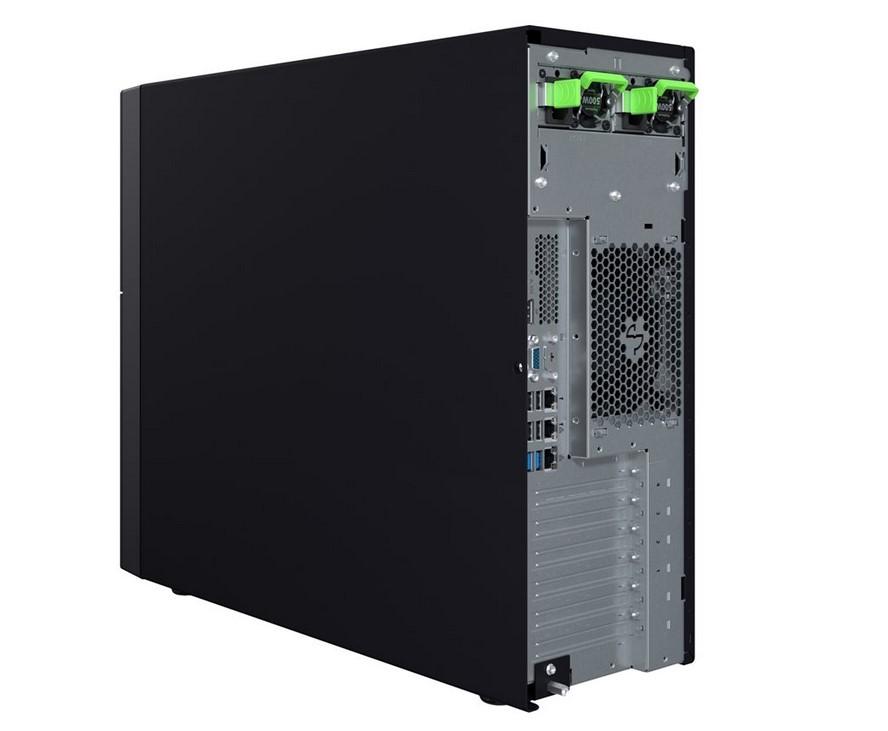

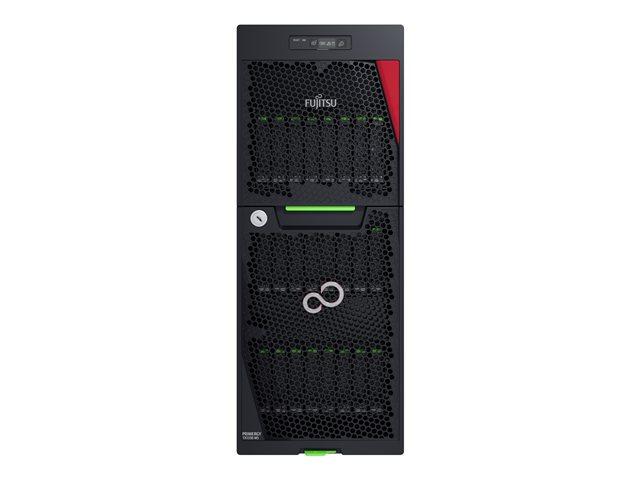

Сървър FUJITSU PRIMERGY TX1330 M5 Xeon E-2336 6C/12T 2.90GHz, 16GB 1Rx8 DDR4-3200 U ECC, без твърд диск Basic 3.5inch kit, 4xLFF hot plug, 500W 80 PLUS Titanium, VFY:T1335SC071IN

SKU: 46146015

ID: #27059

Характеристики

Серия: Primergy TX1330 M5

Чипсет: Intel C256

Процесор, серия: Intel Xeon (6-ядрен)

Процесор: Intel Xeon E-2336 2.9GHz, 12M Cache, 6C/12T, Turbo (65W), 3200 MT/s

Брой процесори: 1

Памет, GB: 16GB DDR4 3200MHz

Памет, слотове: 4 (Общо) / 3 (празно)

Максимална памет, GB: up to 128GB

Твърд диск, GB: Няма

Видео карта, модел: Integrated Graphics

Оптично устройство: Не

Мрежа: 2 x Gigabit Ethernet

Мощност на захранващ блок (W): 500W 80 PLUS Titanium

Форм-фактор: Tower

Софтуер: Не

Гаранция (месеца): 24

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

FUJITSU PRIMERGY TX1330 M5 Xeon E-2336 6C/12T 2.90GHz 16GB 1Rx8 DDR4-3200 U ECC Basic 3.5inch kit 4xLFF hot plug 500W RPSU iRMC adv


Manufacturer	FUJITSU TECHNOLOGY SOLUTIONS
Manufacturer Part No	VFY:T1335SC071IN

Marketing Description
Highly expandable next-generation server for typical SME business requirements.
Product Features
Highly expandable and performance oriented Powerful compute and memory for excellent performance across both individual and virtualized, standard business workloads. Furthermore, the design is ideal for securely managing large datasets with its substantial storage and security features. Keep pace with expanding usage scenarios High-efficiency, redundant power supplies offer enhanced reliability and lower energy expenditure despite heavy usage scenarios. Cool-safe Advanced Thermal Design technology allows for an expanded range of operation and reduced noise, enabling deployment in public areas.
General
Type	Server
Product Form Factor	Tower
Built-in Devices	Status LED
Embedded Security	Trusted Platform Module (TPM 2.0) Security Chip
Server Scalability	1-way
Hot-Swap Bays Qty	4
Localisation	Region: Europe
Processor / Chipset
CPU	Intel Xeon E-2336
Clock Speed	2.9 GHz
Max Turbo Speed	4.8 GHz
Number of Cores	6-core
CPU Qty	1
Max CPU Qty	1
CPU Upgradability	Upgradable
Chipset Type	Intel C256
Cache Memory
Installed Size	12 MB
Cache Per Processor	12 MB
RAM
Installed Size	16 GB / 128 GB (max)
Technology	DDR4 SDRAM - ECC
Effective Memory Speed	3200 MHz
Rated Memory Speed	3200 MHz
Slots	4 (Total) / 3 (empty)
Features	Unbuffered, dual channel memory architecture, single rank
Configuration Features	1 x 16 GB
Hard Drive
Type	No HDD
Storage Controller
Type	SATA
Controller Interface Type	SATA 6Gb/s
Channel Qty	7
Optical Storage
Type	No optical drive
Monitor
Monitor Type	None.
Graphics Controller
Video Interfaces	VGA, DisplayPort
Networking
Ethernet Ports	2 x Gigabit Ethernet
Ethernet Controller	Intel I210
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Controller	Integrated Remote Management Controller (iRMC S6)
Expansion / Connectivity
Bays	4 (total) / 4 (free) x hot-swap 3.5"
Slots	2 PCIe 4.0 x8 - full-height 2 PCIe 3.0 x4 - full-height
Interfaces	4 x USB 2.0 (4 rear) 1 x USB 3.2 Gen 1x1 (1 front) 2 x USB 3.2 Gen 1x1 (2 internal) 2 x USB 3.2 Gen 2 (2 rear) 1 x USB-C 3.2 Gen 2x2 (1 in front) 1 x VGA - DB-15 1 x DisplayPort 2 x LAN (Gigabit Ethernet) - RJ-45 1 x management (Gigabit Ethernet) - RJ-45
Miscellaneous
Compliant Standards	FCC Class A certified, BSMI, GS, ICES-003, CB, CCC, RoHS, WEEE, KC, VCCI Class A, JIS C 61000-3-2, EAC, RCM, NMB-003 Class A, ErP Lot 9, NRTLc/us
Power
Device Type	Power supply - hot-plug
Installed Qty	1
Voltage Required	AC 200-240 V (50/60 Hz)
Power Provided	500 Watt
80 PLUS Certification	80 PLUS Titanium
Efficiency	96%
Operating System / Software
OS Provided	Windows 11 Pro
OS Certified	Microsoft Windows Server 2019 Essentials, Microsoft Windows Server 2019 Standard, Microsoft Windows Server 2019 Datacenter, SUSE Linux Enterprise Server 15, Red Hat Enterprise Linux 8.x, Microsoft Windows Server 2022 Datacenter, Microsoft Windows Server 2022 Standard, Microsoft Windows Server 2022 Essentials, Univention Corporate Server 4
Software	Fujitsu Software Infrastructure Manager (ISM) Essential
Manufacturer Warranty
Service & Support	Limited warranty - 1 year - on-site
Dimensions & Weight
Width	17.47 cm
Depth	49.53 cm
Height	48.26 cm
Weight	26.4 kg
Environmental Parameters
Min Operating Temperature	5 °C
Max Operating Temperature	45 °C
Humidity Range Operating	8 - 85% (non-condensing)
Sound Emission	22 dBA
