Серия:

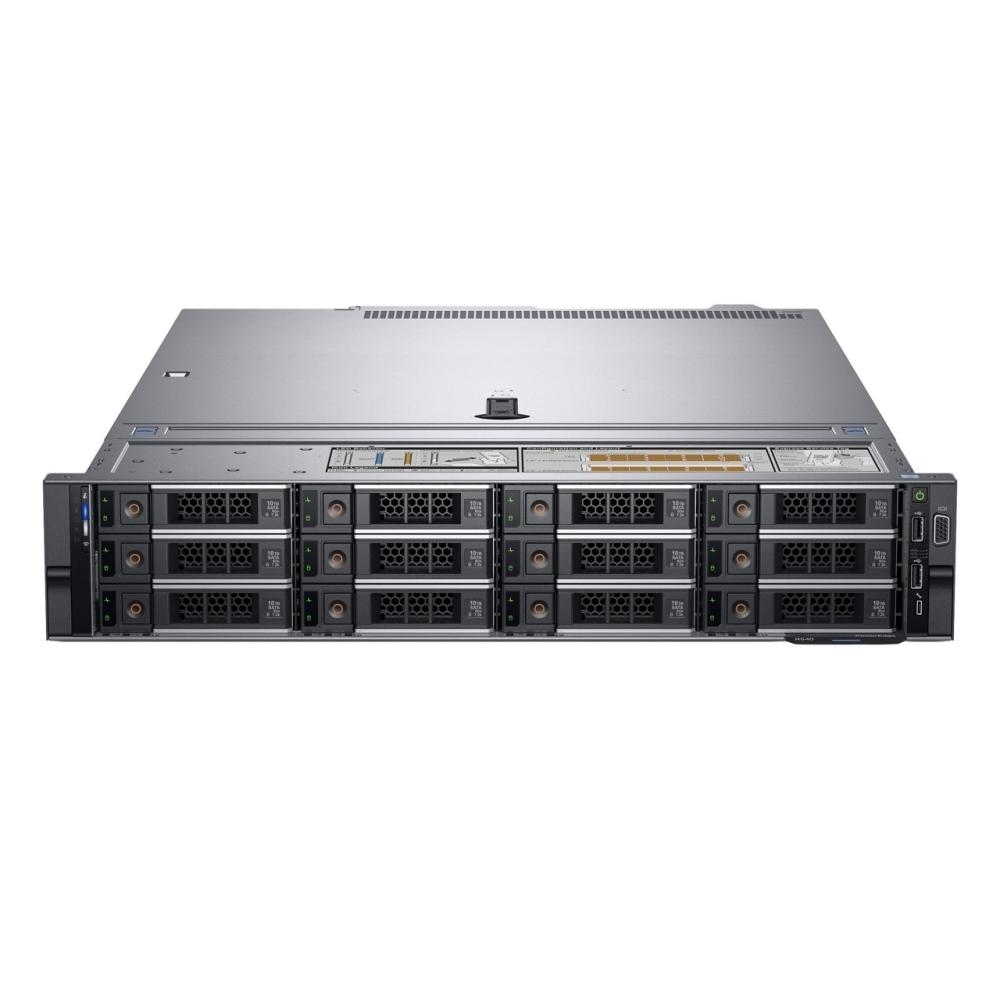

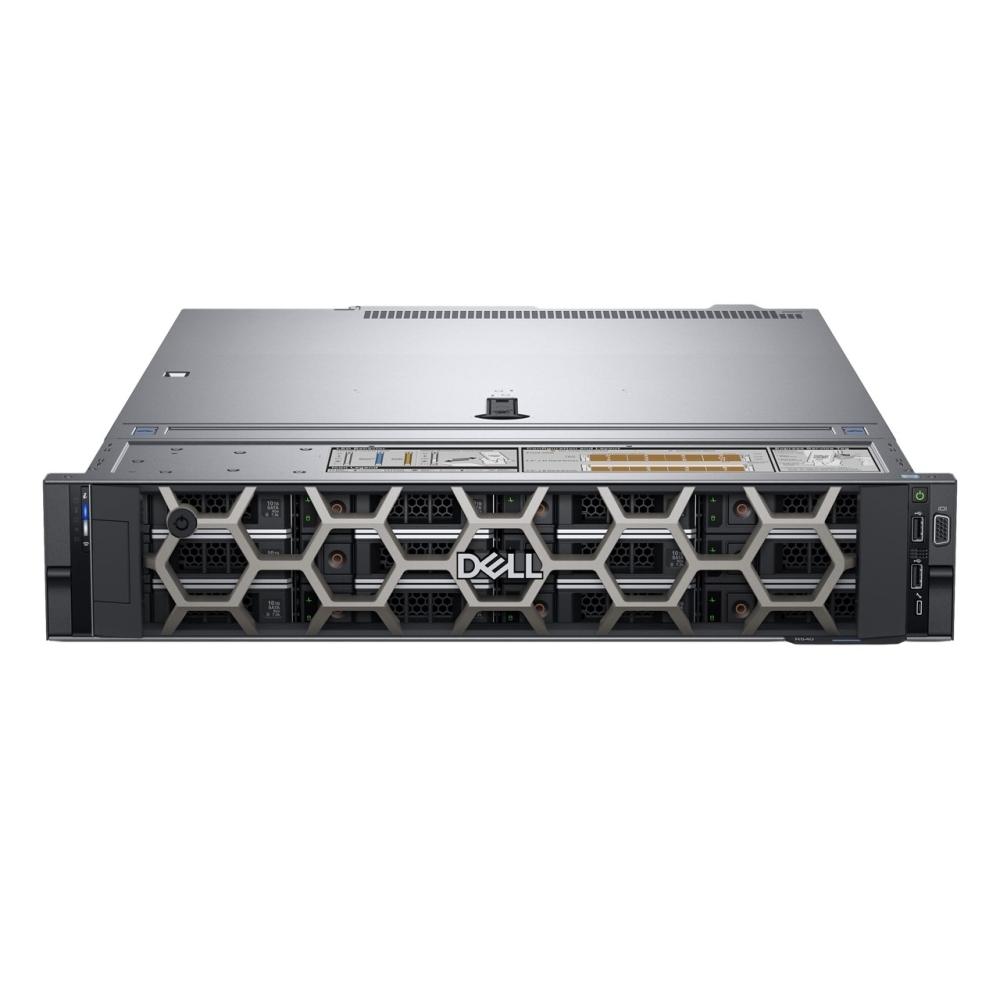

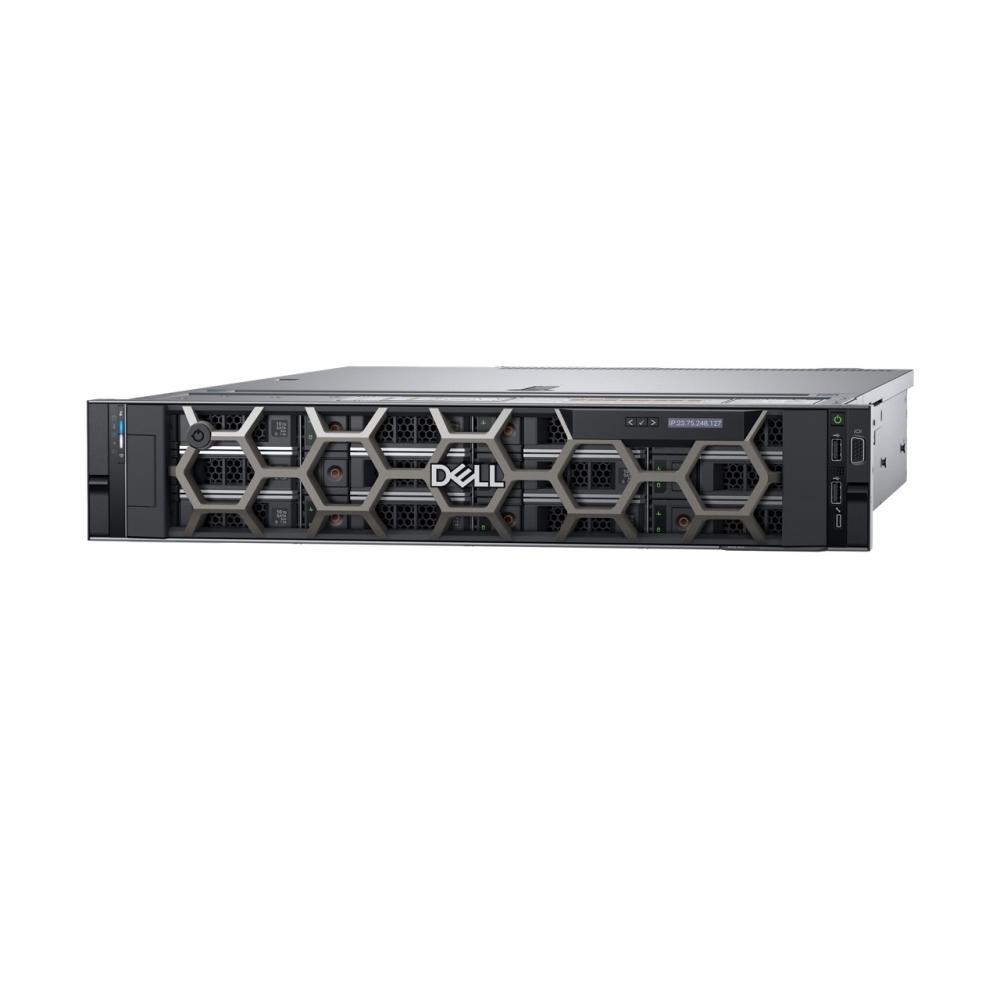

PowerEdge R540
Процесор:
Intel Xeon Silver 4210R 2.4G, 10C/20T, 9.6GT/s, 13.75M Cache, Turbo, HT (100W) DDR4-2400
Памет, GB:
16GB RDIMM, 3200MT/s, Dual Rank
Памет, слотове:
16 DDR4 DIMM slots, Supports RDIMM /LRDIMM, speeds up to 2666 MT/s, 1TB* max
Брой поддържани дискове:
3.5" Chassis with up to 12 Hot Plug Hard Drives
Твърд диск, GB:
480GB SSD SATA Read Intensive 6Gbps 512 2.5in Hot-plug AG Drive,3.5in HYB CARR, 1 DWPD
Оптично устройство:
Не
Съвместими операционни системи:
Canonical Ubuntu LTS, Citrix XenServer, Microsoft Windows Server with Hyper-V, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
Разширителен слот:
PCIe Rear storage config: 1 x HH/HL (1U Left Riser) + 1 x HH/HL (1U Right risers) slot or 1 x HH/HL (1U Left Riser) + 1 x FH/HL (1U Right riser)
Интерфейс:

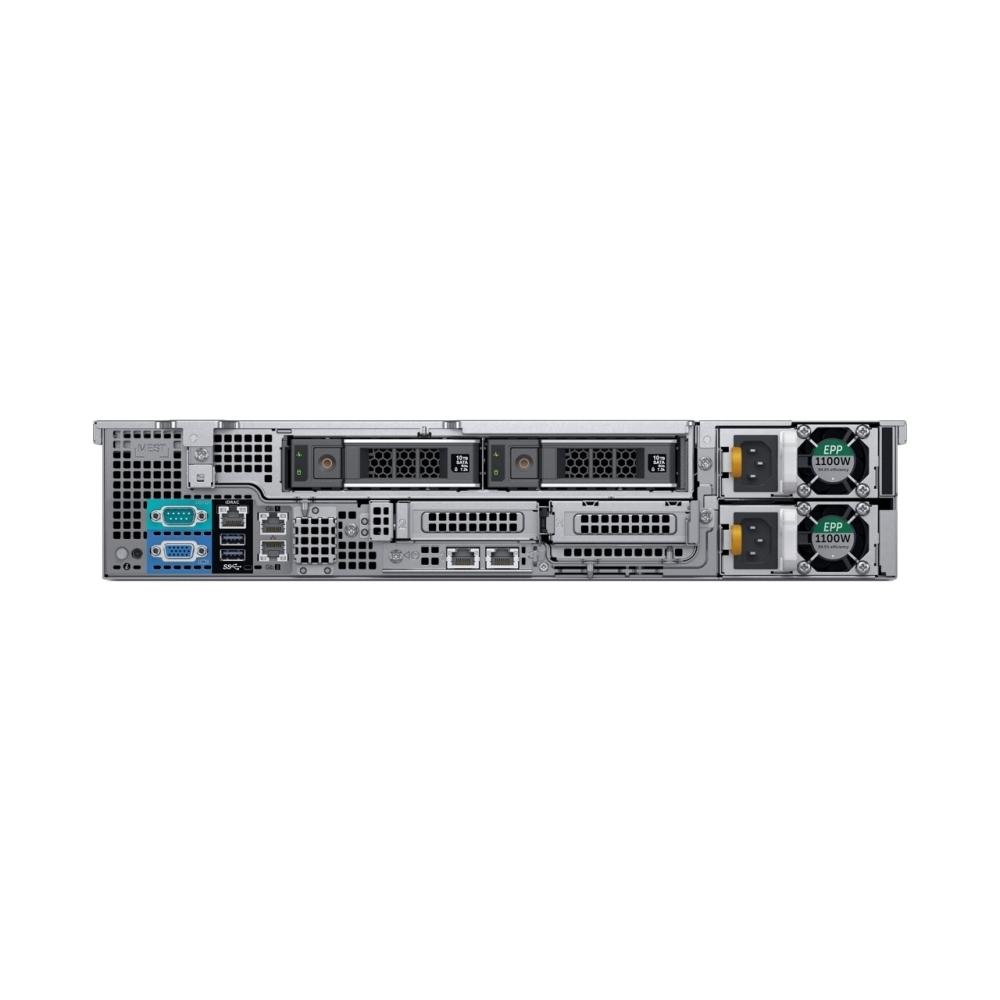

Front ports: Video, 1 x USB 2.0, dedicated IDRAC Direct USB, Rear ports: Video, serial, 2 x USB 3.0, dedicated iDRAC network port
Мрежа:
Dual-Port 1GbE On-Board LOM
Порт за отдалечено управление:
iDRAC9,Enterprise
Тип на шасито:
Hot-Plug
Форм-фактор:
2U Rack
