Суич Cisco CBS350 CBS350-24FP-4X-EU, 28-порта, 24x PoE 10/100/1000, 4x 10G SFP+

SKU: 4031786

ID: #21763

Характеристики

Общ брой портове: 28

Основни портове, тип: 24 x 10/100/1000 (PoE+)

Стандарти: 802.3z, 802.3ab, 802.3, 802.3ae, 802.3ad, 802.1AB, 802.1X, 802.3u, 802.3az, 802.3an, 802.3af, 802.1p, 802.1D, 802.1w, 802.1s, 802.3x, 802.1Q, 802.3at

Портове USB: 1 x Mini USB / 1 x USB 2.0

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

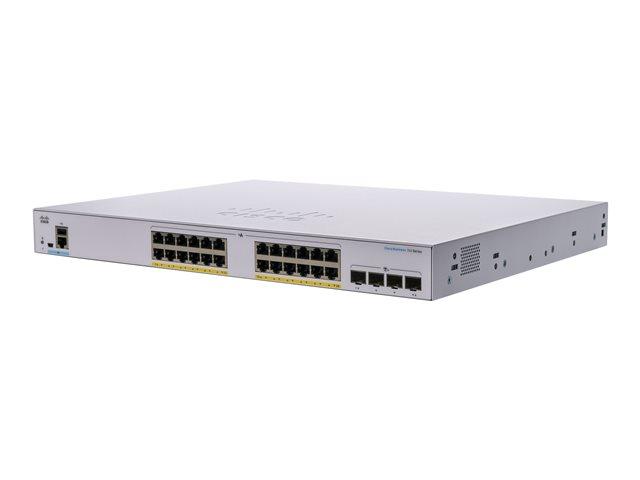

CISCO CBS350 Managed 24-port GE Full PoE 4x10G SFP+


Manufacturer	CISCO
Manufacturer Part No	CBS350-24FP-4X-EU

Marketing Description
The Cisco Business CBS350-24FP-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support.
Product Features
SWITCH PORTS 24-Port 10/100/1000 + 4 x 10GE SFP+ SIMPLE Intuitive Cisco Business Dashboard or on-box U/I simplifies network operations and automates lifecycle management POWER-OVER-ETHERNET 24 PoE ports with 370W total power budget, PoE, PoE+ ENHANCED SECURITY IP-MAC port biding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks INNOVATIVE DESIGN Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
General
Device Type	Switch - 24 ports - L3 - Managed
Enclosure Type	Rack-mountable
Subtype	Gigabit Ethernet
Ports	24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+
Power Over Ethernet (PoE)	PoE+
PoE Budget	370 W
Performance	Switching capacity: 128 Gbps Forwarding performance (64-byte packet size): 95.23 Mpps
Capacity	Link aggregation groups: 8 VLANs supported: 4094 Buffer capacity (MB): 1.5 MB
MAC Address Table Size	16K entries
Jumbo Frame Support	2KB
Routing Protocol	IGMP, policy-based routing (PBR), CIDR
Remote Management Protocol	SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP
Encryption Algorithm	SSL
Authentication Method	Secure Shell (SSH), RADIUS, TACACS+
Features	DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID)
Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az
Processor	X ARM: 800 MHz
RAM	512 MB
Flash Memory	256 MB
Status Indicators	Status, link/activity
Expansion / Connectivity
Interfaces	24 x 10/100/1000 Base-T RJ-45 PoE+ 4 x 10GBase-X SFP+ 1 x console (USB) Type B 1 x USB Type A 1 x console RJ-45
Power
Power Device	Internal power supply
Voltage Required	AC 120/230 V (50/60 Hz)
Miscellaneous
Rack Mounting Kit	Included
MTBF	698,220 hours
Compliant Standards	UL 60950, CSA C22.2, FCC CFR47, USGv6
Localisation	United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Europe, Turkey
Dimensions & Weight
Width	44.5 cm
Depth	34.5 cm
Height	4.4 cm
Weight	4.6 kg
Manufacturer Warranty
Service & Support	Limited warranty - replacement - lifetime - response time: next business day Technical support - web support - 1 year Technical support - phone consulting - 1 year
Environmental Parameters
Min Operating Temperature	-5 °C
Max Operating Temperature	50 °C
Humidity Range Operating	10 - 90% (non-condensing)
Min Storage Temperature	-25 °C
Max Storage Temperature	70 °C
Humidity Range Storage	10 - 90% (non-condensing)
