| Marketing Description |

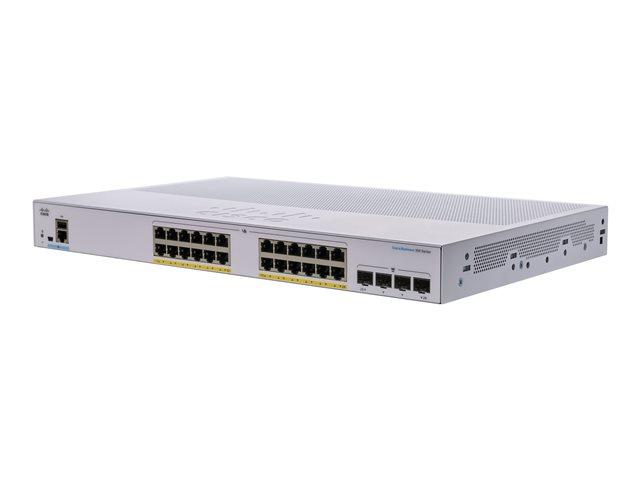

| The Cisco Business CBS350-24P-4X switch is part of the fully managed switch line that delivers reliable and secure connectivity for small business networks. These switches accelerate your digital transformation by delivering full Layer 2/3 capabilities, intuitive web dashboard, advanced networking features, and PoE+ support. |
| Product Features |
- SWITCH PORTS
24-Port 10/100/1000 + 4 x 10GE SFP+
- SIMPLE
Intuitive Cisco Business Dashboard or on-box U/I simplifies network operations and automates lifecycle management
- POWER-OVER-ETHERNET
24 PoE ports with 195W total power budget, PoE, PoE+
- ENHANCED SECURITY
IP-MAC port biding detects and blocks deliberate network attacks. IPv6 First Hop Security provides unparalleled protection against a vast range of address spoofing and man-in-the-middle attacks on IPv6 networks
- INNOVATIVE DESIGN
Elegant and compact design, ideal for installation outside of wiring closet such as retail stores, open plan offices, and classrooms
|
| General |
| Device Type |
Switch - 24 ports - L3 - Managed |
| Enclosure Type |
Rack-mountable |
| Subtype |
Gigabit Ethernet |
| Ports |
24 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) |
PoE+ |
| PoE Budget |
195 W |
| Performance |
Switching capacity: 128 Gbps
Forwarding performance (64-byte packet size): 95.23 Mpps |
| Capacity |
Link aggregation groups: 8
VLANs supported: 4094
Buffer capacity (MB): 1.5 MB |
| MAC Address Table Size |
16K entries |
| Jumbo Frame Support |
2KB |
| Routing Protocol |
IGMP, policy-based routing (PBR), CIDR |
| Remote Management Protocol |
SNMP 1, RMON, SNMP 3, SNMP 2c, SSH, SSH-2, ICMP |
| Encryption Algorithm |
SSL |
| Authentication Method |
Secure Shell (SSH), RADIUS, TACACS+ |
| Features |
DHCP support, ARP support, VLAN support, DoS attack prevention, Spanning Tree Protocol (STP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, DHCP server, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), fanless, Multicast VLAN Registration (MVR), Dynamic VLAN Support (GVRP), Type of Service (ToS), Storm Control, IP source guard, Bridge protocol data unit (BPDU), Voice VLAN, Secure Core Technology (SCT), LLDP-MED, IP/Mac/Port Binding (IPMB), Secure Sensitive Data (SSD), Private VLAN, ISATAP tunnel support, STP loop guard, Weighted Round Robin (WRR), multiple tag protocol identifiers (TPID) |
| Compliant Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3an, IEEE 802.3at, IEEE 802.3az |
| Processor |
X ARM: 800 MHz |
| RAM |
512 MB |
| Flash Memory |
256 MB |
| Status Indicators |
Status, link/activity |
| Expansion / Connectivity |
| Interfaces |
24 x 10/100/1000 Base-T RJ-45 PoE+
4 x 10GBase-X SFP+
1 x console (USB) Type B
1 x USB Type A
1 x console RJ-45 |
| Power |
| Power Device |
Internal power supply |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Miscellaneous |
| Rack Mounting Kit |
Included |
| MTBF |
698,220 hours |
| Compliant Standards |
UL 60950, CSA C22.2, FCC CFR47, USGv6 |
| Localisation |
United Arab Emirates, Indonesia, Israel, South Africa, Vietnam, Ukraine, Egypt, Thailand, Philippines, Korea, Russia, Europe, Turkey |
| Dimensions & Weight |
| Width |
44.5 cm |
| Depth |
29.9 cm |
| Height |
4.4 cm |
| Weight |
3.98 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - replacement - lifetime - response time: next business day
Technical support - web support - 1 year
Technical support - phone consulting - 1 year |
| Environmental Parameters |
| Min Operating Temperature |
-5 °C |
| Max Operating Temperature |
50 °C |
| Humidity Range Operating |
10 - 90% (non-condensing) |
| Min Storage Temperature |
-25 °C |
| Max Storage Temperature |
70 °C |
| Humidity Range Storage |
10 - 90% (non-condensing) |
