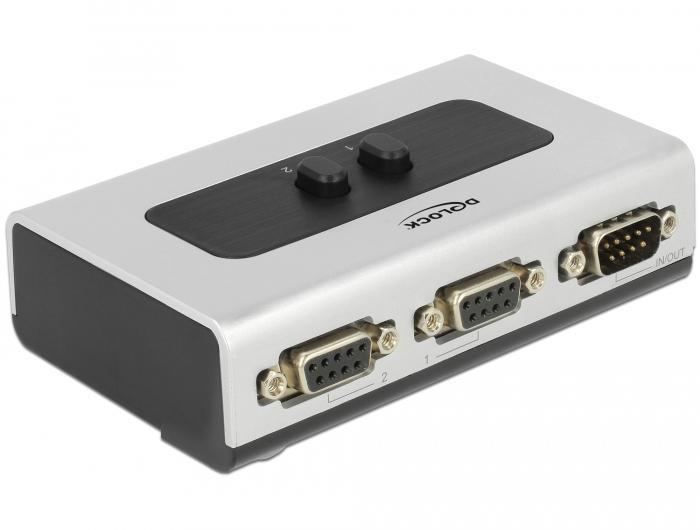

This RS-232 / RS-422 / RS-485 switch by Delock is a manually bidirectional switch for connecting different devices with RS-232 / RS-422 / RS-485 port. This switch offers two different applications.

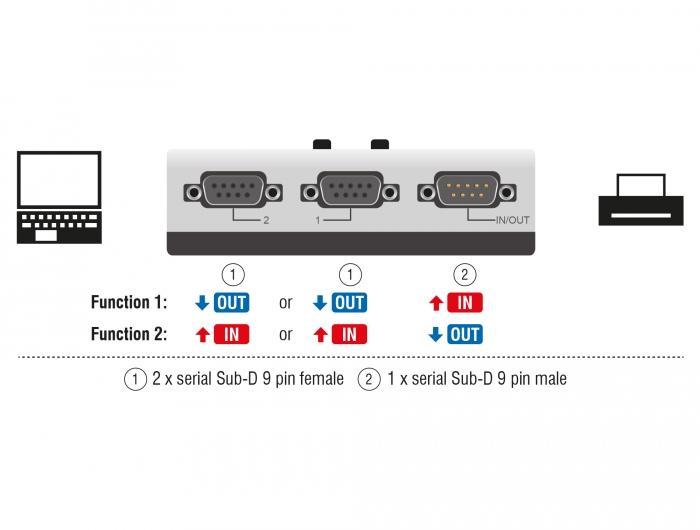

1. It can be connected to two devices with RS-232 / RS-422 / RS-485 port e.g. computer or modem on one RS-232 / RS-422 / RS-485 port.
2. It can be connected to one device with RS-232 / RS-422 / RS-485 port on two RS-232 / RS-422 / RS-485 lines.
Technical details
- Connectors:
2 x serial D-Sub 9 pin female
1 x serial D-Sub 9 pin male
- Serial male and female ports with nuts
- Signals (1:1): TxD, RxD, RTS, CTS, DTR, DSR, DCD, RI
- 2 mechanical buttons
- Plastic housing

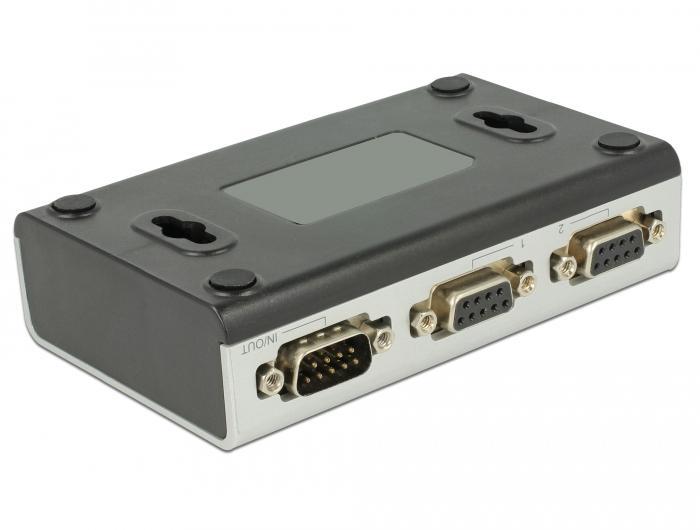

- Wallmount option
- No external power supply needed
- Dimensions (LxWxH): ca. 112 x 71 x 30 mm (without button)
- Colour: grey / black
System requirements
- A free D-Sub 9 pin interface
Mounting type
• Wall mounting
Specification
• RS-232 (EIA / TIA)
• RS-422 / RS-485 (EIA / TIA)
Supported operating system
• OS independent, no driver installation necessary
Switchover
• 2 x Umschalttaste für Gerät 1 oder Gerät 2
Interface
Connector 1
• 1 x serial RS-232/422/485 DB9 male
Connector 2
• 1 x Serial RS-232/422/485 DB9 Female
connector 3
• 1 x Serial RS-232/422/485 DB9 Female
Technical characteristics
Storage temperature
• -10 °C ~ 70 °C
Operating temperature
• 0 °C ~ 50 °C
Humidity
• 5 ~ 90 %
