| Computer Connections |
2 |

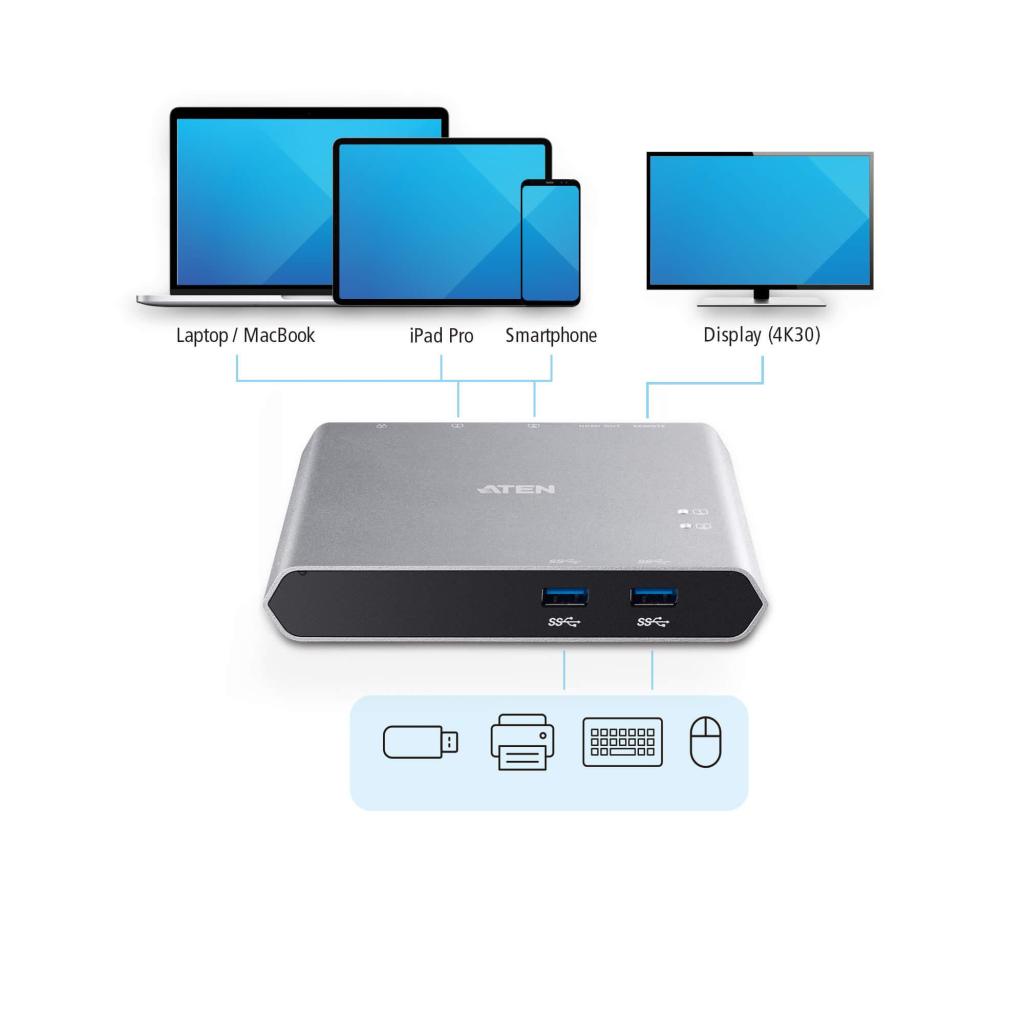

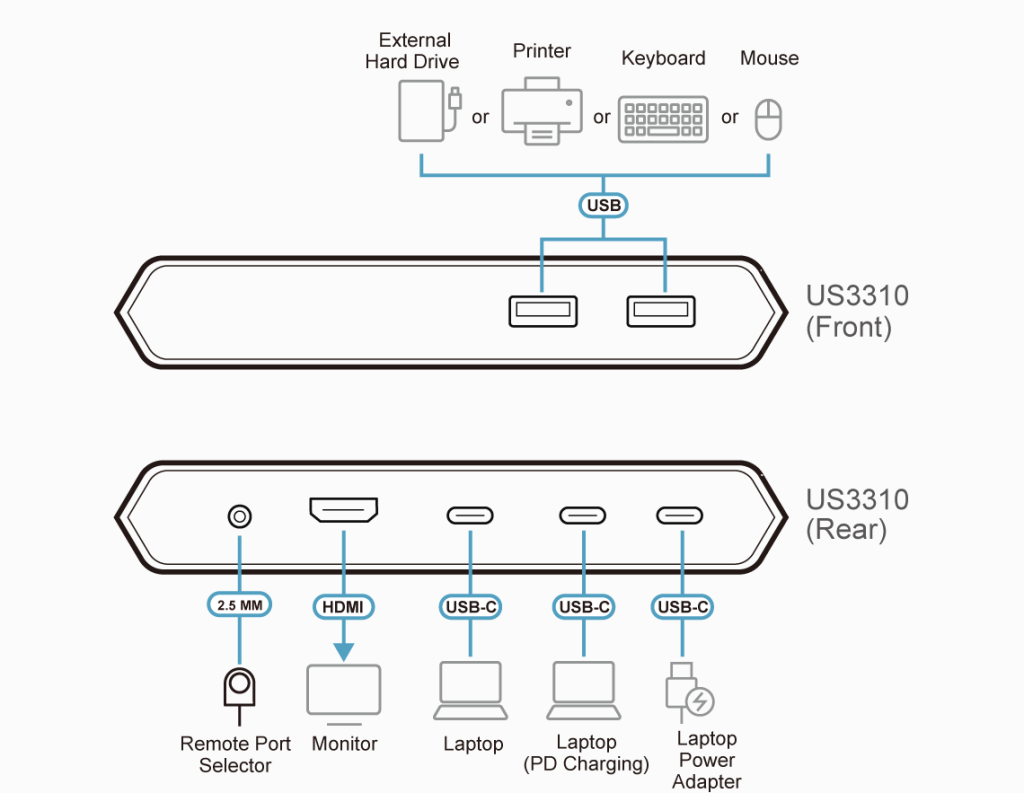

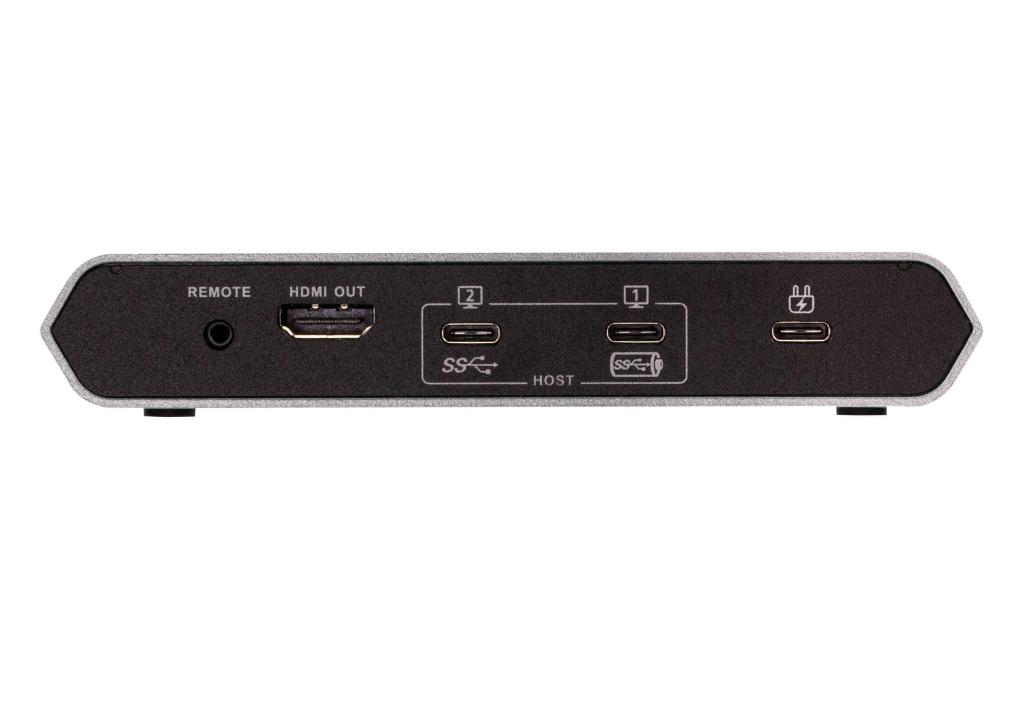

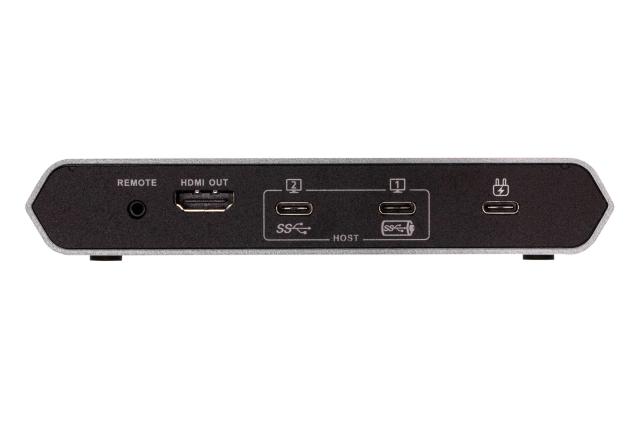

| Connectors |
| Computer |
USB 3.2 Gen 1 Type-C Port 1 (Laptop)

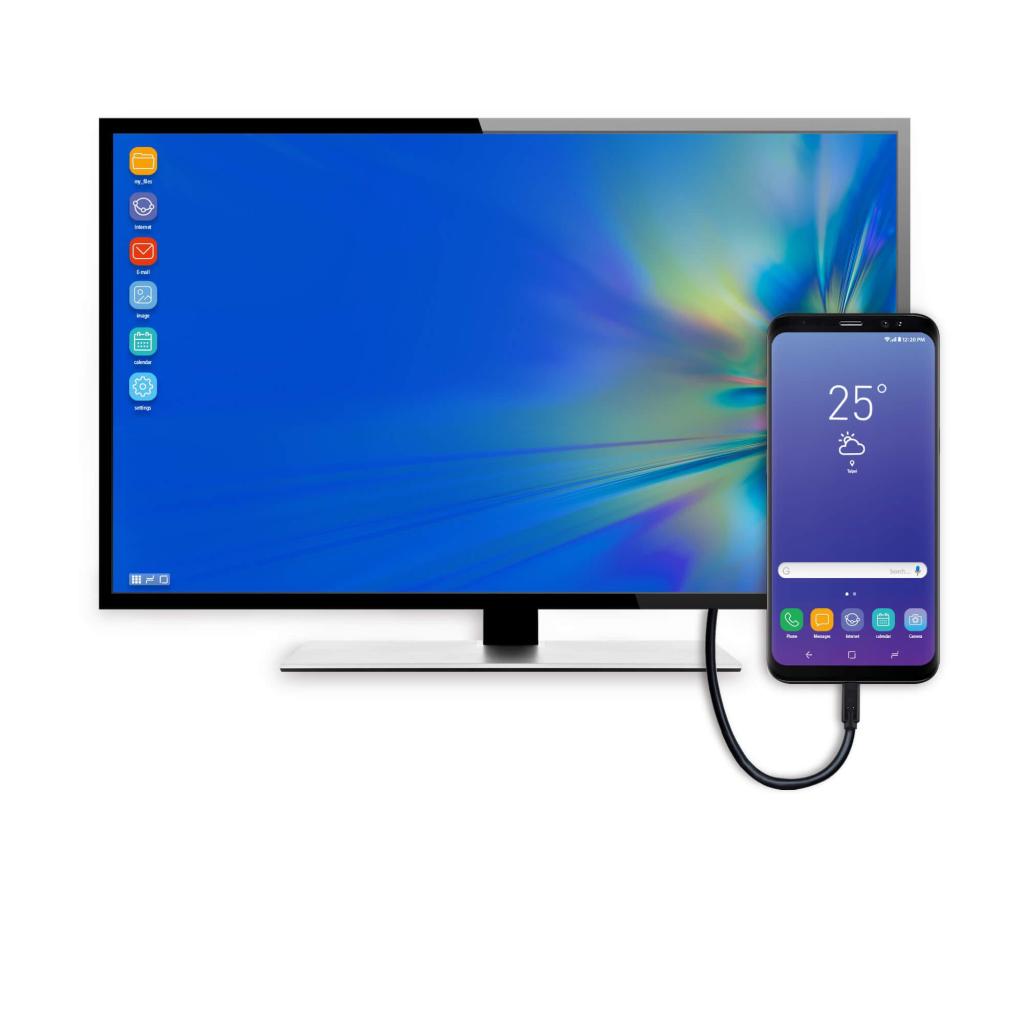

USB 3.2 Gen 1 Type-C Port 2 (Android : Samsung Dex or Huawei Desktop mode) |

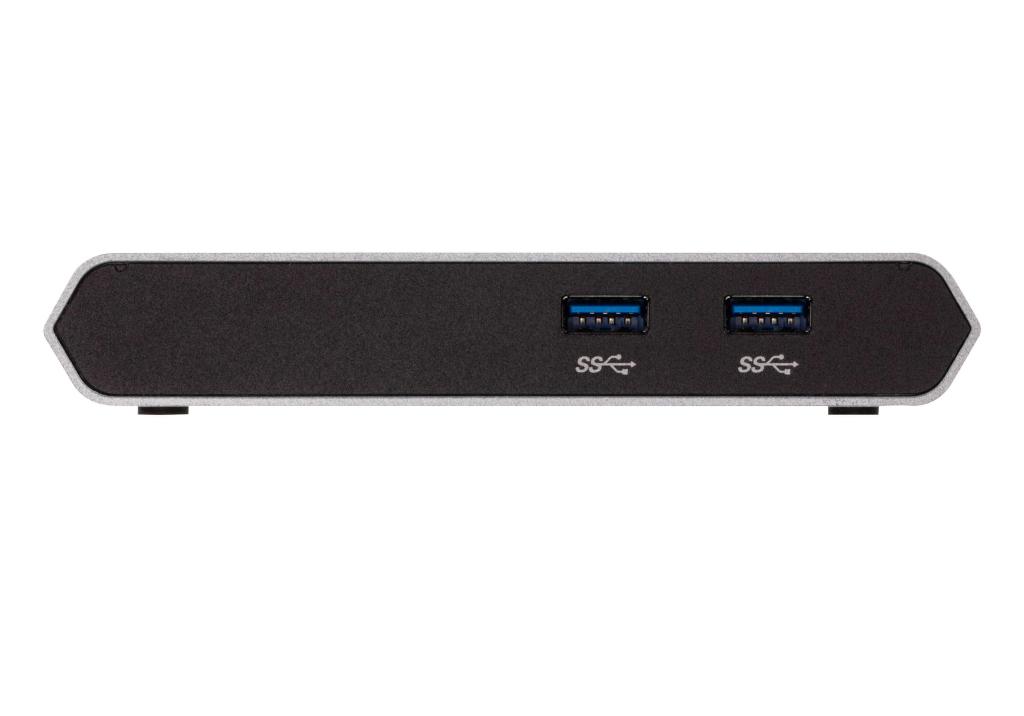

| Device |
2 x USB 3.2 Gen 1 Type-A Female |
| Video Output |
1 x HDMI Female |
| Power |
1 x USB-C DC-in Female*
Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output*
Port 2 : Supports max. 5V, 2A output
*Supports maximum 100W USB-C PD power adapter input.
*For device charging, a Limited Power Source (LPS) certified USB-C PD Power Adapter over 65 Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A.
*The first 15W will supply the US3310, the next 10W will supply USB-C device connected to Port 2, and the balance power will supply USB-C device connected to Port 1. |
| Port Selection |
| Input |
Remote port selector |
| Video Resolution |
Up to 3840 x 2160@30hz |
| System Requirements |
Windows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please find: https://www.intel.com/content/www/us/en/processors/processor-numbers.html
Mac OS X 10.12 and above, USB-C enabled computer
Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode**
**Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3310's user manual.
iOS 12.1 and above, iPad Pro 3rd generation (2018)***
*** For better HID experience, iPad OS 13 and above is recommended. |
| Power Consumption |
DC5V:1.24W:406BTU |
| LEDs |
| Selected |
2 (White) |
| Environmental |
| Operating Temperature |
0–40°C |
| Storage Temperature |
-20–60°C |
| Humidity |
0–80% RH, Non-condensing |

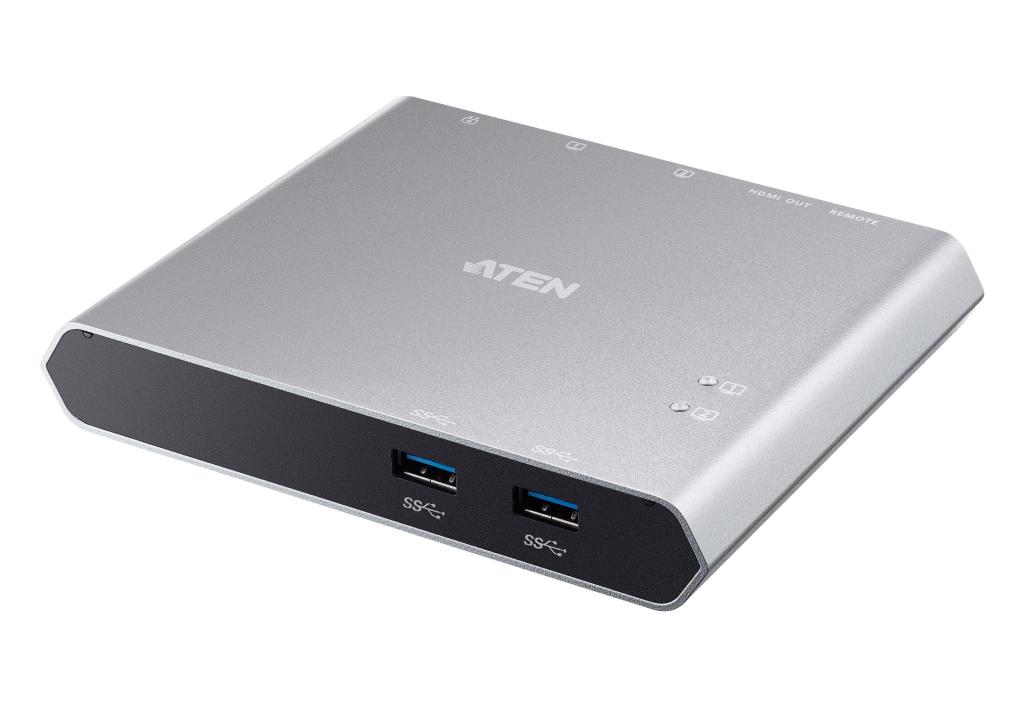

| Physical Properties |
| Housing |
Aluminum |
| Weight |
0.33 kg ( 0.73 lb ) |
| Dimensions (L x W x H) |
14.30 x 11.90 x 2.38 cm
(5.63 x 4.69 x 0.94 in.) |
