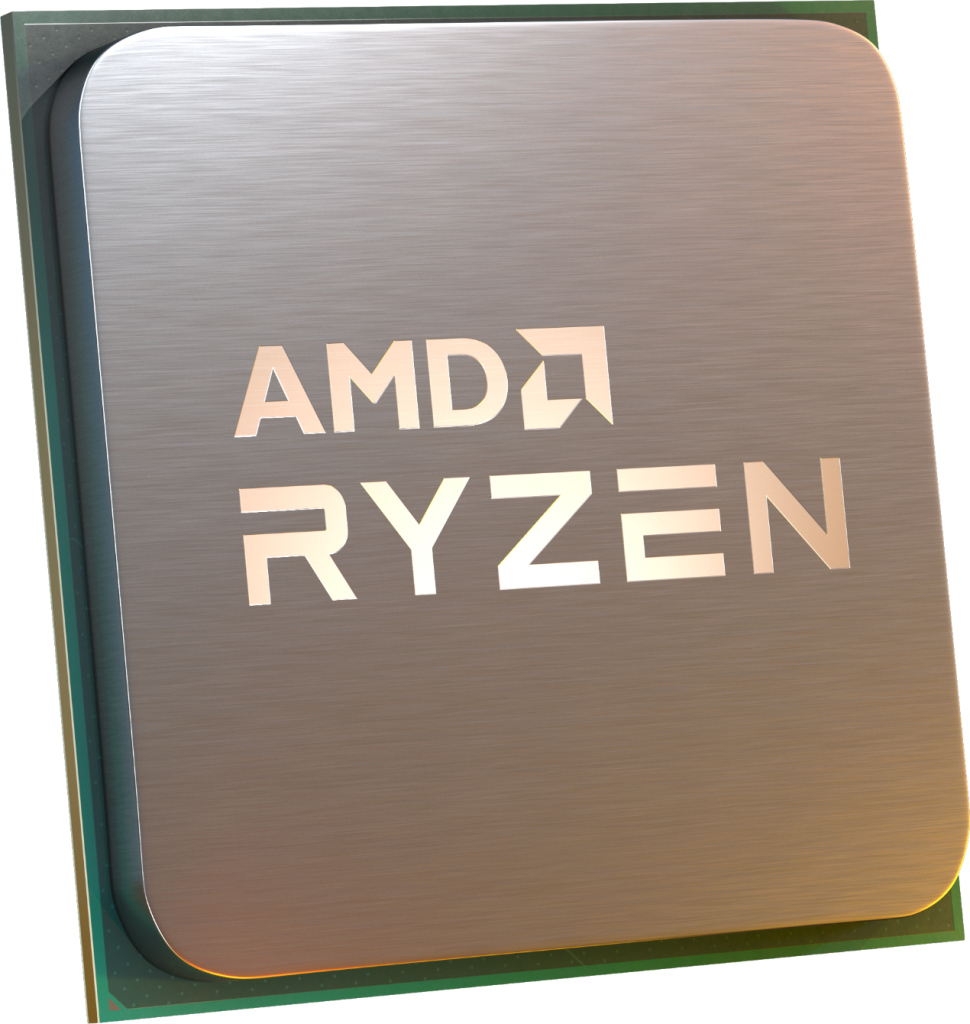

Процесор AMD Ryzen 7 5700X 8C (3.4 / 4.6GHz, 36MB Cache), AM4, 65W, Tray, без охлаждане

Empty headin

• Name

  AMD Ryzen™ 7 5700X

  Family

  Ryzen

  Series

  Ryzen 5000 Series

  Form Factor

  Desktops, Boxed Processor

  Market Segment

  Enthusiast Desktop

  Regional Availability

  Global , China , NA , EMEA , APJ , LATAM

  Former Codename

  Vermeer

  Processor Architecture

  Zen 3

  # of CPU Cores

  8

  Multithreading (SMT)

  Yes

  # of Threads

  16

  Max. Boost Clock

  Up to 4.6 GHz

  Base Clock

  3.4 GHz

  L1 Cache

  512 KB

  L2 Cache

  4 MB

  L3 Cache

  32 MB

  Default TDP

  65W

  Processor Technology for CPU Cores

  TSMC 7nm FinFET

  Processor Technology for I/O Die

  12nm (Globalfoundries)

  CPU Compute Die (CCD) Size

  74mm²

  I/O Die (IOD) Size

  125mm²

  Package Die Count

  2

  Unlocked for Overclocking

  Yes

  CPU Socket

  AM4

  Supporting Chipsets

  X570 , X470 , X370 , B550 , B450 , B350 , A520

  CPU Boost Technology

  Precision Boost 2

  Instruction Set

  x86-64

  Supported Extensions

  AES , AMD-V , AVX , AVX2 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

  Thermal Solution (PIB)

  Not Included

  Max. Operating Temperature (Tjmax)

  90°C

  Launch Date

  04/04/2022

  *OS Support

  Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

•

• Empty heading

  Native USB 3.2 Gen 2 (10Gbps)

  4

  Native USB 3.2 Gen 1 (5Gbps)

  0

  Native USB 2.0 (480Mbps)

  0

  Native SATA Ports

  2

  PCI Express® Version

  PCIe® 4.0

  Native PCIe® Lanes (Total/Usable)

  24 , 20

  Additional Usable PCIe Lanes from Motherboard

  X570

  16x Gen 4

  X470

  2x Gen 3, 8x Gen 2

  NVMe Support

  Boot , RAID0 , RAID1 , RAID10

  System Memory Type

  DDR4

  Memory Channels

  2

  Max. Memory

  128 GB

  System Memory Subtype

  UDIMM

  System Memory Specification

  Up to 3200 MT/s

  Max Memory Speed

  2x1R

  DDR4-3200

  2x2R

  DDR4-3200

  4x1R

  DDR4-2933

  4x2R

  DDR4-2667

  ECC Support

  Yes (Requires mobo support)

  Graphics Model

  Discrete Graphics Card Required
