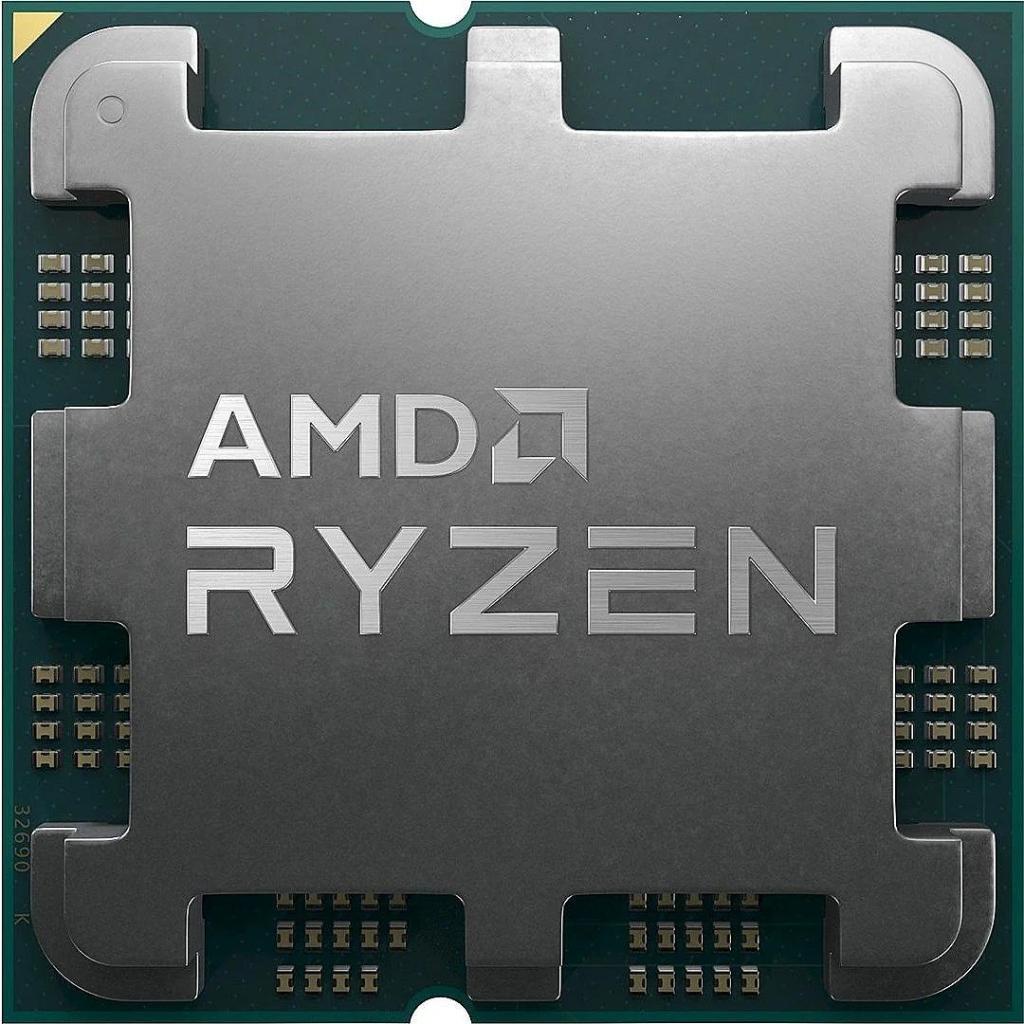

Процесор AMD RYZEN 9 7900X 12C (4.7/5.6 GHz, 128MB Cache), 120W, AM5, TRAY, без охлаждане

Name

AMD Ryzen™ 9 7900X

Family

Ryzen

Series

Ryzen 7000 Series

Form Factor

Desktops , Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Consumer Use

Yes

Regional Availability

Global

Former Codename

Raphael AM5

Architecture

Zen 4

# of CPU Cores

12

Multithreading (SMT)

Yes

# of Threads

24

Max. Boost Clock

Up to 5.6 GHz

Base Clock

4.7 GHz

L1 Cache

768 KB

L2 Cache

12 MB

L3 Cache

64 MB

Default TDP

170W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

3

Unlocked for Overclocking

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

•

  Native USB 3.2 Gen 2 (10Gbps) Ports

  4

  Native USB 3.2 Gen 1 (5Gbps) Ports

  0

  Native USB 2.0 (480Mbps) Ports

  1

  Native SATA Ports

  0

  Native PCIe® Lanes (Total/Usable)

  28 , 24

  Additional Usable PCIe Lanes from Motherboard

  X670E

  12x Gen4

  X670

  12x Gen4

  B650E

  8x Gen4

  B650

  8x Gen4

  NVMe Support

  Boot , RAID0 , RAID1 , RAID10

  System Memory Type

  DDR5

  Memory Channels

  2

  Max. Memory

  128 GB

  System Memory Subtype

  UDIMM

  Max Memory Speed

  2x1R

  DDR5-5200

  2x2R

  DDR5-5200

  4x1R

  DDR5-3600

  4x2R

  DDR5-3600

  ECC Support

  Yes (Requires mobo support)

  Graphics Model

  AMD Radeon™ Graphics

  Graphics Core Count

  2

  Graphics Frequency

  2200 MHz

  USB Type-C® DisplayPort™ Alternate Mode

  Yes
