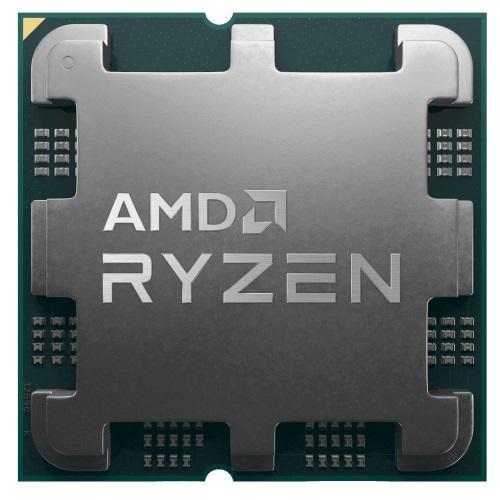

Процесор AMD RYZEN 7 7700 8C (3.8/5.3 GHz, 32MB Cache, 65W), AM5, TRAY, без охлаждане

SKU: 100-000000592

ID: #42871

Характеристики

Модел процесор.: AMD RYZEN 7 7700

Серия процесори: AMD Ryzen 7

Сокет: AM5

Поколение: Zen 4

Технология на производството: 5 nm

Брой ядра: 8 Core

Физически ядра: 8

Логически ядра: 16

Работна честота: 3.8 GHz

Turbo Boost честота: 5.3 GHz

Кеш памет: 32 MB

Архитектура: 64

Поддържана памет: DDR5

Термична мощност - TDP (W): 65 W

Графичен ускорител: Radeon™ Graphics, 2200 MHz, 2 Графични ядра

Отключен множител: Да

Охладител: Не

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

Graphics Frequency

2200 MHz

USB Type-C® DisplayPort™ Alternate Mode

Yes

Name

AMD Ryzen™ 7 7700

Family

Ryzen

Series

Ryzen 7000 Series

Form Factor

Desktops , Boxed Processor

Market Segment

Enthusiast Desktop

AMD PRO Technologies

No

Regional Availability

Global

Former Codename

Raphael AM5

Processor Architecture

Zen 4

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 5.3 GHz

Base Clock

3.8 GHz

L1 Cache

512 KB

L2 Cache

8 MB

L3 Cache

32 MB

Default TDP

65W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

2

Unlocked for Overclocking

Yes

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

A620 , X670E , X670 , B650E , B650 , X870E , X870 , B840 , B850

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB)

AMD Wraith Prism

Max. Operating Temperature (Tjmax)

95°C

Launch Date

01/14/2023

*OS Support

Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit
Native USB 3.2 Gen 2 (10Gbps)

4

Native USB 3.2 Gen 1 (5Gbps)

0

Native USB 2.0 (480Mbps)

1

Native SATA Ports

0

PCI Express® Version

PCIe® 5.0

Native PCIe® Lanes (Total/Usable)

28 , 24

Additional Usable PCIe Lanes from Motherboard

X670E

12x Gen4

X670

12x Gen4

B650E

8x Gen4

B650

8x Gen4

NVMe Support

Boot , RAID0 , RAID1 , RAID10

System Memory Type

DDR5

Memory Channels

2

Max. Memory

128 GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R

DDR5-5200

2x2R

DDR5-5200

4x1R

DDR5-3600

4x2R

DDR5-3600

ECC Support

Yes (Requires mobo support)
