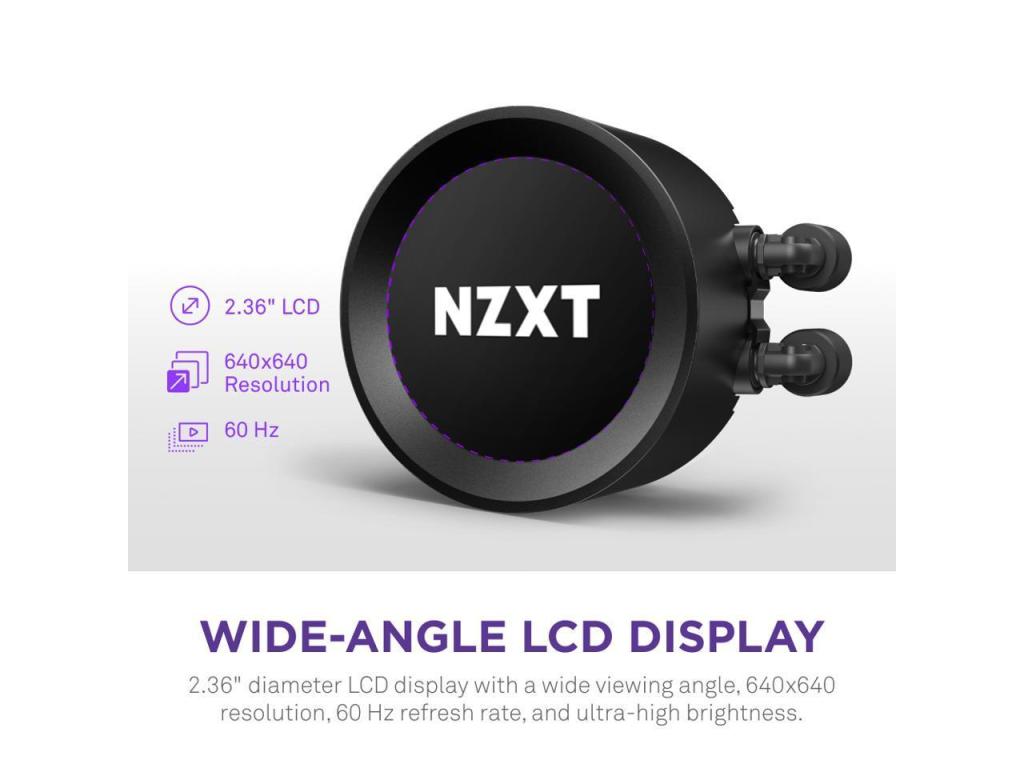

Cap
Material:Aluminum, Plastic
Display Orientation:Software adjustable Default, +90, +180, and -90 Degrees
Display Panel Active Area:2.36” (60mm) diameter
Display Color:24-bit true color LCD
Display Resolution:640 x 640 px
Display Brightness:690 cd/m²
Display Panel Type:TFT-LCD (Wide Viewing Angle)
Water Block
Dimensions:Diameter: 81.9mm H: 59.5mm
Material (Block):Copper
Material (Housing):Plastic

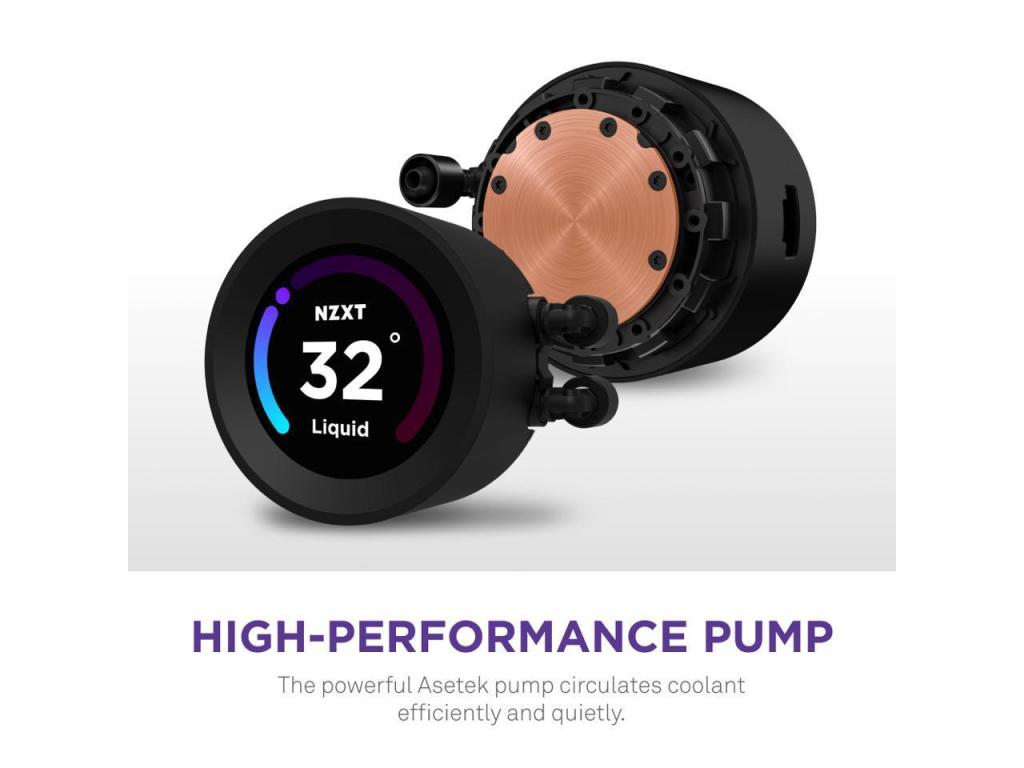

Pump
Motor Speed:800 - 2,800 ± 300 RPM
Power:12V DC, 0.3A
Radiator
Dimensions:121 x 394 x 27mm
Material:Aluminum

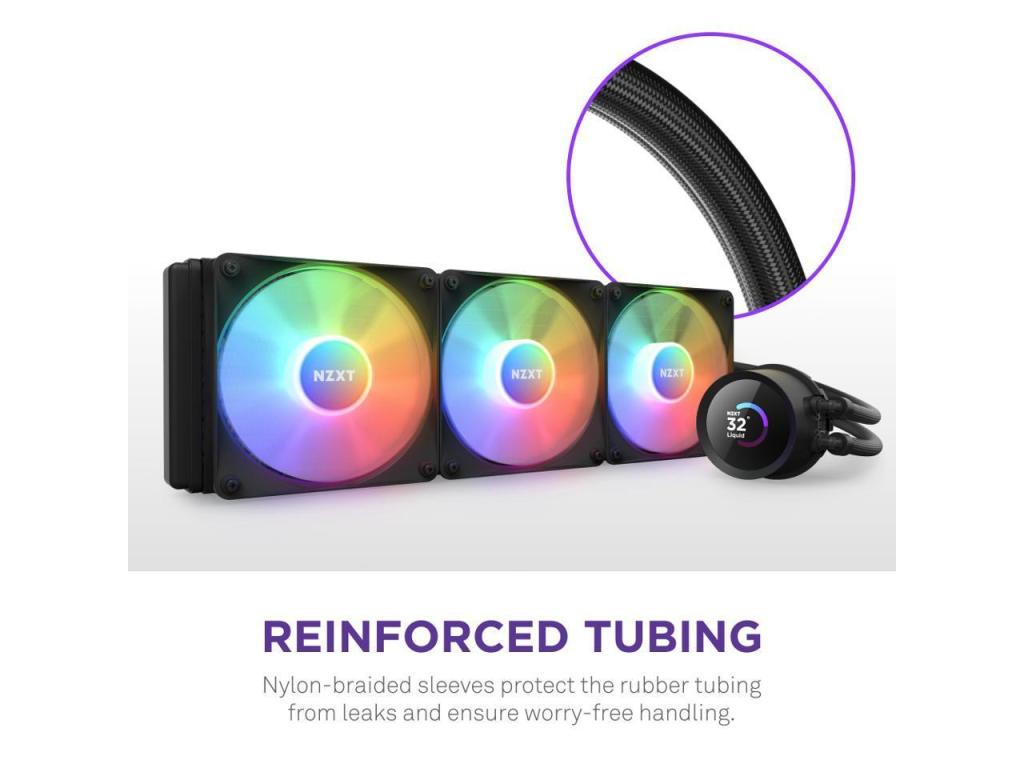

Tube
Length:400mm
Material:Ultra-low Evaporation Rubber with Nylon Braided Sleeve

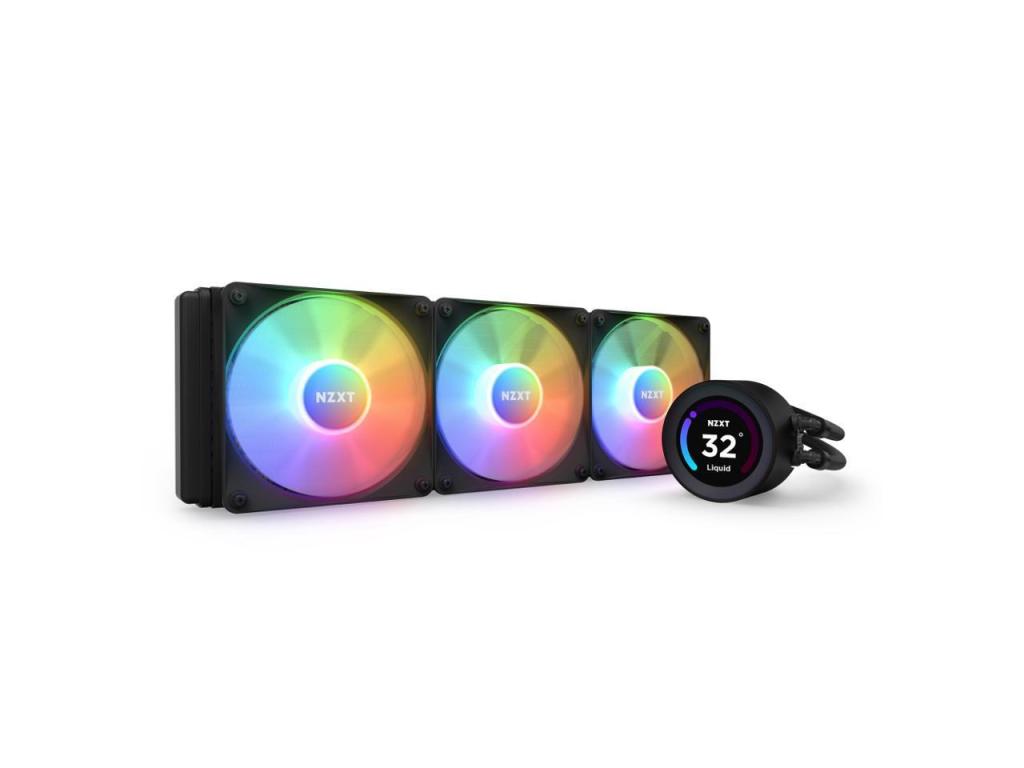

Fan Specs
Model:F120 RGB Core Fans
Quantity:3
Dimension:120 x 120 x 26mm
Speed:500-1,800 ± 180 RPM
Airflow:78.86 CFM
Air Pressure:2.57 mm H2O
Noise:33.88 dBA
Bearing:Fluid Dynamic Bearing
Power Consumption:12 V DC, 0.2 A, 2.4 W
Fan Connector:4-pin PWM
Life:60,000 hours / 6 Years
Limited Warranty:6 Years
RGB Controller
Dimensions:63.2 x 53.2 x 12.8mm
Weight:52.8g
Mounting:Magnet and 3M Dual Lock
Connection Cables:1x USB 2.0 internal connector 1x SATA power cable
Input Connector:12V DC / 2.6A
RGB Lighting Channels:3
Output Channel Voltage:5V DC
NZXT RGB Channel Output LED Qty.:Up to 40 LEDs per channel and up to 120 LEDs combined total for the total 3 channels
Compatible Socket & CPU
Intel:Intel Socket LGA 1700, 1200/115X Intel Core i9 / Core i7 / Core i5 / Core i3 / Pentium / Celeron
AMD:AMD Socket AM5, AM4, sTRX4*, TR4* (*Threadripper bracket not included) AMD Ryzen 9 / Ryzen 7 / Ryzen 5 / Ryzen 3 / Threadripper
