| Marketing Description |

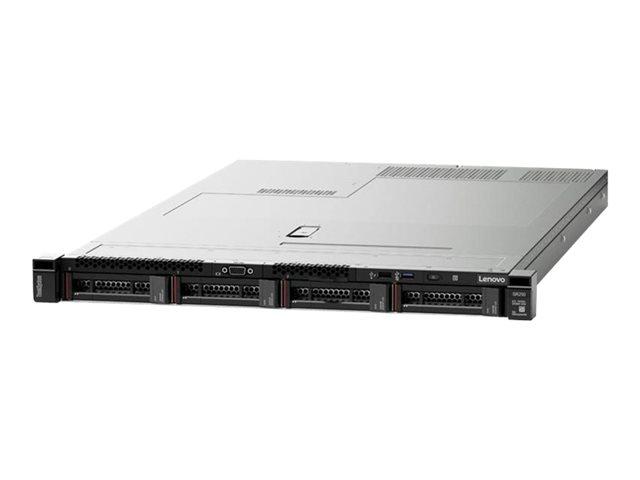

The Lenovo ThinkSystem SR250 is a single-processor rack server that integrates power, reliability, flexibility, and security in a compact 1U form factor suited for the small-to-medium business.
The SR250 boasts a high price-performance ratio with a combination of high-processing capability and dependability with next-generation Intel Xeon processors and support for an array of storage configurations. |
| Product Features |
- Powerful and secure
- Flexible and scalable
- Simple management
|
| General |
| Type |
Server |
| Product Form Factor |
Rack-mountable - 1U |
| Built-in Devices |
Led panel |
| Embedded Security |
Trusted Platform Module (TPM 1.2 and TPM 2.0) |
| Server Scalability |
1-way |
| Hot-Swap Bays Qty |
8 |
| Localisation |
Region: EMEA |
| Processor / Chipset |
| CPU |
Intel Xeon E-2276G |
| Clock Speed |
3.8 GHz |
| Max Turbo Speed |
4.9 GHz |
| Number of Cores |
6-core |
| CPU Qty |
1 |
| Max CPU Qty |
1 |
| Processor Main Features |
Hyper-Threading Technology, Intel Virtualization Technology, Intel Turbo Boost Technology |
| Chipset Type |
Intel C246 |
| Cache Memory |
| Installed Size |
12 MB |
| Cache Per Processor |
12 MB |
| RAM |
| Installed Size |
16 GB / 128 GB (max) |
| Technology |
DDR4 SDRAM - ECC |
| Effective Memory Speed |
2666 MHz |
| Rated Memory Speed |
2666 MHz |
| Form Factor |
DIMM 288-pin |
| Slots |
4 (Total) / 3 (empty) |
| Features |
Unbuffered |
| Configuration Features |
1 x 16 GB |
| RAM Supported |
128 GB - Intel Xeon E processors - unbuffered - ECC
64 GB unbuffered - ECC |
| Hard Drive |
| Type |
No HDD |
| Storage Controller |
| Type |
1 x RAID |
| Controller Interface Type |
SATA 6Gb/s |
| Channel Qty |
8 |
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10 |
| Optical Storage |
| Type |
No optical drive |
| Monitor |
| Monitor Type |
None. |
| Graphics Controller |
| Graphics Processor |
Matrox G200 |
| Video Memory |
16 MB |
| Video Interfaces |
VGA |
| Networking |
| Ethernet Ports |
2 x Gigabit Ethernet |
| Ethernet Controller |
Broadcom BCM5720 |
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Controller |
XClarity Controller (XCC) Standard |
| Features |
PXE support, Teaming support |
| Expansion / Connectivity |
| Bays |
8 (total) / 8 (free) x hot-swap 2.5" |
| Slots |
1 (total) / 1 (free) x PCIe 3.0 x8 - low-profile
1 (total) / 1 (free) x PCIe 3.0 x8 - half-length, full-height
1 (total) / 1 (free) x PCIe 3.0 x4 (for internal storage controller)
1 (total) / 1 (free) x M.2 Card |
| Interfaces |
1 x USB 2.0 (1 in front)
1 x USB 3.1 Gen 1 (1 in front)
2 x USB 3.1 Gen 2
1 x serial
1 x VGA
1 x management - RJ-45
2 x LAN (Gigabit Ethernet) - RJ-45 |
| Miscellaneous |
| Included Accessories |
Tool-less rail kit, C13-C14 rack power cable (2.8 m) |
| Compliant Standards |
TUV GS, BSMI, EN 61000-3-2, ICES-003, EN 61000-3-3, EN55024, CB, CCC, RoHS, IEC 60950-1, EN 60950-1, FCC CFR47 Part 15 B, GB 17625.1, GB 9254 Class A, CECP, VCCI Class A, EN 50581, NMB-3 Class A, GB 4943.1, BIS, NOM-019, EK1-ITB2000, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, KN32 Class A, CNS 14336-1, EN 62368-1, IEC 62368-1, EN 55032 Class A, CISPR 32 Class A, TR CU 020/2011, TR CU 004/2011, UL 62368-1, CELP, CNS 15663 |
| Power |
| Device Type |
Power supply - hot-plug |
| Power Redundancy |
Optional |
| Power Redundancy Scheme |
N+N (with optional power supply) |
| Installed Qty |
1 |
| Max Supported Qty |
2 |
| Voltage Required |
AC 120/230 V (50/60 Hz) |
| Power Provided |
450 Watt |
| 80 PLUS Certification |
80 PLUS Platinum |
| Operating System / Software |
| OS Provided |
No operating system |
| Environmental Standards |
| ENERGY STAR Certified |
Yes |
| ENERGY STAR Version |
2.1 |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site - response time: next business day |
| Dimensions & Weight |
| Width |
43.4 cm |
| Depth |
49.8 cm |
| Height |
4.3 cm |
| Weight |
9.1 kg |
