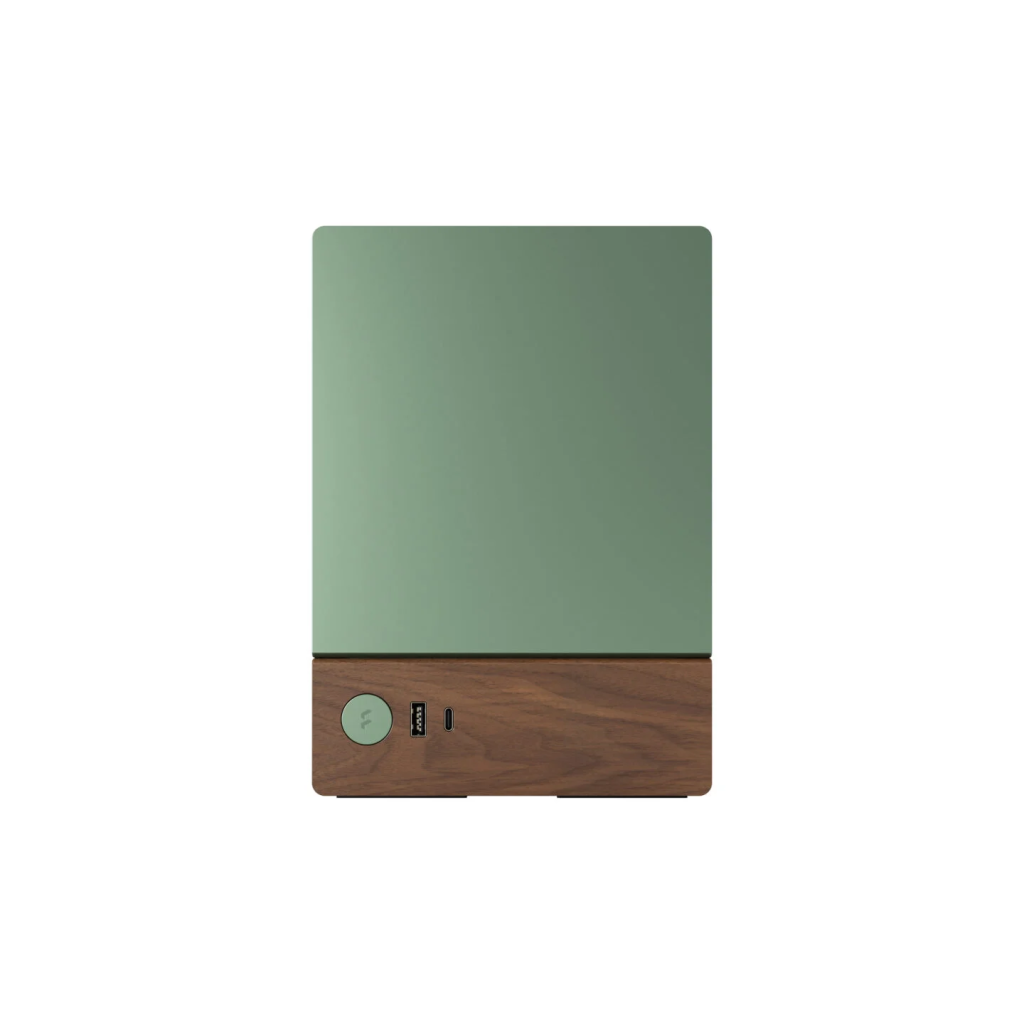

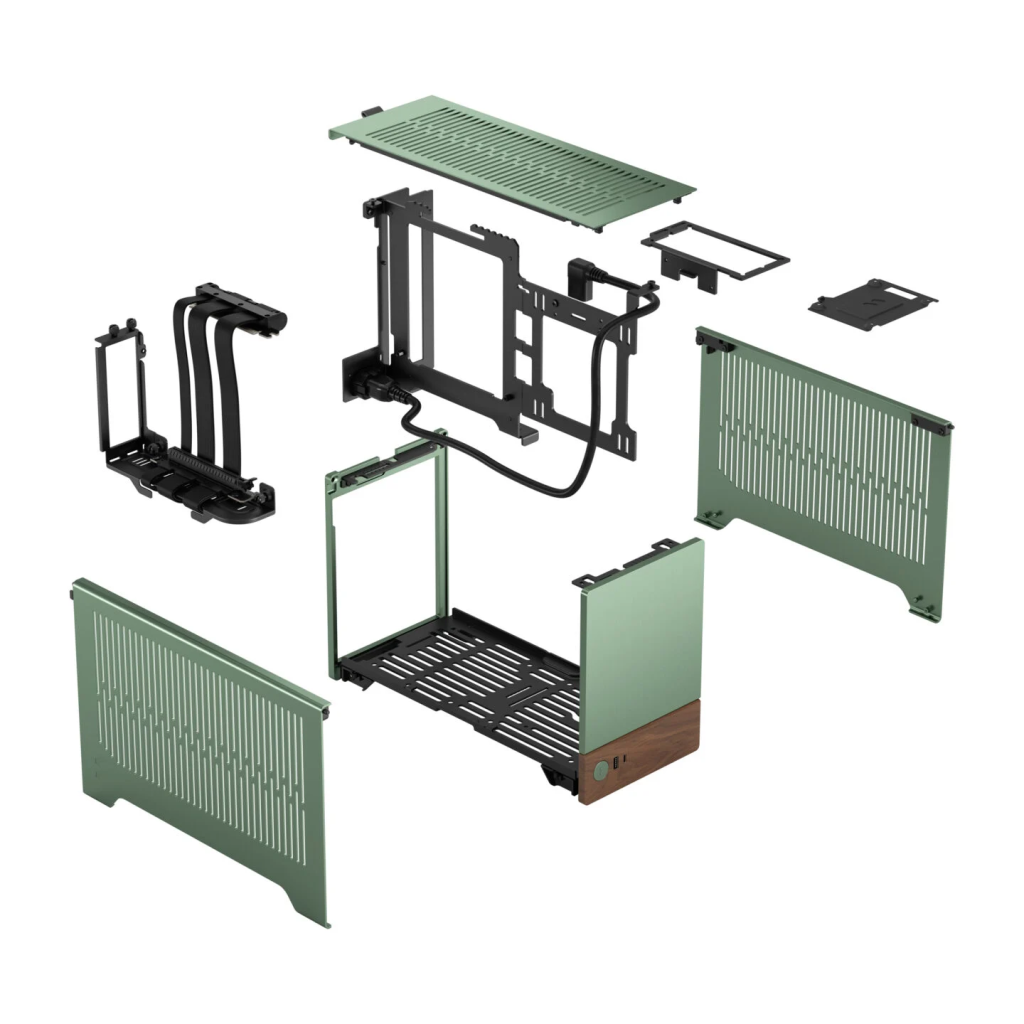

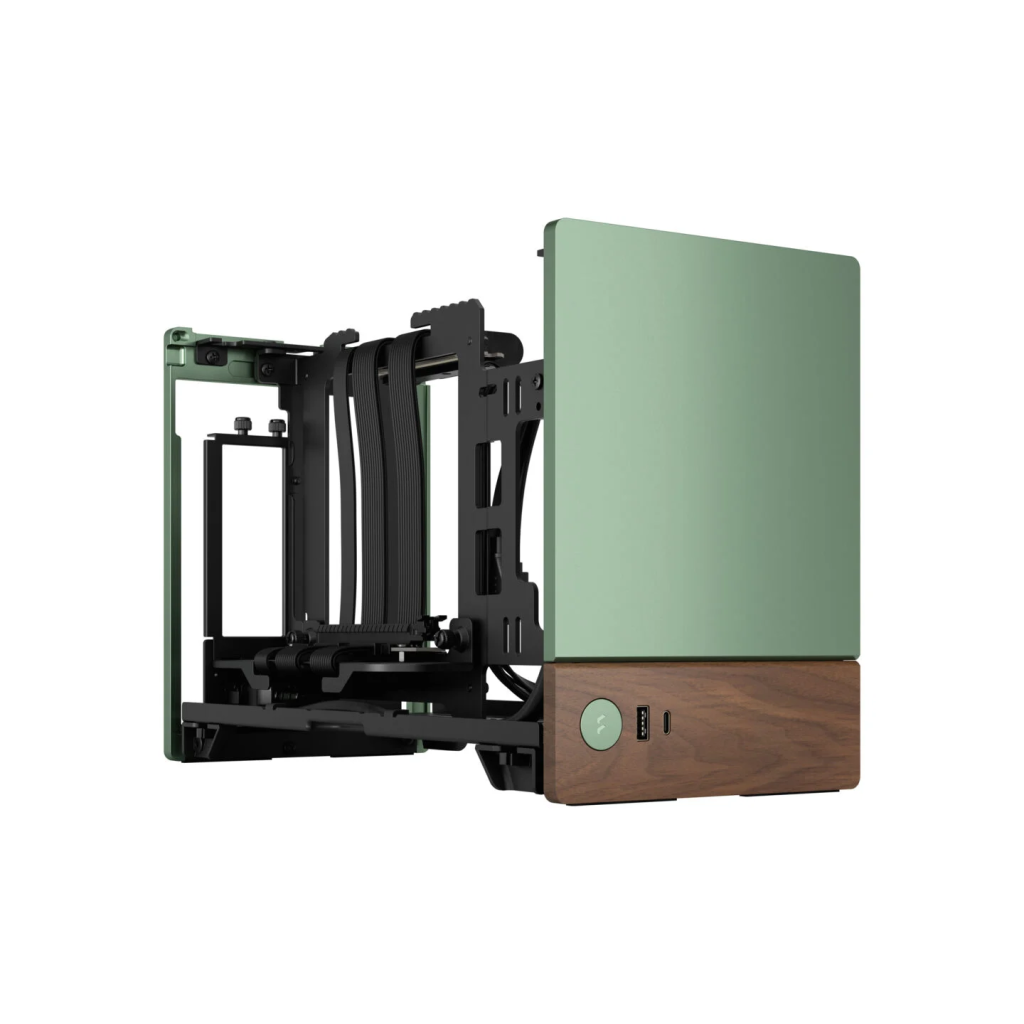

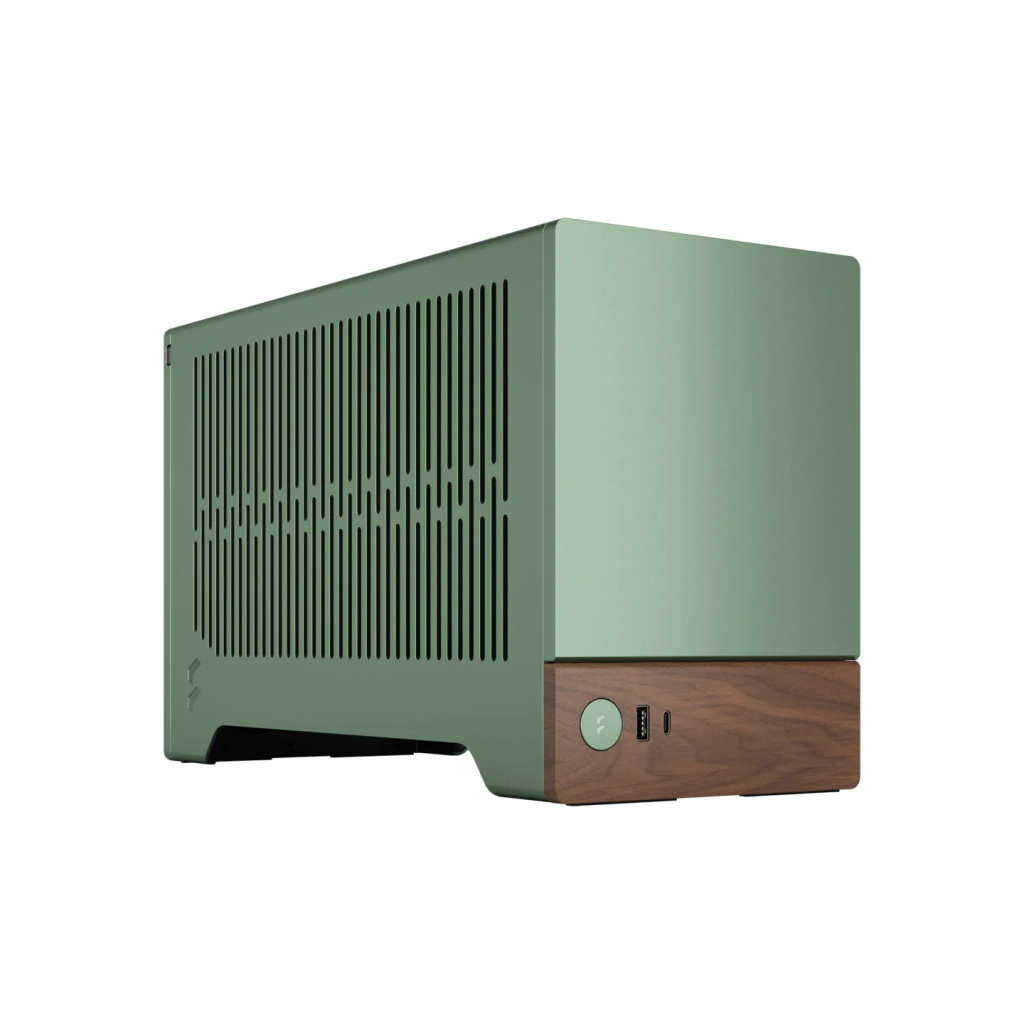

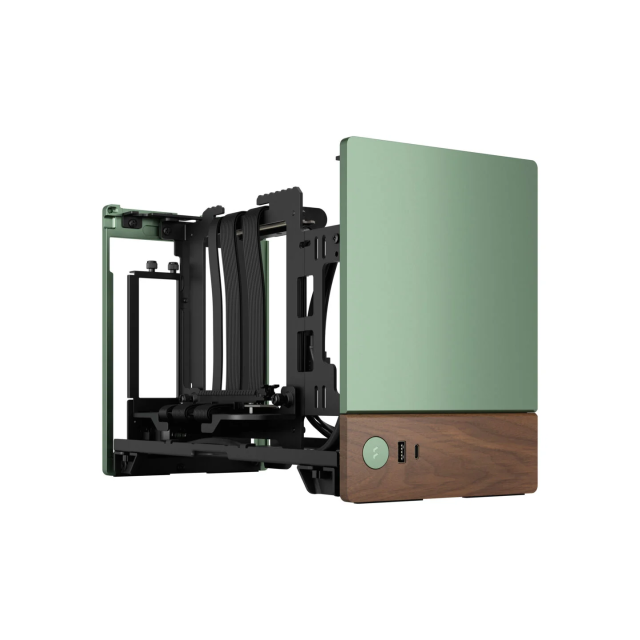

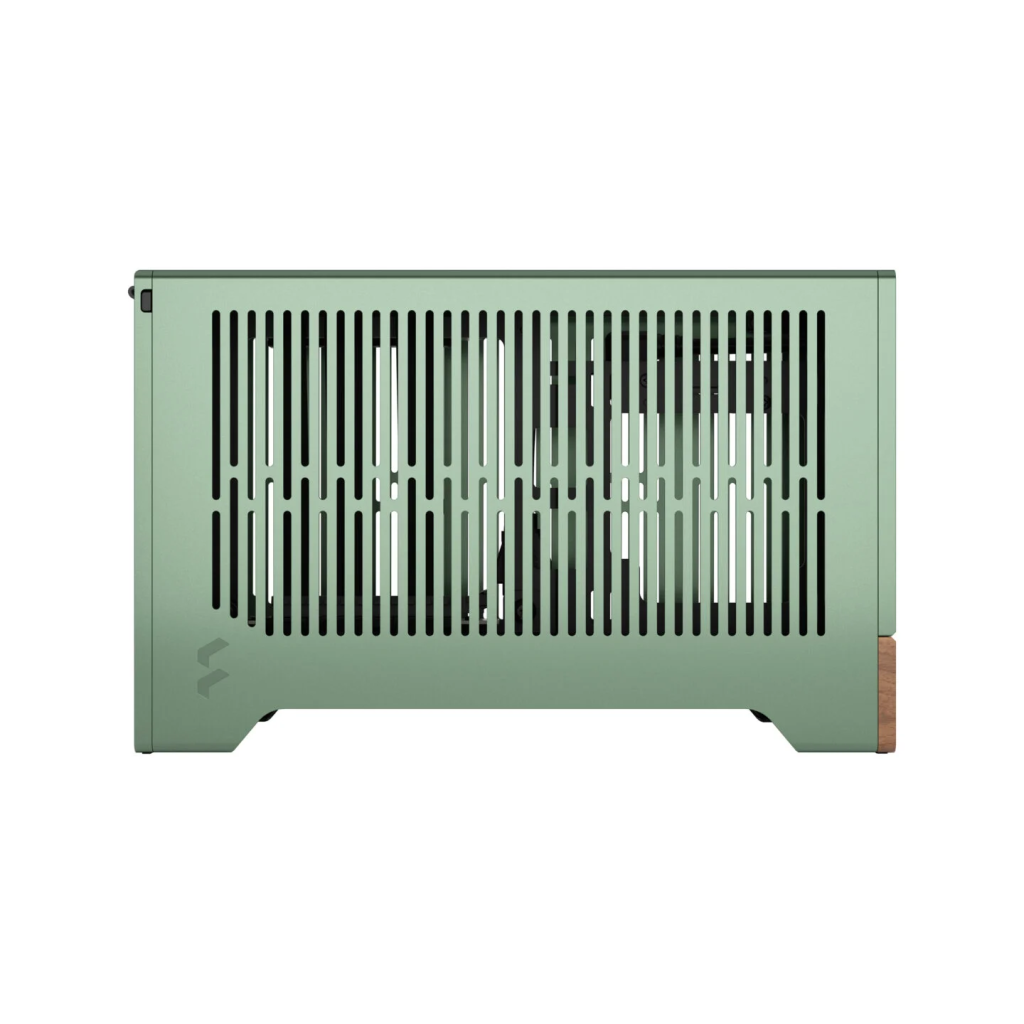

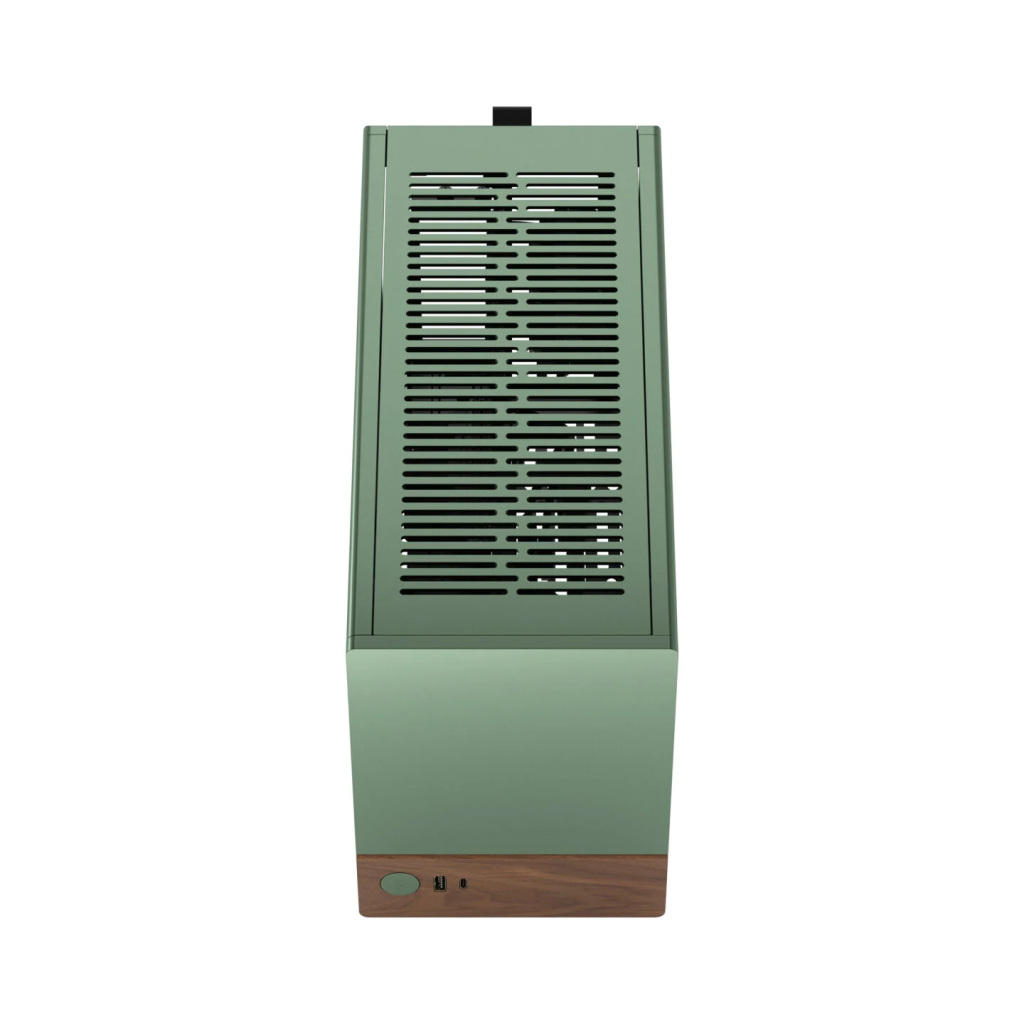

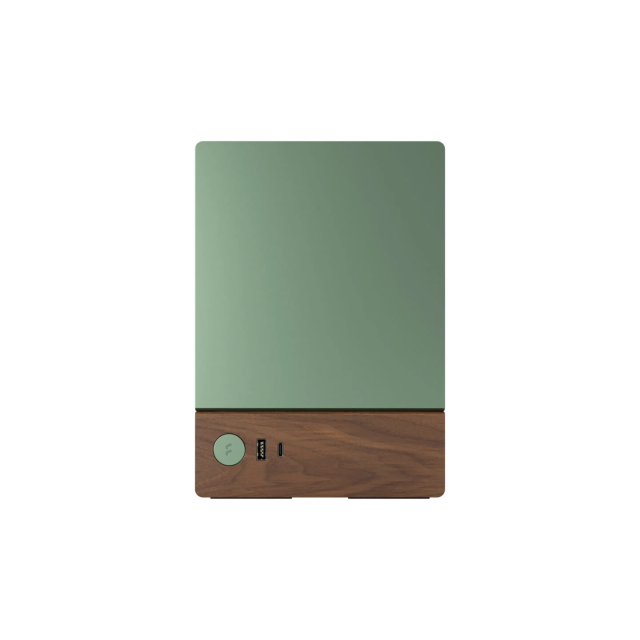

Кутия Fractal Design TERRA JADE, 1x USB Type-C, 1x USB 3.0, mITX
Кутия Fractal Design TERRA JADE, 1x USB Type-C, 1x USB 3.0, mITX
Кутия Fractal Design TERRA JADE, 1x USB Type-C, 1x USB 3.0, mITX
Кутия Fractal Design TERRA JADE, 1x USB Type-C, 1x USB 3.0, mITX
Кутия Fractal Design TERRA JADE, 1x USB Type-C, 1x USB 3.0, mITX
Кутия Fractal Design TERRA JADE, 1x USB Type-C, 1x USB 3.0, mITX
Кутия Fractal Design TERRA JADE, 1x USB Type-C, 1x USB 3.0, mITX

Кутия Fractal Design TERRA JADE, 1x USB Type-C, 1x USB 3.0, mITX

SKU: FD-C-TER1N-03
ID: #30590
Цена: 460,00 лв.
Цената е с вкл. ДДС

Характеристики

Включени вентилатори: Не
Брой 2.5“ SSD гнезда: 2x 2.5" SSD
Захранване: Не
Форм фактор: Mini ITX
Гаранция (месеца): 24

Бърза Поръчка

Описание

  • Dedicated 2.5" drive mounts
    2 (included)
  • Expansion slots
    3 (Max GPU Mode), 2 (Max CPU-Cooler height mode)
  • Front interface
    1x USB Type-C 20Gbps (USB 3.2 Gen 2x2), 1x USB Type-A 5Gbps (USB 3.0), Power Button
  • Total fan mounts
    1x 120 mm
  • Bottom fan
    1x 120 mm
  • Tool-less push-to-lock
    Both side panels and top panel (can also be locked with screws)

Compatibility

  • Motherboard compatibility
    mITX
  • Power supply type
    SFX-L/ SFX
  • PSU max length
    130 mm
  • Side radiator
    1x 120mm (121 mm wide if max 200 mm GPU and no SSDs)
  • GPU max length
    322 mm
  • GPU max width (if GPU height is lower than 131 mm)
    72 mm (Configured for Max GPU) / 43 mm (Configured for Max CPU-Cooler)
  • GPU max width (if GPU height 131-145mm)
    62 mm (Configured for Max GPU) / 33 mm (Configured for Max CPU-Cooler)
  • GPU max height
    145 mm (Configured for Max GPU) / 131 mm (Configured for Max CPU-Cooler)
  • *CPU cooler max height
    48 mm (Configured for Max GPU) / 77 mm (Configured for Max CPU-Cooler)
  • *Additional comment
    Motherboard Spine is adjustable, which affects the min/ max GPU width and CPU cooler height. If GPU width is increased, CPU cooler height will decrease and vice versa. The max width of the GPU is also dependent on the height. There are two different scenarios (H<131mm, H>131-145mm). See manual for detailed info.

Dimensions

  • Case dimensions (LxWxH)
    343 x 153 x 218 mm
  • Case dimensions w/o feet/protrusions/screws
    343 x 153 x 198 mm
  • Package dimensions (LxWxH)
    394 x 215 x 292 mm
  • Net weight
    3.1 kg
  • Gross weight
    4.0 kg
  • Volume
    10.4 liter (excluding feet), 11.4 liter (external dimensions)
