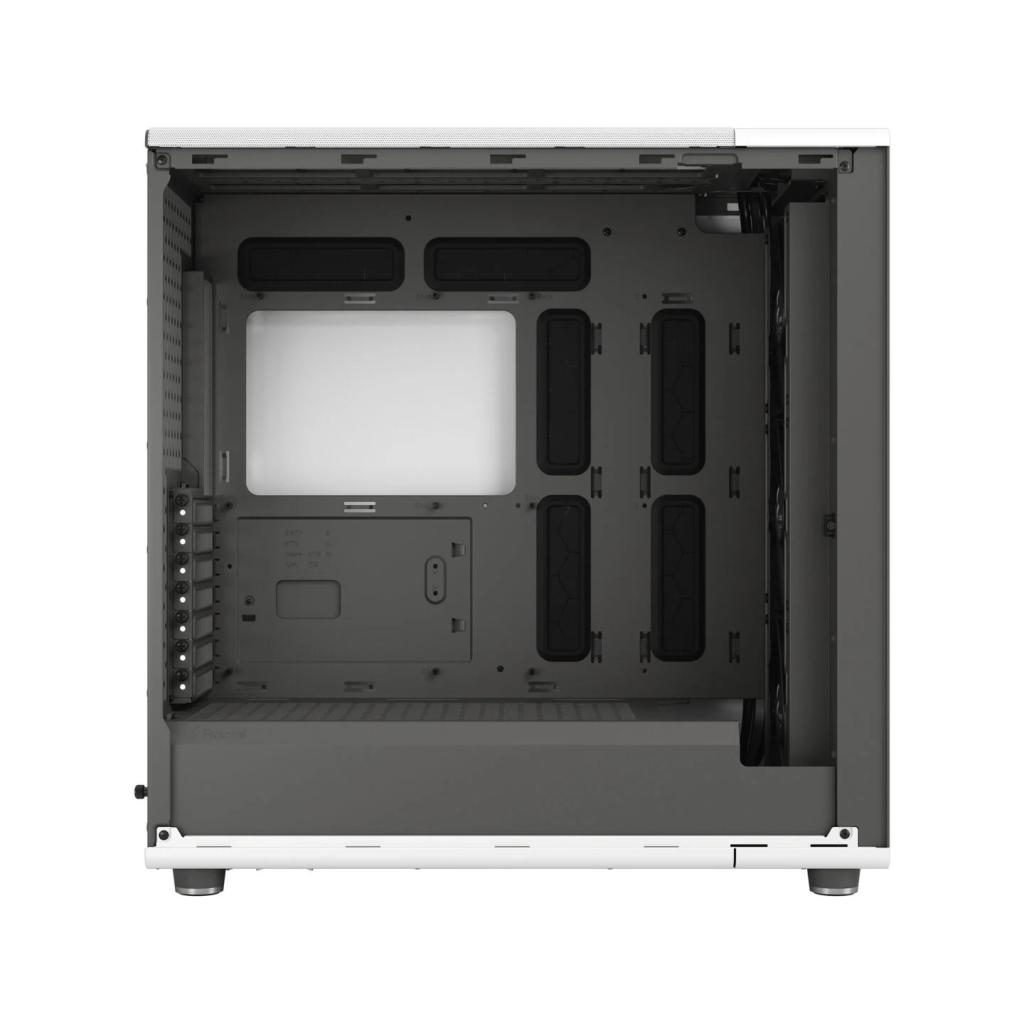

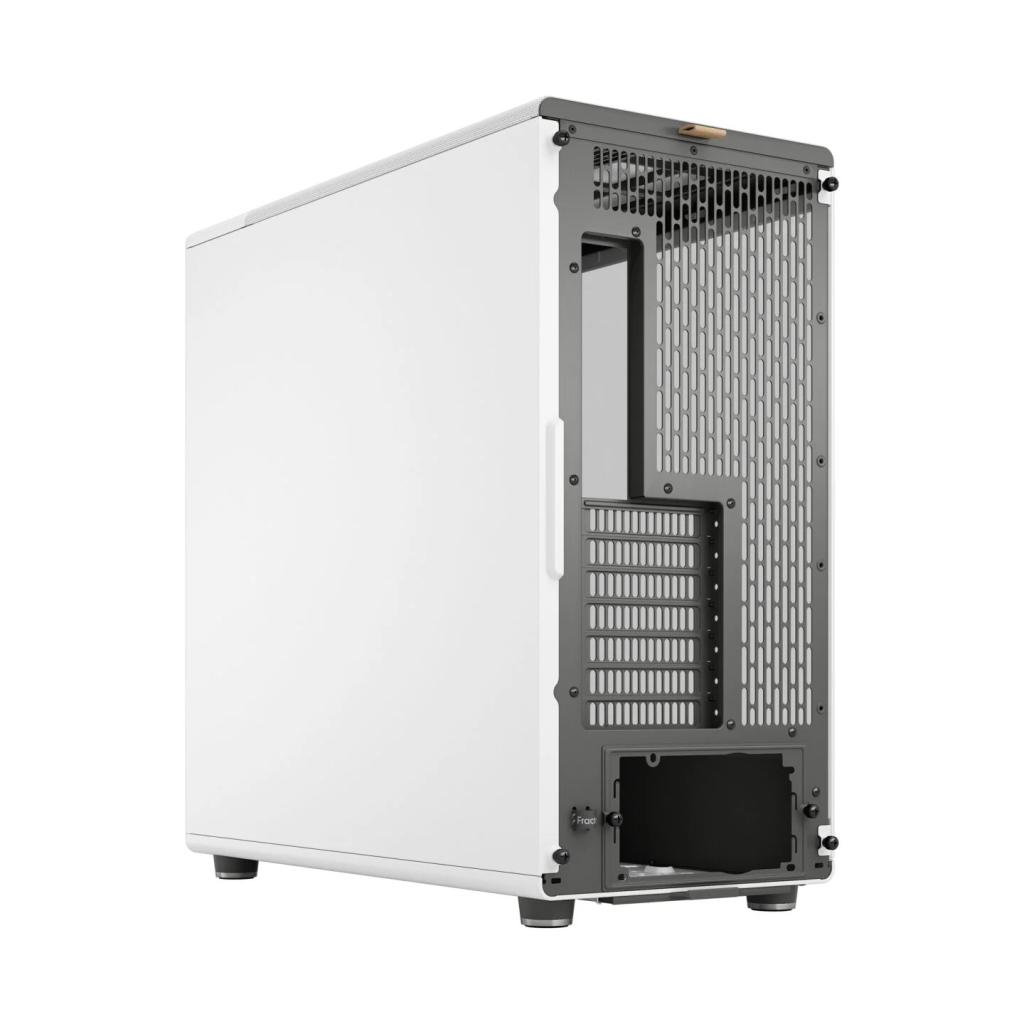

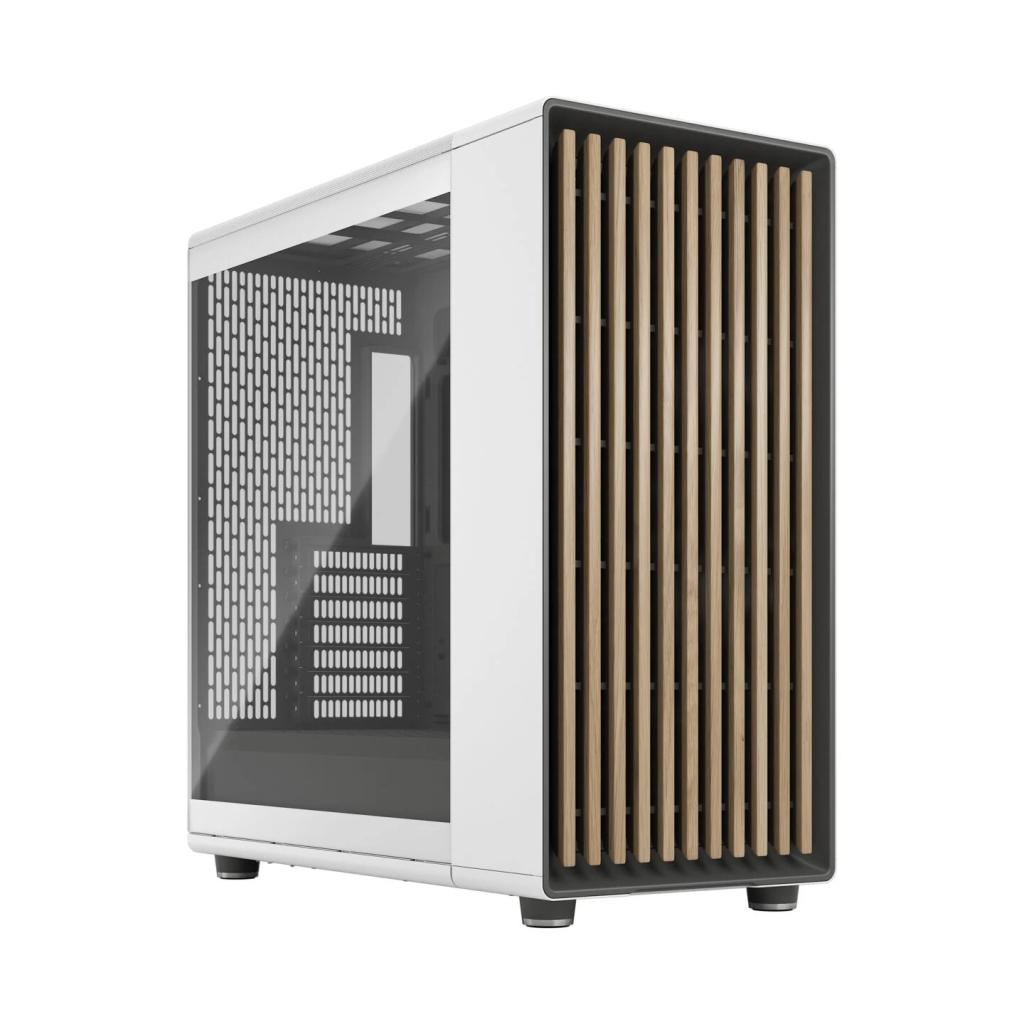

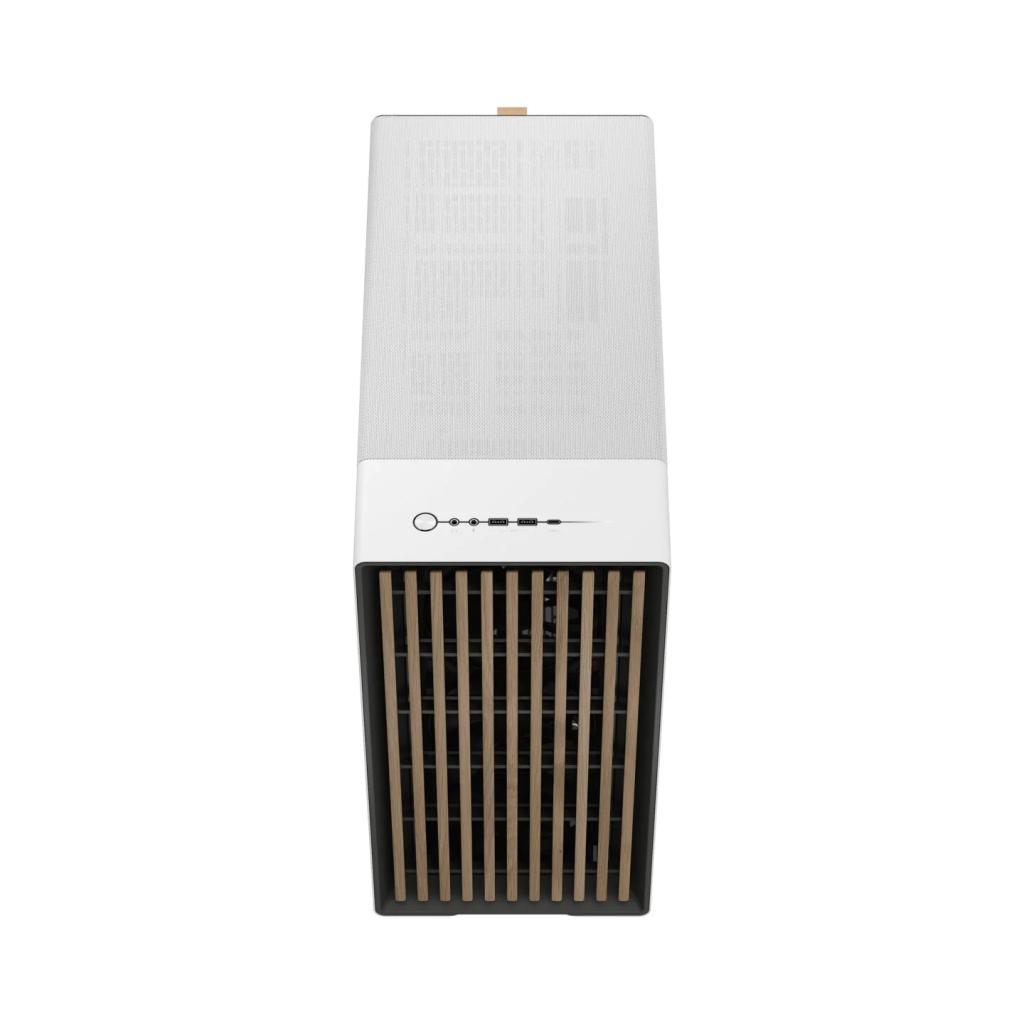

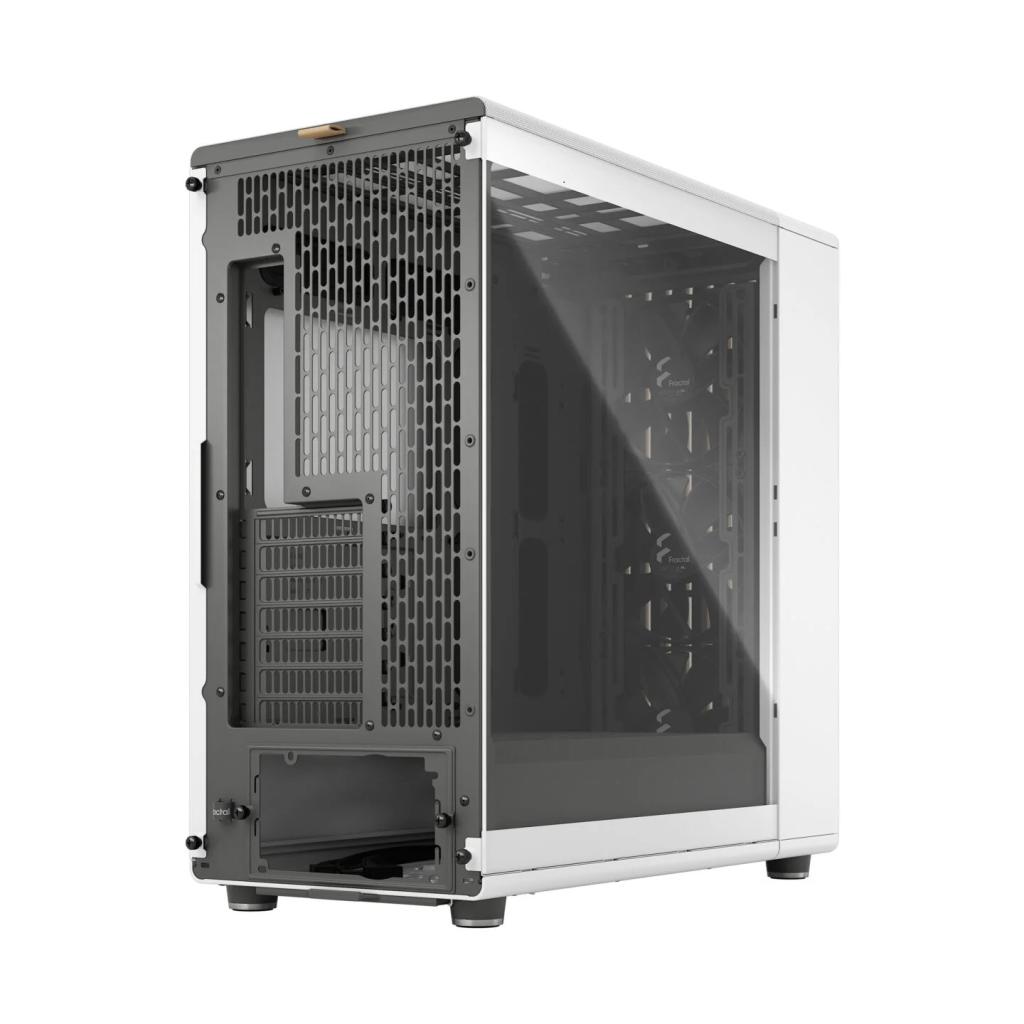

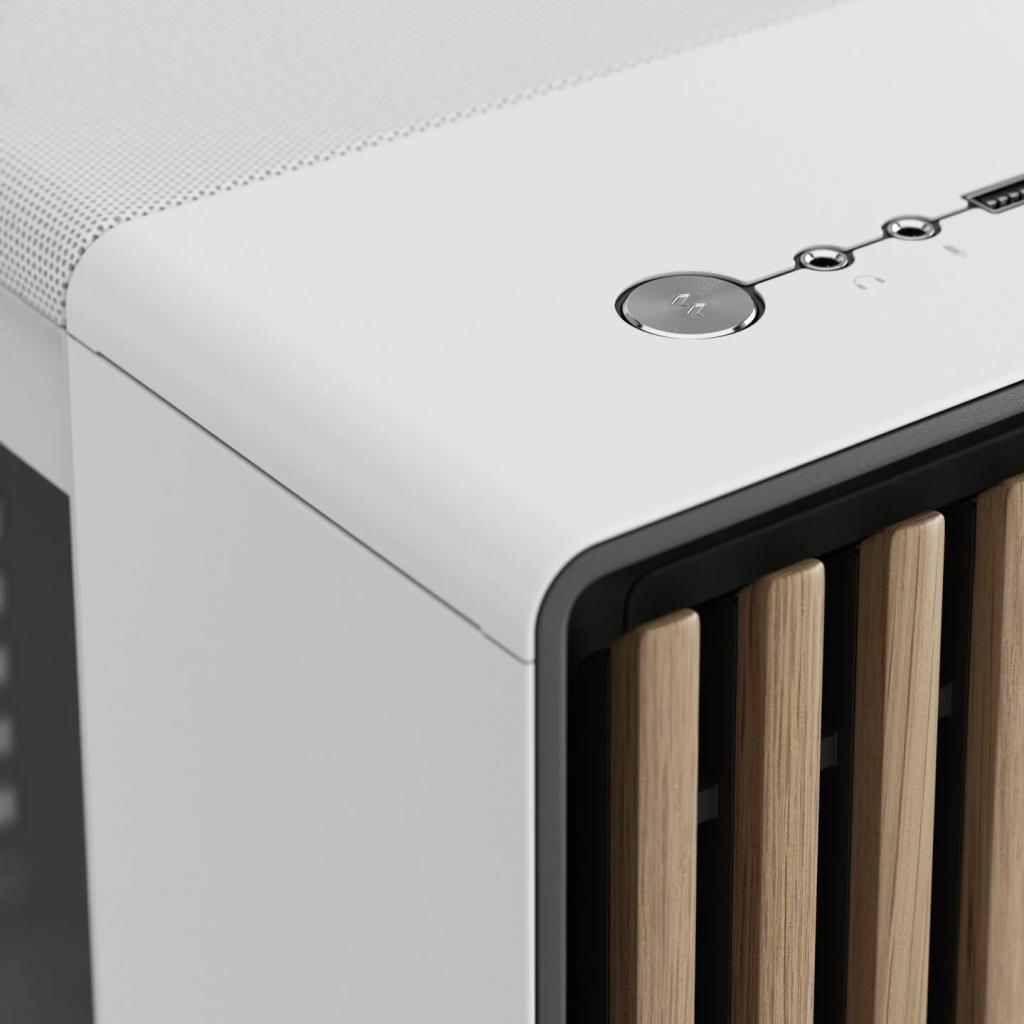

Кутия Fractal Design NORTH XL CHALK WHITE TG CLR, 1x USB 3.1 Gen 2, Type-C, 2x USB 3.0, E-ATX / ATX / mATX / Mini-ITX
изчерпан

Кутия Fractal Design NORTH XL CHALK WHITE TG CLR, 1x USB 3.1 Gen 2, Type-C, 2x USB 3.0, E-ATX / ATX / mATX / Mini-ITX

SKU: FD-C-NOR1X-04
ID: #37335

Характеристики

Включени вентилатори: Пр.панел: 3 x 140mm
Брой 3.5“ гнезда: 2 x 3.5" HDD
Брой 2.5“ SSD гнезда: 2x 2.5" SSD
Разширителни слотове: 7
Прозрачен страничен капак: Да
Захранване: Не
Размери: 503 x 240 x 509 mm
Форм фактор: Extended ATX
Цвят: White
Гаранция (месеца): 24

Направи запитване

Описание

  • Dedicated 2.5" drive mounts
    2
  • Combined 3.5/2.5” drive mounts
    2 included
  • 5.25” drive mounts
    0
  • Expansion slots
    7
  • Front interface
    1xUSB 3.1 Gen 2 Type-C, 2xUSB 3.0, Audio & Mic
  • Total fan mounts (TG Version)
    7 x 120 mm or 6 x 140 mm
  • Total fan mounts (Mesh Version)
    9 x 120 mm or 8 x 140 mm
  • Front fan
    3 x 120 mm, 3 x 140 mm (3 x Aspect 140mm PWM included)
  • Top fan
    3 x 120 mm, 2 x 140 mm or 2 x 180 mm
  • Rear fan
    1 x 120/140 mm
  • Dust filters
    Front, PSU
  • Fixed cable straps
    Yes
  • Cable routing grommets
    Yes
  • Captive thumbscrews
    HDD brackets, SSD bracket, Side Panels, Fan Bracket, PSU Bracket
  • Left side panel
    Mesh
  • Right side panel
    Steel

Compatibility

  • Motherboard compatibility
    E-ATX / ATX / mATX / Mini-ITX
  • Power supply type
    ATX
  • PSU max length
    1 HDD Tray: 290mm max, 2 HDD Trays: 175 mm
  • GPU max length
    413 mm with front fan mounted / 380 mm with a 33 mm-thick 420/360 mm front mounted radiator
  • CPU cooler max height
    155 mm with Fan Bracket (Mesh version) / 185 mm without
  • Front radiator
    Up to 420/360 mm
  • Top radiator
    Up to 280/360 mm
  • Rear radiator
    1 x 120/140 mm
  • Cable routing space
    29 mm

Dimensions

  • Case dimensions (LxWxH)
    503 x 240 x 509 mm
  • Case dimensions w/o feet/protrusions/screws
    490 x 240 x 490 mm
  • Net weight
    9.5kg (TG)
  • Package dimensions (LxWxH)
    604 x 355 x 608 mm
  • Gross weight
    11.7kg (TG)
