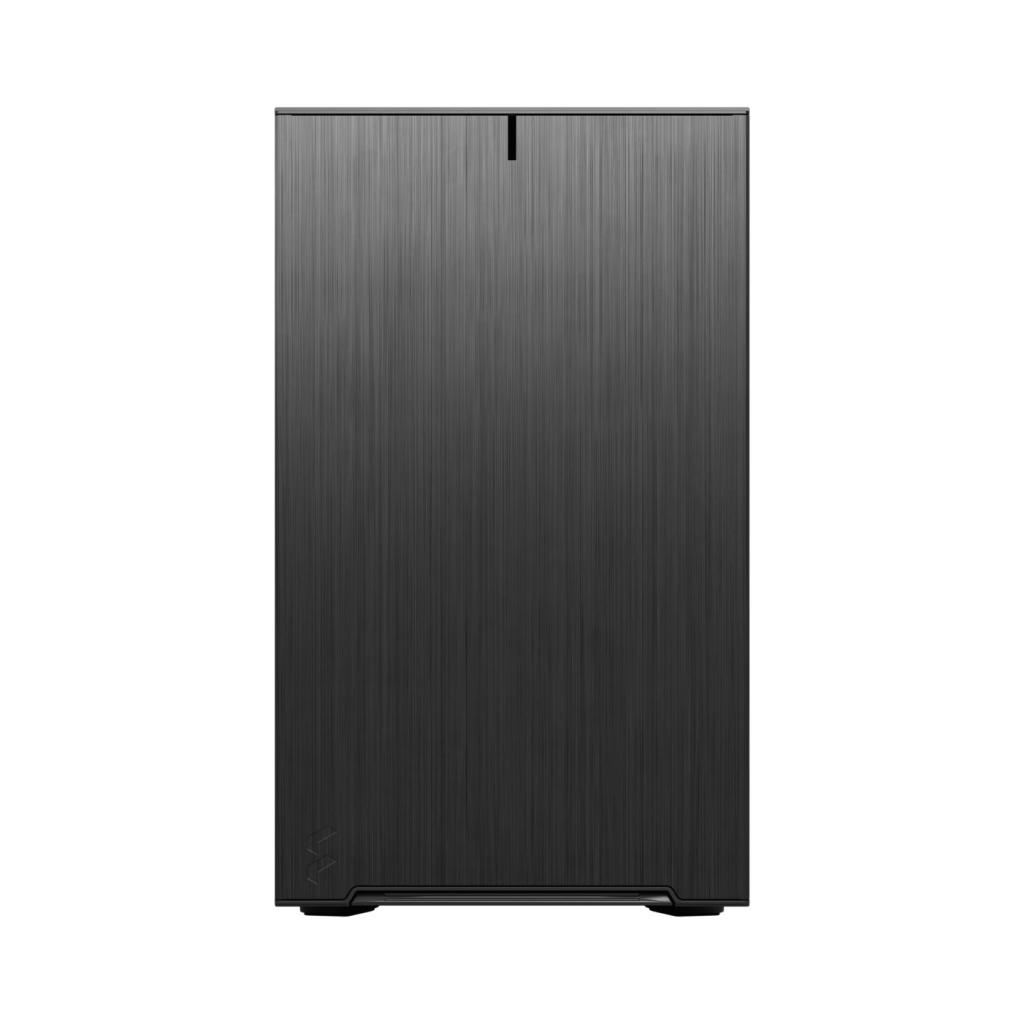

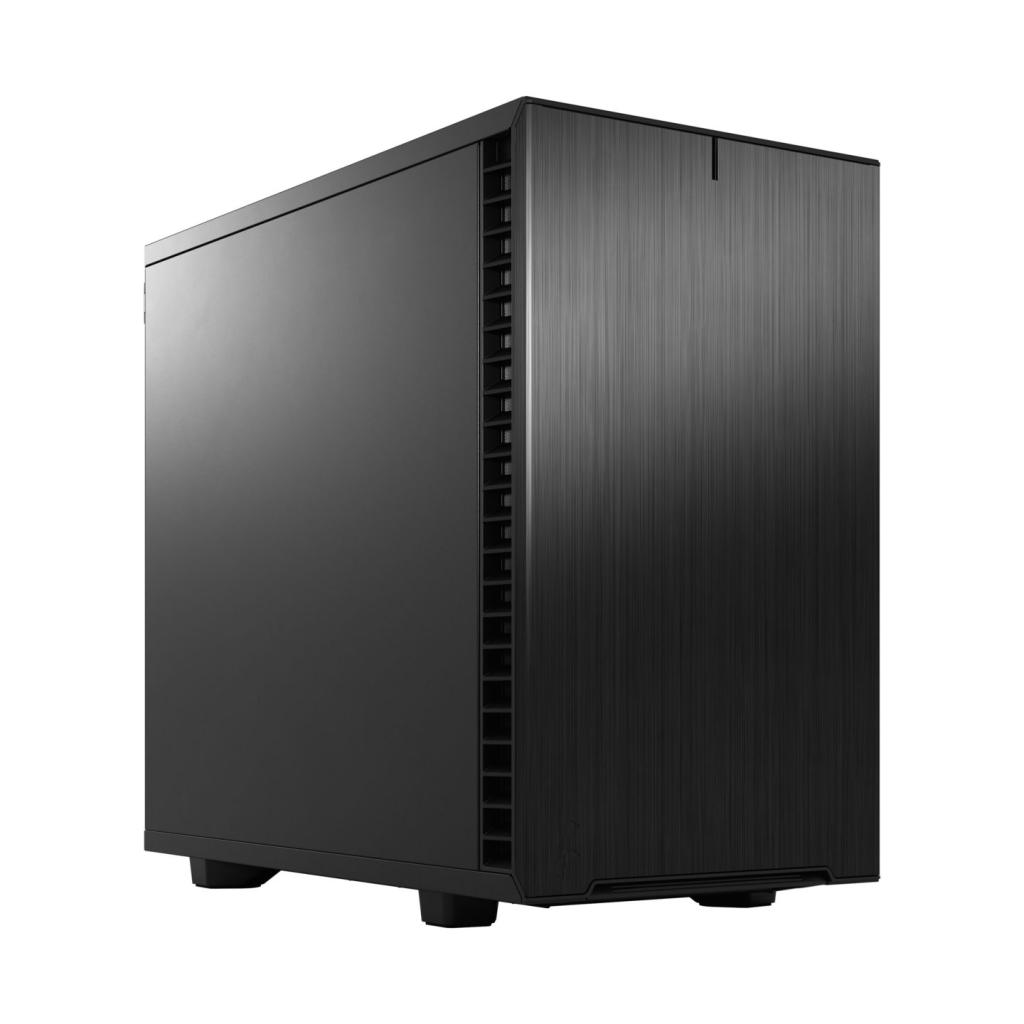

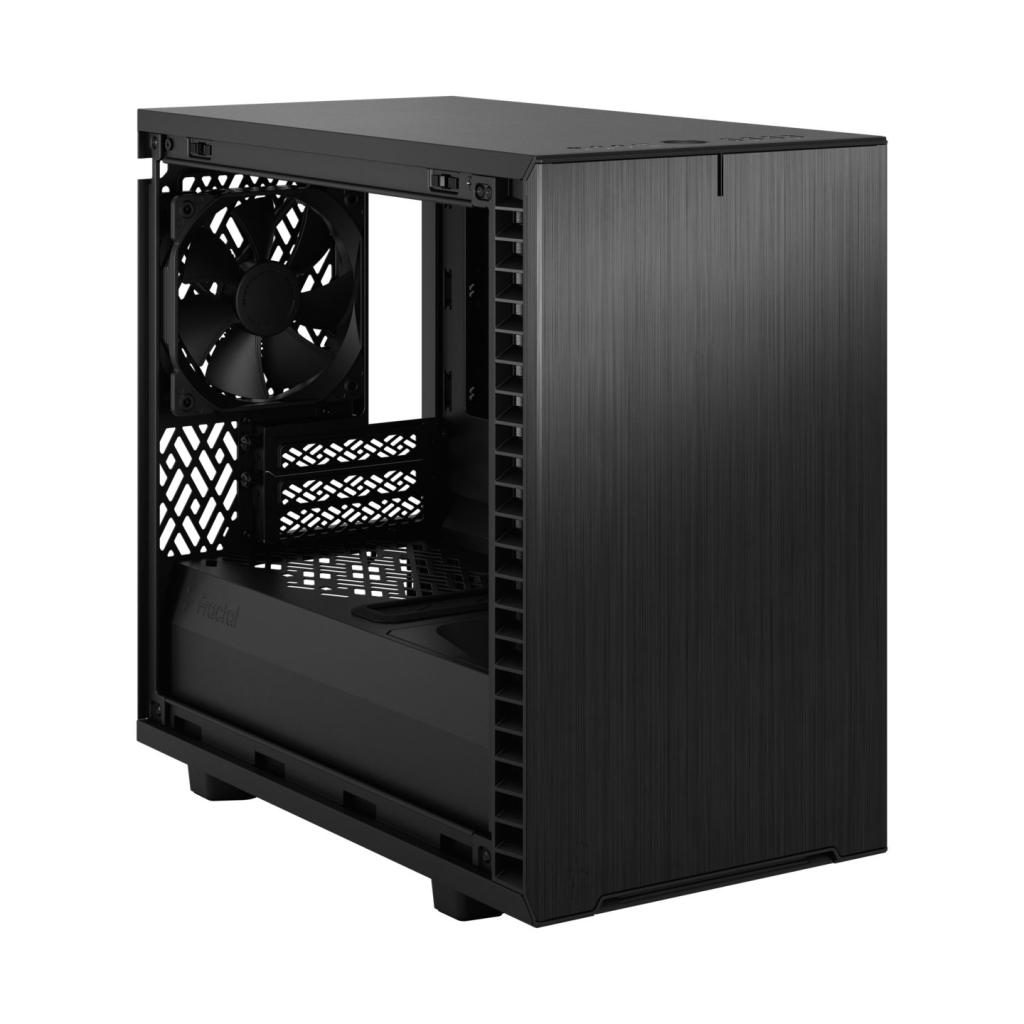

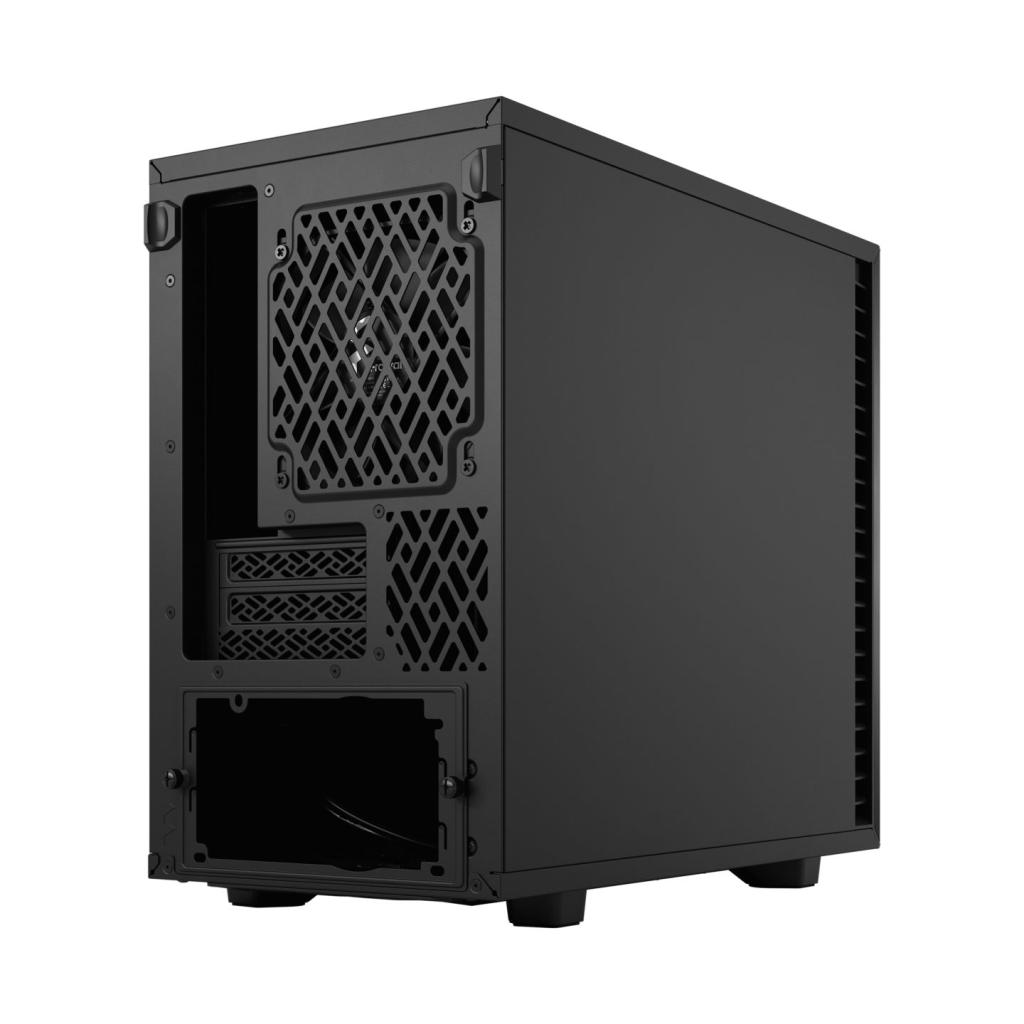

Кутия Fractal Design Define 7 NANO SOLID, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio, Black, mATX
изчерпан
Кутия Fractal Design Define 7 NANO SOLID, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio, Black, mATX
Кутия Fractal Design Define 7 NANO SOLID, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio, Black, mATX
Кутия Fractal Design Define 7 NANO SOLID, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio, Black, mATX
Кутия Fractal Design Define 7 NANO SOLID, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio, Black, mATX
Кутия Fractal Design Define 7 NANO SOLID, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio, Black, mATX
Кутия Fractal Design Define 7 NANO SOLID, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio, Black, mATX

Кутия Fractal Design Define 7 NANO SOLID, 1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio, Black, mATX

SKU: FD-C-DEF7N-01
ID: #30586

Характеристики

Включени вентилатори: Преден панел: 140 mm 1x Dynamic X2 GP-14, Заден панел: 120 mm 1x Dynamic X2 GP-12
Брой 3.5“ гнезда: 1
Брой 2.5“ SSD гнезда: 1x 2.5" SSD
Разширителни слотове: 2
Захранване: Не
Форм фактор: Mini ITX
Цвят: Black
Гаранция (месеца): 24

Направи запитване

Описание

  • 3.5"/2.5" drive mounts
    1 (included)
  • 2.5" drive mounts
    3 (2 included)
  • Expansion slots
    2

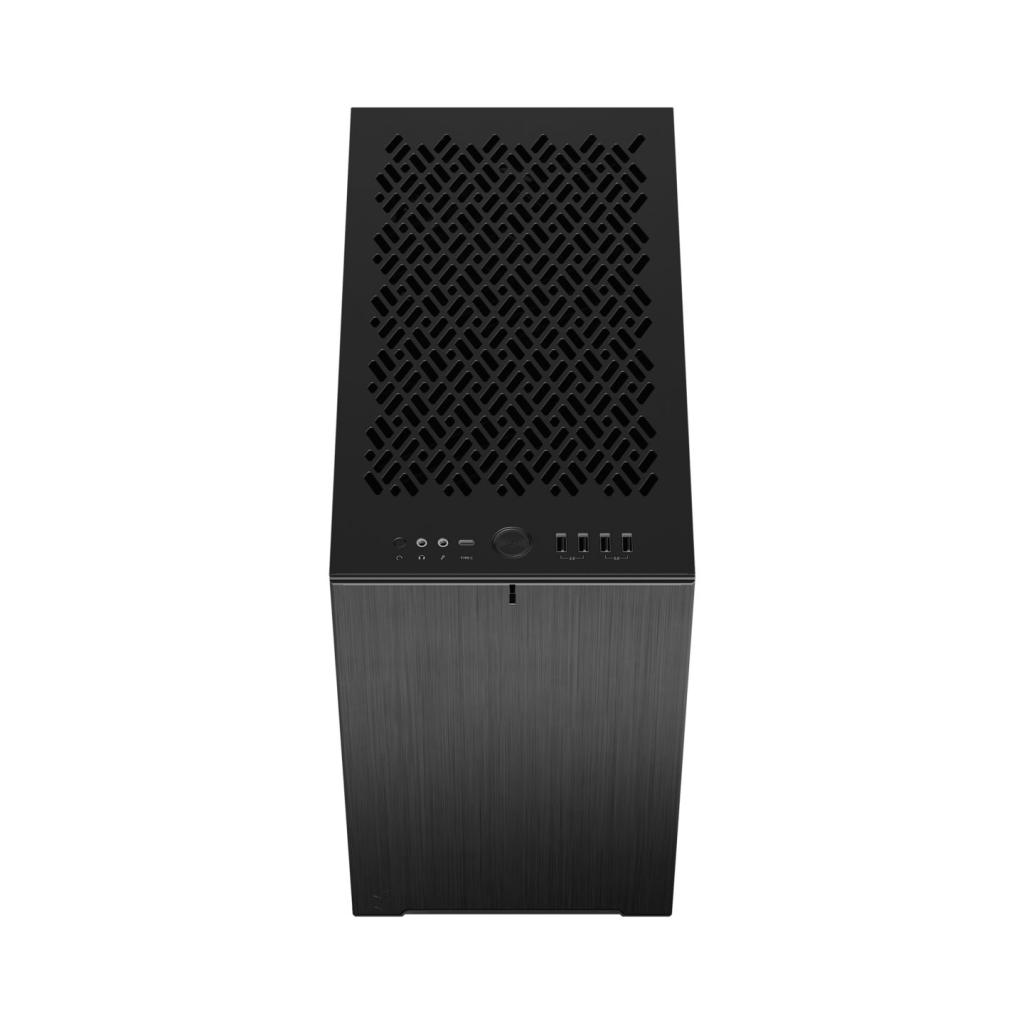

  • Front interface
    1x USB 3.1 Gen 2 Type-C, 2x USB 3.0, 2x USB 2.0, Audio
  • Total fan mounts
    6x 120 mm or 3x 140 mm (top 140mm fan mount requires 15 mm slim fans)
  • Front fan
    2x 120/140 mm (1x Dynamic X2 GP-14 included)
  • Top fan
    2x 120 or 1x 140 slim fan (max 15 mm)
  • Rear fan
    1x 120 mm (1x Dynamic X2 GP-12 included)
  • Bottom fan
    1x 120 mm (requires removal of HDD tray)
  • Dust filters
    Top, Front, Bottom and PSU
  • Cable routing space
    15-25 mm
  • Cable routing grommets
    Yes
  • Fixed cable ties
    Yes
  • Tool-less push-to-lock
    Both side panels
  • Captive thumbscrews
    SSD and PSU brackets
  • Left side panel
    Industrial sound-damped steel (Solid) or Tinted Glass panel (TG)
  • Right side panel
    Industrial sound-damped steel

Compatibility

  • Motherboard compatibility
    Mini ITX / Mini-DTX
  • Power supply type
    ATX
  • Front radiator
    120/240, 140/280 mm (316 mm max height, 146 mm max width, 280 mm recommended in “push” configuration for easier fit)
  • Top radiator
    N/A
  • Rear radiator
    120 mm
  • Bottom radiator
    N/A
  • PSU max length
    165 mm recommended (200 mm without HDD-tray and modular air duct)
  • GPU max length
    331 mm, 306 mm with front fan
  • GPU max thickness
    57 mm / 2.8 slot
  • CPU cooler max height
    167 mm

Dimensions

  • Case dimensions (LxWxH)
    399 x 205 x 361 mm
  • Case dimensions w/o feet/protrusions/screws
    390 x 205 x 345 mm
  • Net weight
    7.1kg (TG) / 7.2kg (solid)
  • Package dimensions (LxWxH)
    417 x 277 x 471 mm
  • Gross weight
    8.5kg (TG) / 8.6 (solid)
