| Marketing Description |
| Whatever the size of workspace, unrestricted and immersive presentations are now possible with this compact, affordable display solution. Due to a large display size, and flexible formats, content can be viewed from every angle, and participants can share directly from their own devices, for the perfect collaborative experience. |
| Product Features |
- Bright, large-format display
Unlike flat-panel equivalents, there are no shadows, glare or blind spots, and the 3,600lm high-brightness laser light source can work when ambient lighting is also high. Multi-screen capability makes collaboration easy and intuitive, while a split-screen feature can show up to four inputs in one large display at XGA resolution.
- Immersive viewing experience
The viewing experience is more immersive, with multiple connectivity options enhancing exceptional image and built-in speaker sound quality.
- Share your content
For the ultimate in engagement; wireless connectivity (including Screen Mirroring via Miracast) allows everyone to share content from their tablets, mobiles or laptops.
- Exceptional sustainability
Sustainability is another strength, based on sustainable manufacturing, product usage and lifecycle.
|
| General |
| Device Type |
3LCD projector |
| Built-in Devices |
Speaker |
| Networking |
802.11a/b/g/n/ac, Ethernet |
| Enclosure Colour |
White |
| Projector |
| Brightness (White) |
3600 lumens |
| Brightness (Colour) |
3600 lumens |
| Brightness (Reduced) |
2520 lumens |
| Contrast Ratio |
2500000:1 (dynamic) |
| Image Size |
127 cm - 284.5 cm |
| Throw Ratio |
0.55 - 0.74:1 |
| Digital Zoom Factor |
1.35x |
| Resolution |
XGA - XGA (1024 x 768) |
| Native Aspect Ratio |
4:3 |
| Colour Support |
1.07 billion colours |
| Bulb type |
Laser |
| Bulb life cycle |
Up to 20000 hour(s) - normal mode
Up to 30000 hour(s) - economic mode |
| Features |
EPSON 3LCD technology, Dynamic Mode, Cinema Mode |
| Lens |
| Focus Type |
Manual |
| Lens Aperture |
F/1.6 |
| Keystone Correction Direction |
Horizontal, vertical |
| Vertical Keystone Correction |
-15 / +15 |
| Horizontal Keystone Correction |
-15 / +15 |
| Video Input |
| Video Interfaces |
VGA, HDMI |
| LAN and Wireless Image Transferring Protocols |
Wired LAN, Miracast, IEEE 802.11ac |
| Speakers |
| Type |
Integrated |
| Sound Output Mode |
Mono |
| Output Power / Channel |
16 Watt |
| Speakers |
1 x mixed channel |
| Expansion / Connectivity |

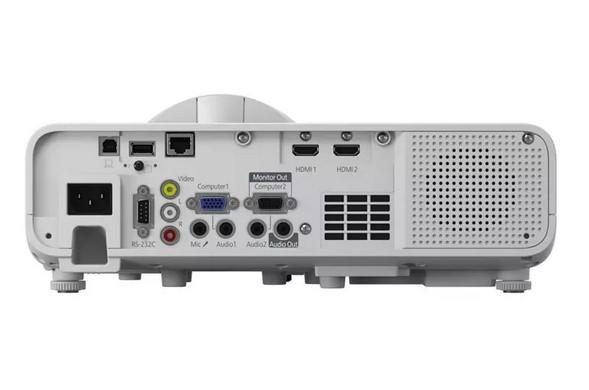

| Interfaces |
1 x USB 2.0 - 4 pin USB Type A
1 x USB 2.0 - 4 pin USB Type B
2 x VGA input
1 x VGA output
2 x HDMI input
1 x network - RJ-45
1 x audio line-out - mini-phone stereo 3.5 mm
2 x audio line-in - mini-phone stereo 3.5 mm
1 x microphone input - mini-phone 3.5 mm
1 x serial RS-232C |
| Miscellaneous |
| Included Accessories |
Remote control, battery for remote control |
| Cables Included |
1 x HDMI cable |
| Security Features |
Security lock slot (cable lock sold separately), password protection, control panel lock, Wireless LAN Lock, padlock, security cable hole |
| Security Slot Type |
Kensington security slot |
| Environmental Standards |
| TCO Certified |
TCO Certified Projectors 8 |
| Power |
| Power Source |
AC |
| Voltage Required |
AC 220 - 240 V (50 - 60 Hz) |
| Power Consumption Operational |
254 Watt |
| Power Consumption Stand by |
0.5 Watt |
| Dimensions & Weight |
| Width |
32.5 cm |
| Depth |
33.7 cm |
| Height |
9 cm |
| Weight |
4.5 kg |
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 5 years / 12000 hours - carry-in |
| Environmental Parameters |
| Sound Emission |
36 dBA |
| Sound Emission (Economic Mode) |
26 dBA |
