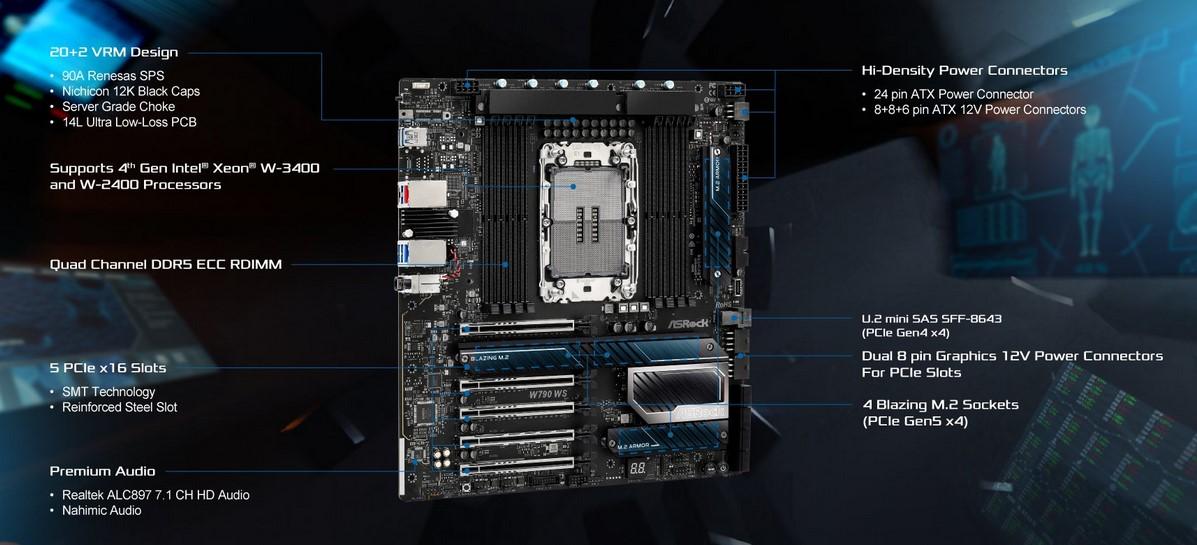

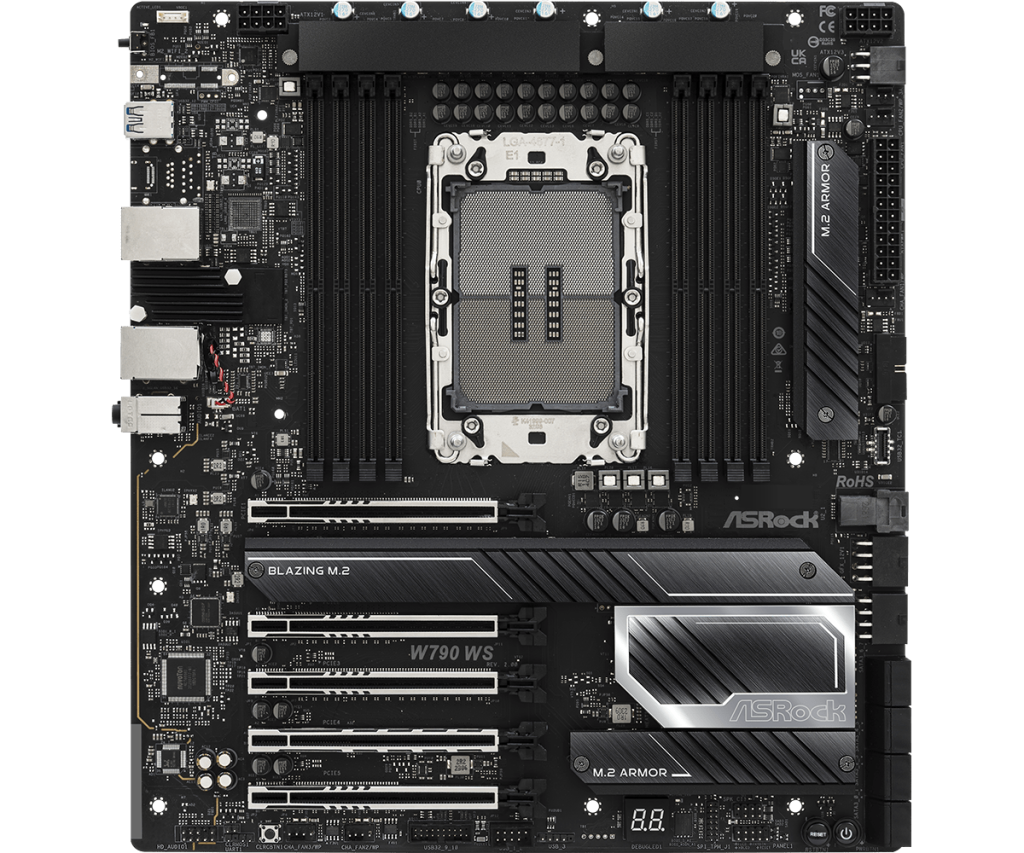

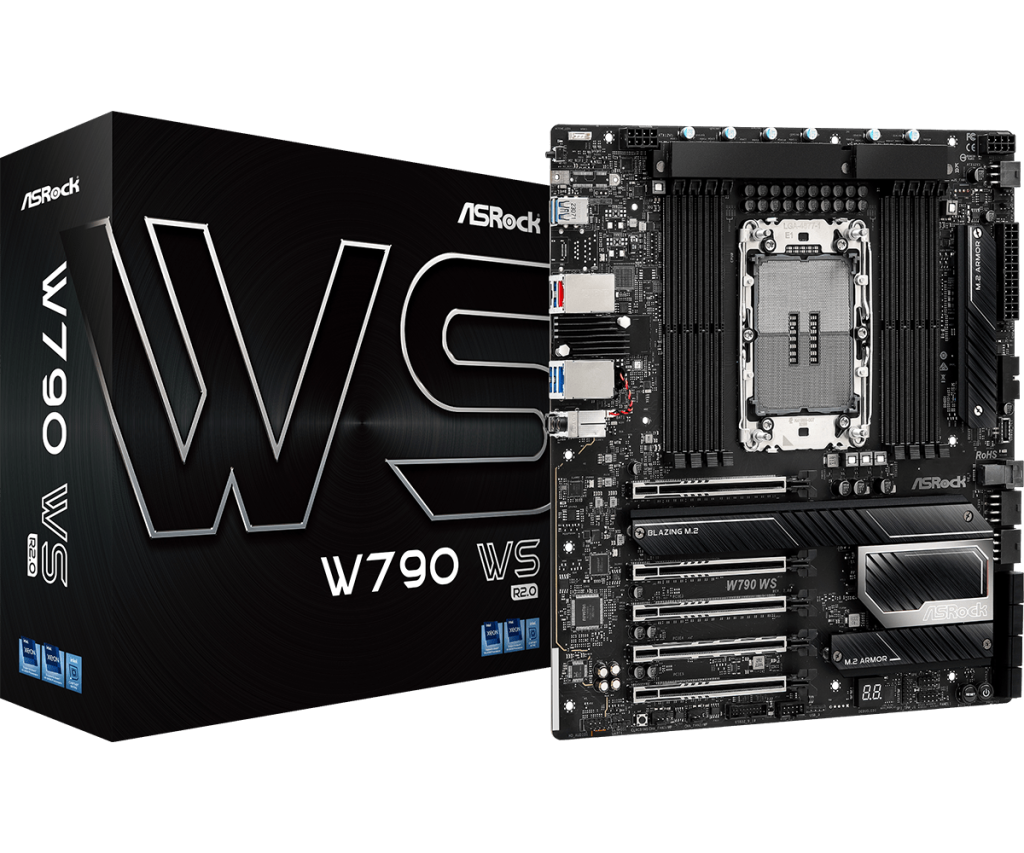

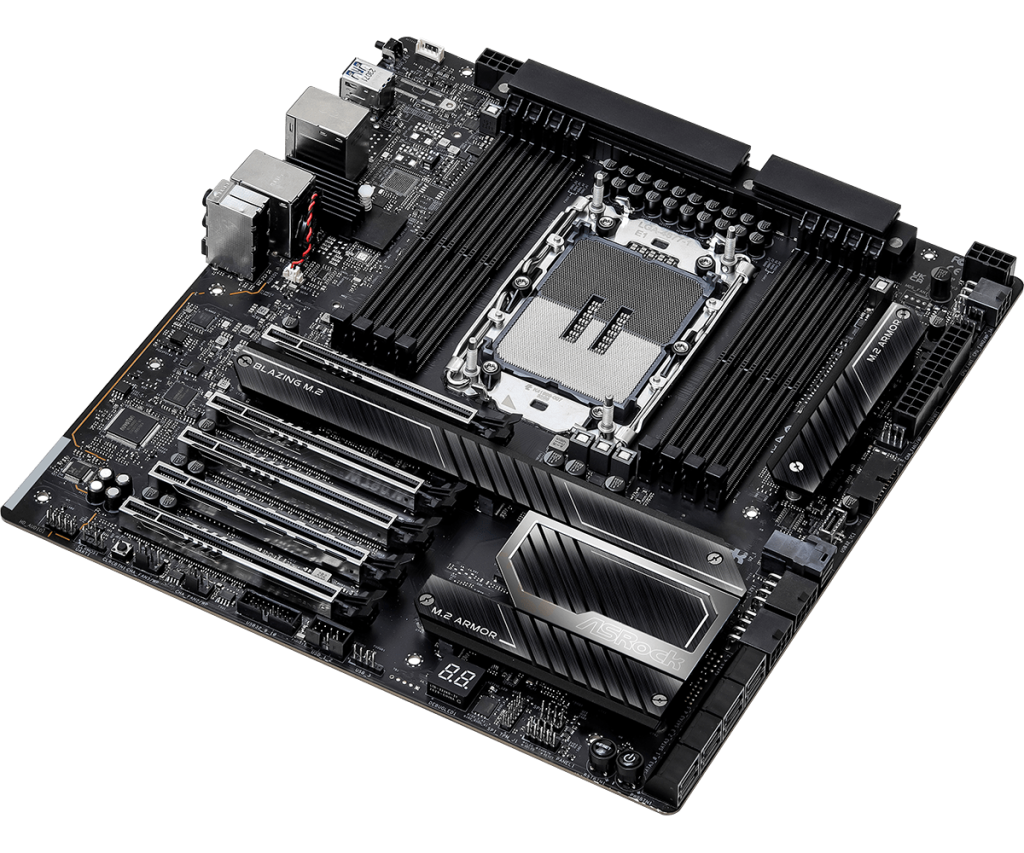

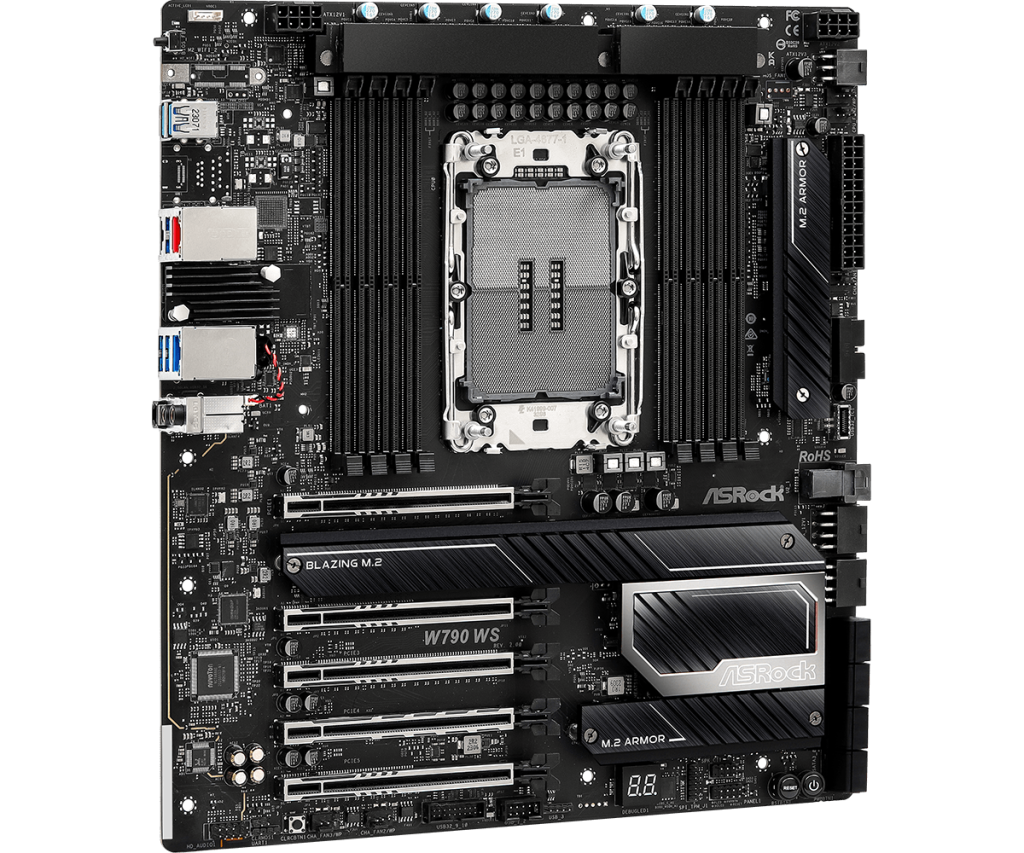

Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX
Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX
Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX
Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX
Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX
Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX
Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX
Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX

Дънна платка за сървър ASRock W790 WS R2.0, W790, LGA4677, DDR5, 8x SATA 6Gb/s, 4 x M.2 Blazing, 1 x U.2 mini SAS, 1x USB 3.2 Gen 2x2 Type-C, 2x USB 3.2 Gen 2 Type-A, E-ATX

SKU: W790 WS R2.0
ID: #40634
Цена: 1 220,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® Socket LGA4677 for Xeon® W-3400 and W-2400 Series Processors*
CPU Socket: Intel LGA 4677
Чипсет: Intel W790
Максимален капацитет RAM памет: 2 TB
Поддръжка на Dualchannel: Да
Памет, слотове: 8
Поддържана памет: DDR5
M.2 слот: 4x M.2
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Мрежа: 2 x Gigabit Ethernet
Wi-Fi Mодул: Не
Форм фактор: Extended ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    - Supports 4th Gen Intel® Xeon® W-3400 and W-2400 Processors (LGA4677)
    - Supports Intel® Boot Guard
    - Supports Intel® Trusted Execution Technology (Intel® TXT)
    - Supports Intel® Turbo Boost Technology
    - Supports Intel® Virtualization Technology (Intel® VT)
    - Supports Intel® Hyper-Threading Technology (Intel® HT Technology)
    - Supports Intel® Data Streaming Accelerator (Intel® DSA)
    - Supports CXL (Compute Express Link) 1.1
  • Chipset
    - Intel® W790
    - Supports Intel® vPro Technology
    - Supports Intel® Active Management Technology
  • Memory
    - Quad Channel DDR5 Memory Technology
    - 8 x DDR5 DIMM Slots*
    - Supports DDR5 ECC, buffered memory (RDIMM/ RDIMM-3DS/ RDIMM-9x4) up to 6800+(OC)**
    - Max. capacity of system memory: 2TB

    *S3 (Sleep) mode is supported only when 1 / 2 / 4 DIMMs memory modules are installed.
    1DPC Up to 6800+ MHz (OC), 4800 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5.
    2DPC Up to 6200+ MHz (OC), 4400 MHz Natively for Xeon® W9, Xeon® W7 and Xeon® W5.
    Supports 4400 MHz Natively for Xeon® W3, W5-3423 and W5-3433. Overclocking is not supported.

    **Actual support may vary by CPU
  • BIOS
    - 256Mb AMI UEFI Legal BIOS with GUI support
  • Graphics
    - n/a
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    - Nahimic Audio
  • LAN
    1 x 10 Gigabit LAN 100/1000/2500/5000/10000 Mb/s (Marvell (Aquantia) AQC113CS)
    - Support Wake-On-LAN
    - Support PXE
    1 x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s (Intel® I226LM)
    - Support Wake-On-LAN
    - Support PXE
    - Supports Intel® vPro Technology
  • Slots
    CPU:
    - 4 x PCIe 5.0 x16 Slots (PCIE1/PCIE3 at x16; PCIE2/PCIE5 at x8)*
    Chipset:
    - 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode*
    - 15μ Gold Contact in VGA PCIe Slots

    * Supports NVMe SSD as boot disks
  • Storage
    CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2230/2242/2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    - 2 x Blazing M.2 Sockets (M2_2 and M2_3, Key M), support type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    - 1 x Blazing M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen5x4 (128 Gb/s) mode*
    Chipset:
    - 8 x SATA3 6.0 Gb/s Connectors
    - 1 x U.2 Connector, supports PCIe Gen4x4 (64 Gb/s) mode

    * Supports Intel® Volume Management Device (VMD)
    Supports NVMe SSD as boot disks
  • RAID
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices*

    * Requires additional M.2 NVMe expansion cards to support RAID 10
  • USB
    - 1 x USB 3.2 Gen2x2 Type-C (Front)
    - 2 x USB 3.2 Gen2 Type-A (Rear)
    - 7 x USB 3.2 Gen1 (3 Rear, 4 Front)
    - 3 x USB 2.0 (Front)

    * All USB ports support ESD Protection
  • Connector
    - 1 x Virtual RAID On CPU Header
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    - 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
    - 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for Motherboard)
    - 1 x 6 pin 12V Power Connector (Hi-Density Power Connector) (for Motherboard)****
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector) (for PCIe card)*****
    - 1 x Front Panel Audio Connector
    - 2 x USB 2.0 Headers (Support 3 USB 2.0 ports)
    - 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
    - 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
    - 1 x Clear CMOS Button
    - 1 x Dr. Debug with LED
    - 1 x Power Button with LED
    - 1 x Reset Button with LED

    * CPU_FAN1 supports the fan power up to 1A (12W).

    ** CPU_FAN2/WP_3A supports the fan power up to 3A (36W).

    *** CHA_FAN1~3/WP support the fan power up to 2A (24W).
    CPU_FAN2/WP_3A and CHA_FAN1~3/WP can auto detect if 3-pin or 4-pin fan is in use.

    **** It is optional to connect an ATX 12V 6-pin Cable to ATX12V3, which provides more power for overclocking.

    ***** Use either GTX_12V1 or GTX_12V2 when you install one or two PCIe card(s). Use both connectors when you install more than two PCIe cards.Otherwise, the system may not boot up properly.

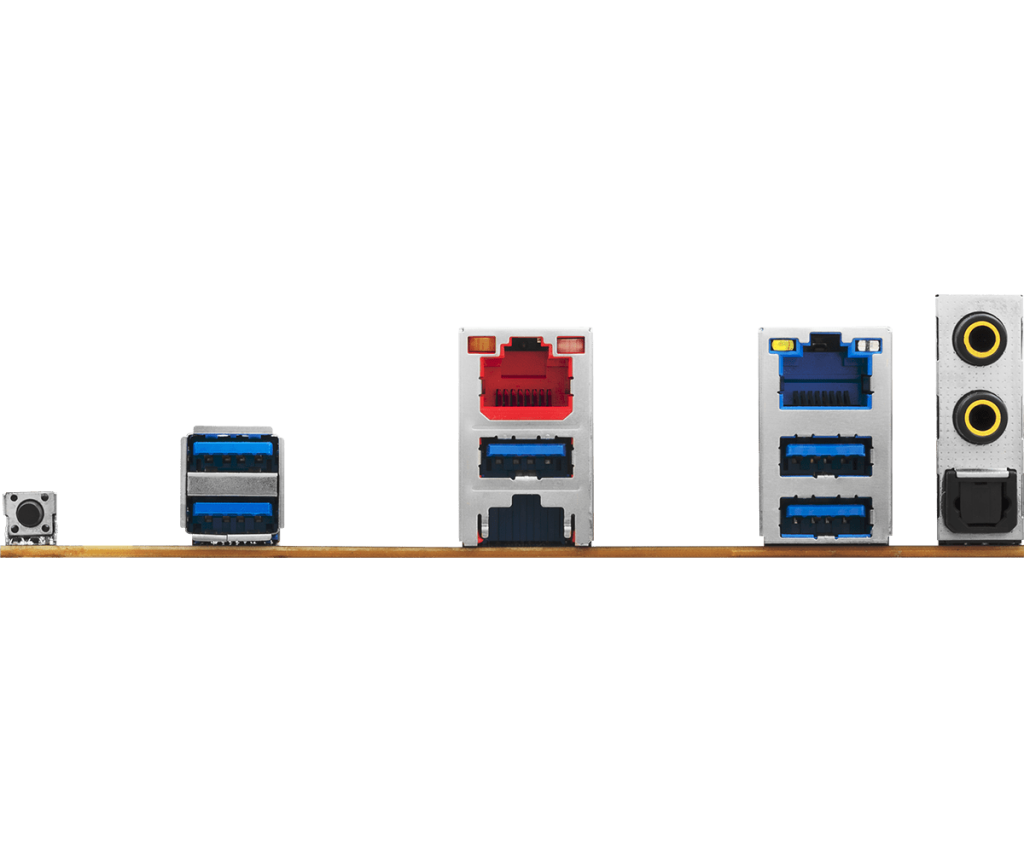

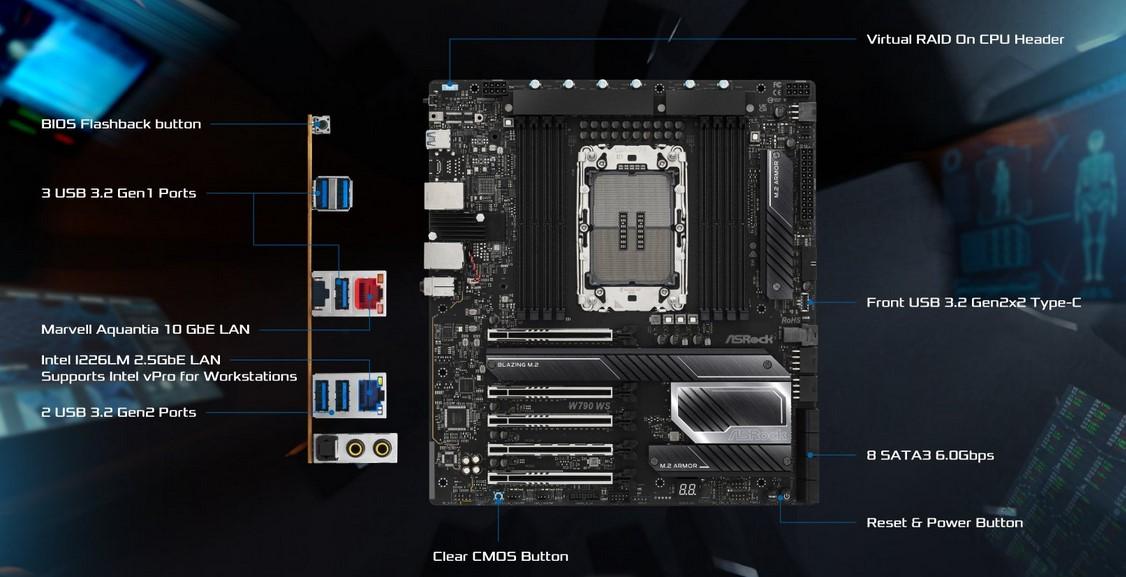

  • Rear Panel I/O
    - 1 x Optical SPDIF Out Port
    - 2 x USB 3.2 Gen2 Type-A Ports (10 Gb/s)
    - 3 x USB 3.2 Gen1 Type-A Ports
    - 2 x RJ-45 LAN Ports
    - 1 x BIOS Flashback Button
    - 1 x Line Out Jack (Gold Audio Jack)
    - 1 x Microphone Input Jack (Gold Audio Jack)
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    UEFI
    - ASRock My Favorites in UEFI
    - ASRock Auto Driver Installer
    - ASRock Instant Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Accessories
    - 1 x User Manual
    - 1 x I/O Shield
    - 4 x SATA Data Cables
    - 1 x CPU Carrier for LGA 4677 E1A
    - 1 x CPU Carrier for LGA 4677 E1B
    - 4 x Screws for M.2 Sockets
    - 2 x Standoffs for M.2 Sockets
  • Form Factor

    - EATX Form Factor: 12.0-in x 10.9-in, 30.5 cm x 27.7cm
