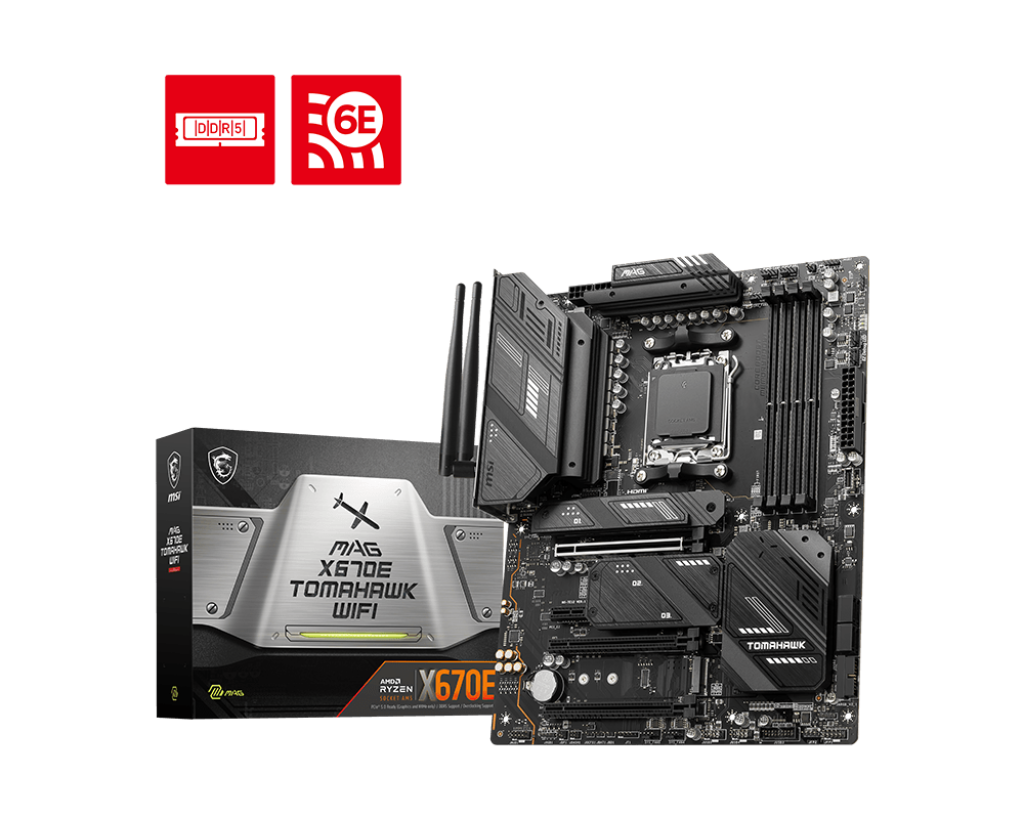

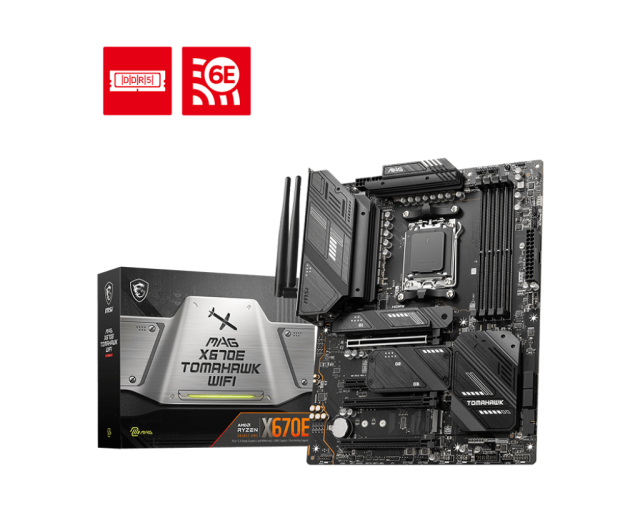

Дънна платка MSI MAG X670E TOMAHAWK WIFI, X670, AM5, DDR5, PCI-E 5.0 (DP/HDMI), 4x M.2, 4x SATA 6Gb/s, 4x USB 3.2 Gen1, Wi-Fi 6E, Bluetooth, ATX

SKU: MAG X670E TOMAHAWK WIFI

ID: #29858

Цена: 613,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors

CPU Socket: AMD AM5

Чипсет: AMD X670

Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB

Поддръжка на Dualchannel: Да

Памет, слотове: 4

Честота памет: DDR5 6600+(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz

M.2 слот: 4 x M.2 slots and 4 x SATA 6Gb/s ports

Поддръжка на RAID: SATA / NVMe RAID 0, 1, 10

Вграден Bluetooth: Bluetooth V5.3

Мрежа: 10/100/1000 Mbps

Wi-Fi Mодул: Да

Безжична мрежа: 802.11ax Wi-Fi 6E

Форм фактор: ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

Продукт

MSI MAG X670E TOMAHAWK WIFI

Tech specs

Chipset	AMD X670
CPU SUPPORT	Supports AMD Ryzen 7000 Series Desktop Processors Socket AM5
Memory	4x DDR5, Maximum Memory Capacity 192GB Memory Support DDR5 6000+(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6000+ MHz • 1DPC 2R Max speed up to 6000+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5400+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports AMD EXPO
Onboard Graphics	1x HDMI Support HDMI 2.1 FRL, maximum resolution of 4K 120Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x Type-C DisplayPort Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT	3x PCI-E x16 slot Supports x16/x4/x2 1x PCI-E x1 slot PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
Storage	4x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices
USB	4x USB 2.0 (Front) 4x USB 3.2 Gen1 Type A (Rear) 4x USB 3.2 Gen1 Type A (Front) 2x USB 3.2 Gen2 Type A (Rear) 1x USB 3.2 Gen2 Type C (Rear) 1x USB 3.2 Gen2 Type C (Front) 1x USB 3.2 Gen2x2 Type C (Rear)
LAN	Realtek RTL8125BG 2.5Gbps LAN
WIRELESS / BLUETOOTH	AMD Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands Supports 802.11 a/ b/ g/ n/ ac/ ax Supports Bluetooth 5.3** * Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11. ** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
Audio	Realtek ALC1200 Codec 7.1-Channel High Definition Audio Supports S/PDIF output
Internal I/O	1x Power Connector(ATX_PWR) 2x Power Connector(CPU_PWR) 1x CPU Fan 1x Pump Fan 6x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Tuning Controller connector(JDASH) 2x Addressable V2 RGB LED connector (JARGB_V2) 2x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 4x USB 3.2 Gen1 Type A ports 1x USB 3.2 Gen2 Type C ports
LED FEATURE	4x EZ Debug LED

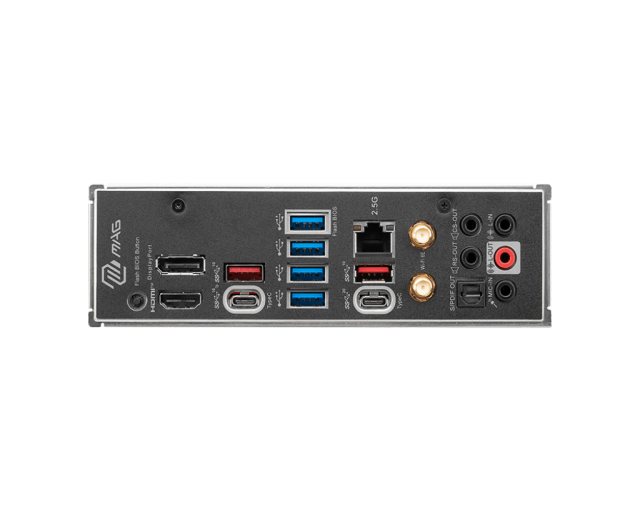

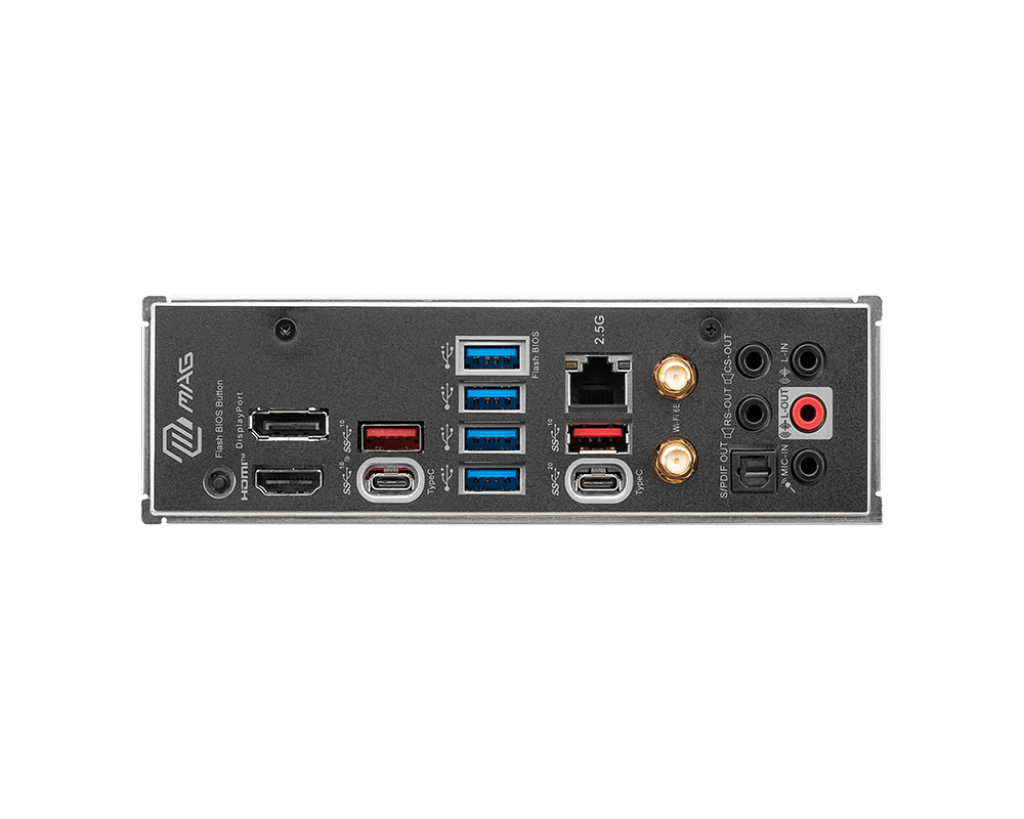

BACK PANEL PORTS	DisplayPort USB 3.2 Gen 2 10Gbps (Type-A) USB 3.2 Gen 2 5Gbps (Type-A) 2.5G LAN Wi-Fi / Bluetooth Audio Connectors Flash BIOS Button HDMI USB 3.2 Gen 2 10Gbps (Type-C Display port) USB 3.2 Gen 2x2 20Gbps (Type-C) S/PDIF-Out
OPERATING SYSTEM	Support for Windows 11 64-bit, Windows 10 64-bit
PCB Dimension (W × L)	ATX 243.84mmx304.8mm
