Дънна платка MSI MAG B550 TOMAHAWK MAX WIFI, AM4, 4x DDR4, 2x M.2, 6x SATA6Gb/s, Wi-Fi 6E, HDMI, DP, ATX
Дънна платка MSI MAG B550 TOMAHAWK MAX WIFI, AM4, 4x DDR4, 2x M.2, 6x SATA6Gb/s, Wi-Fi 6E, HDMI, DP, ATX
Дънна платка MSI MAG B550 TOMAHAWK MAX WIFI, AM4, 4x DDR4, 2x M.2, 6x SATA6Gb/s, Wi-Fi 6E, HDMI, DP, ATX
Дънна платка MSI MAG B550 TOMAHAWK MAX WIFI, AM4, 4x DDR4, 2x M.2, 6x SATA6Gb/s, Wi-Fi 6E, HDMI, DP, ATX
Дънна платка MSI MAG B550 TOMAHAWK MAX WIFI, AM4, 4x DDR4, 2x M.2, 6x SATA6Gb/s, Wi-Fi 6E, HDMI, DP, ATX
Дънна платка MSI MAG B550 TOMAHAWK MAX WIFI, AM4, 4x DDR4, 2x M.2, 6x SATA6Gb/s, Wi-Fi 6E, HDMI, DP, ATX

Дънна платка MSI MAG B550 TOMAHAWK MAX WIFI, AM4, 4x DDR4, 2x M.2, 6x SATA6Gb/s, Wi-Fi 6E, HDMI, DP, ATX

SKU: MAG B550 TOMAHAWK MAX WIFI / 911-7C91-037
ID: #38131
Цена: 404,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD Ryzen™ 5000 & 3000 Series desktop processors (not compatible with AMD Ryzen™ 5 3400G & Ryzen™ 3 3200G) and AMD Ryzen™ 4000 G-Series desktop proces
CPU Socket: AMD AM4
Чипсет: AMD B550
Максимален капацитет RAM памет: 128 GB
Памет, слотове: 4
Поддържана памет: DDR4
M.2 слот: 2x M.2 slots / 6x SATA 6Gb/s ports
Поддръжка на RAID: SATA / NVMe RAID 0, 1
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.2
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax Wi-Fi 6E
HDMI: 1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Processor
Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000G-Series, and 3000 Series processors
Chipset
AMD B550 Chipset
Memory
  • 4 x DDR4 memory slots, support up to 128GB 1
    • Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
    • Supports DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133/ 4266/ 4400/ 4533/ 4600/ 4733/ 4800/ 4866/ 5000/ 5100+ MHz by A-XMP OC MODE
      • 1DPC 1R max speed 5100 MHZ
      • 1DPC 2R max speed 3866 MHZ
      • 2DPC 1R max speed 4000 MHZ
      • 2DPC 2R max speed 3600 MHZ
  • Dual channel memory architecture
  • Supports non-ECC UDIMM memory
  • Supports ECC UDIMM memory
  • Supports un-buffered memory
  1. Please refer www.msi.com for more information on compatible memory.
Expansion Slot
  • 1x PCIe 4.0/ 3.0 x16 slot (PCI_E1) 1
  • 1x PCIe 3.0 x16 slot (PCI_E3), supports x4 speed 2
  • 2x PCIe 3.0 x1 slots
  1. The supported specification depends on installed processor.
  2. When installing devices in M.2_2, PCI_E2 & PCI_E3 slots at the same time, PCI_E3 slot will be unavailable, and M2_2 slot only supports PCIe x2.
Multi-GPU
  • Supports AMD CrossFire™ Technology
Onboard Graphics
  • 1x HDMI™ 2.1 port, supports a maximum resolution of 4096x2160 @60Hz 1 2
    Support HDCP 1.4 & 2.3
  • 1x DisplayPort, supports a maximum resolution of 4096x2160 @60Hz 1
  • Maximum shared memory of 16 GB
  1. Available for the processor with integrated graphics.
  2. Graphics specifications may vary depending on the CPU installed.
Storage
AMD B550 Chipset
  • 6x SATA 6Gb/s ports
  • 2x M.2 slots (Key M)
    • M2_1 slot (from AMD Processor)
      • Supports PCIe 4.0/ 3.0 x4 1
      • Supports SATA 6Gb/s
      • Supports 2242/ 2260/ 2280/ 22110 storage devices
    • M2_2 slot (from AMD B550 chipset)
      • Supports PCIe 3.0x4
      • Supports 2242/ 2260/ 2280 storage devices
  1. The supported specification depends on installed processor.
RAID
  • Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
  • Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
USB
AMD B550 Chipset
  • 3x USB 3.2 Gen 1 5Gbps ports (1 Type-C internal connector, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector)
  • 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports through the internal USB 2.0 connectors)
AMD Processor
  • 2x USB 3.2 Gen 2 10Gbps ports (1 Type-C port and 1 Type-A port on the back panel)
  • 2x USB 3.2 Gen 1 5Gbps Type-A ports on the back panel
Audio
Realtek® ALC897 Codec
  • 7.1-Channel High Definition Audio
  • Supports S/PDIF output
LAN
  • 1x Realtek® RTL8125B 2.5Gbps LAN controller
WIRELESS LAN & BLUETOOTH
AMD® Wi-Fi 6E1
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX
  • Supports 20MHz, 40MHz, 80MHz bandwidth in 2.4GHz/ 5GHz or 6GHz bands
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
  • Supports Bluetooth® 5.22
  1. Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 10 version 21H1 and Windows 11
  2. Bluetooth 5.2 will be ready in Windows 10 version 21H1 and Windows 11.
Internal connectors
  • 1x 24-pin ATX main power connector
  • 1x 8-pin ATX 12V power connector
  • 6x SATA 6Gb/s connectors
  • 2x M.2 slots (M-Key)
  • 1x USB 3.2 Gen 1 5Gbps Type-C port
  • 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
  • 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
  • 1x 4-pin CPU fan connector
  • 1x 4-pin water-pump fan connector
  • 6x 4-pin system fan connectors
  • 1x Front panel audio connector
  • 2x System panel connectors
  • 1x Chassis Intrusion connector
  • 2x 4-pin RGB LED connectors
  • 2x 3-pin RAINBOW LED connectors
  • 1x TPM module connector
  • 1x Clear CMOS jumper

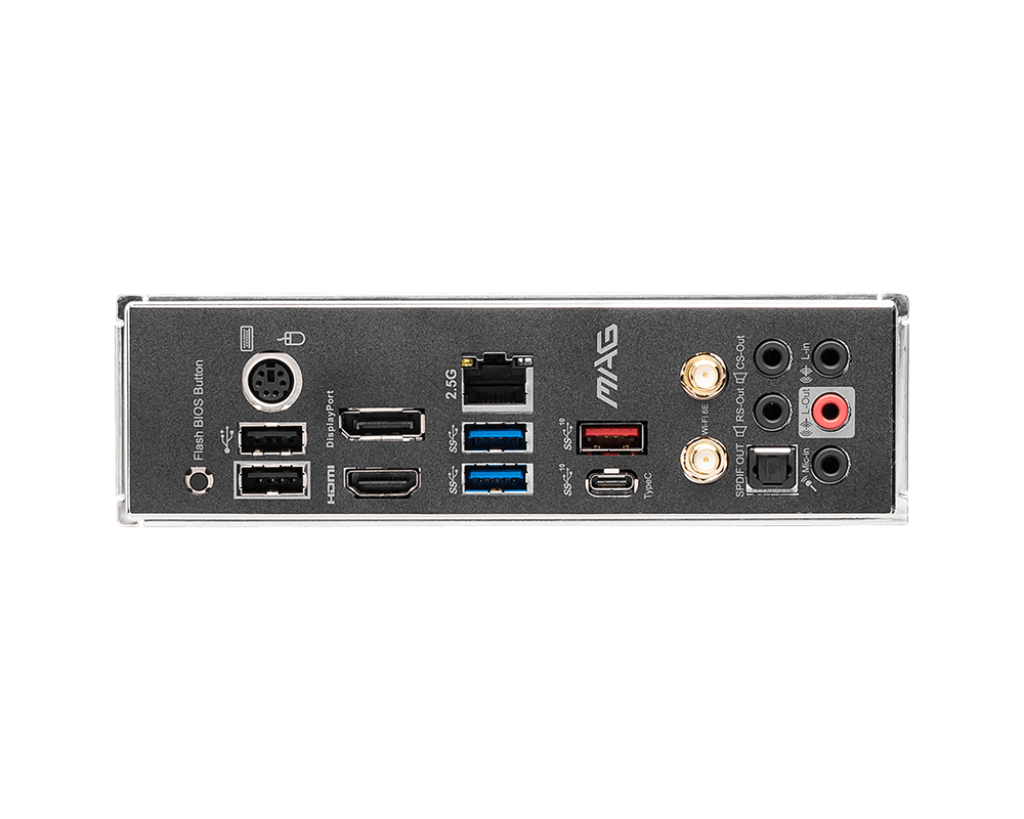

Back panel ports
  1. Keyboard / Mouse
  2. DisplayPort 1.4
  3. 2.5G LAN Port
  4. USB 3.2 Gen 2 10Gbps Type-A
  5. Wi-Fi / Bluetooth Antenna
  6. Audio Connectors
  7. Flash BIOS Button
  8. USB 2.0 Port
  9. HDMI™ 2.1 Port
  10. USB 3.2 Gen 1 5Gbps Type-A
  11. USB 3.2 Gen 2 10Gbps Type-C
  12. Optical S/PDIF OUT
MAG B550 TOMAHAWK MAX WIFI back panel ports
Dimensions
  • ATX Form Factor
  • 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
