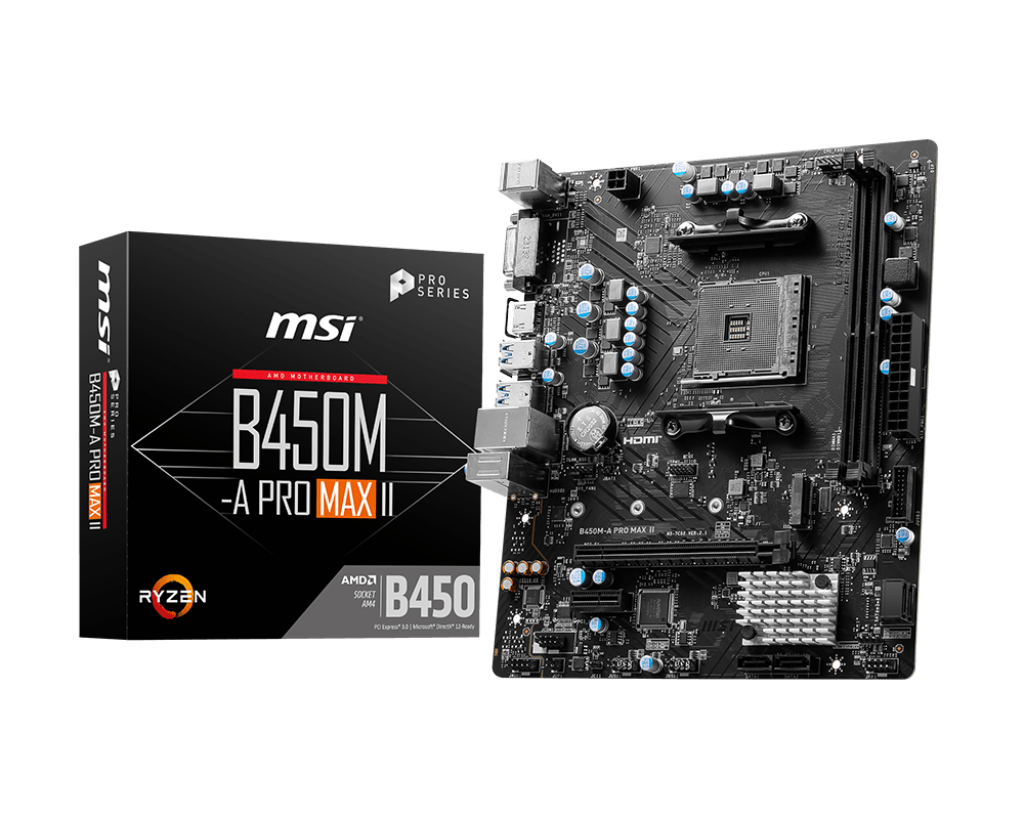

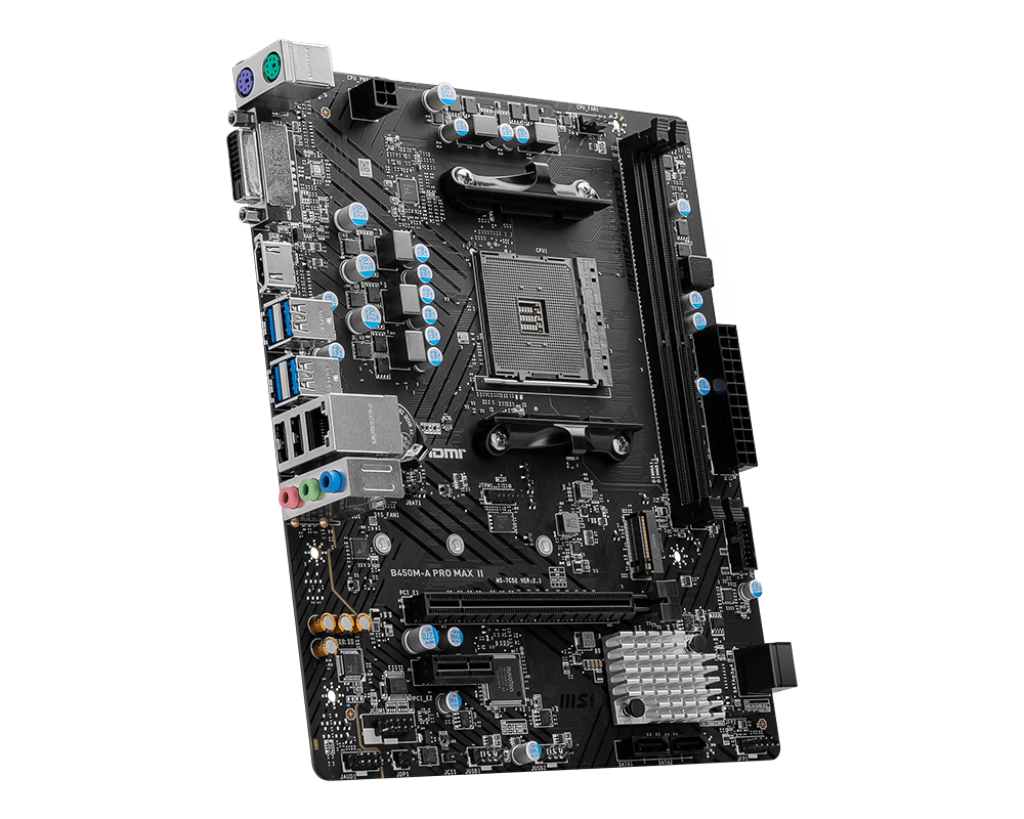

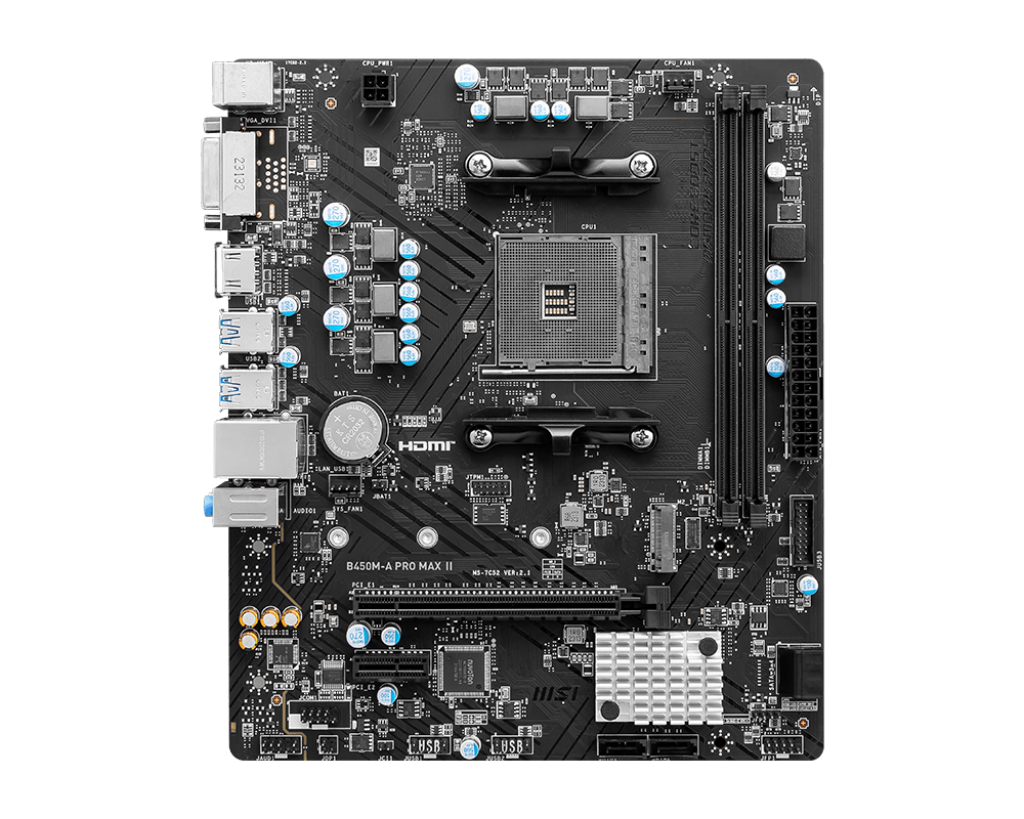

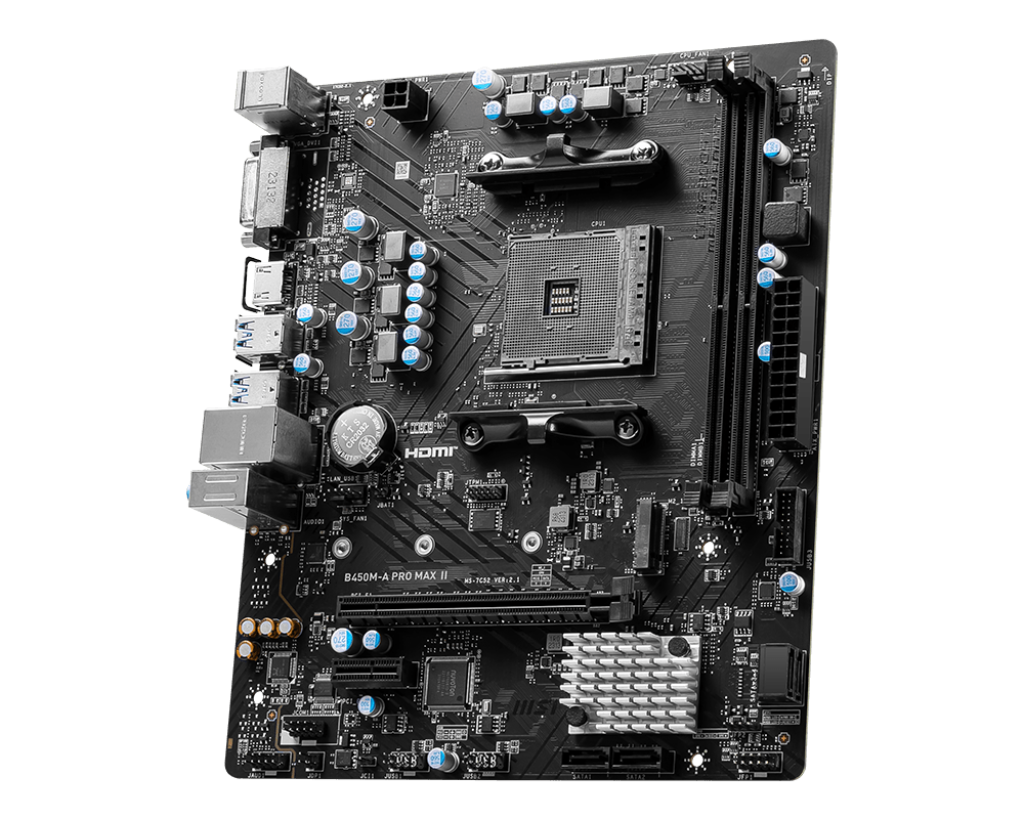

Дънна платка MSI B450M-A PRO MAX II, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, 6 x USB3.2, 6 x USB2.0, 4xSATA III, M.2, DVI-D, HDMI, GLAN, mATX
Дънна платка MSI B450M-A PRO MAX II, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, 6 x USB3.2, 6 x USB2.0, 4xSATA III, M.2, DVI-D, HDMI, GLAN, mATX
Дънна платка MSI B450M-A PRO MAX II, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, 6 x USB3.2, 6 x USB2.0, 4xSATA III, M.2, DVI-D, HDMI, GLAN, mATX
Дънна платка MSI B450M-A PRO MAX II, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, 6 x USB3.2, 6 x USB2.0, 4xSATA III, M.2, DVI-D, HDMI, GLAN, mATX
Дънна платка MSI B450M-A PRO MAX II, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, 6 x USB3.2, 6 x USB2.0, 4xSATA III, M.2, DVI-D, HDMI, GLAN, mATX
Дънна платка MSI B450M-A PRO MAX II, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, 6 x USB3.2, 6 x USB2.0, 4xSATA III, M.2, DVI-D, HDMI, GLAN, mATX

Дънна платка MSI B450M-A PRO MAX II, 2xDDR4, 1xPCI-Ex16, 1xPCI-Ex1, 6 x USB3.2, 6 x USB2.0, 4xSATA III, M.2, DVI-D, HDMI, GLAN, mATX

SKU: B450M-A PRO MAX II / 911-7C52-036
ID: #32272
Цена: 127,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series Desktop Processors
CPU Socket: AMD AM4
Чипсет: AMD B450
Максимален капацитет RAM памет: 64 GB
M.2 слот: 1x M.2 slot
Поддръжка на RAID: SATA RAID 0, 1, 10
Graphics технология: Няма
Мрежа: 10/100/1000 Mbps
Wi-Fi Mодул: Не
HDMI: 1
DVI: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Chipset AMD B450
CPU SUPPORT Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, 3000 Series, 3000 G-Series, 2000 Series, 2000 G-Series and 1000 Series Desktop Processor and Athlon™ with Radeon™ Vega Graphics desktop processors
Socket AM4
Memory 2x DDR4, Maximum Memory Capacity 64GB
Memory Support DDR4 2667/ 2800/ 2933/ 3000/ 3066/ 3200/ 3466/ 3600/ 3733/ 3866/ 4000/ 4133 MHz (by A-XMP OC MODE)
Supports Dual-Channel mode
Supports non-ECC, UDIMM memory
Supports ECC UDIMM memory (non-ECC mode)
Supports un-buffered memory
Onboard Graphics 1x HDMI™
Support HDMITM 1.4, maximum resolution of 4K 24Hz*
1x DVI
Support DVI-D, maximum resolution of 1920x1200 60Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
EXPANSION SLOT 1x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 3.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 2.0 supports up to x1 (From Chipset)
Storage 1x M.2
M.2_1 Source (From CPU) supports up to PCIe 3.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
RAID Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
4x USB 3.2 Gen1 Type A (Rear)
2x USB 3.2 Gen1 Type A (Front)
LAN Realtek® 8125 2.5Gbps LAN controller
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Internal I/O 1x Power Connector(ATX_PWR)
1x Power Connector(CPU_PWR)
1x CPU Fan
1x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports

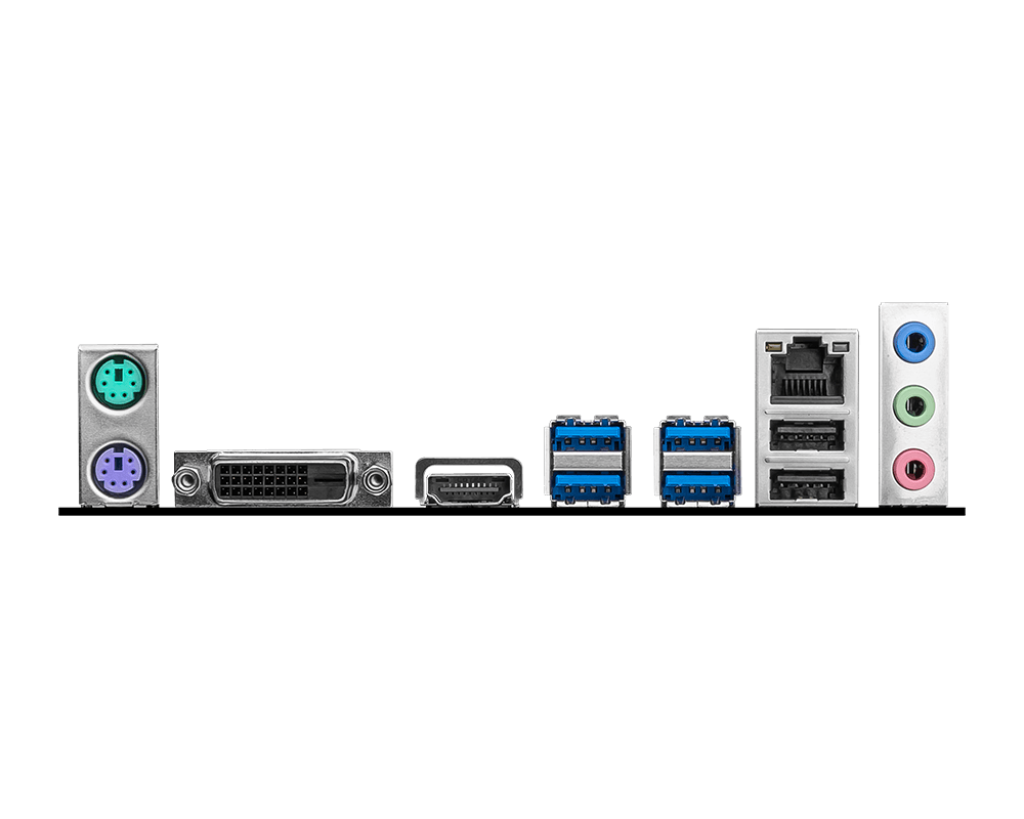

BACK PANEL PORTS
  1. Keyboard/Mouse
  2. DVI-D
  3. HDMI™
  4. USB 3.2 Gen 1 5Gbps (Type-A)
  5. 2.5G LAN
  6. Audio connectors
  7. USB 2.0
OPERATING SYSTEM Support for Windows® 11 64-bit, Windows® 10 64-bit
PCB Dimension (W × L) mATX
200mmx236mm
