Дънна платка Gigabyte H510M K V2, H470, LGA 1200, DDR4, PCI-E 3.0 (HDMI), 1x M.2, 2x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX
изчерпан
Дънна платка Gigabyte H510M K V2, H470, LGA 1200, DDR4, PCI-E 3.0 (HDMI), 1x M.2, 2x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX
Дънна платка Gigabyte H510M K V2, H470, LGA 1200, DDR4, PCI-E 3.0 (HDMI), 1x M.2, 2x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX
Дънна платка Gigabyte H510M K V2, H470, LGA 1200, DDR4, PCI-E 3.0 (HDMI), 1x M.2, 2x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX
Дънна платка Gigabyte H510M K V2, H470, LGA 1200, DDR4, PCI-E 3.0 (HDMI), 1x M.2, 2x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX

Дънна платка Gigabyte H510M K V2, H470, LGA 1200, DDR4, PCI-E 3.0 (HDMI), 1x M.2, 2x SATA 6Gb/s, 2x USB 3.2 Gen 1, Micro ATX

SKU: H510M-K-V2
ID: #29423

Характеристики

Поддържани процесори: Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
CPU Socket: Intel LGA1200
Чипсет: Intel H510
Максимален капацитет RAM памет: 64 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 2
Поддържана памет: DDR4
Graphics технология: Няма
Wi-Fi Mодул: Не
HDMI: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Направи запитване

Описание

Продукт

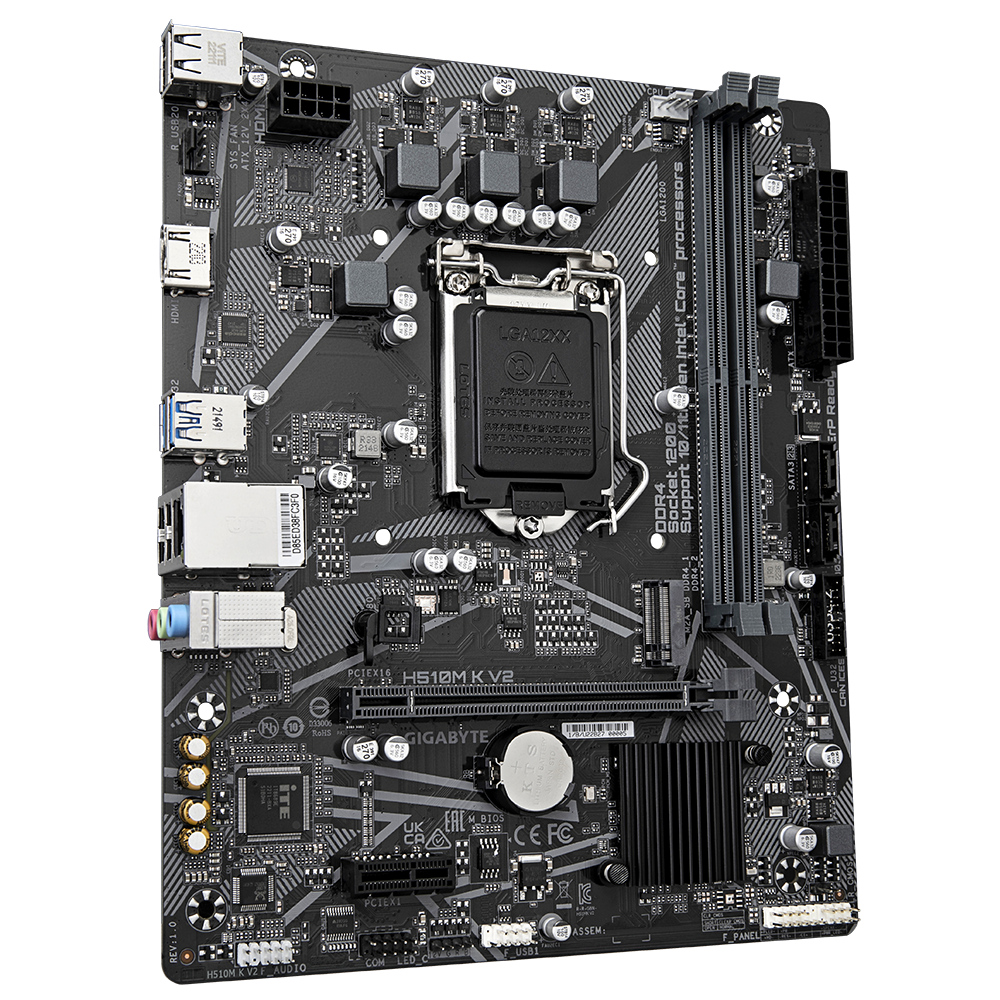

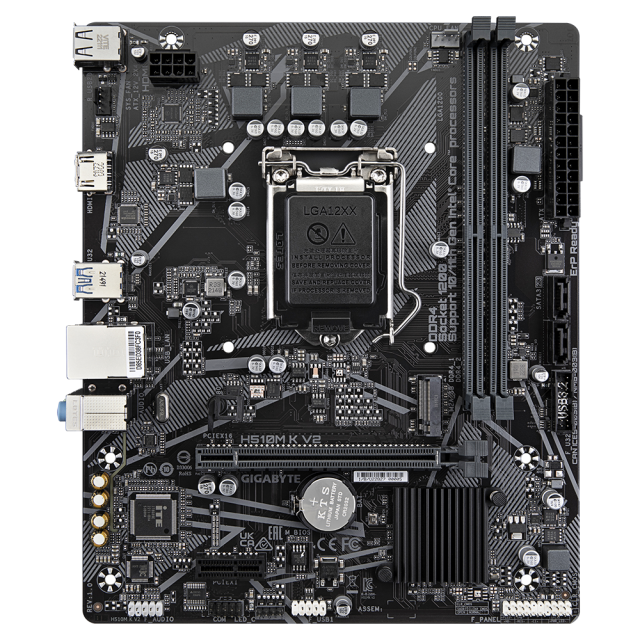

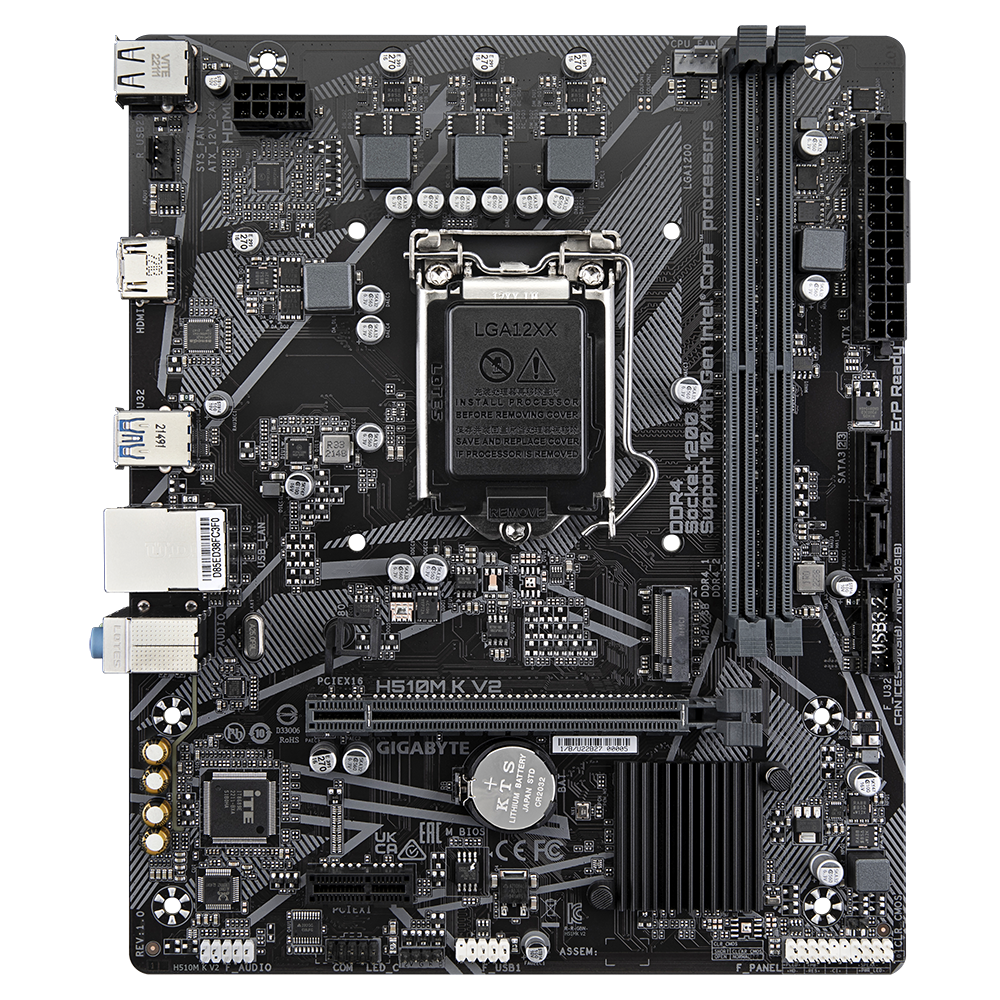

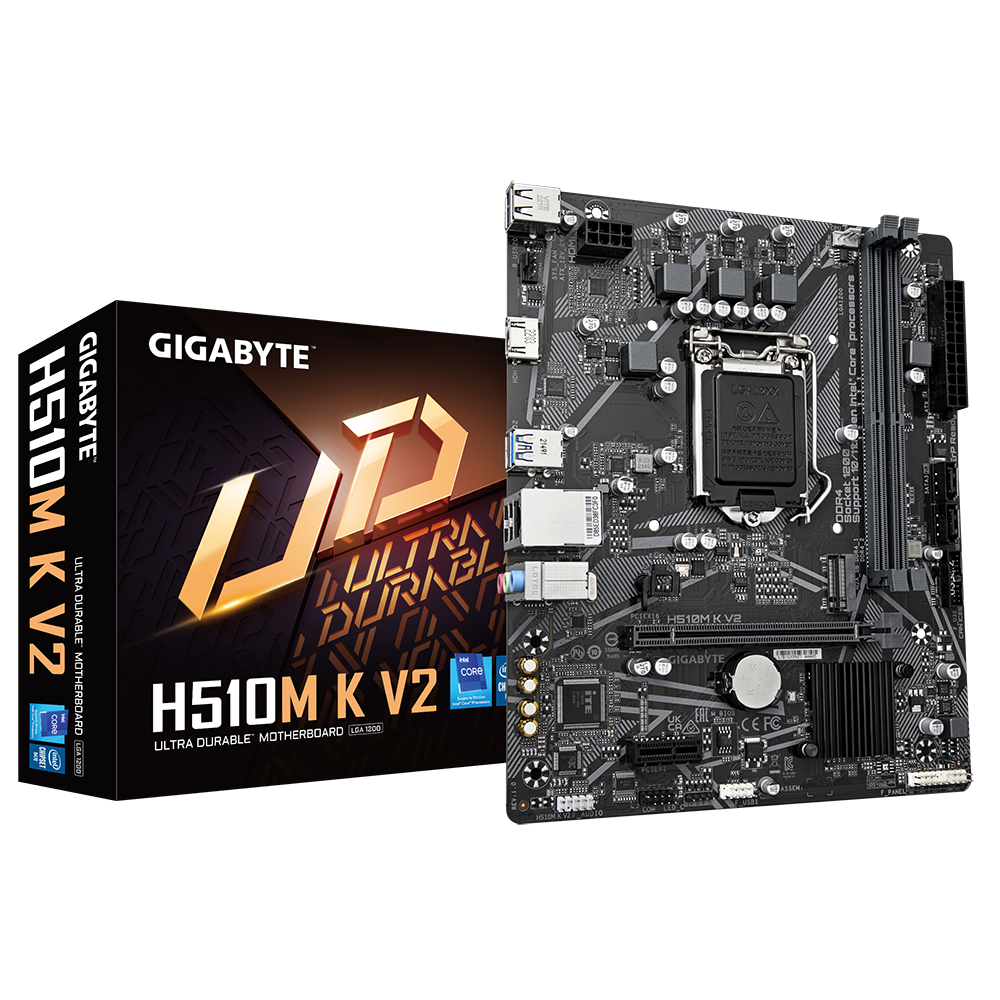

Дънна платка GIGABYTE H510M-K V2, LGA1200, Micro ATX
CPU
LGA1200 package
11th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors
10th Generation Intel Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors/Intel Pentium processors/Intel Celeron processors
L3 cache varies with CPU

Chipset
Intel H470 Express Chipset

Memory
11th Generation Intel Core i9/i7/i5 processors:
Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

10th Generation Intel Core i9/i7 processors:
Support for DDR4 2933/2666/2400/2133 MT/s memory modules

10th Generation Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MT/s memory modules

2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules



Onboard Graphics



Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
* Support for HDMI 1.4 version and HDCP 2.3.
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:
1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

Storage Interface
Chipset:
1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
2 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID5 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID5 support for SATA storage devices

USB
Chipset:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
2 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x serial port header
1 x Clear CMOS jumper

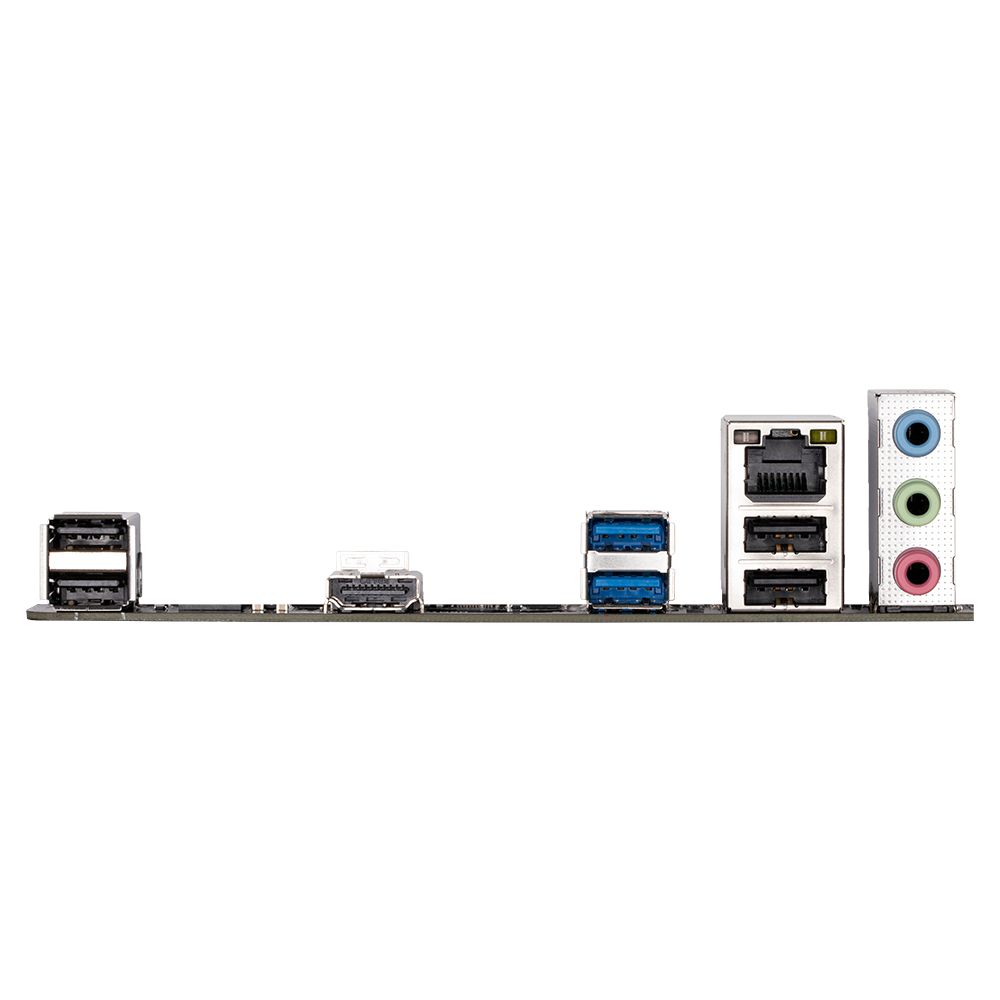

Back Panel Connectors
1 x HDMI port
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks

I/O Controller
iTE I/O Controller Chip

BIOS
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor
22.6cm x 18.5cm
