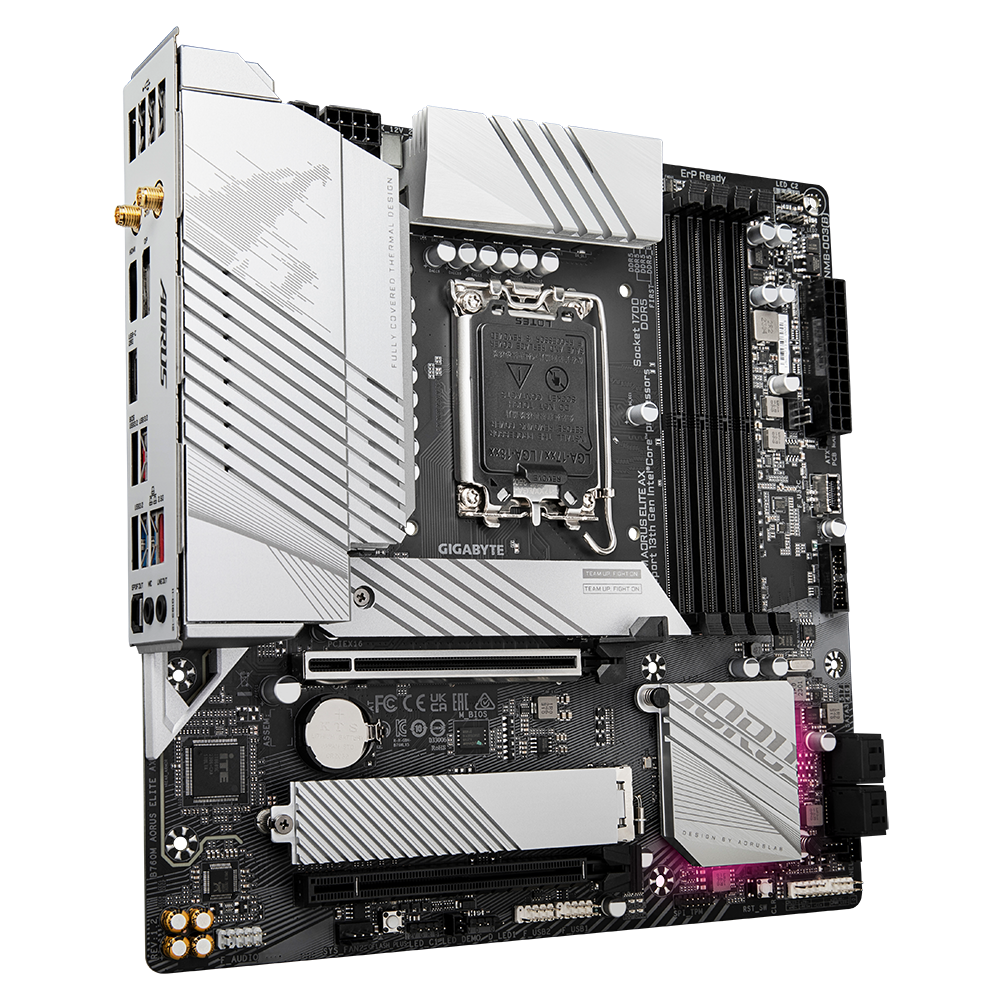

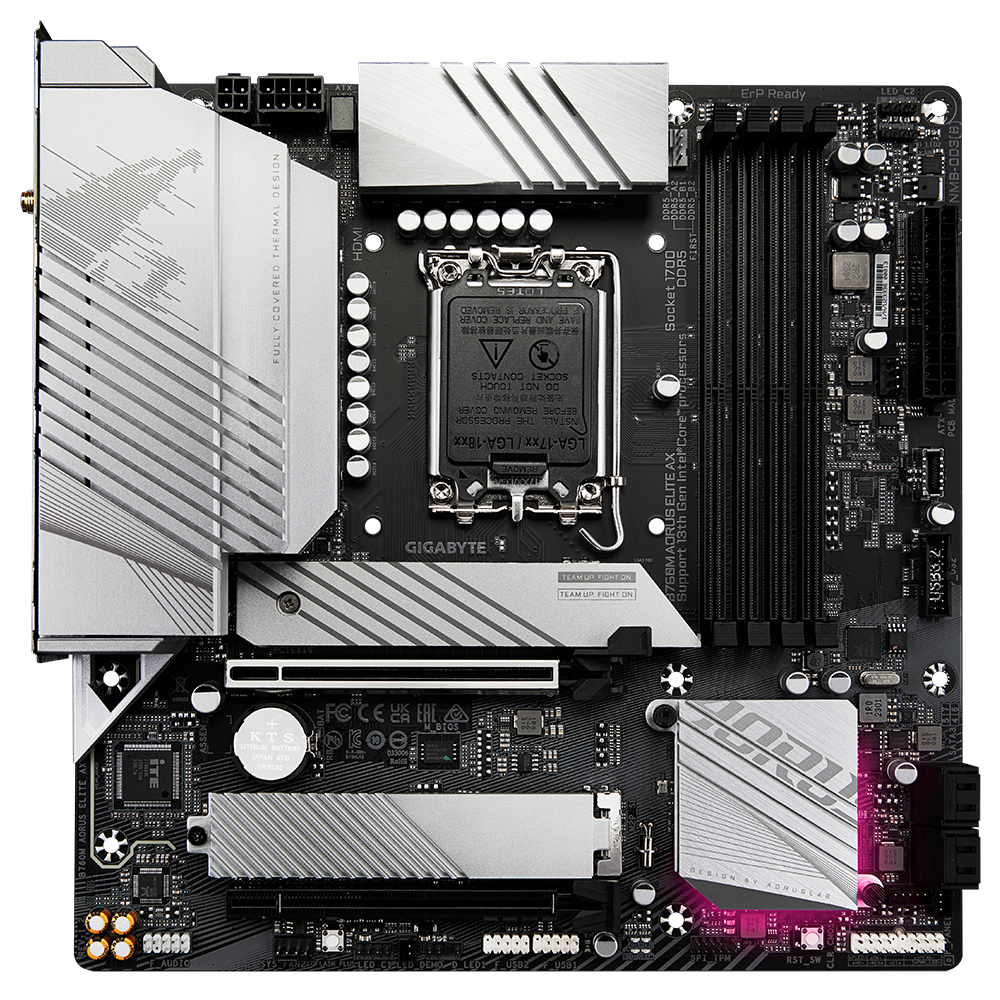

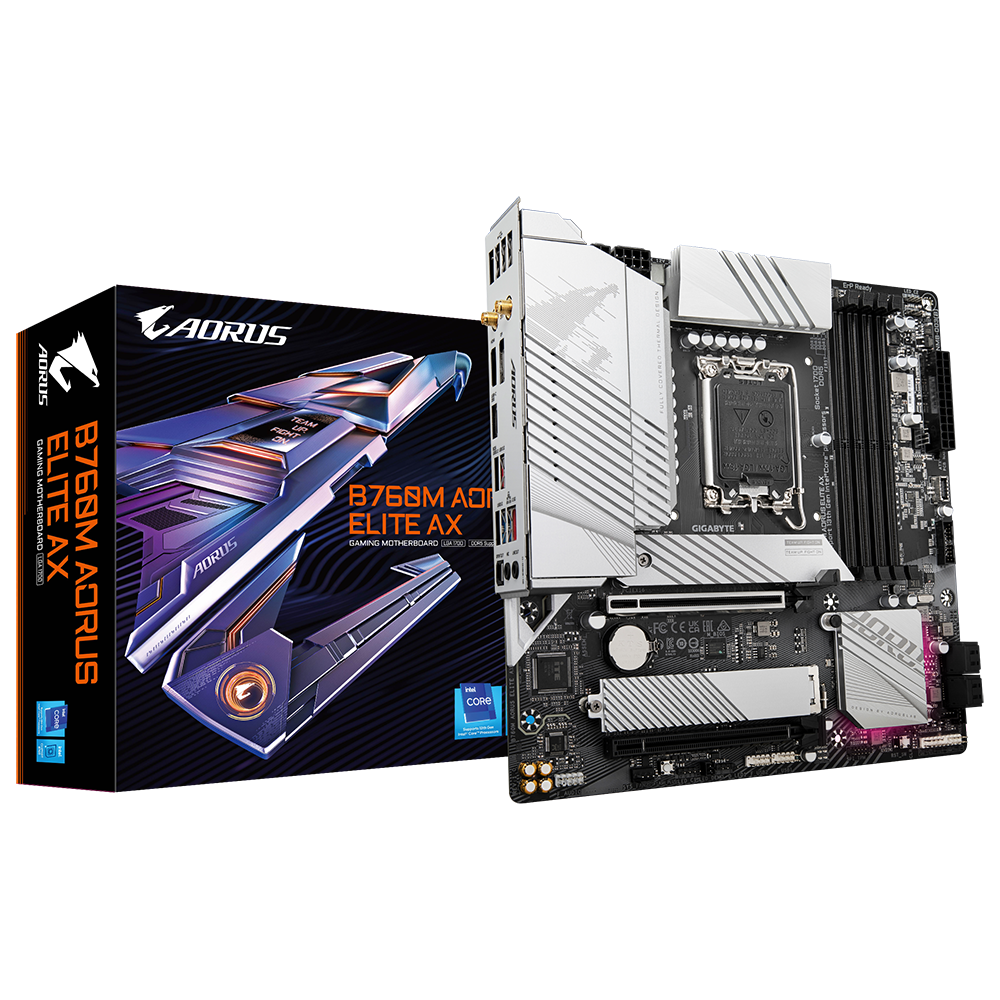

Дънна платка Gigabyte B760M Aorus Elite AX, B760, LGA 1700, DDR5, PCI-E 4.0 (HDMI/DP), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen 2, Wi-Fi 6E, Bluetooth, Micro ATX
изчерпан
Дънна платка Gigabyte B760M Aorus Elite AX, B760, LGA 1700, DDR5, PCI-E 4.0 (HDMI/DP), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen 2, Wi-Fi 6E, Bluetooth, Micro ATX
Дънна платка Gigabyte B760M Aorus Elite AX, B760, LGA 1700, DDR5, PCI-E 4.0 (HDMI/DP), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen 2, Wi-Fi 6E, Bluetooth, Micro ATX
Дънна платка Gigabyte B760M Aorus Elite AX, B760, LGA 1700, DDR5, PCI-E 4.0 (HDMI/DP), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen 2, Wi-Fi 6E, Bluetooth, Micro ATX
Дънна платка Gigabyte B760M Aorus Elite AX, B760, LGA 1700, DDR5, PCI-E 4.0 (HDMI/DP), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen 2, Wi-Fi 6E, Bluetooth, Micro ATX

Дънна платка Gigabyte B760M Aorus Elite AX, B760, LGA 1700, DDR5, PCI-E 4.0 (HDMI/DP), 2x M.2, 4x SATA 6Gb/s, 1x USB 3.2 Gen2 Type-C, 1 x USB 3.2 Gen 2, Wi-Fi 6E, Bluetooth, Micro ATX

SKU: B760M AORUS ELITE AX
ID: #29420

Характеристики

Поддържани процесори: Intel® Socket LGA 1700 for Intel® 13th and 12th Generation
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 128 GB
Поддръжка на Dualchannel: Да
Поддържана памет: DDR5
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.3
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax Wi-Fi 6E
HDMI: 1
DisplayPort: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Направи запитване

Описание

Продукт

ABYTE B760M AORUS ELITE AX Wi-Fi 6E, socket 1700, DDR5

CPU
Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
L3 cache varies with CPU

Socket
LGA1700

Chipset
Intel B760 Express Chipset

Memory
Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Onboard Graphics
Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.0 version and HDCP 2.3.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
(Graphics specifications may vary depending on CPU support.)

Audio
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
Support for S/PDIF Out

LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module
Intel Wi-Fi 6E AX211 (For PCB rev. 1.0)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)

Expansion Slots
CPU:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
Support for AMD CrossFireX technology

Storage Interface
CPU:
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support
1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
1 x USB 3.2 Gen 1 port on the back panel
4 x USB 2.0/1.1 ports available through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:
4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Chipset+USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel

Internal I/O Connectors
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x 4-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C header, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x Q-Flash Plus button
1 x reset button
1 x reset jumper
1 x Clear CMOS jumper

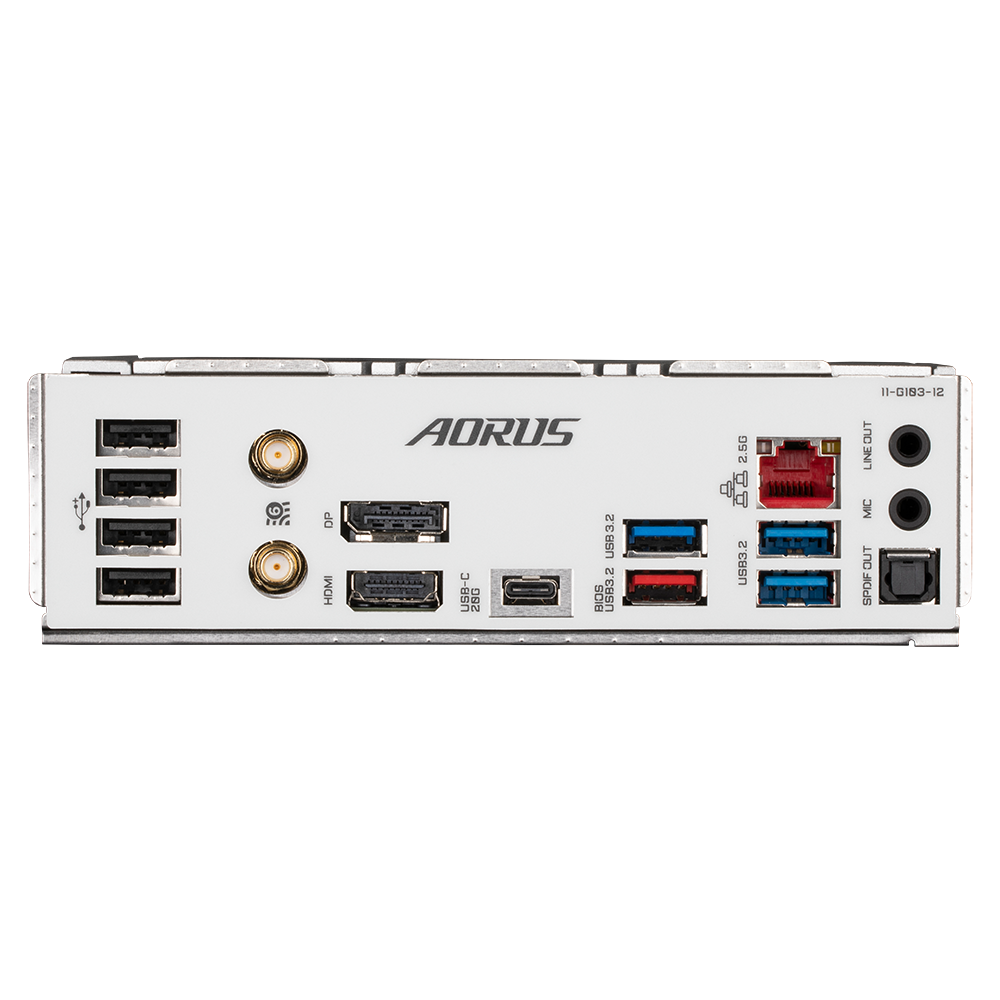

Back Panel Connectors
2 x SMA antenna connectors (2T2R)
1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
3 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
1 x optical S/PDIF Out connector
2 x audio jacks

I/O Controller
iTE I/O Controller Chip

BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Operating System
Support for Windows 11 64-bit
Support for Windows 10 64-bit

Form Factor
Micro ATX Form Factor; 24.4cm x 24.4cm
