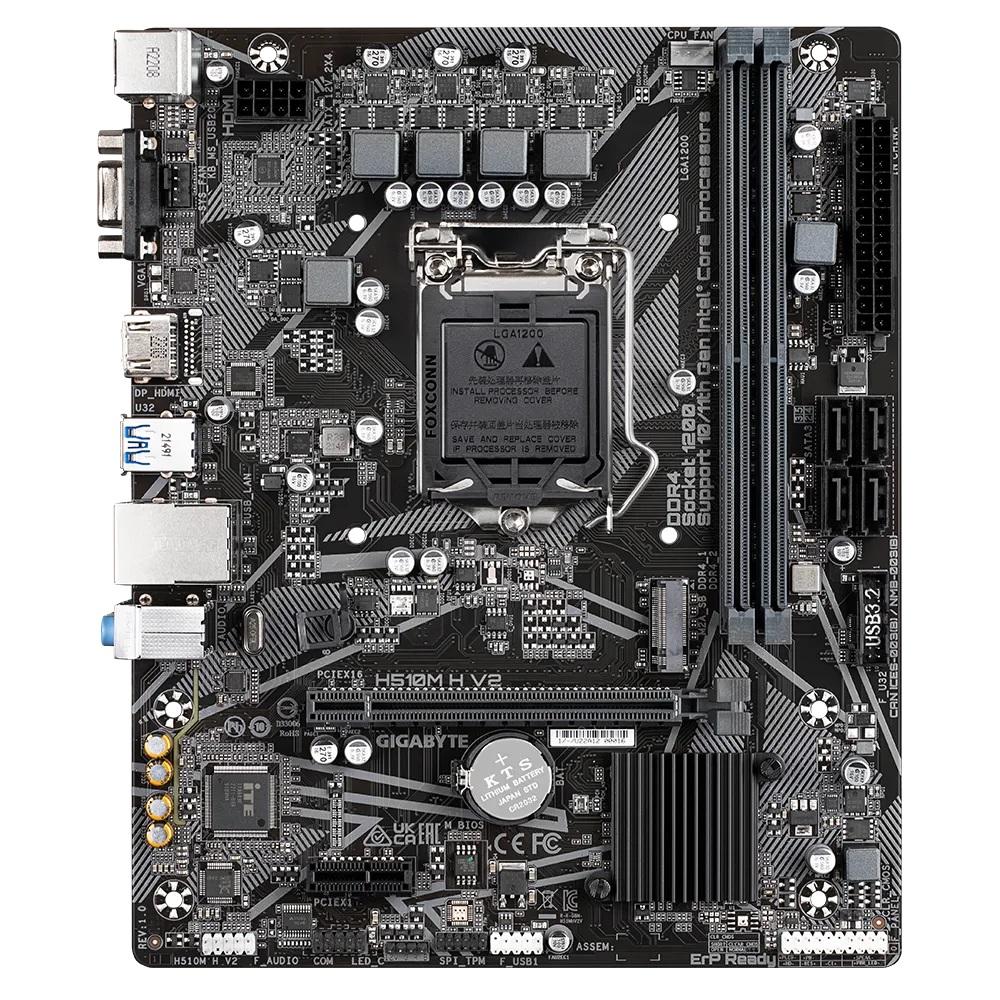

Дънна платка GIGABYTE H510M H V2, LGA1200, 2x DDR4, 1 x M.2, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка GIGABYTE H510M H V2, LGA1200, 2x DDR4, 1 x M.2, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка GIGABYTE H510M H V2, LGA1200, 2x DDR4, 1 x M.2, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка GIGABYTE H510M H V2, LGA1200, 2x DDR4, 1 x M.2, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка GIGABYTE H510M H V2, LGA1200, 2x DDR4, 1 x M.2, 4 x SATA 6Gb/s, VGA, HDMI, mATX
Дънна платка GIGABYTE H510M H V2, LGA1200, 2x DDR4, 1 x M.2, 4 x SATA 6Gb/s, VGA, HDMI, mATX

Дънна платка GIGABYTE H510M H V2, LGA1200, 2x DDR4, 1 x M.2, 4 x SATA 6Gb/s, VGA, HDMI, mATX

SKU: H510M H V2 1.0
ID: #34174
Цена: 137,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Processors 11th Generation Intel® Core™ i9/i7/i5
CPU Socket: Intel LGA1200
Чипсет: Intel H470
Максимален капацитет RAM памет: 64 GB
Поддържана памет: DDR4
M.2 слот: 1 x M.2 slots / 4 x SATA 6Gb/s
Graphics технология: Няма
Мрежа: 1 Ethernet
Wi-Fi Mодул: Не
HDMI: 1
VGA: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • CPU
    LGA1200 package:
    1. 11th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors
    2. 10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors
    3. L3 cache varies with CPU
    (Please refer to "CPU Support List" for more information.)
  • Chipset
    1. Intel® H470 Express Chipset
  • Memory
    1. 11th Generation Intel® Core™ i9/i7/i5 processors:
      Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    2. 10th Generation Intel® Core™ i9/i7 processors:
      Support for DDR4 2933/2666/2400/2133 MHz memory modules
    3. 10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
      Support for DDR4 2666/2400/2133 MHz memory modules
    4. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    5. Dual channel memory architecture
    6. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    7. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    8. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
      * Support for HDMI 1.4 version and HDCP 2.3.
    2. 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
      * The D-Sub port is only available with the 10th Generation processors.
    (Graphics specifications may vary depending on CPU support.)
  • Audio
    1. Realtek® Audio CODEC
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
  • LAN
    1. Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
  • Expansion Slots
    CPU:
    1. 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
    Chipset:
    1. 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
  • Storage Interface
    Chipset:
    1. 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 3.0 x4/x2 SSD support)
    2. 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices
  • USB
    Chipset:
    1. 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    2. 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 1 x system fan header
    5. 1 x RGB LED strip header
    6. 1 x M.2 Socket 3 connector
    7. 4 x SATA 6Gb/s connectors
    8. 1 x front panel header
    9. 1 x front panel audio header
    10. 1 x USB 3.2 Gen 1 header
    11. 1 x USB 2.0/1.1 header
    12. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    13. 1 x serial port header
    14. 1 x Clear CMOS jumper

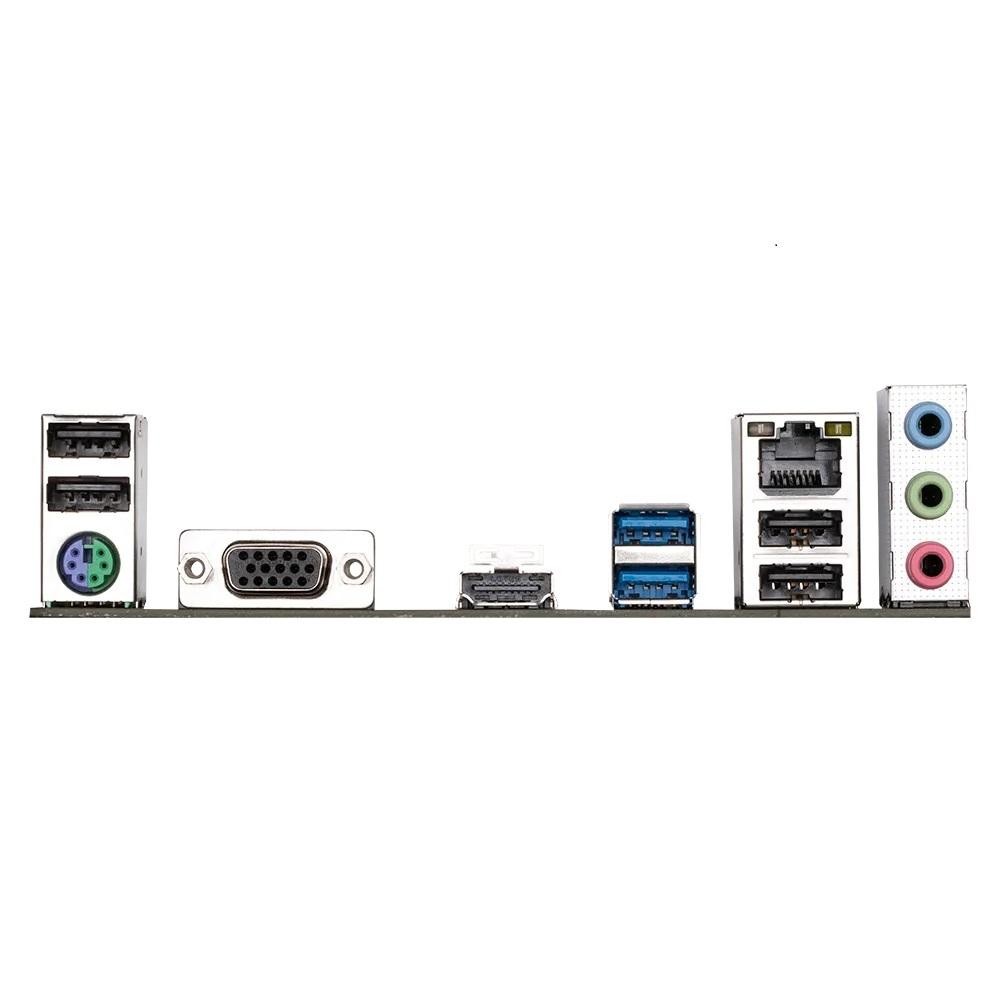

  • Back Panel Connectors
    1. 1 x PS/2 keyboard/mouse port
    2. 1 x D-Sub port
    3. 1 x HDMI port
    4. 2 x USB 3.2 Gen 1 ports
    5. 4 x USB 2.0/1.1 ports
    6. 1 x RJ-45 port
    7. 3 x audio jacks
  • I/O Controller
    1. iTE® I/O Controller Chip
  • H/W Monitoring
    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Fan fail warning
    5. Fan speed contro
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      Ambient LED
      EasyTune
      Smart Backup
      System Information Viewer
    2. Support for Q-Flash
    3. Support for Xpress Install
  • Bundled Software
    1. Norton® Internet Security (OEM version)
    2. LAN bandwidth management software
  • Operating System
    1. Support for Windows 11 64-bit
    2. Support for Windows 10 64-bit
  • Form Factor
    1. Micro ATX Form Factor; 22.6cm x 18.5cm
