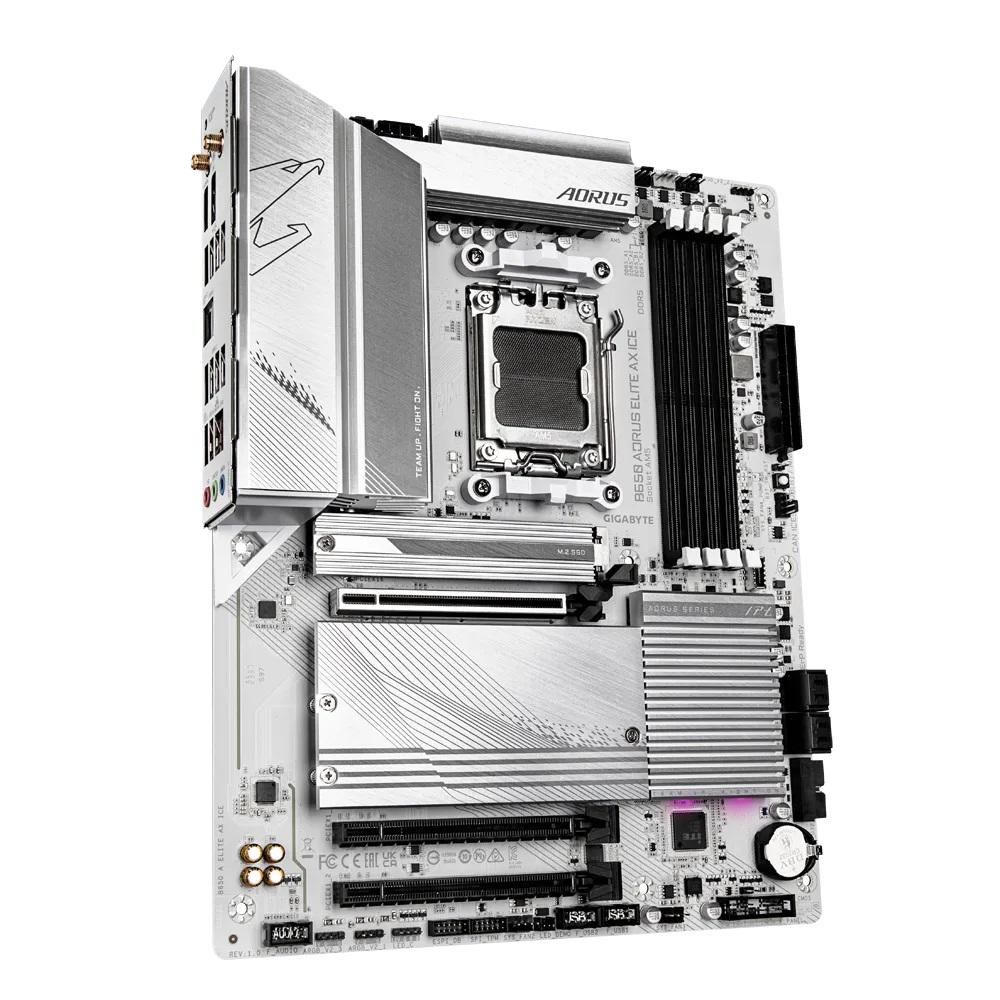

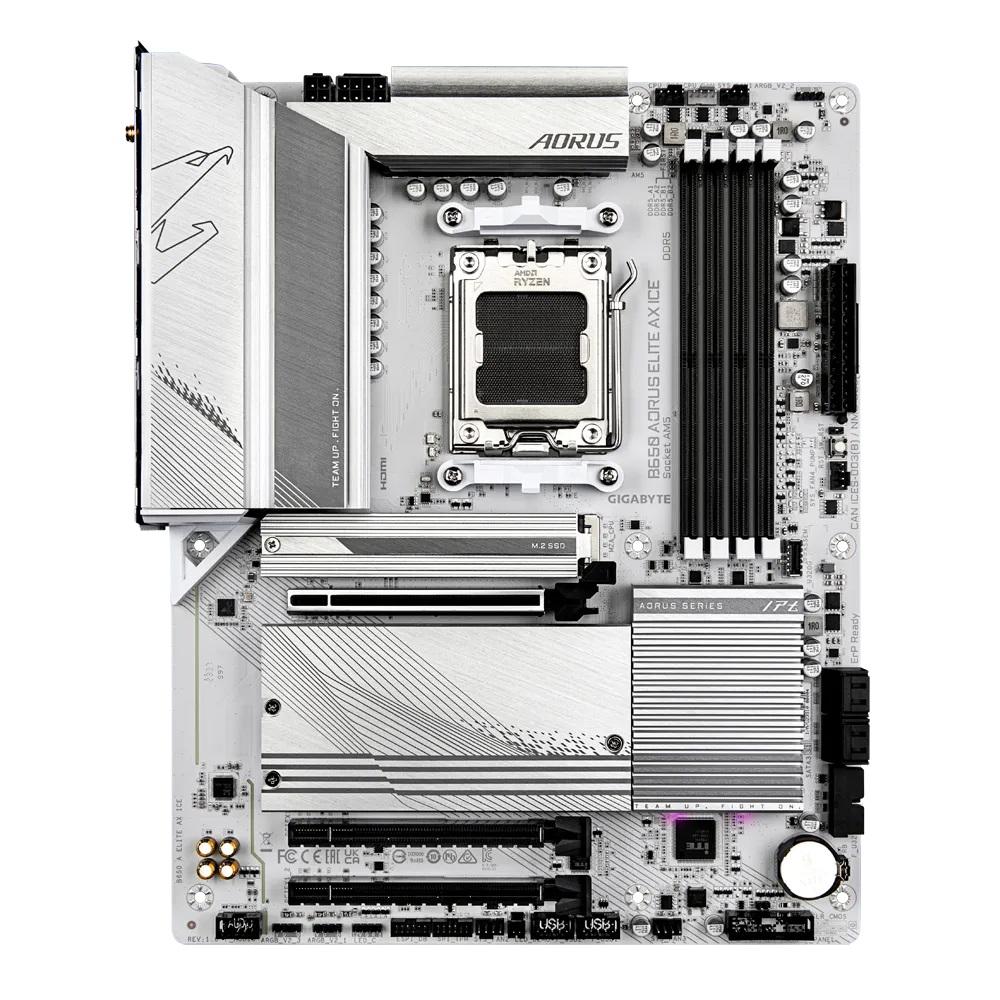

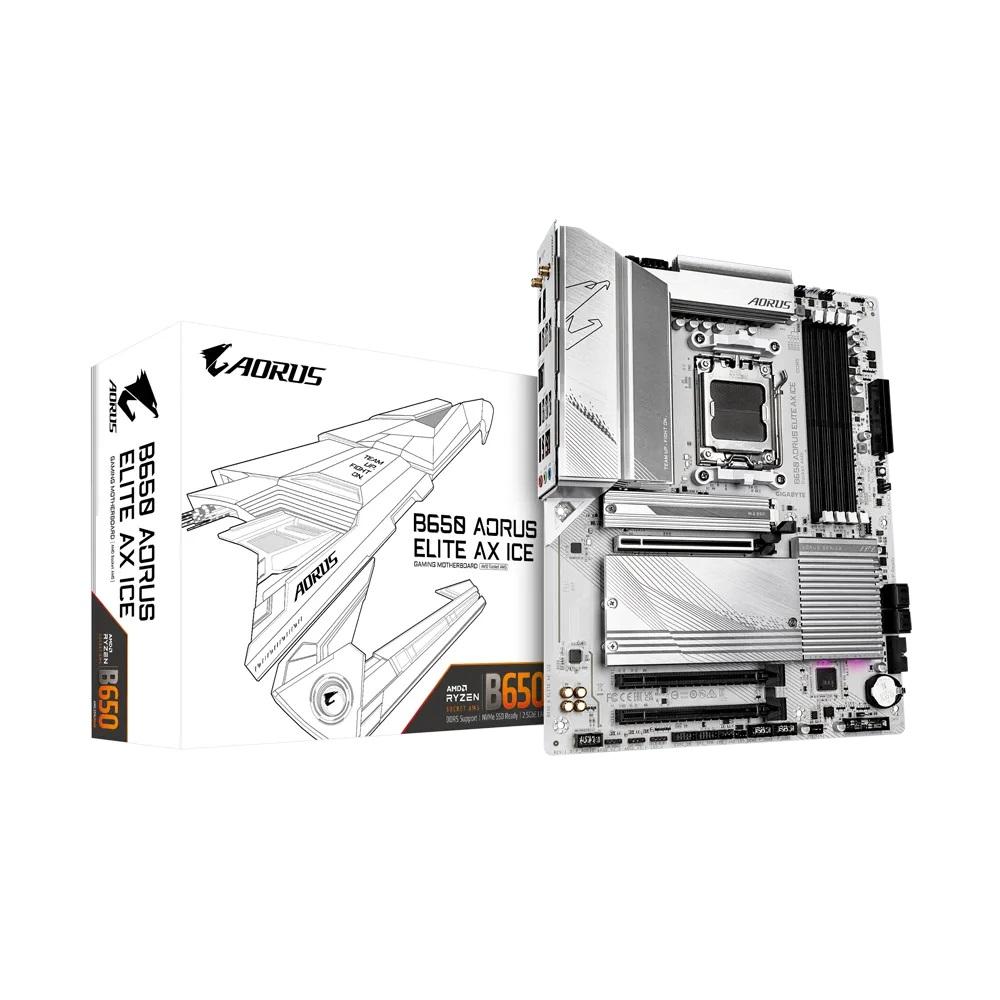

Дънна платка GIGABYTE B650 A ELITE AX ICE, AMD Socket AM5, 4x DDR5, 1x PCIe 5.0 x4 / 2x PCIe 4.0 x4 M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BT 5.3, HDMI, DP, ATX
изчерпан
Дънна платка GIGABYTE B650 A ELITE AX ICE, AMD Socket AM5, 4x DDR5, 1x PCIe 5.0 x4 / 2x PCIe 4.0 x4 M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BT 5.3, HDMI, DP, ATX
Дънна платка GIGABYTE B650 A ELITE AX ICE, AMD Socket AM5, 4x DDR5, 1x PCIe 5.0 x4 / 2x PCIe 4.0 x4 M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BT 5.3, HDMI, DP, ATX
Дънна платка GIGABYTE B650 A ELITE AX ICE, AMD Socket AM5, 4x DDR5, 1x PCIe 5.0 x4 / 2x PCIe 4.0 x4 M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BT 5.3, HDMI, DP, ATX
Дънна платка GIGABYTE B650 A ELITE AX ICE, AMD Socket AM5, 4x DDR5, 1x PCIe 5.0 x4 / 2x PCIe 4.0 x4 M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BT 5.3, HDMI, DP, ATX

Дънна платка GIGABYTE B650 A ELITE AX ICE, AMD Socket AM5, 4x DDR5, 1x PCIe 5.0 x4 / 2x PCIe 4.0 x4 M.2, 4x SATA 6Gb/s, Wi-Fi 6E, BT 5.3, HDMI, DP, ATX

SKU: B650 A ELITE AX ICE 1.0
ID: #35969

Характеристики

Поддържани процесори: Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors Socket AM5
CPU Socket: AMD AM5
Чипсет: AMD B650
Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB
Поддържана памет: DDR5
M.2 слот: 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 10
Вграден Bluetooth: Bluetooth V5.3
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax Wi-Fi 6E
HDMI: 1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Направи запитване

Описание

  • CPU
    AMD Socket AM5, support for:
    AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors

    * Please refer to "CPU Support List" for more information.

  • Chipset
    AMD B650
  • Memory
    Support for DDR5 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/ 6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
    4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
    Dual channel memory architecture
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
  • Onboard Graphics
    Integrated Graphics Processor with AMD Radeon™ Graphics support:
    - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

    * Support for DisplayPort 1.4 version and HDR.


    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.
    ** Support for native HDMI 2.1 TMDS compatible ports.


    (Graphics specifications may vary depending on CPU support.)
  • Audio
    Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

  • LAN
    Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication module
    Realtek® Wi-Fi 6E RTL8852CE
    - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
    - BLUETOOTH 5.3
    - Support for 11ax 160MHz wireless
    (Actual data rate may vary depending on environment and equipment.)
  • Expansion Slots
    1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    Chipset:
    - 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
  • Storage Interface
    1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
    - AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
    - AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    - AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

    1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs
    4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, and RAID 10 support for SATA storage devices
  • USB
    CPU:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    CPU + USB 2.0 Hub:
    - 4 x USB 2.0/1.1 ports on the back panel
    Chipset:
    - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
    - 3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
    - 4 x USB 2.0/1.1 ports available through the internal USB headers
    Chipset+USB 3.2 Gen 1 Hub:
    - 4 x USB 3.2 Gen 1 ports on the back panel
  • Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    3 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x reset button
    1 x reset jumper
    1 x Clear CMOS jumper

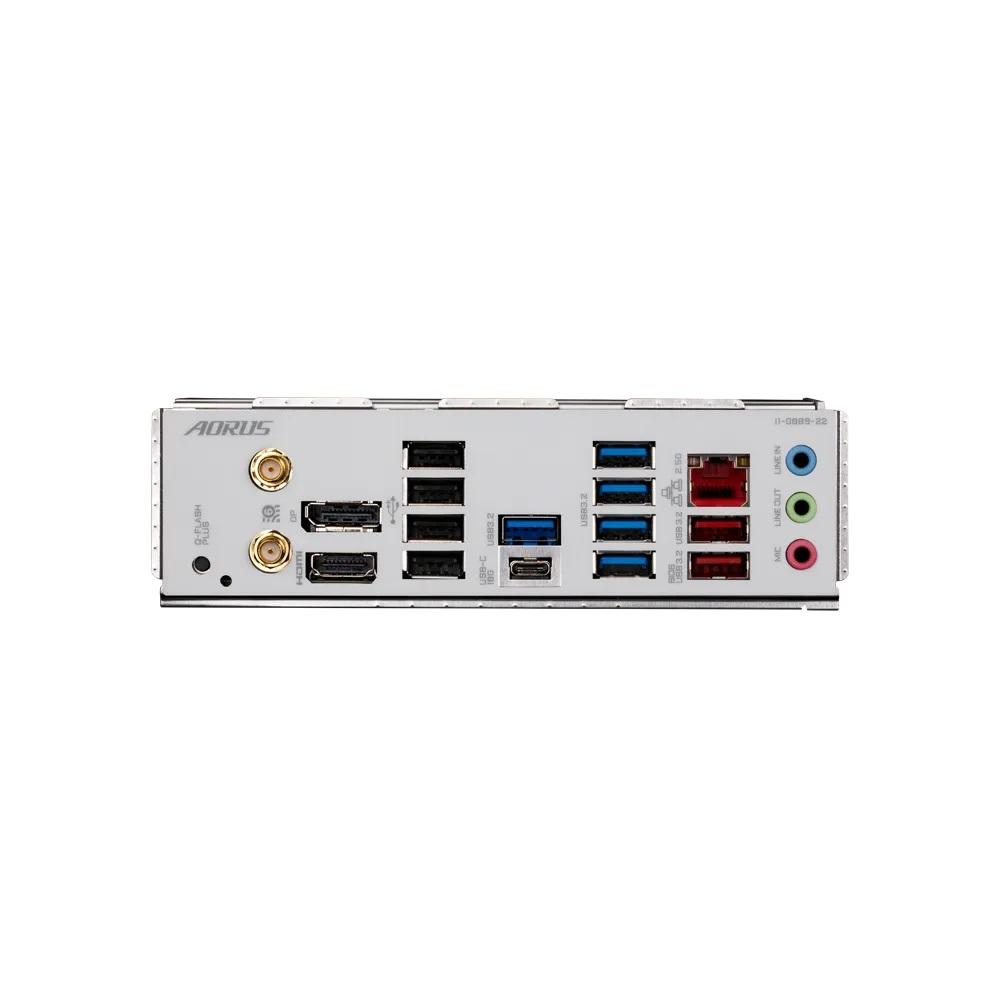

  • Back Panel Connectors
    1 x Q-Flash Plus button
    2 x SMA antenna connectors (2T2R)jk
    1 x DisplayPort
    1 x HDMI port
    1 x USB Type-C® port, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    5 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
  • I/O Controller
    iTE® I/O Controller Chip
  • H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
  • Bundled Software
    Norton® Internet Security (OEM version)
    LAN bandwidth management software
  • Operating System
    Support for Windows 11 64-bit
    Support for Windows 10 64-bit
  • Form Factor
    ATX Form Factor; 30.5cm x 24.4cm
