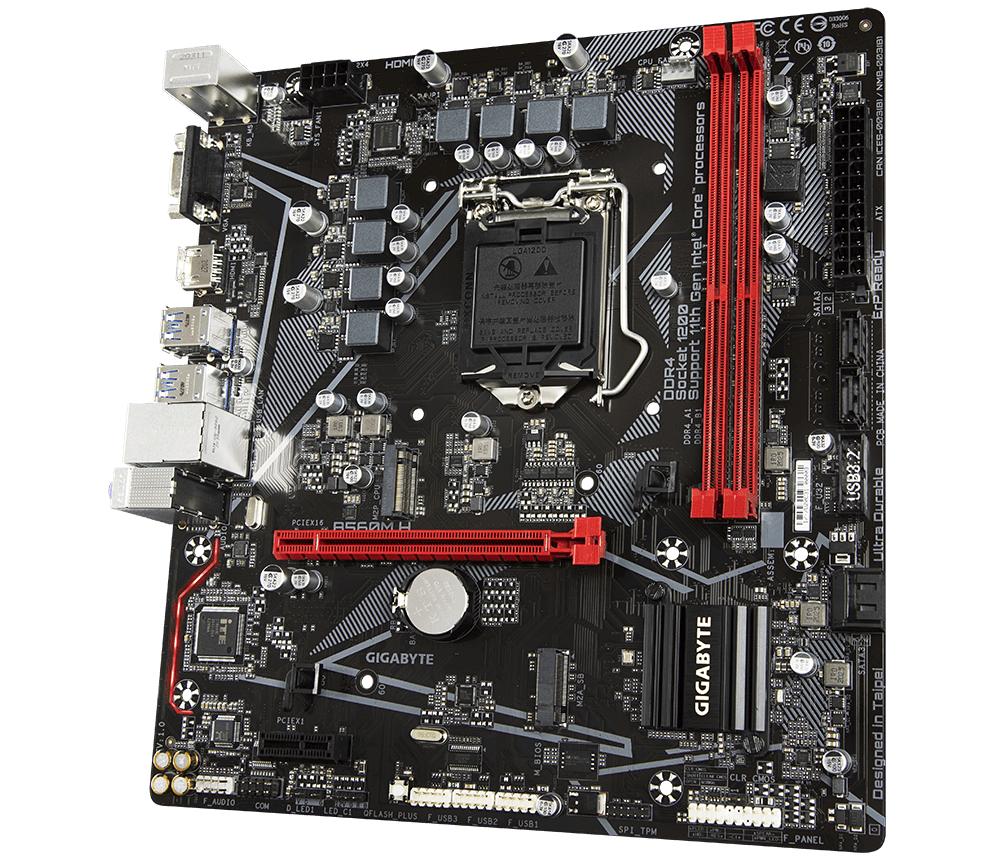

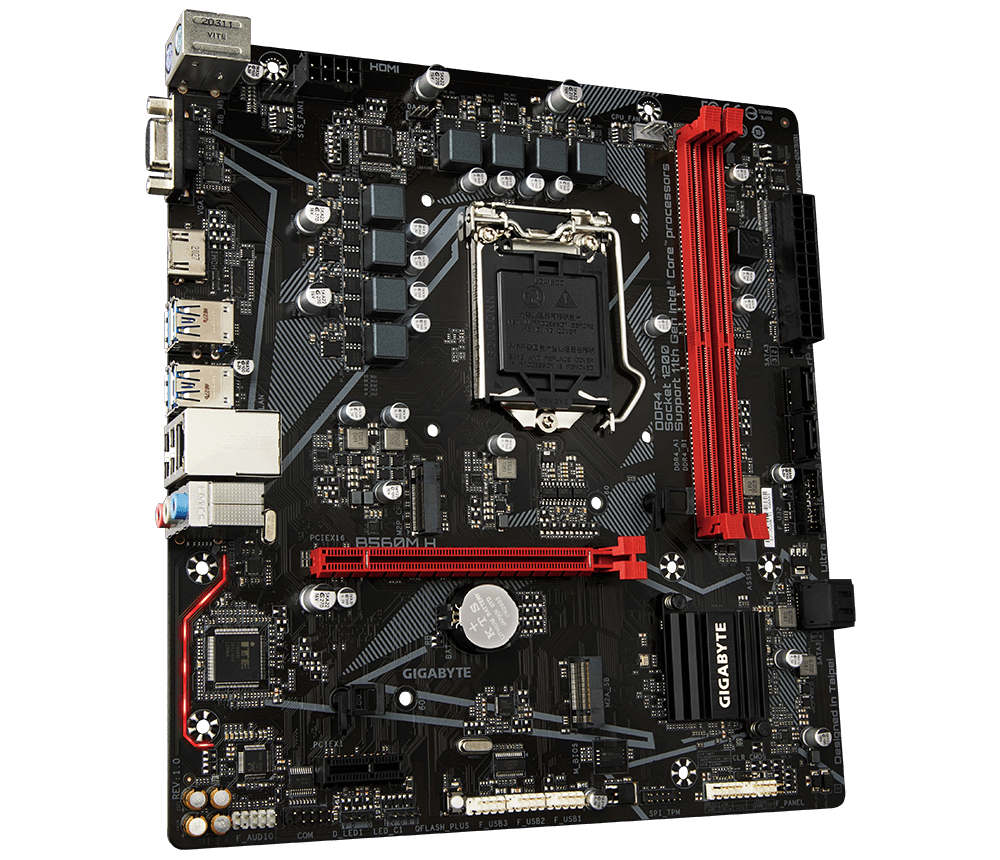

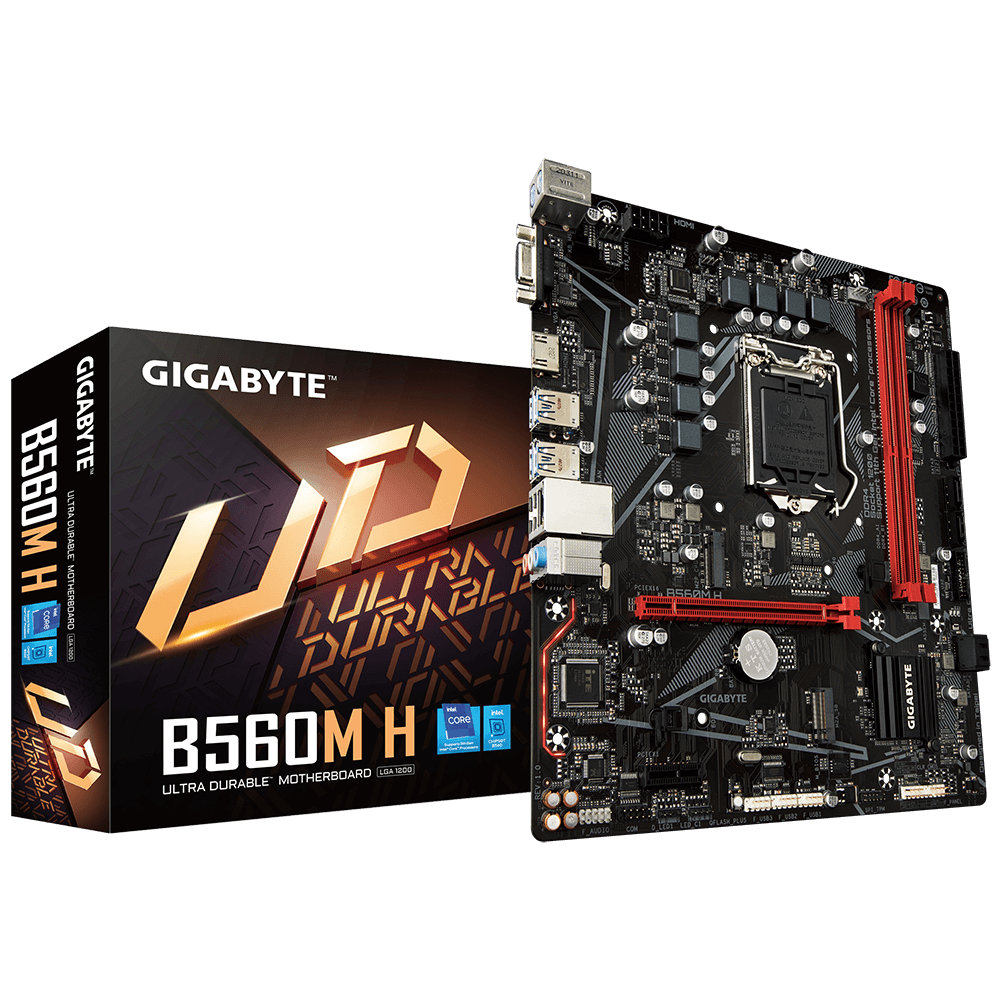

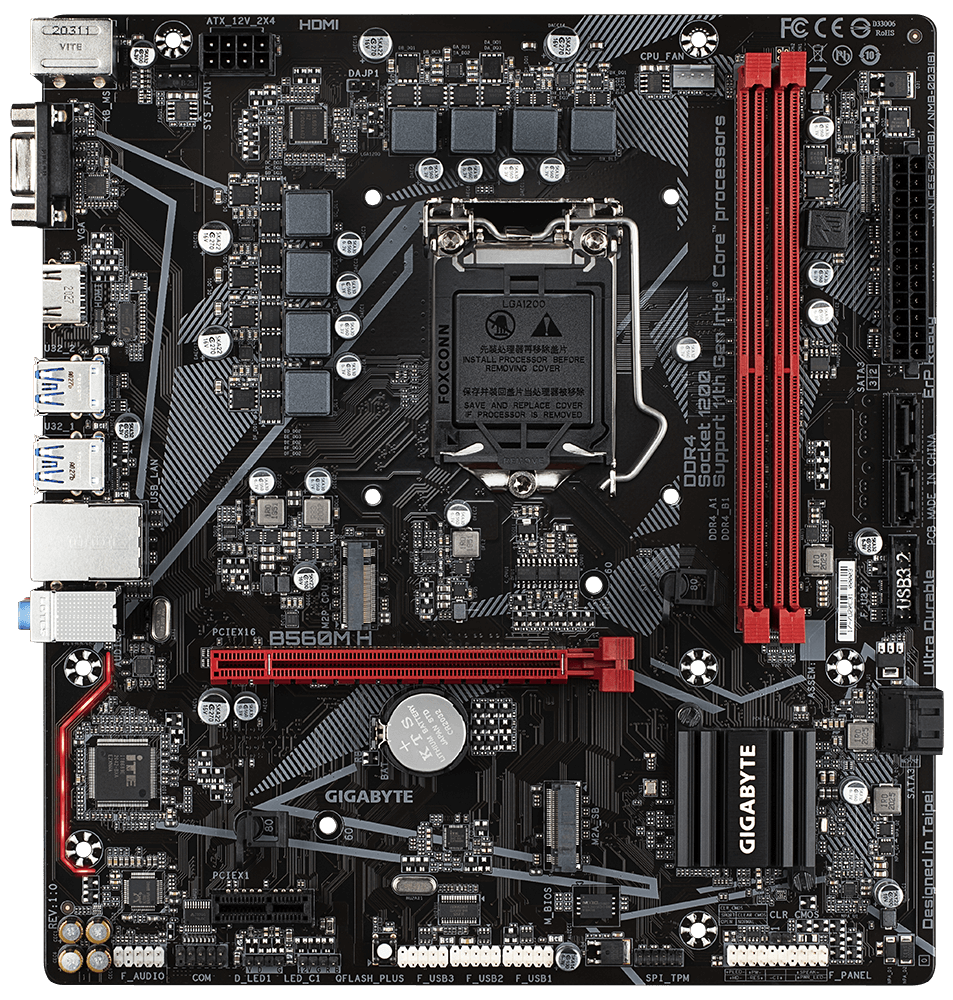

Дънна платка GIGABYTE B560M-H, B560, LGA1200, 2xDDR4, (HDMI/VGA), PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen 1, 2x USB 2.0, mATX
изчерпан
Дънна платка GIGABYTE B560M-H, B560, LGA1200, 2xDDR4, (HDMI/VGA), PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen 1, 2x USB 2.0, mATX
Дънна платка GIGABYTE B560M-H, B560, LGA1200, 2xDDR4, (HDMI/VGA), PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen 1, 2x USB 2.0, mATX
Дънна платка GIGABYTE B560M-H, B560, LGA1200, 2xDDR4, (HDMI/VGA), PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen 1, 2x USB 2.0, mATX
Дънна платка GIGABYTE B560M-H, B560, LGA1200, 2xDDR4, (HDMI/VGA), PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen 1, 2x USB 2.0, mATX
Дънна платка GIGABYTE B560M-H, B560, LGA1200, 2xDDR4, (HDMI/VGA), PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen 1, 2x USB 2.0, mATX

Дънна платка GIGABYTE B560M-H, B560, LGA1200, 2xDDR4, (HDMI/VGA), PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 4x USB 3.2 Gen 1, 2x USB 2.0, mATX

SKU: GA-MB-B560M-H
ID: #19055

Характеристики

Поддържани процесори: Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors Supports Intel® 14 nm CPU
CPU Socket: Intel LGA1200
Чипсет: Intel B560
Максимален капацитет RAM памет: up to 64 GB (32 GB single DIMM capacity) of system memory
Поддръжка на Dualchannel: Да
Поддържана памет: DDR4
Честота памет: 3200/3000/2933/2666/2400/2133
Graphics технология: Няма
Вграден Bluetooth: Не
Wi-Fi Mодул: Не
Други: 256 Mb Flash ROM, UEFI AMI BIOS
Форм фактор: Micro ATX
Гаранция (месеца): 36

Направи запитване

Описание

  • Supports 11th and 10th Gen Intel® Core™ Series Processors
  • Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
  • Direct 6+2 Phases Digital VRM Solution with Low RDS(on) MOSFETs
  • Dual Ultra-Fast NVMe PCIe 4.0* /3.0 x4 M.2
  • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
  • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
