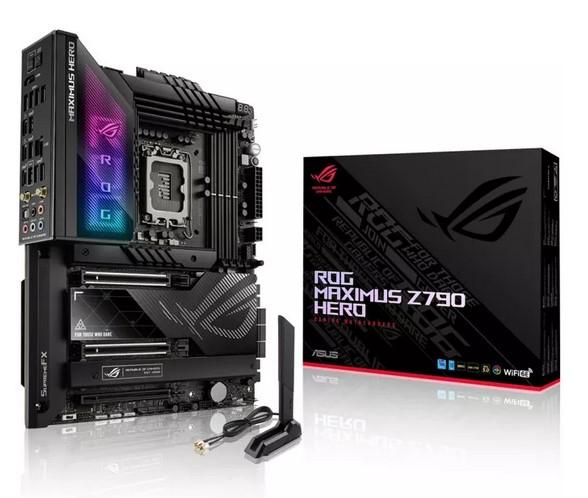

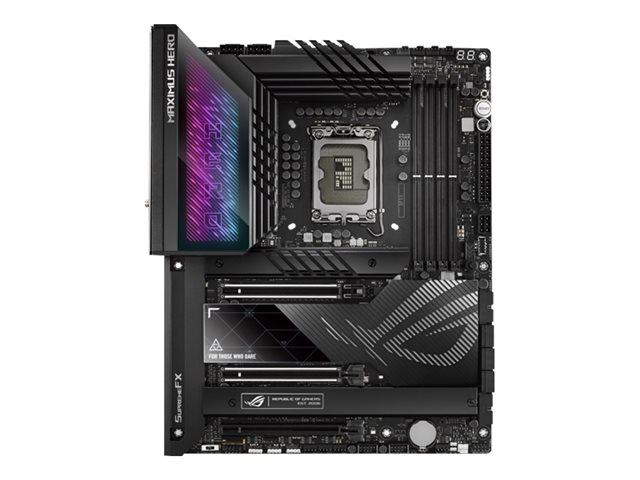

Дънна платка Asus ROG MAXIMUS Z790 HERO, Z790, LGA1700, DDR5, PCI-E 5.0 (HDMI), 6x SATA 6Gb/s, 5x M.2, 3x USB Type-C, ATX
изчерпан
Дънна платка Asus ROG MAXIMUS Z790 HERO, Z790, LGA1700, DDR5, PCI-E 5.0 (HDMI), 6x SATA 6Gb/s, 5x M.2, 3x USB Type-C, ATX
Дънна платка Asus ROG MAXIMUS Z790 HERO, Z790, LGA1700, DDR5, PCI-E 5.0 (HDMI), 6x SATA 6Gb/s, 5x M.2, 3x USB Type-C, ATX
Дънна платка Asus ROG MAXIMUS Z790 HERO, Z790, LGA1700, DDR5, PCI-E 5.0 (HDMI), 6x SATA 6Gb/s, 5x M.2, 3x USB Type-C, ATX
Дънна платка Asus ROG MAXIMUS Z790 HERO, Z790, LGA1700, DDR5, PCI-E 5.0 (HDMI), 6x SATA 6Gb/s, 5x M.2, 3x USB Type-C, ATX

Дънна платка Asus ROG MAXIMUS Z790 HERO, Z790, LGA1700, DDR5, PCI-E 5.0 (HDMI), 6x SATA 6Gb/s, 5x M.2, 3x USB Type-C, ATX

SKU: 46139304
ID: #26671

Характеристики

Поддържани процесори: Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors* Supports Intel® Turbo Boost
CPU Socket: Intel LGA1700
Чипсет: Intel Z790
Максимален капацитет RAM памет: 128 GB
Поддържана памет: DDR5
Честота памет: 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200
M.2 слот: 5 x M.2 slots
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.3
Мрежа: 10/100/1000 GbE LAN
Wi-Fi Mодул: Да
Безжична мрежа: Wi-Fi 6 AX 201 / 802.11a/b/g/n/ac/ax
HDMI: 1
Форм фактор: ATX
Гаранция (месеца): 36

Направи запитване

Описание

ASUS ROG MAXIMUS Z790 HERO MB LGA1700 4xDIMM DDR5 5xM.2 6xSATA

Manufacturer ASUS
Manufacturer Part No 90MB1CI0-M0EAY0

General
Product Type Motherboard - ATX
Chipset Type Intel Z790
Processor Socket LGA1700 Socket
Max Processors Qty 1
Compatible Processors (supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size 128 GB
Technology DDR5
Bus Clock 5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)
Supported RAM Integrity Check Non-ECC, on-die ECC
Registered or Buffered Unbuffered
Features Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type HD Audio (8-channel)
Audio Codec Realtek ALC4082 / ESS ES9218
Compliant Standards High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax, Bluetooth 5.3
Expansion / Connectivity
Expansion Slots 1 x CPU
4 x DIMM 288-pin
2 x PCIe 5.0 x16 (dual x8 mode; single card: x16 mode)
1 x PCIe 4.0 x16 (x4 mode)
1 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot)
2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
PCIe 4.0 -connectors: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 -connectors: 2 x 7pin Serial ATA
PCIe 4.0 -connectors: 2 x Hyper M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

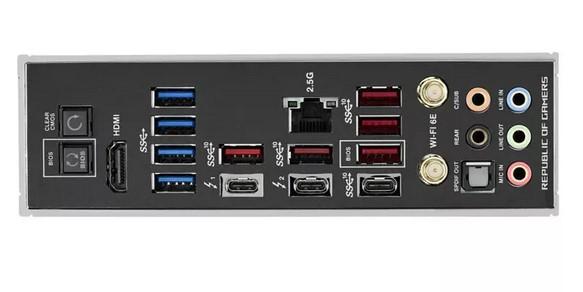

Interfaces 1 x HDMI
2 x Thunderbolt 4/DisplayPort/USB4
5 x USB 3.2 Gen 2
1 x USB-C 3.2 Gen 2
4 x USB 3.2 Gen 1
2 x aerial
1 x audio line-out - mini-jack
1 x microphone - mini-jack
1 x audio line-out (center/subwoofer) - mini-jack
1 x audio line-out (rear) - mini-jack
1 x audio line-in - mini-jack
1 x SPDIF out
1 x LAN (2.5Gigabit Ethernet)
Internal Interfaces 1 x USB-C 3.2 Gen 2x2 - header
4 x USB 3.2 Gen 1 - header
4 x USB 2.0 - header
1 x audio - header
Power Connectors 24-pin main power connector, 2 x 8-pin ATX12V connectors, 6-pin PCI Express power connector
Features
BIOS Type AMI
BIOS Features UEFI BIOS, ASUS EZ Flash 3, MemTest86
Sleep / Wake Up Wake on LAN (WOL), wake on PME
Hardware Features Jack retasking, ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, ASUS Q-Connector, audio jack detect technology, ASUS TPU (TurboV Processing Unit), Q-Code, ASUS DIGI+ Power Control, Clear CMOS Button, LANGuard, TrueVolt USB, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, Water Pump Header, pre-mounted I/O shield, ASUS Aura Sync, MicroFine Alloy Chokes, 10K Black Metallic Capacitors, DIY Friendly Design, FlexKey button, ASUS ProCool II, 20+1 Phase Power Design, M.2 Q-Latch, ReTry button, Start button, PCIe Slot Q-Release, CPU Socket lever protector, Quick Charge 4+, VRM heatsink design, BIOS FlashBack button, steel backplate, ASUS Enhanced Memory Profile (AEMP) II, Polymo Lighting
Miscellaneous
Included Accessories Thermal pad for M.2 SSD, Q-Connector, ROG key chain, ASUS Wi-Fi moving aerial, 3 x M.2 rubber package, USB drive, ARGB LED strip extension cable, ROG HYPER M.2 CARD, 2 x M.2 ROG HYPER M.2 CARD screw packages, RAM fan holder, VRM fan holder, 3 x M.2 Q-Latch, ROG stickers, ROG VIP card
Cables Included 4 x Serial ATA cable
Software Included Drivers & Utilities, ROG CPU-Z, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, WinRAR, BullGuard Internet Security (1 year licence), ROG GameFirst VI, ASUS AURA Creator, AIDA64 Extreme (1 year licence), Armoury Crate, Sonic Studio III, Sonic Radar III, ASUS Fan Xpert 4
Compliant Standards VCCI Class B ITE, JATE, WEEE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Width 30.5 cm
Depth 24.4 cm
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Technical data provided by third party. We assume no liability for errors within these data.
