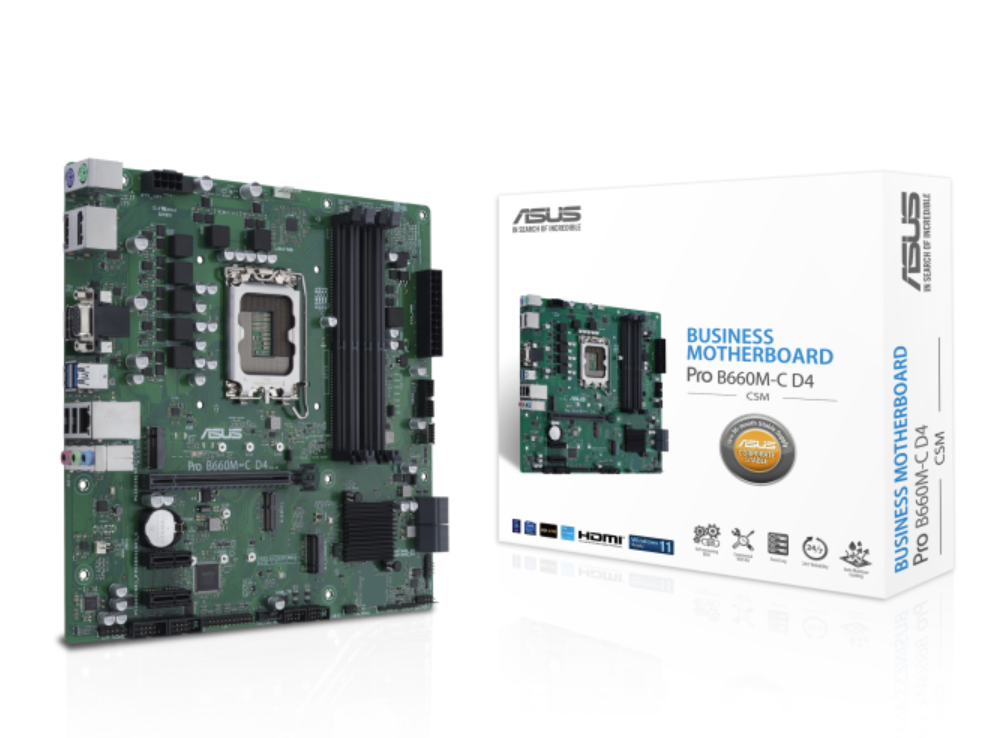

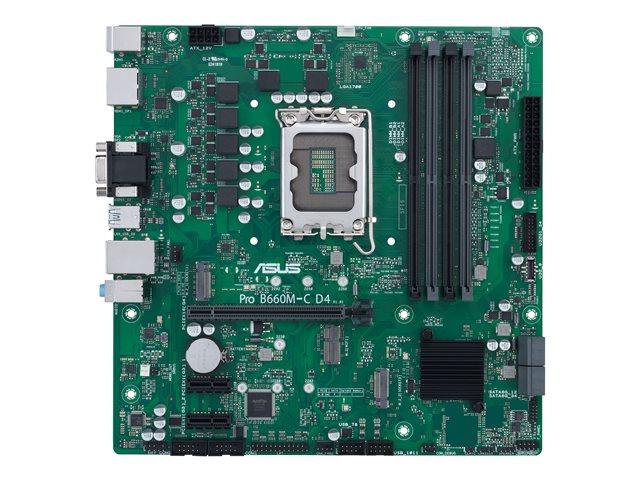

Дънна платка Asus Pro B660M-C D4-CSM, B660, LGA 1700, DDR4, PCI-E 4.0, 4x SATA 6Gb/s, 2x M.2, 2x USB 3.2 Gen 1, VGA, HDMI, DP, mATX

SKU: Asus Pro B660M-C / 90MB19B0-M1EAYC

ID: #34834

Цена: 229,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 12th/13th Gen Intel® Core™ Processors, Pentium® Gold and Celeron® Processors

Чипсет: B660

Максимален капацитет RAM памет: 128 GB

Поддържана памет: DDR4

M.2 слот: 2

Graphics технология: Няма

Мрежа: 10/100/1000 Mbps

Wi-Fi Mодул: Не

HDMI: 1

DisplayPort: 2

VGA: 1

Форм фактор: Micro ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

ASUS PRO B660M-C D4-CSM LGA1700 4xDIMM DDR4 TPM 4xSATA 2xM.2 1xHDMI 1xVGA 2xDP MB


Manufacturer	ASUS
Manufacturer Part No	90MB19B0-M1EAYC

Marketing Description
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Product Features
Internationally certified business motherboard ASUS Business motherboards are enterprise proven with leading quality that exceeds industry standards. Certified by multiple international safety and environmental organizations, ASUS Business motherboards provide a safe, secure and sustainable solution, making them the ideal choice for your business. PCIe 4.0 This business motherboard is specially designed for 12th Gen Intel Core processors and offer PCIe 4.0 connectivity for storage devices and graphics cards. Wide bandwidth and superfast transmission speeds empower you to create feature-rich builds that deliver optimal performance wherever it's needed. ASUS self-recovering BIOS ASUS-exclusive BIOS protection technology automatically recovers the system BIOS with a verified backup in the event of an update failure, preventing the need to replace or reinstall hardware. Protection against moisture and corrosion An innovative moisture-resistant coating protects the motherboard in humid environments, such as factories, libraries, data centers and internet cafes. It also minimizes internal corrosion by preventing adhesion and migration of moisture, prolonging the life of the motherboard. Stainless steel back I/O Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels. World-class circuit-protecting power design An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies. Pumped-up throughput ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges. Q-LED Core display The Q-LED Core display produces light patterns by power LED during the Power-On Self-Test (POST) that can help users troubleshoot potential issues.
General
Product Type	Motherboard - micro ATX
Chipset Type	Intel B660
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th and 13th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	128 GB
Technology	DDR4
Bus Clock	2400 MHz, 2133 MHz, 2800 MHz, 3000 MHz, 2666 MHz, 2933 MHz, 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 4000 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4600 MHz (O.C.), 3200 MHz
Supported RAM Integrity Check	Non-ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Compliant Standards	High Definition Audio
LAN
Network Interfaces	Gigabit Ethernet
Expansion / Connectivity

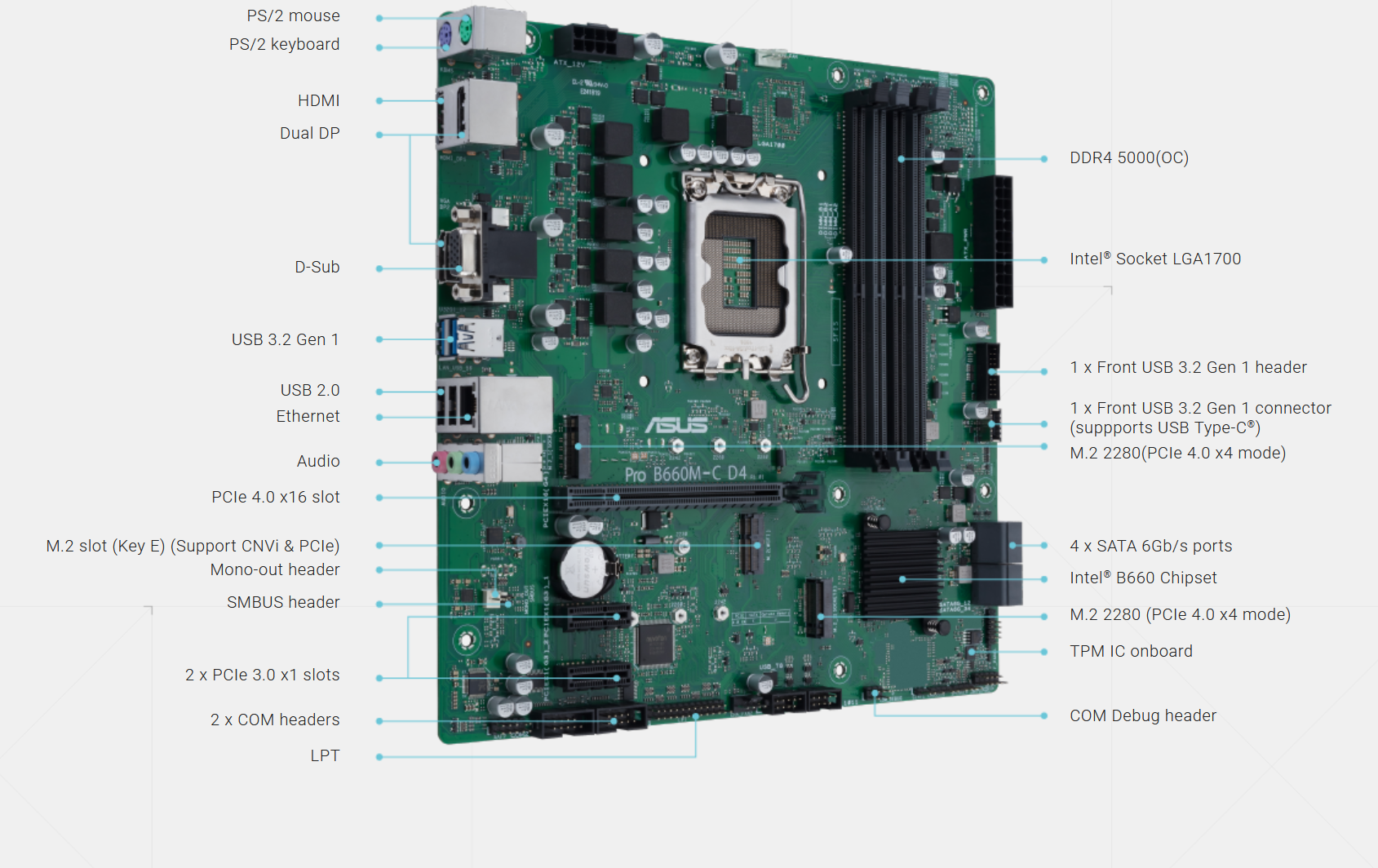

Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 4.0 x16 2 x PCIe 3.0 x1 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 2 x M.2
RAID Features	Intel Rapid Storage Technology

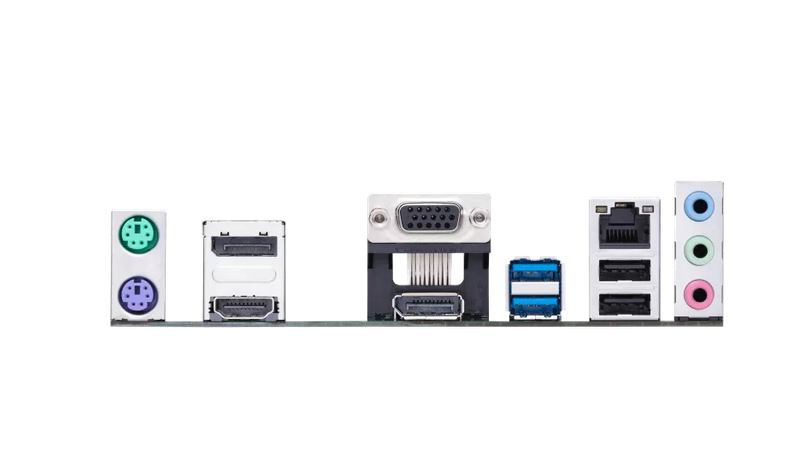

Interfaces	1 x HDMI 2 x DisplayPort 1 x VGA 1 x LAN (Gigabit Ethernet) 2 x USB 3.2 Gen 1 2 x USB 2.0 1 x PS/2 keyboard 1 x microphone - mini-jack 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x PS/2 mouse
Internal Interfaces	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C Gen 1 - header 1 x audio - header 2 x serial - header 1 x speaker - header
Power Connectors	4-pin ATX12V connector, 24-pin main power connector, 8-pin ATX12V connector
Features
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	Jack retasking, ASUS EZ DIY, audio jack detect technology, Preboot eXecution Environment (PXE), overcurrent protection, LANGuard, ASUS OptiMem, ASUS Self Recovering BIOS, ASUS Event Log, ASUS Commercial BIOS kit, TPM IC Onboard, ASUS Control Center Express (ACC Express), Q-LED Core
Miscellaneous
Included Accessories	2 x M.2 screws, IO shield, ACC Express Activation Key Card
Cables Included	2 x Serial ATA cable
Compliant Standards	VCCI Class B ITE, JATE, FCC Part 15 Class B, DisplayPort 1.4, EU RoHS, EU REACH
Width	24.4 cm
Depth	24.4 cm
Package Details	Box
Pricing Type	ASUS Corporate Stable Model (CSM)
