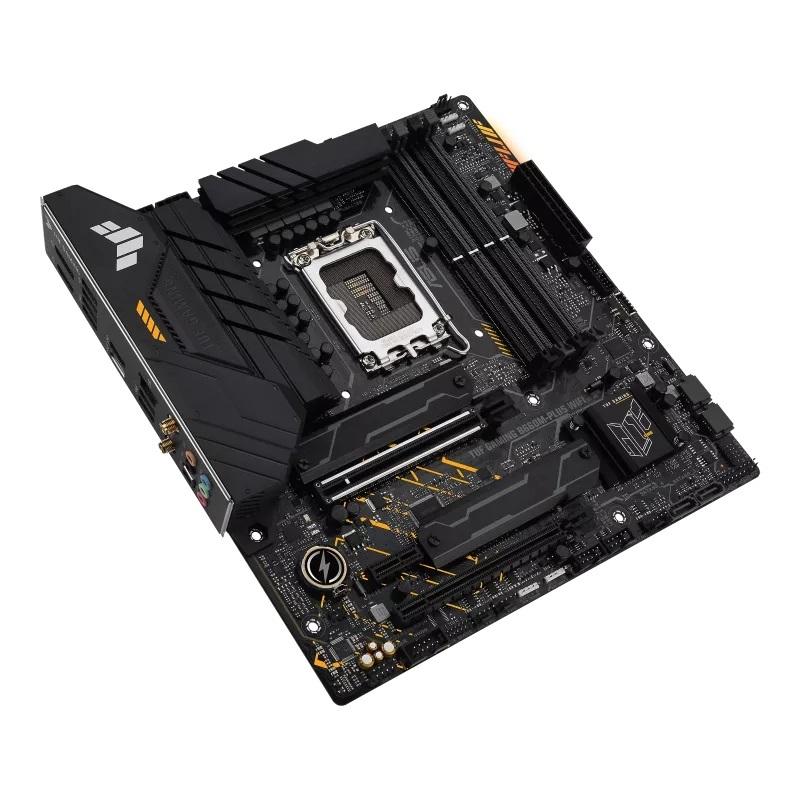

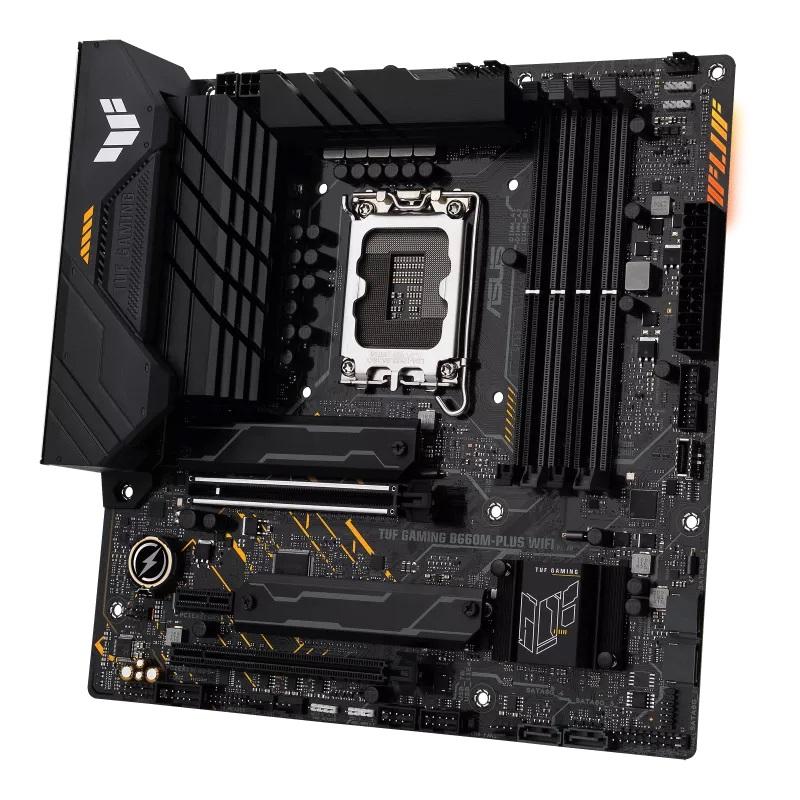

Дънна платка ASUS TUF GAMING B660M-PLUS WIF, LGA1700, 4x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, HDMI, DP. mATX
Дънна платка ASUS TUF GAMING B660M-PLUS WIF, LGA1700, 4x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, HDMI, DP. mATX
Дънна платка ASUS TUF GAMING B660M-PLUS WIF, LGA1700, 4x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, HDMI, DP. mATX
Дънна платка ASUS TUF GAMING B660M-PLUS WIF, LGA1700, 4x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, HDMI, DP. mATX
Дънна платка ASUS TUF GAMING B660M-PLUS WIF, LGA1700, 4x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, HDMI, DP. mATX

Дънна платка ASUS TUF GAMING B660M-PLUS WIF, LGA1700, 4x DDR5, 2x M.2, 4x SATA 6Gb/s, Wi-Fi 6, HDMI, DP. mATX

SKU: TUF GAMING B660M-PLUS WIFI / 90MB1AZ0-M1EAY0
ID: #36492
Цена: 379,00 лв.
193,78 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
CPU Socket: Intel LGA1700
Чипсет: Intel B660
Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB
Поддръжка на Dualchannel: Да
Поддържана памет: DDR5
M.2 слот: 2 x M.2 slots / 4 x SATA 6Gb/s ports
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.2
Wi-Fi Mодул: Да
Безжична мрежа: 802.11ax (Wi-Fi 6)
HDMI: 1
DisplayPort: 1
Форм фактор: Micro ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Model
TUF GAMING B660M-PLUS WIFI
CPU
Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B660 Chipset
Memory
4 x DIMM, Max. 192GB, DDR5 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
*Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Graphics
1 x DisplayPort**
1 x HDMI® port***
*Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' resolution.
Expansion Slots
Intel® 12th Gen Processors
1 x PCIe 5.0 x16 slot
Intel® B660 Chipset*
1 x PCIe 3.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
* Supports Intel® Optane Memory H Series on PCH-attached PCIe slot.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280
- Intel® 12th Gen processors support PCIe 4.0 x4 mode.
Intel® B660 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
** Intel® Rapid Storage Technology supports Intel® Optane Memory H Series on PCH attached M.2 slots.
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.2*
*Bluetooth v5.2 function will be ready in Windows 11 or later.
USB
Rear USB (Total 8 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers

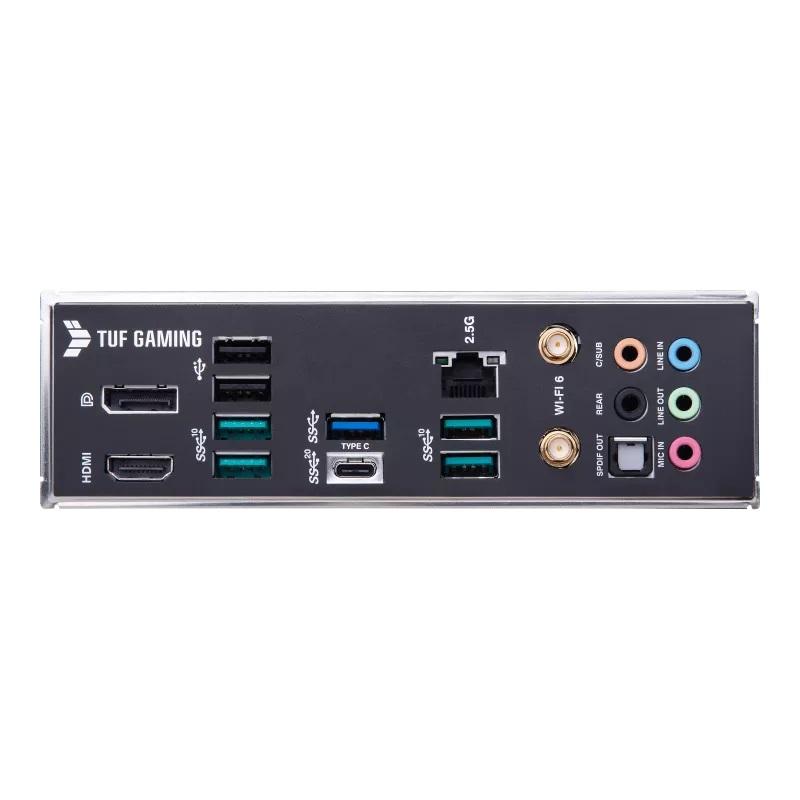

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
4 x USB 3.2 Gen 2 ports (4 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x AURA RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ header
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
- M.2 heatsinks
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- AURA RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- AURA Creator
- AURA Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
TUF GAMING CPU-Z
DTS Audio Processing
MyASUS
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

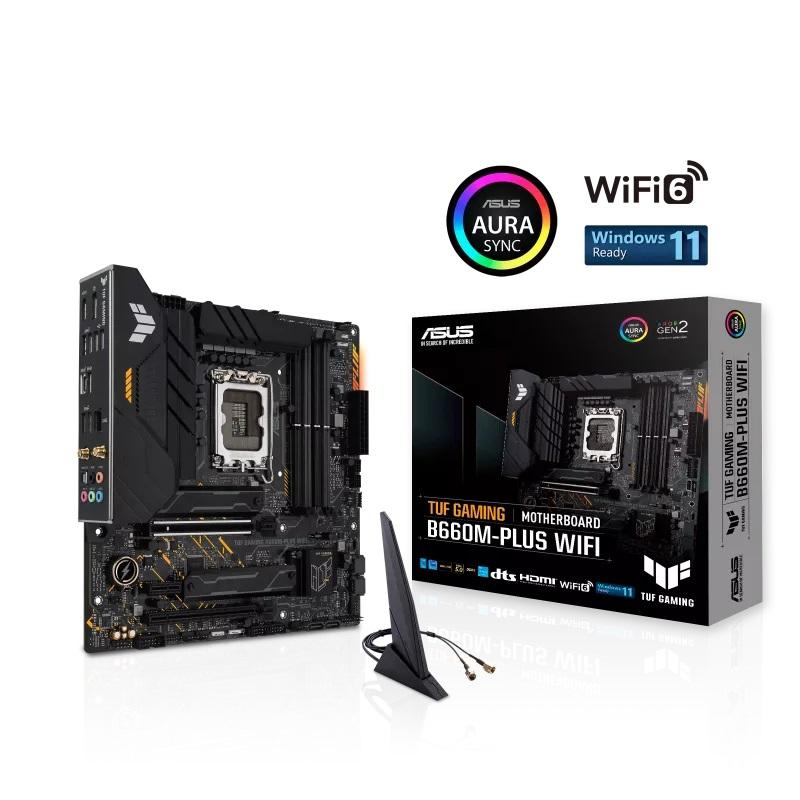

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x M.2 Rubber Package
1 x M.2 SSD screw package
1 x TUF Gaming sticker
Installation Media
1 x Support DVD
Documentation
1 x TUF Certification card
1 x User guide
Operating System
Windows® 11 64-bit, Windows® 10 64-bit
Form Factor
mATX Form Factor
9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )
