Дънна платка ASUS ROG STRIX Z790-A GAMING WIFI II, LGA1700, 4x DDR5, 5xM.2, 4x SATA, Wi-Fi 7, Bluetooth v5.4, 1x HDMI 1x DP, ATX

SKU: ASUS ROG STRIX Z790-A GAMING WIFI II / 90MB1FN0-M0EAY0

ID: #34562

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

CPU Socket: Intel LGA1700

Чипсет: Intel Z790

Максимален капацитет RAM памет: 4x DDR5, Maximum Memory Capacity 192GB

Поддържана памет: DDR5

M.2 слот: 5 x M.2 slots

Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10

Graphics технология: Няма

Вграден Bluetooth: Bluetooth V5.4

Мрежа: 1 Ethernet

Wi-Fi Mодул: Да

Безжична мрежа: 802.11 a/ b/ g/ n/ ac/ ax/ be (Wi-Fi 7)

HDMI: 1

DisplayPort: 1

Форм фактор: ATX

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

ASUS ROG STRIX Z790-A GAMING WIFI II LGA 1700 4DDR5 ATX 4xSATA MB 1xHDMI 1xDP 5xM.2


Manufacturer	ASUS
Manufacturer Part No	90MB1FN0-M0EAY0

Marketing Description
Well-versed in style, performance, cooling, and connectivity, the DDR5 variant of the ROG STRIX Z790-A exudes the same balance as its D4 brethren, but after taking a master class in memory. A robust VRM topped with stout silver heatsinks comfortably articulates power for the Intel 13th Gen Core processors, while PCIe 5.0, Wi-Fi 6E, and high-speed USB flesh out the board's fluency across a variety of disciplines. And a vast collection of tuning options and utilities derived from its ROG heritage are the icing on top.
Product Features
AI Overclocking Tuning is now faster and smarter than ever before. ASUS AI Overclocking profiles the CPU and cooling to predict the optimal configuration and push the system to its limits. Predicted values can be engaged automatically or used as a launching ground for further experimentation. PCIe 5.0 The PCIe 5.0 x16 SafeSlot is well-equipped for the increased size and bandwidth of next-gen graphics cards. Zippy storage options abound with four PCIe 4.0 M.2 slots, all featuring robust heatsinks to maximize performance. Power architecture 16 + 1 power stages rated to 70 A each deliver ample current in order to drive 13th and 12th Gen Intel Core processors through any workload with ease. DDR5 domination ROG has a long legacy of flexing the fastest memory performance, and DDR5 is no outlier. Thanks to improved signal routing, now enthusiast-grade kits have been driven far beyond the 7 GT/s mark on the STRIX Z790-A, and who knows how far future DIMMs can go? Seasoned veterans can test their mettle by tinkering with the extensive array of tuning options in the UEFI. AEMP II ASUS Enhanced Memory Profile (AEMP) is an exclusive hardware and firmware solution to overclock generic memory modules. AEMP's second version allows for automatic tuning of kits during system startup and leverages the PCB trace optimizations of the STRIX Z790-A to push frequencies higher than ever before. AEMP II can even overclock mixed kits in a quad-DIMM arrangement, and the vast library of support now extends to nearly every DDR5 module that does not otherwise have XMP support. VRM heatsinks Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors. M.2 backplate An integrated backplate helps ensure that high-performance drives can deliver peak performance, even when airflow is restricted. M.2 heatsinks Heatsinks cover every slot to help keep onboard NVME SSDs at optimal temperatures for consistent performance and reliability. CPU fan headers Positioned near the top of the motherboard, a pair of PWM/DC fan headers give easy access for CPU coolers / AIO pump fan header A dedicated PWM/DC header connects self-contained water-cooling setups. 4-pin fan headers The STRIX Z790-A features four chassis fan headers, each supporting auto-detection of PWM or DC fans. Wi-Fi 6E Onboard Wi Fi 6E technology takes advantage of newly available spectrum in the 6 GHz band to provide up to seven 160 MHz channels for ultrafast throughput and better performance in dense wireless environments. USB 3.2 Gen 2x2 The STRIX Z790-A comes loaded with two USB 3.2 Gen 2x2 Type-C connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30 W. SupremeFX ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The STRIX Z790-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets. Undeniably ROG STRIX The ROG STRIX Z790-A boldly embraces the light, for an alternate take on build themes to its dark and brooding brother, the STRIX Z790-F. Metallic heatsinks pop against a dark PCB backdrop and call attention to the board's high capacity for thermal management. A transparent layer on the I/O shield adds a unique touch and emphasizes the customizable RGB logo below. The whole design is tied together with ROG-centric detailing on the board, heatsinks, and I/O shield for a vibrant and futuristic outlook. Outshine the competition ROG STRIX motherboards feature ASUS Aura technology, enabling full lighting control and a variety of presets for both onboard RGB LEDs and third-party accessories. Effects can be easily synced across compatible ROG graphics cards, monitors, keyboards, and mice to give your setup a unified look.
General
Product Type	Motherboard - ATX
Chipset Type	Intel Z790
Processor Socket	LGA1700 Socket
Max Processors Qty	1
Compatible Processors	(supports 12th/13th and 14th Generation Intel Core / Pentium Gold / Celeron)
Supported RAM
Max Size	192 GB
Technology	DDR5
Bus Clock	5800 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz, 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 7000 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.), 5200 MHz, 5000 MHz, 5600 MHz, 5400 MHz, 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.), 8000 MHz (O.C.)
Supported RAM Integrity Check	Non-ECC, on-die ECC
Registered or Buffered	Unbuffered
Features	Dual channel memory architecture, Intel Extreme Memory Profiles (XMP)
Audio
Type	HD Audio (8-channel)
Audio Codec	SupremeFX (ALC4080)
Compliant Standards	High Definition Audio, DTS Sound Unbound
LAN
Network Interfaces	2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4
Expansion / Connectivity

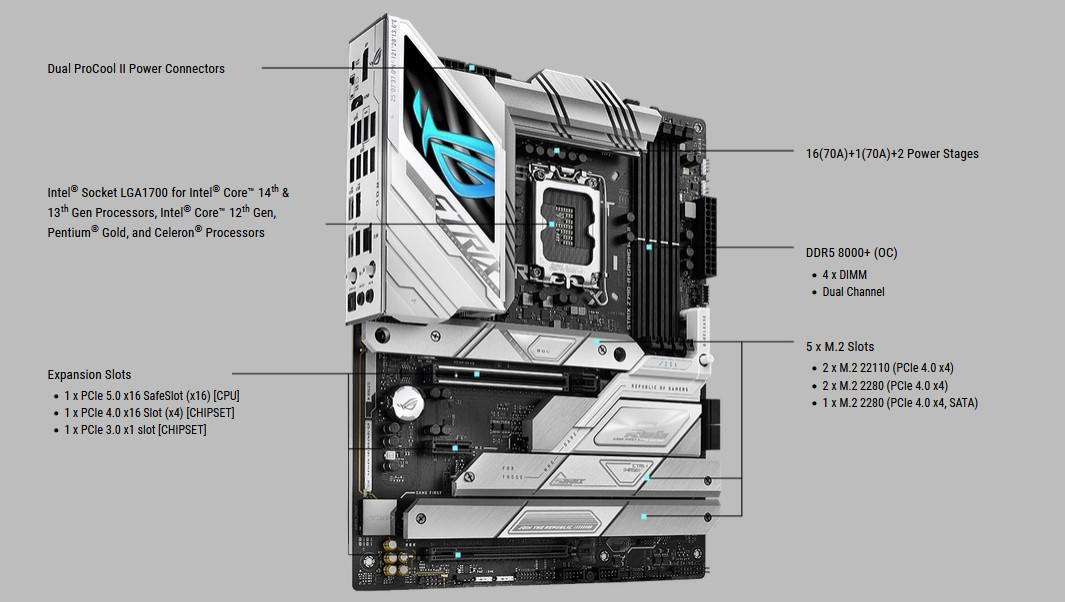

Expansion Slots	1 x CPU 4 x DIMM 288-pin 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4 mode) 1 x PCIe 3.0 x1 2 x M.2 socket (2280 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 1 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -connectors: 4 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
RAID Features	Intel Rapid Storage Technology

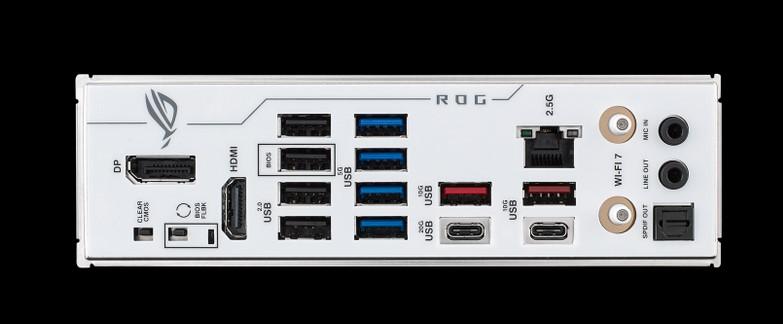

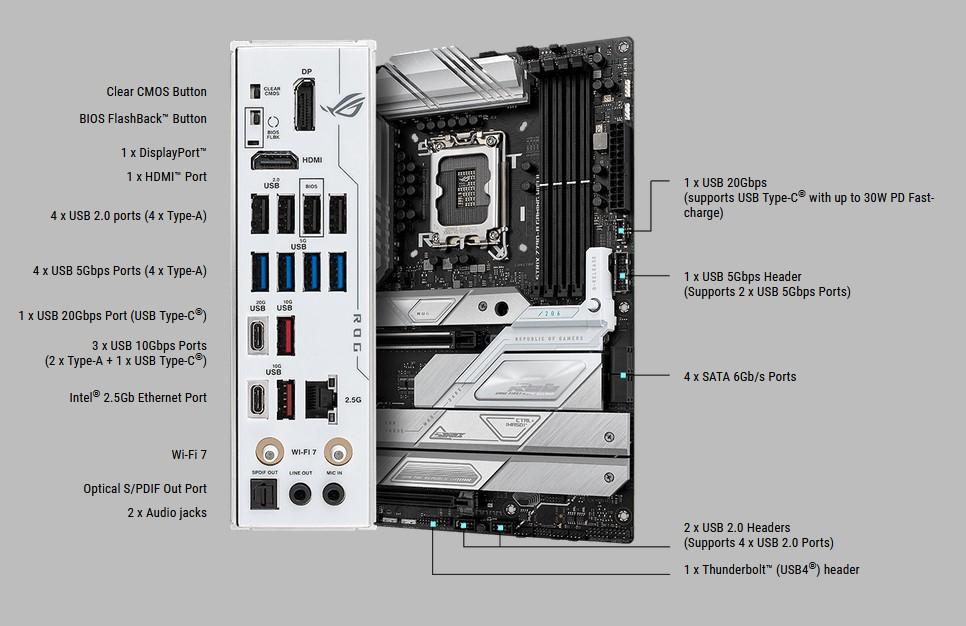

Interfaces	1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 2 2 x USB 3.2 Gen 2 4 x USB 3.2 Gen 1 4 x USB 2.0 2 x aerial 1 x LAN (2.5Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x SPDIF out
Internal Interfaces	1 x USB-C 3.2 Gen 2x2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x audio - header 1 x Thunderbolt 4 - header
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors
Features
BIOS Type	AMI
BIOS Features	UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	ASUS Q-Design, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, ASUS Extreme Engine Digi+, CrashFree BIOS 3, Intel Turbo Boost Technology 2.0, Preboot eXecution Environment (PXE), Clear CMOS Button, LANGuard, ASUS SafeSlot, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, ASUS OptiMem II, ASUS ProCool II, M.2 Q-Latch, 5K Black Metallic Capacitors, 16+1+2 Phase Power Design, PCIe Slot Q-Release, CPU Socket lever protector, VRM heatsink design, BIOS FlashBack button, BIOS FlashBack LED, ASUS Enhanced Memory Profile (AEMP) II, M.2 heatsink backplate, Q-Antenna
Miscellaneous

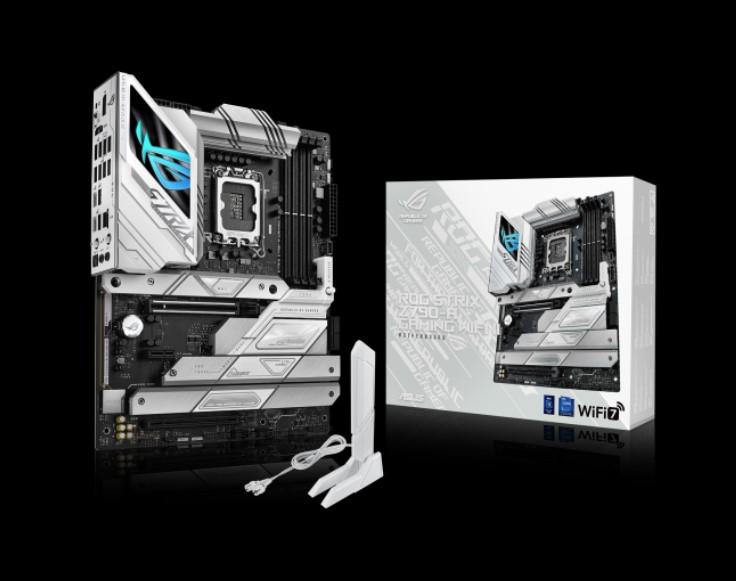

Included Accessories	Cable ties, STRIX stickers, thermal pad for M.2 SSD, ROG key chain, M.2 Q-Latch, 2 x M.2 rubber package, M.2 backplate rubber package, M.2 backplate Q-Latch, ASUS Wi-Fi Q-antenna
Cables Included	2 x Serial ATA cable
Software Included	ROG CPU-Z, ROG GameFirst Utility, ASUS AI Suite III, ASUS Turbo App, PC Cleaner, Sonic Studio Virtual Mixer, AIDA64 Extreme (60 days trial), MemTest86, ASUS AURA Creator, MyAsus, Armoury Crate, ASUS Fan Xpert 4, Norton 360 for Gamers (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial), USB Wattage Watcher, Intel Unison (9 month subscription)
Compliant Standards	FSC, DisplayPort 1.4
Width	30.5 cm
Depth	24.4 cm
