Дънна платка ASUS Pro WS WRX90E-SAGE SE, AMD Socket sTR5, 8x DIMM slots DDR5, 4x PCIe 5.0 M.2 slots, 7x PCIe 5.0 x16 slots, Dual 10 Gb LAN, VGA, 2x Mini DisplayPort, EEB

SKU: Pro WS WRX90E-SAGE SE , 90MB1FW0-M0EAY0

ID: #38795

Цена: 2 872,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: AMD Socket sTR5 for Ryzen™ Threadripper™ PRO 7000 WX-Series*

CPU Socket: sTR5

Чипсет: AMD WRX90

Памет, слотове: 8

Поддържана памет: DDR5

M.2 слот: 4 x M.2 slots and 4 x SATA 6Gb/s ports

Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10

Graphics технология: Няма

Мрежа: 2 x LAN (10Gigabit Ethernet)

Wi-Fi Mодул: Не

DisplayPort: 2 x Mini DisplayPort

VGA: Да

Форм фактор: EEB

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

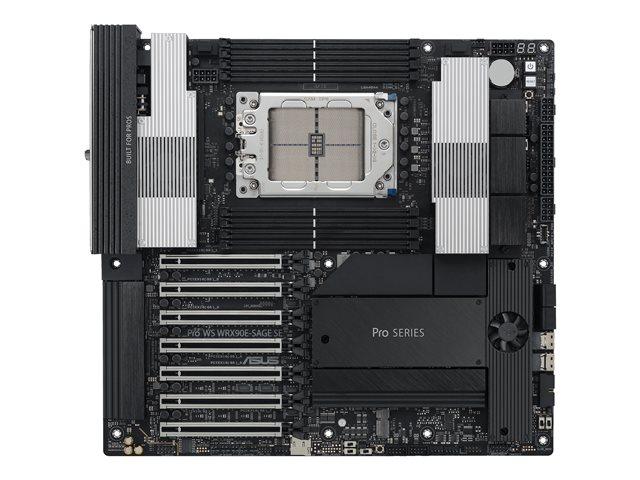

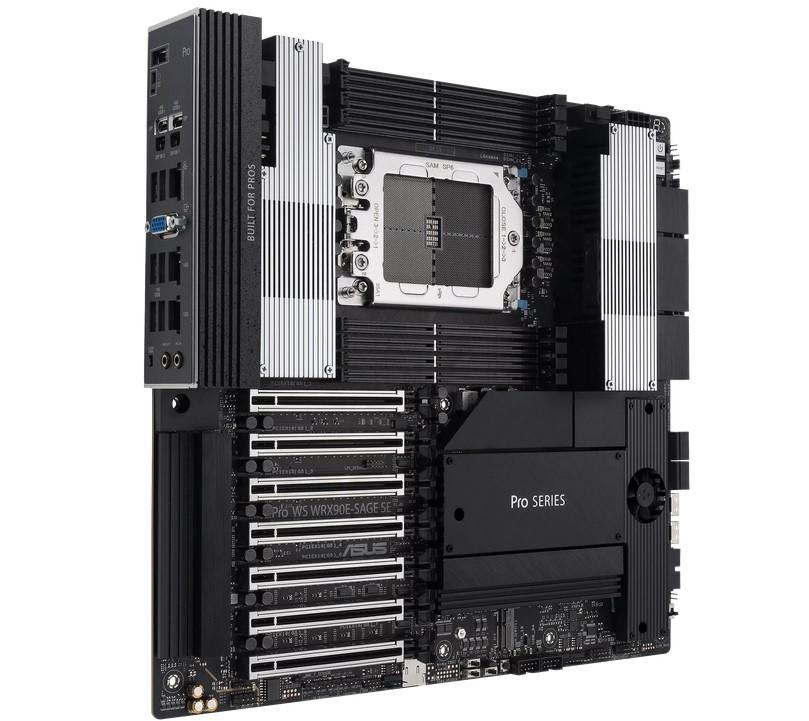

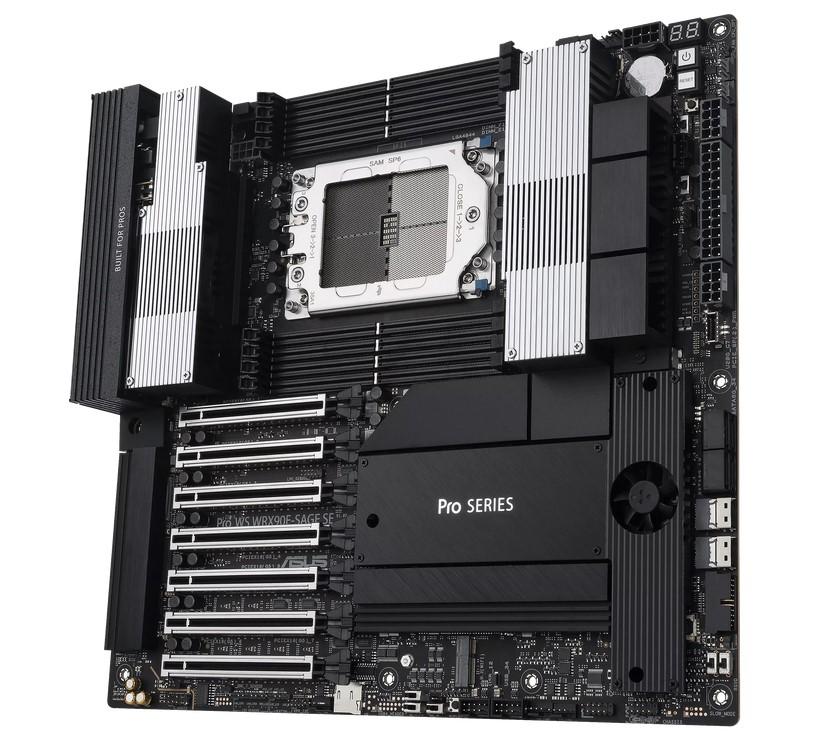

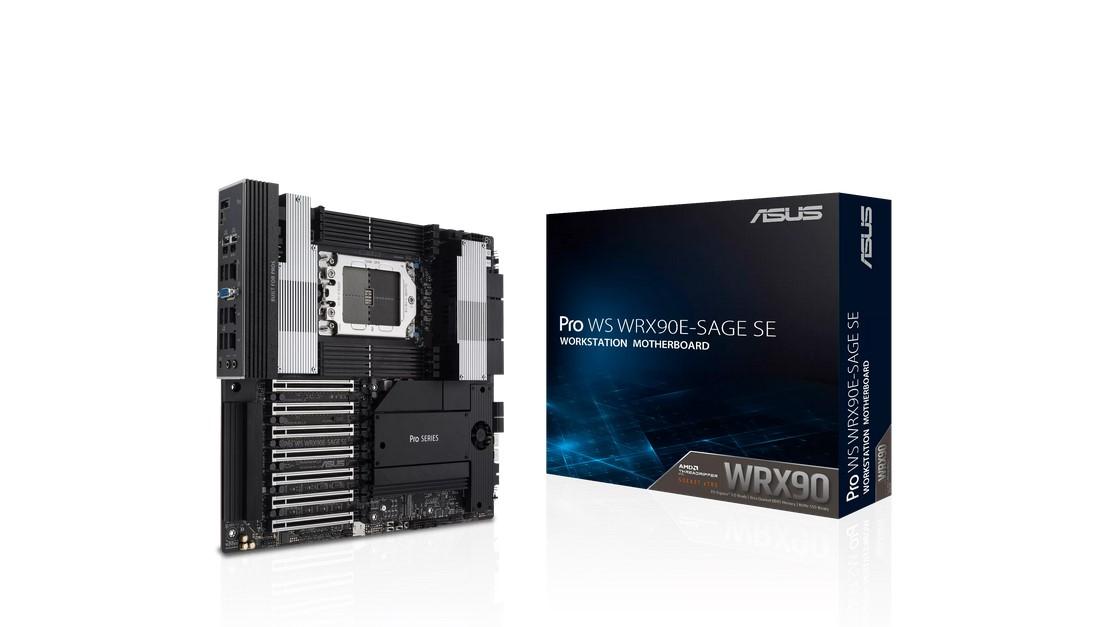

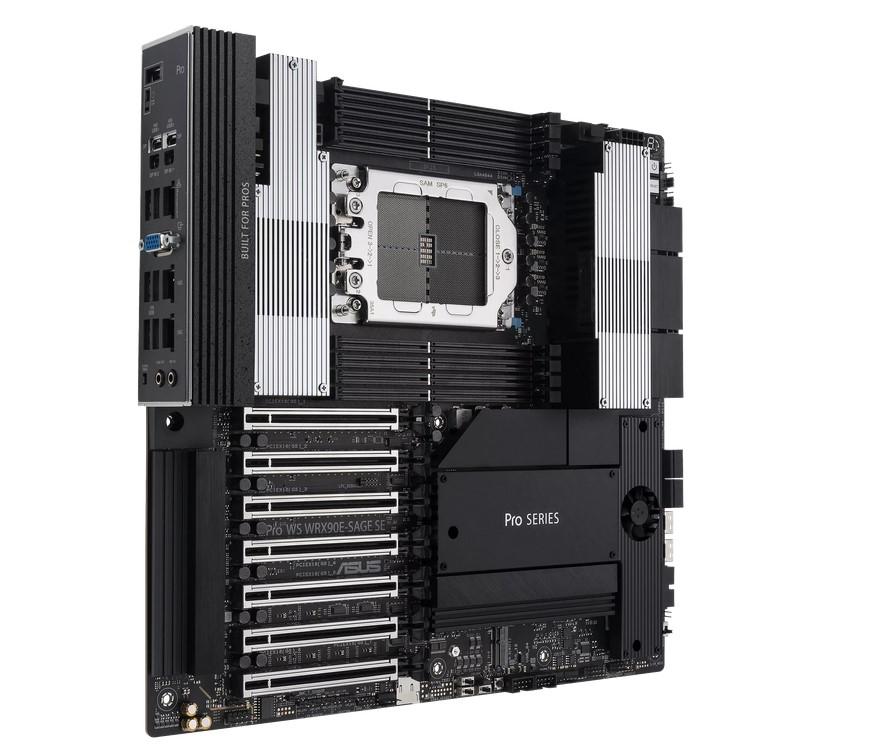

ASUS Pro WS WRX90E-SAGE SE Motherboard


Manufacturer	ASUS
Manufacturer Part No	90MB1FW0-M0EAY0

Marketing Description
The AMD sTR5 EEB workstation motherboard features 7 PCIe 5.0 x16 slots, with support for multi-GPU. It has a robust power-stage design of 32+3+3+3, making it ready for CPU and memory overclocking. The motherboard also offers 4 PCIe 5.0 M.2 slots, dual 10 Gb LAN, and a PCIe Q-Release slim.
Product Features

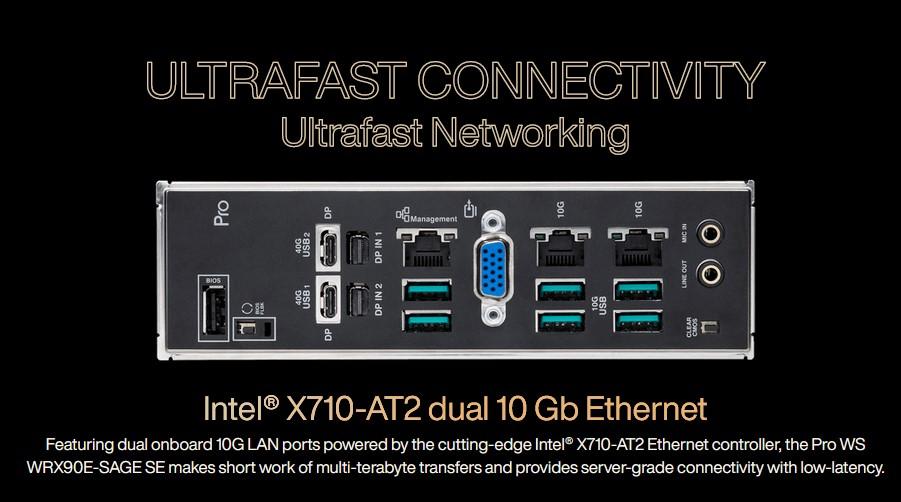

Ultrafast connectivity Features seven PCIe 5.0 x16 slots, dual 10 Gb LAN ports, four M.2 slots, two rear USB4 40Gbps Type-C and SlimSAS NVMe support. Robust power and thermal design 32+3+3+3 power stages with two 8-pin power connectors for the CPU, massive VRM cooling, chipset and M.2 heatsinks with active fans, and M.2 thermal pad. PCIe Q-release slim Remove the graphics card by directly pulling it up, instead of pressing a PCIe latch. Trusted stability Validated for extensive compatibility with advanced technologies, an expansive QVL list, and tested for 24/7 operation.
General
Product Type	Motherboard - SSI EEB
Processor	AST2600
Chipset Type	AMD WRX90
Processor Socket	Socket sTR5
Max Processors Qty	1
Compatible Processors	(supports Ryzen Threadripper PRO 7000WX Series/ 7000 Series)
Supported RAM
Technology	DDR5
Supported RAM Integrity Check	ECC
Registered or Buffered	Registered
Features	Quad channel memory architecture
Audio
Type	HD Audio (6-channel)
Audio Codec	Realtek ALC1220P
Compliant Standards	High Definition Audio
LAN
Network Interfaces	Gigabit Ethernet
Expansion / Connectivity
Expansion Slots	1 x CPU 8 x DIMM 288-pin 6 x PCIe 5.0 x16 1 x PCIe 5.0 x16 (x8 mode) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M slot) 2 x M.2 socket (2242/2260/2280 M.2 Key M slot)
Storage Interfaces	SATA-600 -connectors: 4 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 5.0 -connectors: 4 x M.2 PCIe 4.0 -connectors: 2 x SlimSAS

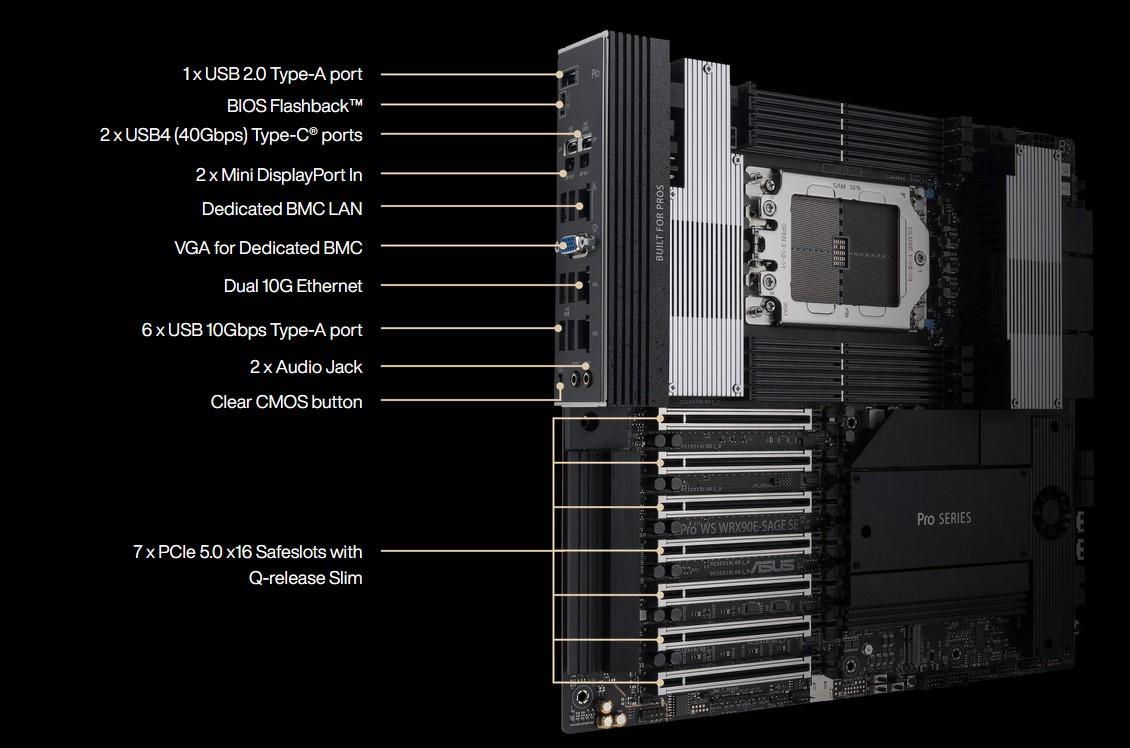

Interfaces	1 x VGA 2 x Mini DisplayPort 6 x USB 3.2 Gen 2 2 x USB4 1 x USB 2.0 2 x LAN (10Gigabit Ethernet) 1 x microphone - mini-jack 1 x audio line-out - mini-jack 1 x LAN (Gigabit Ethernet)

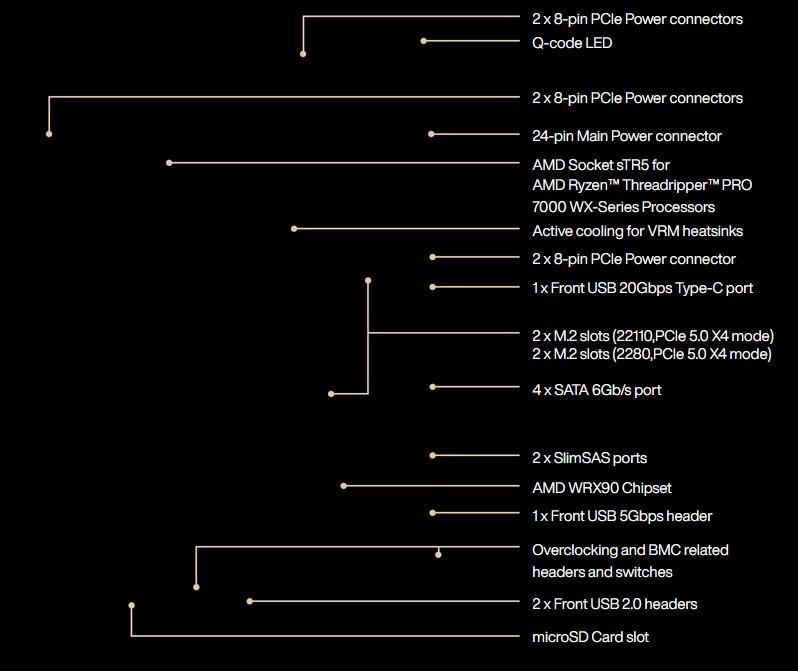

Internal Interfaces	4 x USB 2.0 - header 2 x USB 3.2 Gen 1 - header 1 x USB-C 3.2 Gen 2x2 - header 1 x audio - header 1 x SPI - header
Power Connectors	24-pin main power connector, 2 x 8-pin ATX12V connectors, 2 x 8-pin PCI Express power connector, 2 x 8-pin PCI Express to CPU power connector
Features
BIOS Features	UEFI BIOS
Sleep / Wake Up	Wake on LAN (WOL), wake on PME
Hardware Features	ASUS Q-Design, ESD Guards, Q-DIMM, ASUS EZ DIY, Q-LED, Q-Slot, CrashFree BIOS 3, ASUS DIGI+ VRM, Q-Code, Clear CMOS Button, ASUS Stainless Steel Back I/O, overcurrent protection, LANGuard, overvoltage protection, ASUS SafeSlot, ASUS 5X Protection III, ASUS SafeDIMM, M.2 heatsink, pre-mounted I/O shield, ASUS ProCool II, M.2 Q-Latch, PCIe Slot Q-Release, BIOS FlashBack button, BIOS FlashBack LED, VRM heatsink with fan, steel backplate, M.2 heatsink backplate, Q-Connector, 32+3+3+3 Phase Power Design
Miscellaneous
Included Accessories	Thermistor cable, Q-Connector, M.2 Q-Latch, M.2 Key E screw package, AMI licence sticker, 4 x M.2 rubber package
Cables Included	4 x Serial ATA cable 2x 8-pin PCIe to single 8-pin CPU convertor 1 x 24-pin power cable (Y-cable) 2 x Mini DisplayPort cable
Software Included	ASUS CPU-Z, ASUS Control Center Express, Armoury Crate, ASUS Fan Xpert 4, Norton 360 Deluxe (60 days trial), Adobe Creative Cloud (free trial), WinRAR (40 days trial)
Width	30.5 cm
Depth	33 cm
