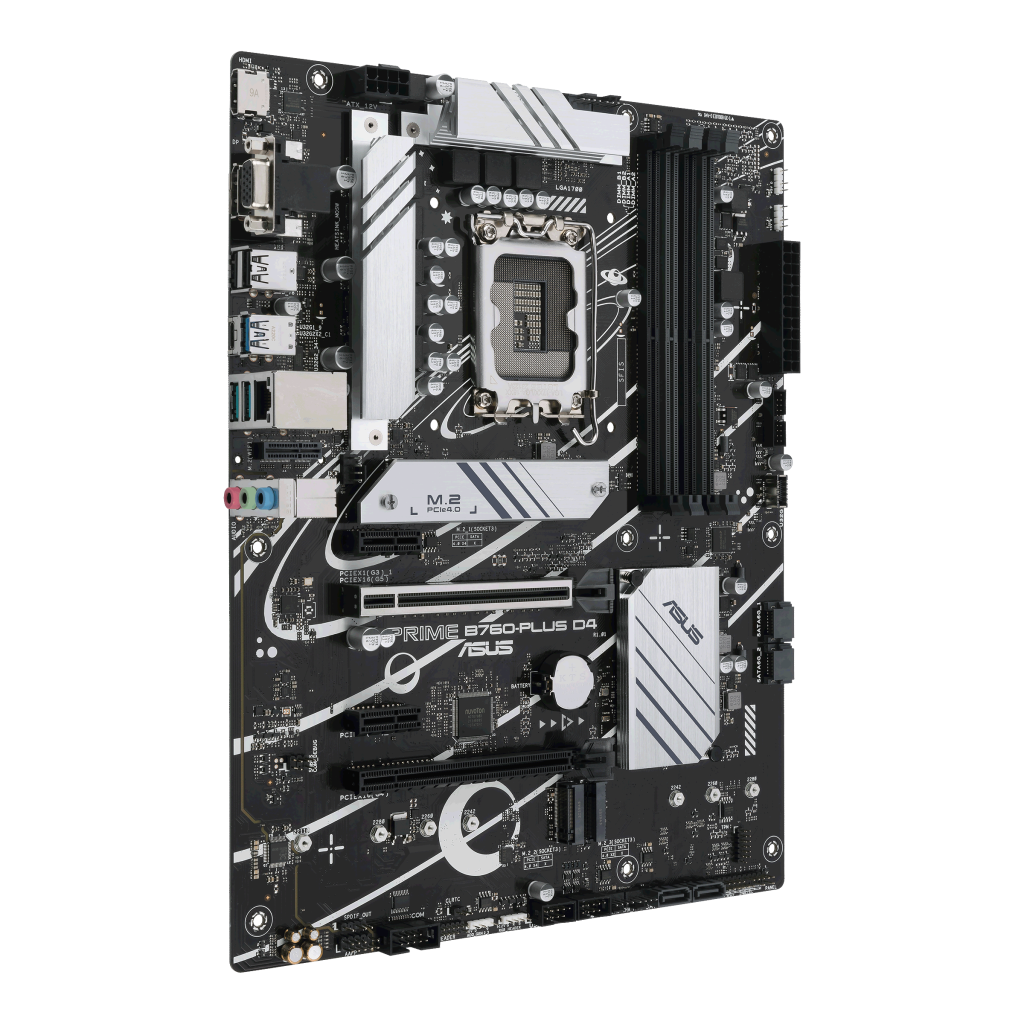

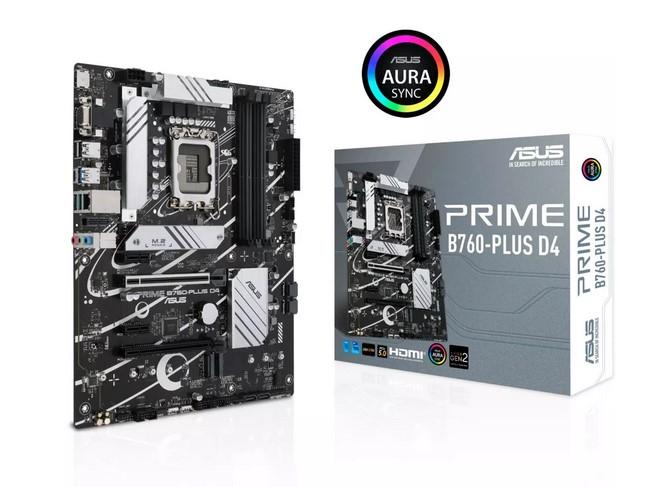

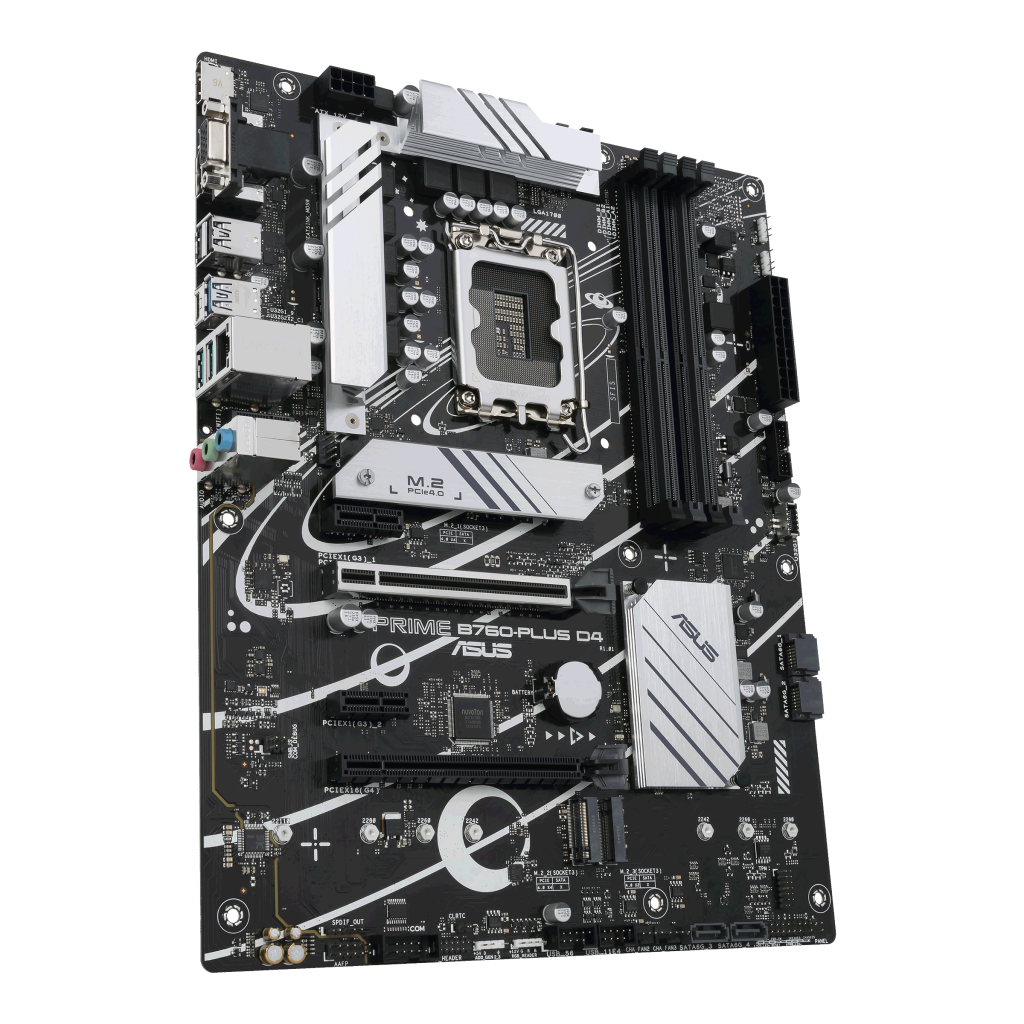

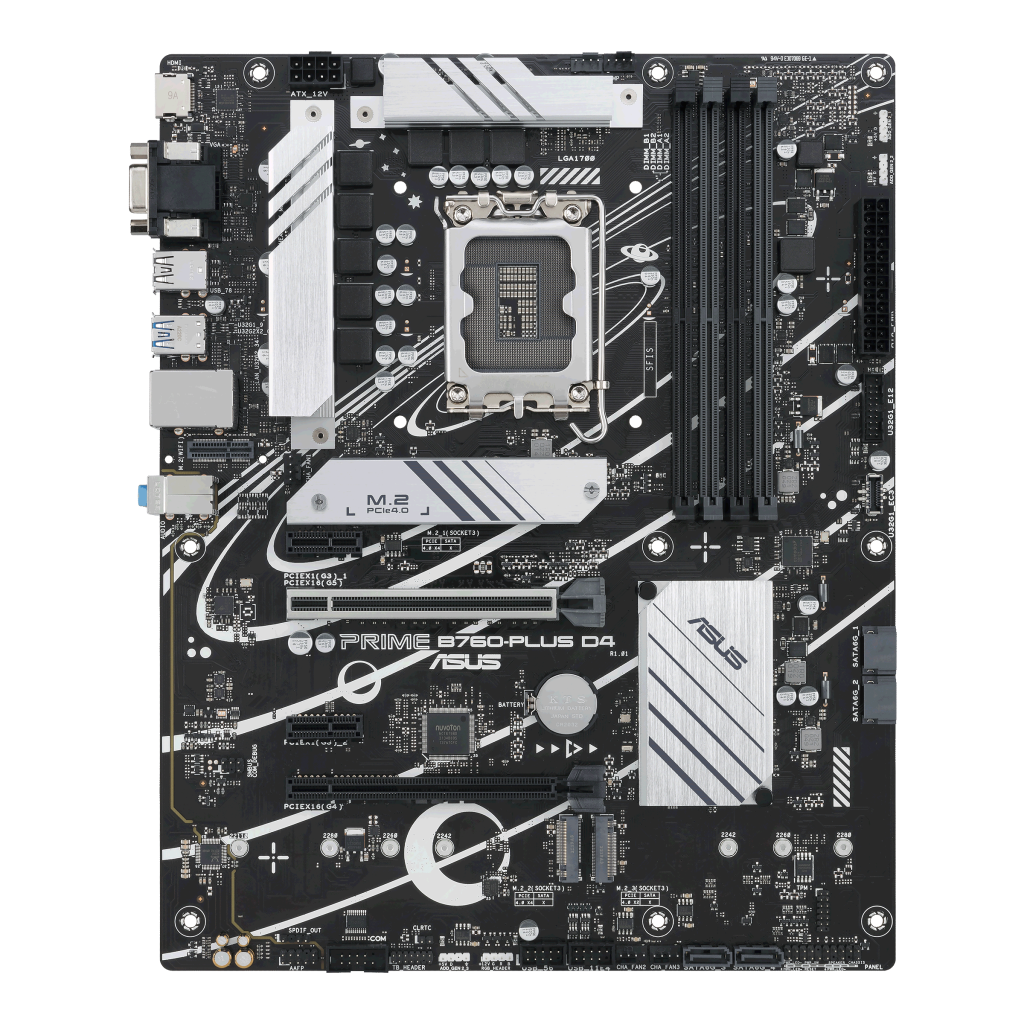

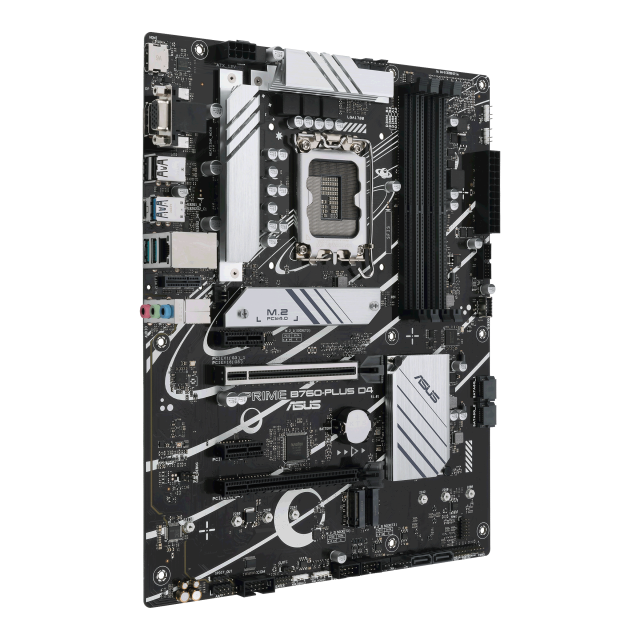

Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX
топ продукт
Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX
Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX
Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX
Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX
Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX
Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX
Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX

Дънна платка ASUS PRIME B760-PLUS D4 B760, LGA1700, 4xDDR4, PCI-E 5.0, (DP/HDMI/VGA), 4x SATA 6Gb/s, 3x M.2, 1x USB 3.2 Type-C, ATX

SKU: PRIME B760-PLUS D4
ID: #30029
Цена: 229,00 лв.
117,09 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
CPU Socket: Intel LGA1700
Чипсет: Intel B760
Максимален капацитет RAM памет: 128 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR4
Поддръжка на RAID: SATA / RAID 0, 1, 5, 10
HDMI: 1
DisplayPort: 1
VGA: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Model
PRIME B760-PLUS D4
CPU
Intel® Socket LGA1700 for 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron®
Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
Chipset
Intel® B760 Chipset
Memory
4 x DIMM, Max. 128GB, DDR4 5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
Graphics
1 x DisplayPort**
1 x VGA port
1 x HDMI® port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI® 2.1.
Expansion Slots
Intel® 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
Intel® B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 3.0 x1 slots
Note: To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel® B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
Ethernet
1 x Realtek 2.5Gb Ethernet
Wireless & Bluetooth
Vertical M.2 slot only (Key E, CNVi & PCIe)*
* Wi-Fi module is sold separately.
USB
Rear USB (Total 6 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 7 ports)
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

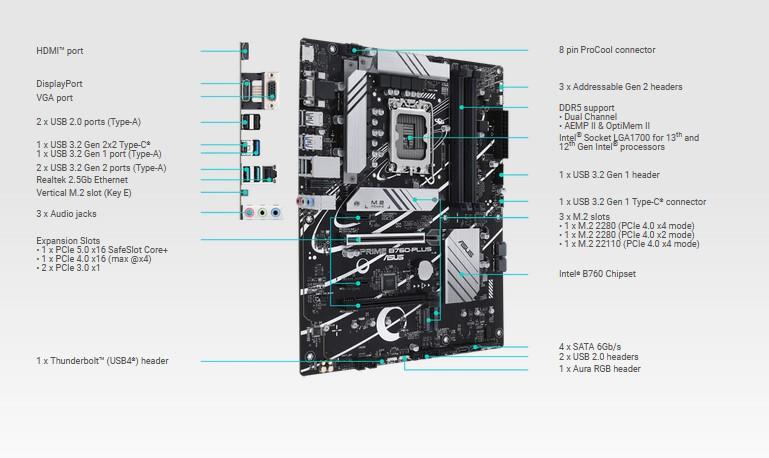

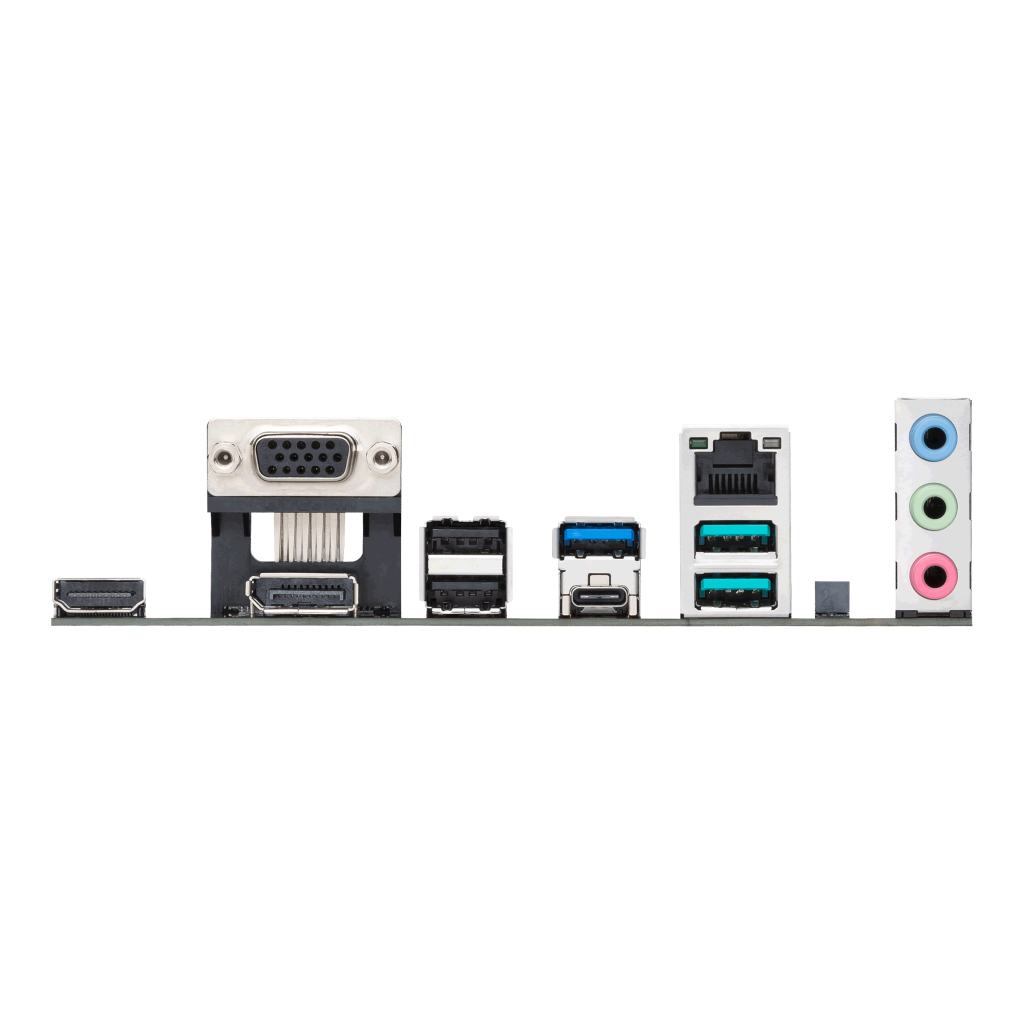

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
2 x USB 3.2 Gen 2 ports (2 x Type-A)
1 x USB 3.2 Gen 1 port (1 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMI® port
1 x Vertical M.2 slot (Key E)
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 connector (supports USB Type-C® )
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
1 x Thunderbolt™ (USB4®) header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- ProCool
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

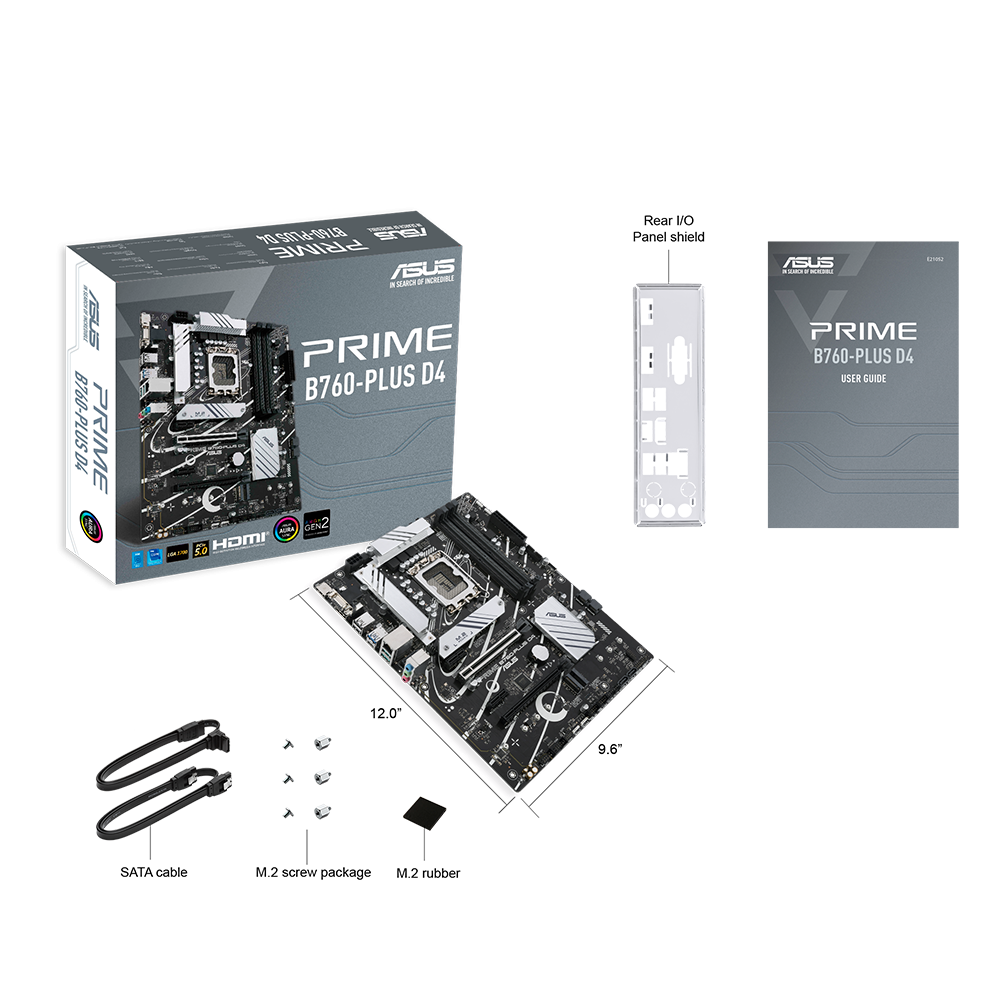

Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 Rubber Package
2 x Screw Packages for M.2 SSD
Documentation
1 x User guide
Operating System
Windows® 11, Windows® 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
