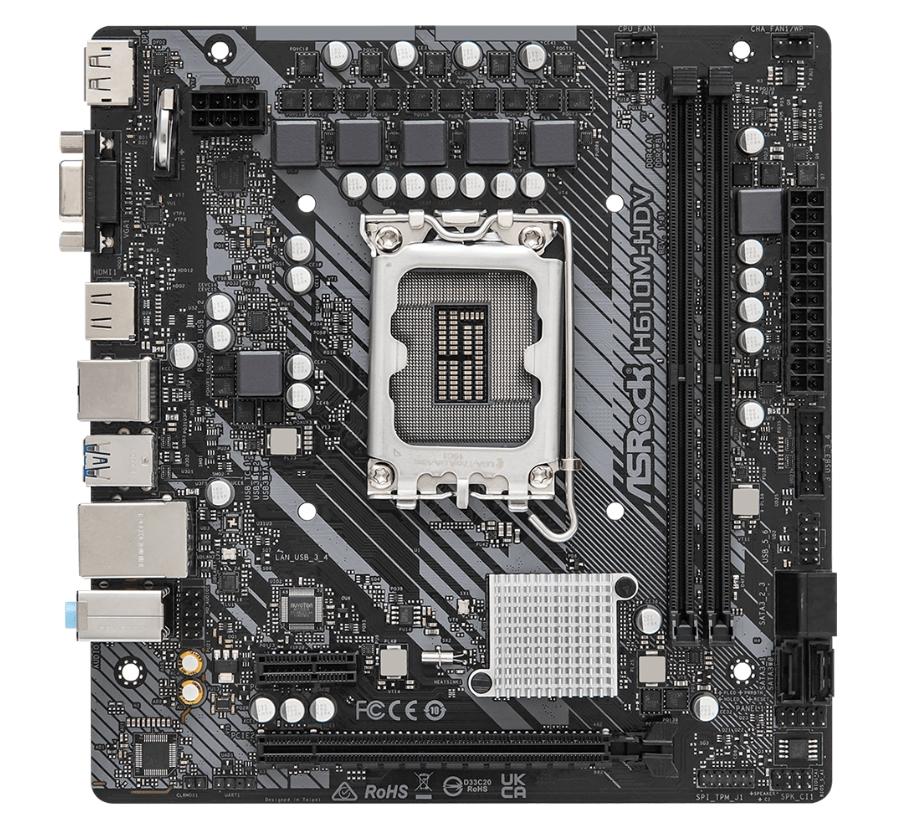

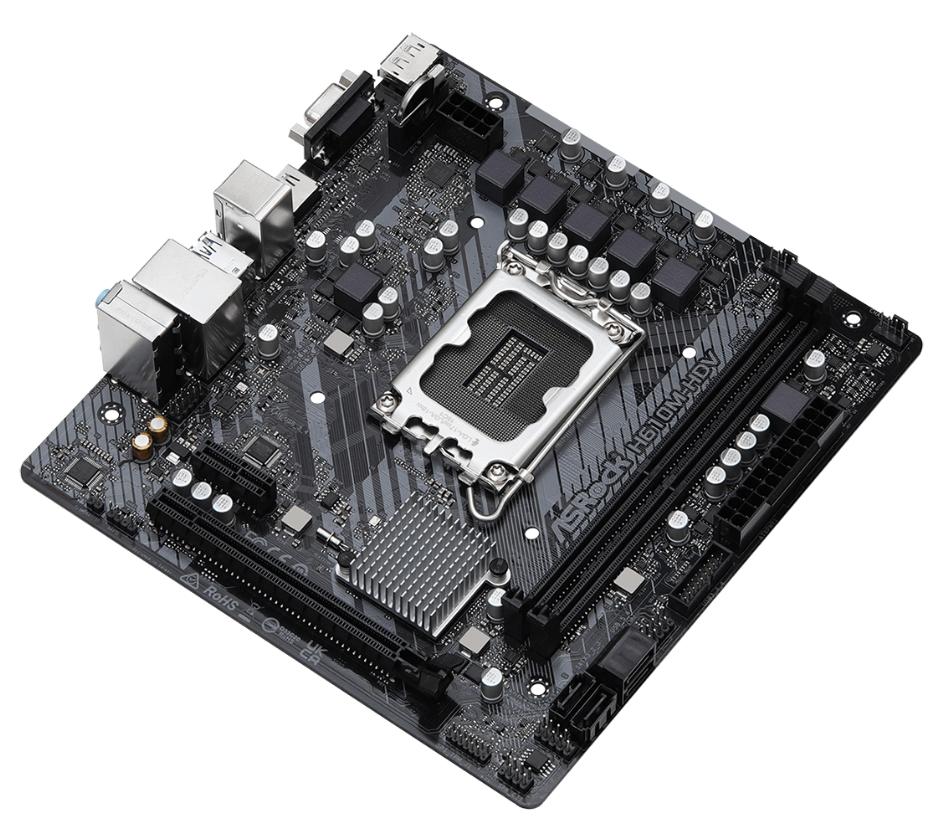

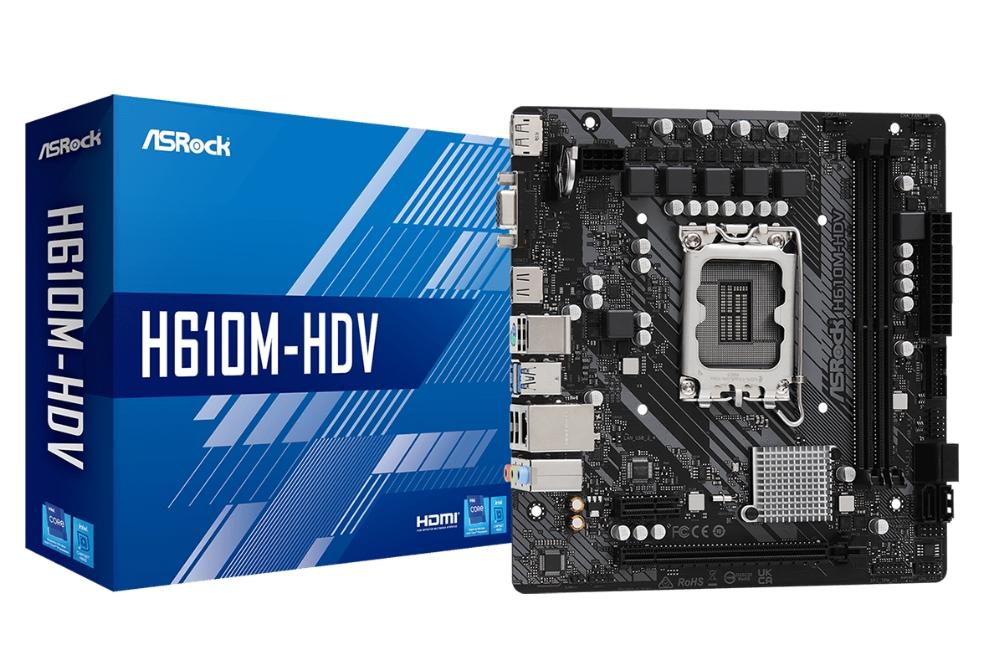

Дънна платка ASRock H610M-HDV, H610, LGA 1700, DDR4, PCI-E 4.0, DP, HDMI, VGA, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, mATX
Дънна платка ASRock H610M-HDV, H610, LGA 1700, DDR4, PCI-E 4.0, DP, HDMI, VGA, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, mATX
Дънна платка ASRock H610M-HDV, H610, LGA 1700, DDR4, PCI-E 4.0, DP, HDMI, VGA, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, mATX
Дънна платка ASRock H610M-HDV, H610, LGA 1700, DDR4, PCI-E 4.0, DP, HDMI, VGA, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, mATX
Дънна платка ASRock H610M-HDV, H610, LGA 1700, DDR4, PCI-E 4.0, DP, HDMI, VGA, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, mATX

Дънна платка ASRock H610M-HDV, H610, LGA 1700, DDR4, PCI-E 4.0, DP, HDMI, VGA, 4x SATA 6Gb/s, 2x USB 3.2 Gen1, mATX

SKU: 90-MXBHS0-A0UAYZ
ID: #24568
Цена: 154,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Supports 12th Gen Intel® Core™ Processors (LGA1700)
CPU Socket: Intel LGA1700
Чипсет: Intel H610
Максимален капацитет RAM памет: 64 GB
Памет, слотове: 2 x DDR4 DIMM Slots, Max. capacity of system memory: 64GB
M.2 слот: Не
Graphics технология: Няма
Мрежа: PCIE x1 Gigabit LAN 10/100/1000 Mb/s, Realtek RTL8111H
Wi-Fi Mодул: Не
HDMI: 1
DisplayPort: 1
VGA: 1
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • Unique Feature
    ASRock Super Alloy
    - Premium Power Choke
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
  • CPU
    - Supports 13th Gen & 12th Gen Intel® Core™ Processors (LGA1700)
    - 5 Power Phase design
    - Supports Intel® Hybrid Technology
    - Supports Intel® Turbo Boost Max 3.0 Technology
  • Chipset
    - Intel® H610
  • Memory
    - Dual Channel DDR4 Memory Technology
    - 2 x DDR4 DIMM Slots
    - Supports DDR4 non-ECC, un-buffered memory up to 3200
    - Supports ECC UDIMM memory modules (operate in non-ECC mode)
    - Max. capacity of system memory: 64GB
    - Supports Intel® Extreme Memory Profile (XMP) 2.0
  • BIOS
    - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    - ACPI 6.0 Compliant wake up events
    - SMBIOS 2.7 Support
    - CPU Core/Cache, CPU Core/Cache Load-Line, CPU GT, CPU GT Load-Line, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, +1.8V PROC, +1.05V PROC Voltage Multi-adjustment
  • Graphics
    - Intel® Xe Graphics Architecture (Gen 12)
    - Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
    - Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    - Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz
    - Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
    - Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
  • Audio
    - 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
    - Supports Surge Protection
  • LAN
    - PCIE x1 Gigabit LAN 10/100/1000 Mb/s
    - 1 x Realtek RTL8111H
    - Supports Wake-On-LAN
    - Supports Lightning/ESD Protection
    - Supports Energy Efficient Ethernet 802.3az
    - Supports PXE
  • Slots
    CPU:
    - 1 x PCIe 4.0 x16 Slot (PCIE2), supports x16 mode*
    Chipset:
    - 1 x PCIe 3.0 x1 Slot (PCIE1)*

    *Supports NVMe SSD as boot disks
  • Storage
    - 4 x SATA3 6.0 Gb/s Connectors
  • Connector
    - 1 x SPI TPM Header
    - 1 x Chassis Intrusion and Speaker Header
    - 1 x CPU Fan Connector (4-pin)*
    - 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
    - 1 x 24 pin ATX Power Connector
    - 1 x 8 pin 12V Power Connector
    - 1 x Front Panel Audio Connector
    - 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
    - 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

    *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

    *The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

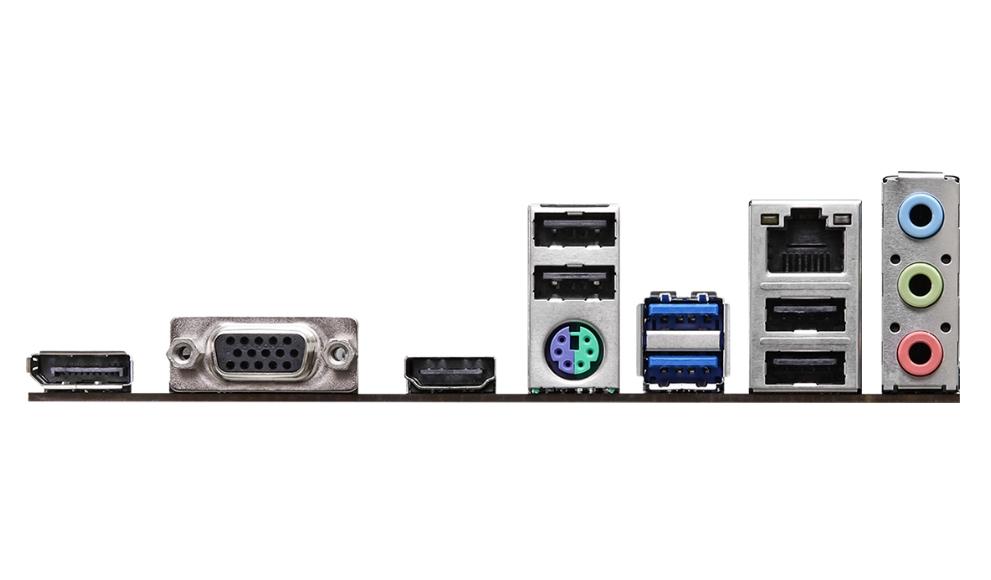

  • Rear Panel I/O
    - 1 x PS/2 Mouse/Keyboard Port
    - 1 x D-Sub Port
    - 1 x HDMI Port
    - 1 x DisplayPort 1.4
    - 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    - 4 x USB 2.0 Ports (Supports ESD Protection)
    - 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    - HD Audio Jacks: Line in / Front Speaker / Microphone
  • Software and UEFI
    Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
  • Support CD
    - Drivers, Utilities, AntiVirus Software (Trial Version)
  • Accessories
    - Quick Installation Guide, Support CD, I/O Shield
    - 2 x SATA Data Cables
  • Hardware Monitor
    - Fan Tachometer: CPU, Chassis/Water Pump Fans
    - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans
    - Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans
    - CASE OPEN detection
    - Voltage monitoring: CPU Vcore, DRAM, +0.82V PCH, +1.05V PCH, VCCIN AUX, VCCSA, +1.05V PROC, +12V, +5V, +3.3V
  • Form Factor
    - Micro ATX Form Factor: 7.76-in x 7.4-in, 19.7 cm x 18.8 cm
    - Solid Capacitor design
