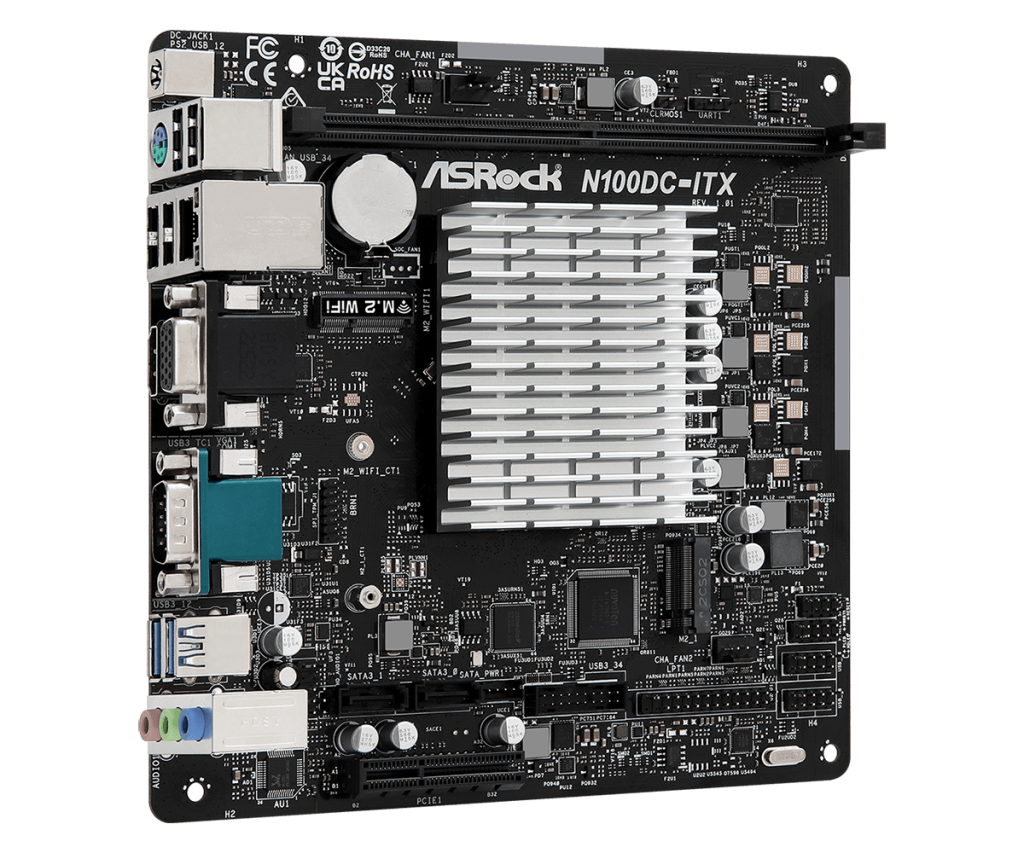

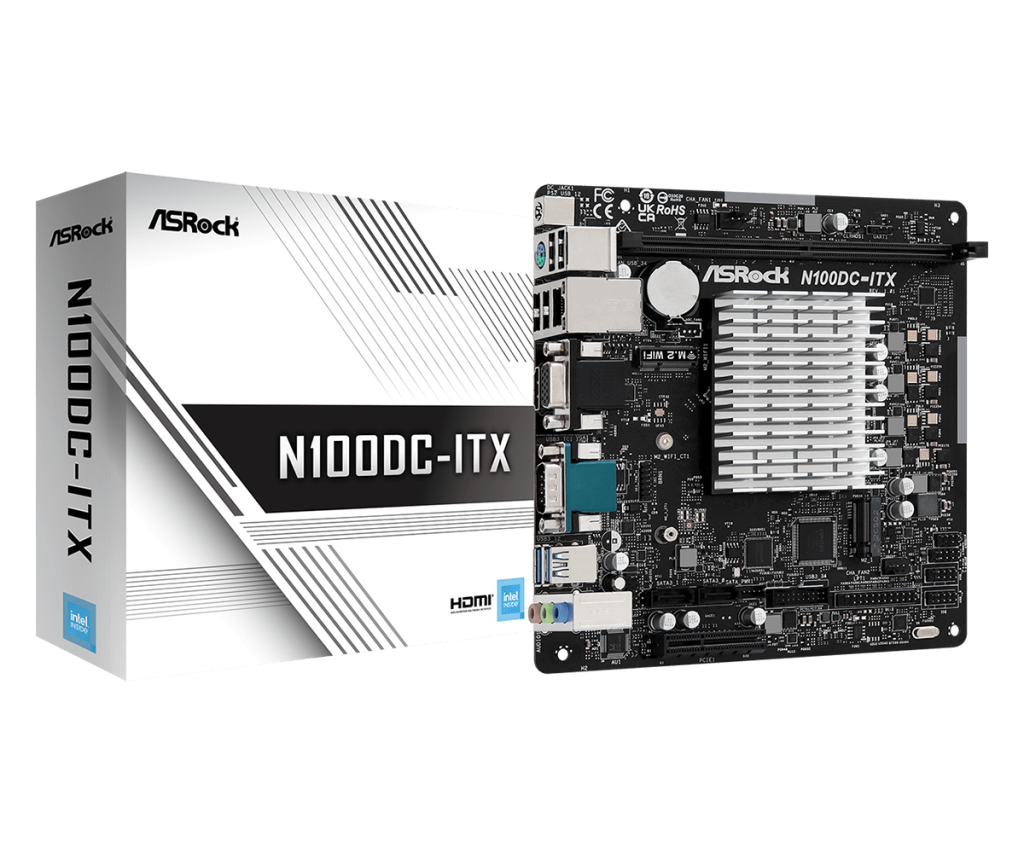

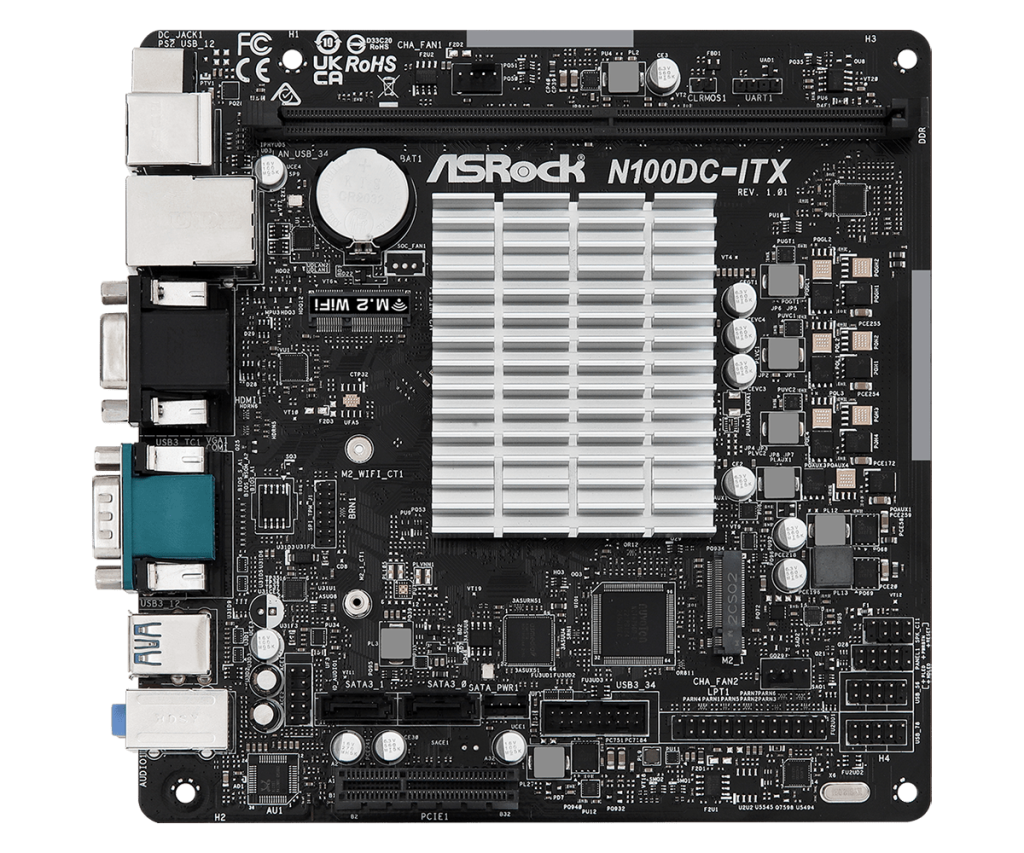

Дънна платка ASROCK N100DC-ITX, Intel Quad-Core Processor N105, 1x DDR4, 1x M.2, 2x SATAII, VGA, HDMI, Mini-ITX

SKU: N100DC-ITX

ID: #39172

Цена: 279,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® Quad-Core Processor N100

Максимален капацитет RAM памет: 32 GB

Поддръжка на Dualchannel: Да

Памет, слотове: 1

Поддържана памет: DDR4

M.2 слот: 1 M.2 SSD slot (NVMe PCIe Gen3)

Мрежа: 1 x 10/100/1000 Mbps (RJ-45)

HDMI: 1

VGA: 1

Форм фактор: Mini ITX

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

Unique Feature

Rock-Solid Durability
- 2+1+1 Power Phase EZ Update
- ASRock Auto Driver Installer
CPU

- Intel^® Quad-Core Processor N100 (Up to 3.4 GHz)
- Supports Intel^® Turbo Boost Technology
Memory

- 1 x DDR4 DIMM Slot
- Supports DDR4 non-ECC, un-buffered memory up to 3200
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 32GB
BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support
Graphics

- Integrated Intel^® UHD Graphics: 24 EUs inside (Up to 750MHz)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.2 and max. resolution up to 4K 60Hz
- 1 x D-Sub, supports max. resolution up to Full HD (1920x1080) 60Hz
Audio

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)

*The inbox driver for Windows^® 10 only supports 2-channel audio output. Please refer to the FAQ to check how to turn on the 5.1-channel audio output and any limitations.
LAN

- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Slots

- 1 x PCIe 3.0 x4 Slot (PCIE1), supports x2 mode*
- 1 x M.2 Socket (Key E), supports type 2230 Intel^® CNVio (Integrated WiFi/BT)**

*Supports NVMe SSD as boot disks

**M.2 PCI Express module is not supported
Storage

- 1 x M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen3x2 (16 Gb/s) mode*
- 2 x SATA3 6.0 Gb/s Connectors

*Supports NVMe SSD as boot disks
USB

- 4 x USB 3.2 Gen1 (2 Rear, 2 Front)
- 8 x USB 2.0 (4 Rear, 4 Front)

*All USB ports support ESD Protection
Connector

- 1 x Print Port Header
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x Chassis Fan Connectors (4-pin)
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

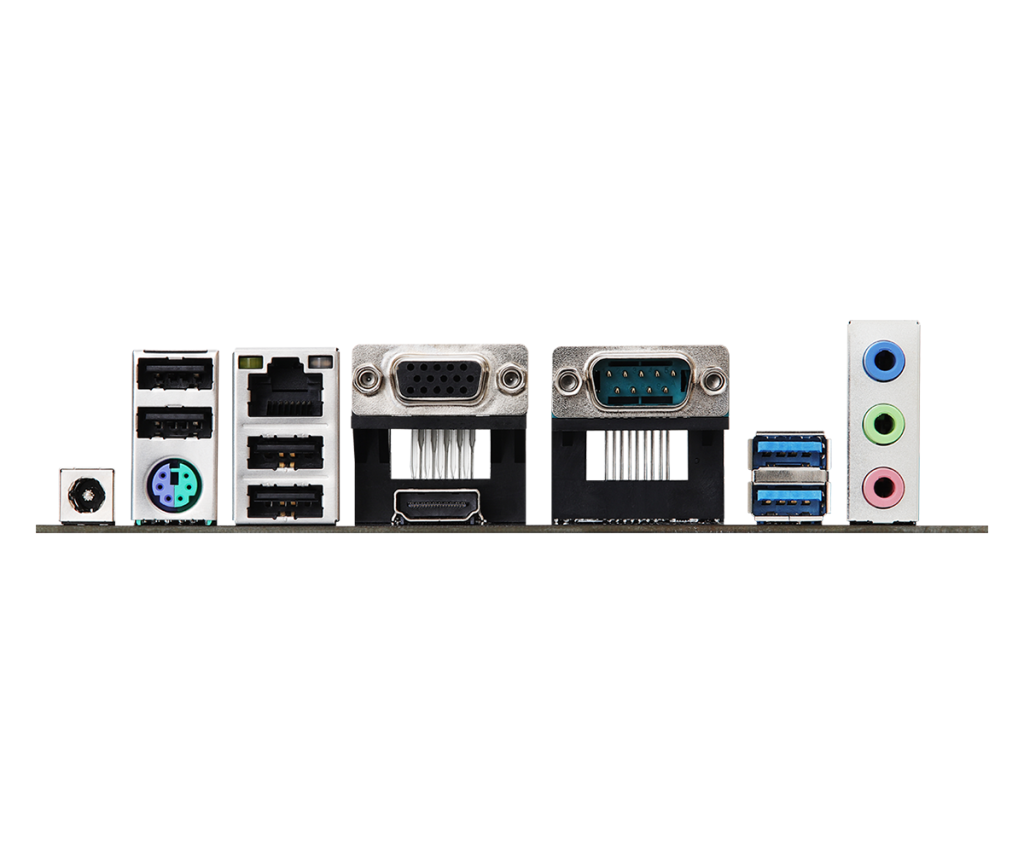

Rear Panel I/O

- 1 x DC Jack (Compatible with the 19V power adapter, 5.5 x 2.5mm DC-in jack)
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x Serial Port: COM1
- 1 x D-Sub Port
- 1 x HDMI Port
- 2 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Software and UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash

*These utilities can be downloaded from ASRock Live Update & APP Shop.
Accessories

- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x SATA Power Cable
- 2 x Screws for M.2 Sockets
Form Factor

- Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
