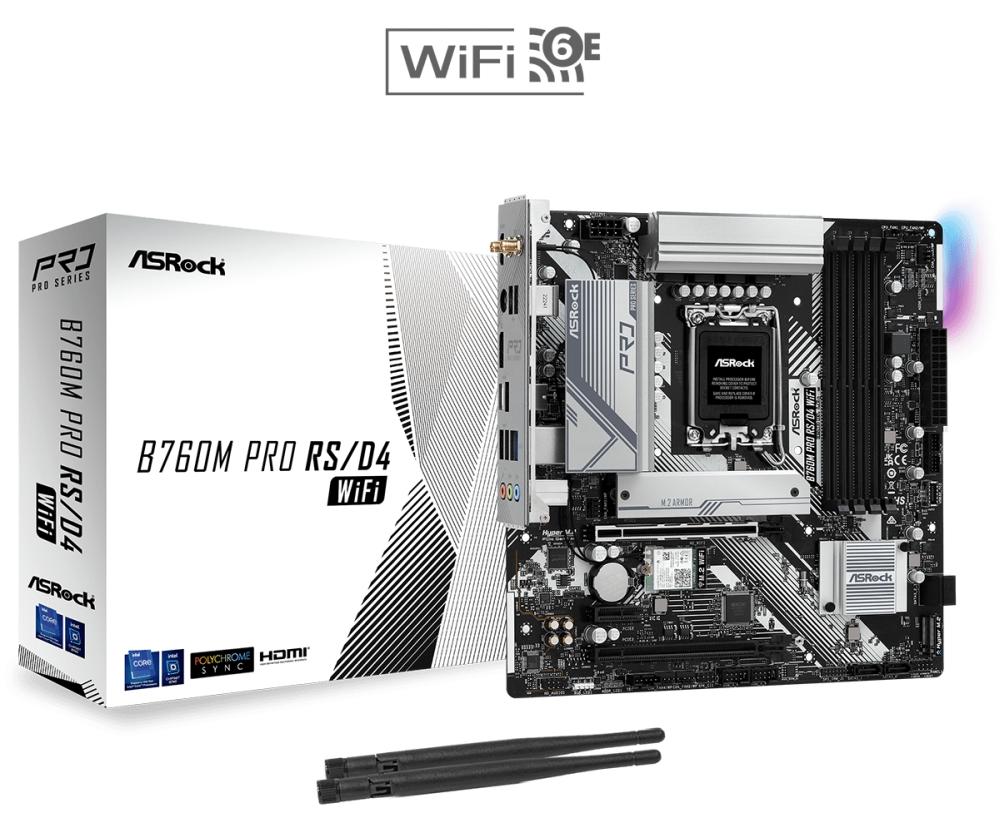

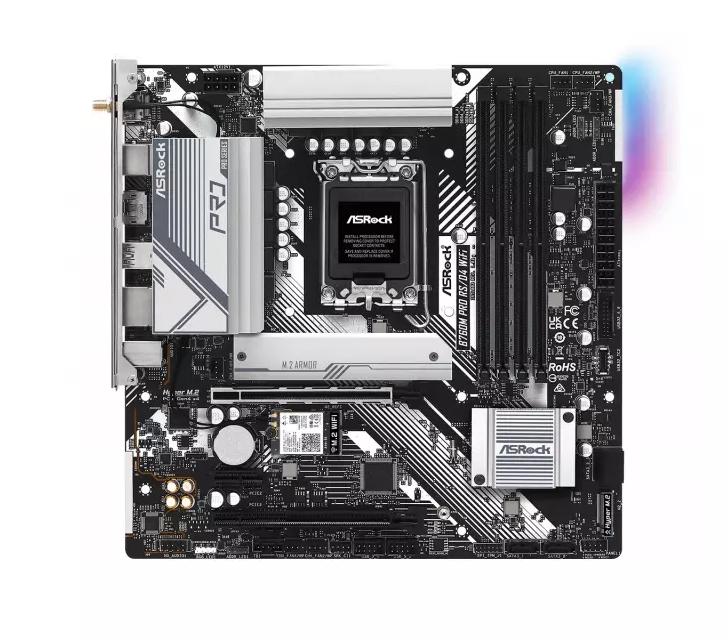

Дънна платка ASROCK B760M PRO RS/D4 WIFI, B760, LGA1700, DDR4, PCIe 4.0,(CF), 4x SATA3 6Gb/s, 1x M.2, 2x USB 3.2 Gen1 Type-C, Wi-Fi 6, Bluetooth 5.3, HDMI, DP, mATX

SKU: 90-MXBKZ0-A0UAYZ

ID: #27540

Цена: 220,00 лв.

Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel® LGA 1700 socket: Ready for Intel® Core™ 14th & 13th Gen Intel® Core™ processors, Intel® Core™ 12th Gen, Pentium® Gold and Celeron® Processors

CPU Socket: Intel LGA1700

Чипсет: Intel B760

Максимален капацитет RAM памет: 128 GB

Памет, слотове: 4 x DDR4 DIMM Slots, Max. capacity of system memory: 128GB

M.2 слот: M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)

Мрежа: 2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Wi-Fi Mодул: Да

Безжична мрежа: 802.11ax Wi-Fi 6E

HDMI: 1

DisplayPort: 1

Форм фактор: Micro ATX

Гаранция (месеца): 36

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

Процесор

- Supports 14th, 13th & 12th Gen Intel^® Core™ Processors (LGA1700)
- Supports Intel^® Hybrid Technology
- Supports Intel^® Turbo Boost Max 3.0 Technology
- Supports Intel^® Термално усилване на скоростта (TVB)
- Supports Intel^® Адаптивна усилваща технология (ABT)
Чипсет

- Intel^® B760
Памет

- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB
- Supports Intel^® Изключителен профил на паметта (XMP) 2.0

*1DPC 1R До 5333+ MHz (OC), 3200 MHz натурално.
1DPC 2R До 4400+ MHz (OC), 3200 MHz натурално.
2DPC 1R До 4266+ MHz (OC), 3200 MHz натурално.
2DPC 2R До 4000+ MHz (OC), 3200 MHz натурално.
BIOS

- 128Mb AMI UEFI Legal BIOS with GUI support
Графика

- Intel^® Xe Графична архитектура (Gen 12)
- 1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. резолюция up to 4K 60Hz
- 1 x Порт за дисплей 1.4 с DSC (компресиран), поддържа HDCP 2.3 и макс. резолюция до 8K 60Hz / 5K 120Hz

*Intel^® UHD Graphics Built-in Visuals и VGA изходите могат да бъдат поддържани само с процесори, които имат интегриран GPU.
Аудио

- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- nahimic аудио
LAN

- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- Supports Dragon 2.5G LAN Software
- Smart Auto Adjust Bandwidth Control
- Visual User Friendly UI
- Visual Network Usage Statistics
- Optimized Default Setting for Game, Browser, and Streaming Modes
- User Customized Priority Control
Безжично

- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Поддържа Dual-Band 2x2 с разширена поддръжка на 6GHz лента*
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Поддържа Bluetooth 5.3 + Високоскоростен клас II
- Supports MU-MIMO

*Wi-Fi 6E (6GHz band) will be supported by Microsoft^® Windows^® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows^® Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.
Слотове

CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
* Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode*
- 1 x PCIe 4.0 x1 Slot (PCIE2)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)
* Поддържа NVMe SSD като дискове за начално зареждане
- Supports AMD CrossFire™

*
Съхранение

CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors

*Supports Устройство за управление на силата на обема Intel^® (VMD)
Поддържа NVMe SSD като дискове за начално зареждане
RAID

- Поддържа RAID 0, RAID 1, RAID 5 и RAID 10 за SATA устройства за съхранение
USB

- 2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
- 5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
- 6 x USB 2.0 (2 Rear, 4 Front)
* All USB ports support ESD Protection
Конектор

- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x RGB LED Header*
- 3 x Addressable LED Headers**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header

*Поддържа общо до 12V / 3A, 36W LED Strip

**Support in total up to 5V/3A, 15W LED Strip

***CPU_FAN1 supports the fan power up to 1A (12W).

****CPU_FAN2/WP supports the fan power up to 2A (24W).

*****CHA_FAN1~4/WP support the fan power up to 2A (24W).
CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.

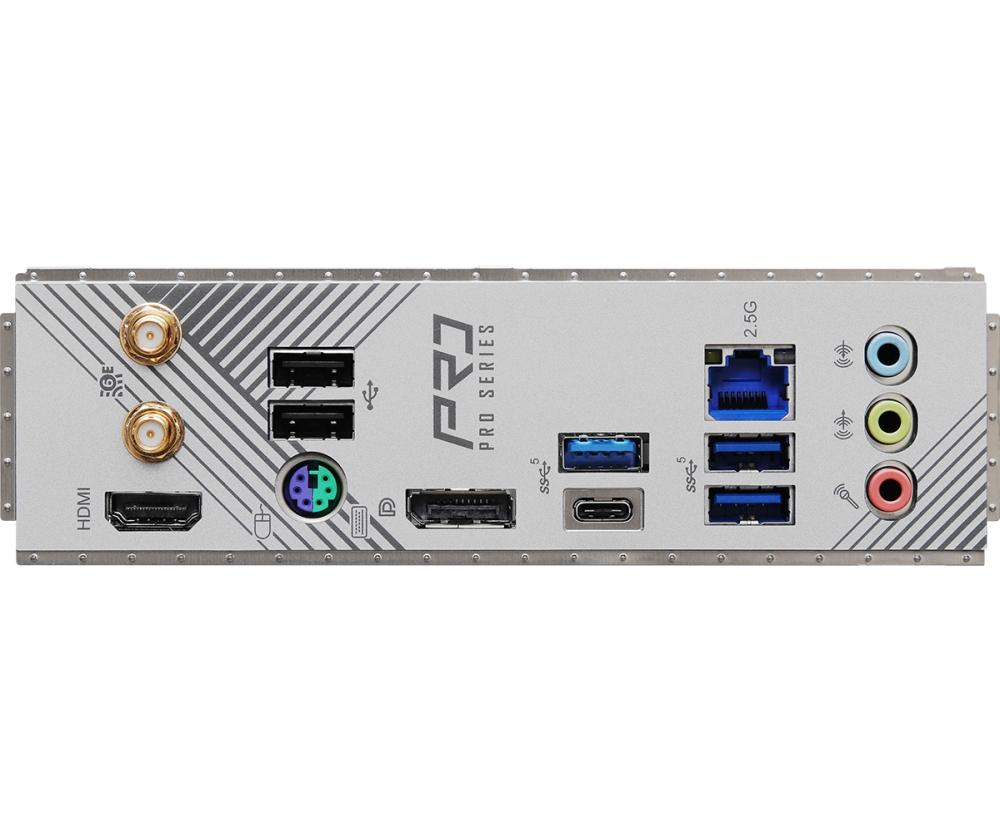

Заден панел с входове и изходи

- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x Порт за дисплей 1.4
- 1 x USB 3.2 Gen1 Type-C Port
- 3 x USB 3.2 Gen1 Type-A Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in / Front Speaker / Microphone
Софтуер и UEFI

Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock Dragon 2.5G LAN Software
- ASRock Polychrome SYNC*
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- Програма за инсталиране на автоматични драйвери на ASRock
- ASRock Мигновен Flash
- ASRock Easy RAID Installer

*Тези помощни програми можете да изтеглите от Live Update & APP Shop.
Аксесоари

- 1 x Ръководство за употреба
- 2 x SATA Data Cables
- 2 x ASRock WiFi 2.4/5/6 GHz Antennas
- 2 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket
Форм фактор

- Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
OC

- Microsoft^® Windows^® 10 64-bit / 11 64-bit

*Windows^® 10 only supports version 21H2 or later
Сертификати

- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
