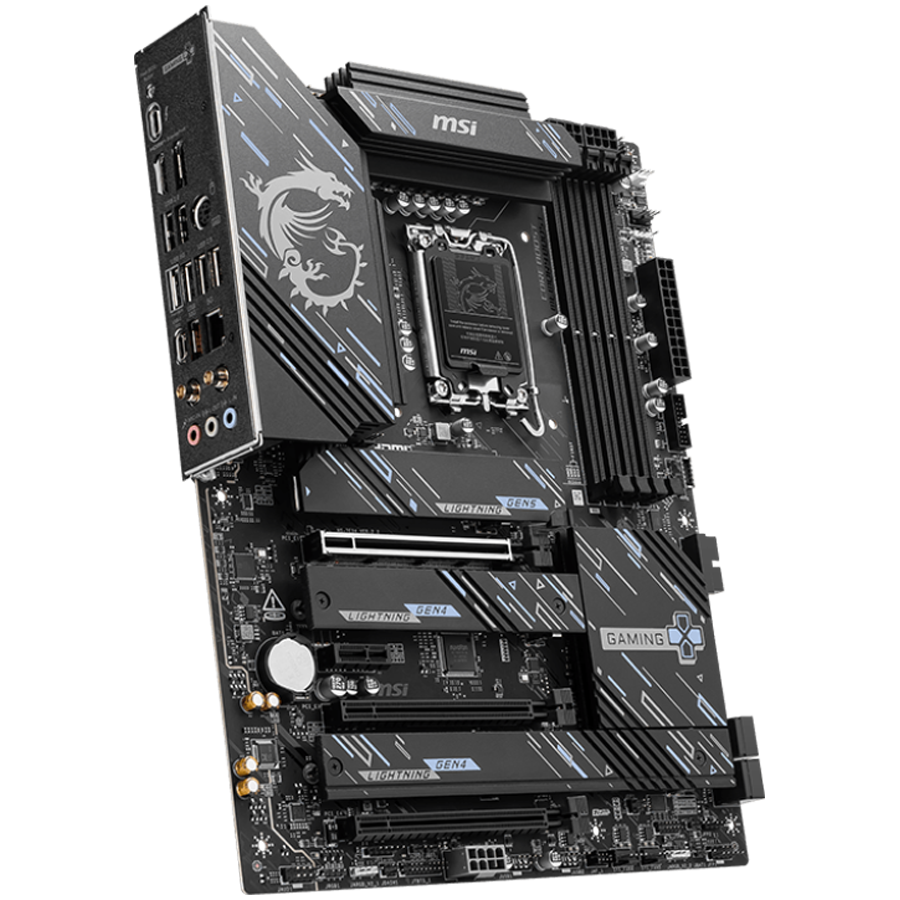

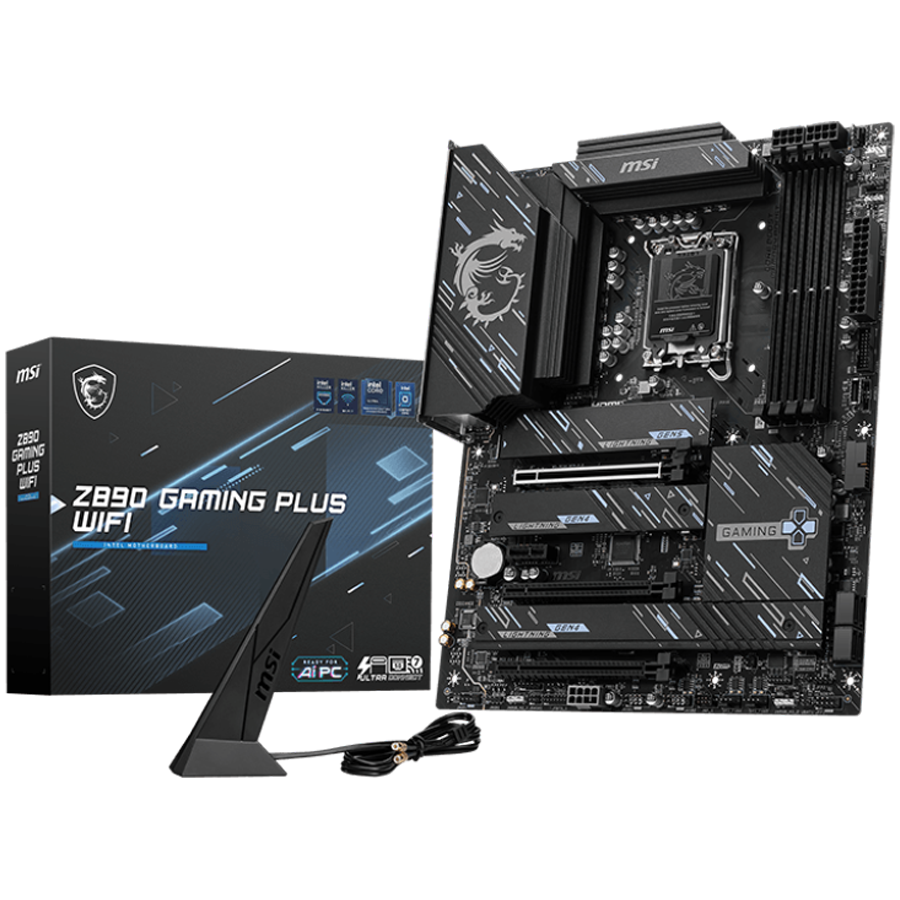

Дънна платка MSI Z890 GAMING PLUS WIFI, LGA1851, 4 x DDR5, 4 x M.2, 4 x SATA 6Gb/s, Wi-Fi 7, Bluetooth 5.4V, HDMI, DP, ATX
нов продукт

Дънна платка MSI Z890 GAMING PLUS WIFI, LGA1851, 4 x DDR5, 4 x M.2, 4 x SATA 6Gb/s, Wi-Fi 7, Bluetooth 5.4V, HDMI, DP, ATX

SKU: Z890 GAMING PLUS WIFI
ID: #40089
Цена: 631,00 лв.
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel Core Ultra Processors (Series 2)
CPU Socket: Intel LGA1851
Чипсет: Intel Z890
Максимален капацитет RAM памет: 256 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR5
M.2 слот: 1 x M.2 Socket (NVMe PCIe 5.0) / 3 x M.2 Socket (NVMe PCIe 4.0) / 4x SATA 6Gb/s
Поддръжка на RAID: SATA / NVMe RAID 0, 1, 5, 10
Graphics технология: Няма
Вграден Bluetooth: Bluetooth V5.4
Мрежа: 1 x 10/100/1000 Mbps (RJ-45)
Wi-Fi Mодул: Да
Безжична мрежа: 802.11be (Wi-Fi 7)
HDMI: 1
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

Chipset INTEL Z890
CPU Supports Intel® Core™ Ultra Processors (Series 2)
LGA 1851
Memory 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
Max. overclocking frequency:
• 1DPC 1R Max speed up to 9200+ MT/s
• 1DPC 2R Max speed up to 7200+ MT/s
• 2DPC 1R Max speed up to 4800+ MT/s
• 2DPC 2R Max speed up to 4800+ MT/s

Supports Intel® POR Speed and JEDEC Speed
Supports Memory Overclocking and Intel® XMP 3.0
Supports Dual-Controller Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM

• The DIMM slots on this motherboard only have single-sided latches.
• Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product’s Support page or visit https://www.msi.com/support/.
Onboard Graphics 1x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DisplayPort 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Thunderbolt™ 4 port, supporting DisplayPort 2.1 with UHBR20 over USB Type-C, with a maximum resolution of 4K@120Hz / 8K@60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
Slot 3x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
Audio Realtek® ALC897 Codec
7.1-Channel High Definition Audio
Storage 4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G

*Please refer to the manual for M.2 SSD heatsink restrictions.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices

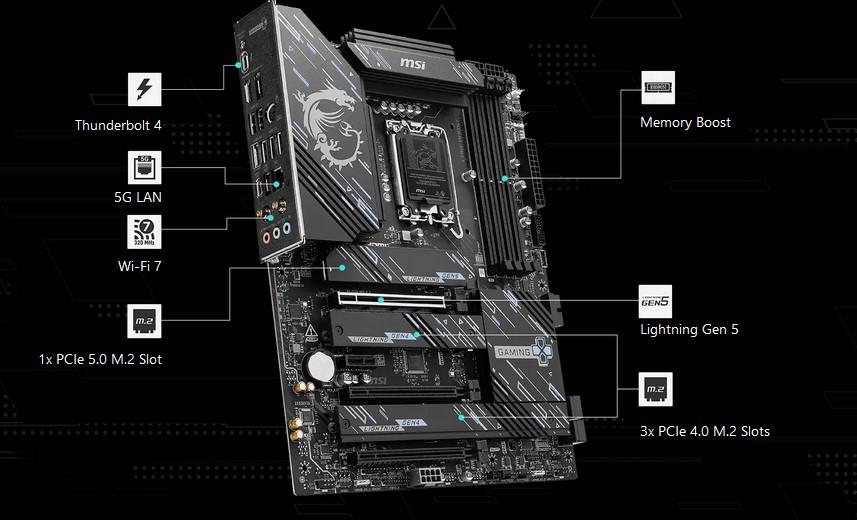

Onboard Thunderbolt 1x Thunderbolt4 ports (Rear)
Supports up to 40Gbps transfer rate with Thunderbolt devices
Supports up to 20Gbps transfer rate with USB4 devices
Supports up to 10Gbps transfer rate with USB 3.2 devices
Supports up to 5V/3A,15W power charging
Each port can daisy-chain up to three Thunderbolt 4 devices or five Thunderbolt 3 devices
Supports up to 8K display
USB 4x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
1x USB 10Gbps Type A (Rear)
1x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)
LAN Intel® Killer™ E5000 5Gbps LAN
Internal IO 1x Thunderbolt5 card connector(JTBT5, support RTD3)
1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports
WIRELESS LAN & BLUETOOTH Intel® Killer™ BE1750x Wi-Fi 7
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth® 5.4**, MLO, 4KQAM

* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 support schedule depends on MSFT Windows 11 plan.
LED FEATURE 4x EZ Debug LED
BACK PANEL PORTS
  1. DisplayPort
  2. Keyboard / Mouse
  3. USB 2.0
  4. 5G LAN
  5. Wi-Fi / Bluetooth
  6. Audio Connectors
  7. Flash BIOS Button
  8. Thunderbolt™ 4 40Gbps (Type-C)
  9. HDMI™
  10. USB 2.0
  11. USB 5Gbps Type A ports
  12. USB 10 Gbps Type C ports
  13. USB 10 Gbps Type A ports

PCB Info ATX
243.84mmx304.8mm
