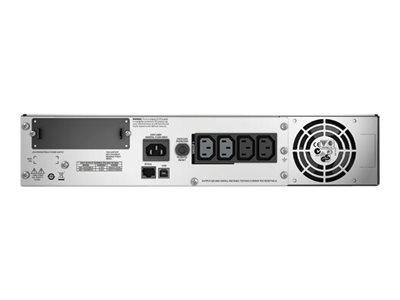

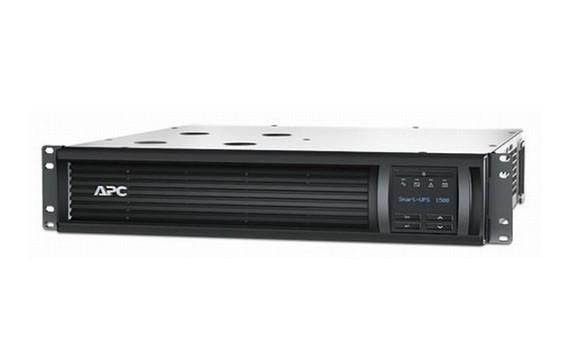

APC UPS Smart, 1500VA/1000W, LCD 230V RM 2U SmartSlot, Line Interactive, Rack

SKU: SMT1500RMI2U

ID: #40575

Характеристики

Капацитет: 1500VA / 1000W

Тип: Line Interactive

Формфактор: Rack

Брой изводи: 5

Тип изводи: 1 x power IEC 60320 C14 / 4 x power IEC 60320 C13

Гаранция (месеца): 36

Направи запитване

Количество: бр.

Доставка до адрес:

Имена:

E-mail:

Телефон:

Съгласие за обработване на личните ми данни за целите на директния маркетинг.

Добави за сравнение

Описание

APC Smart-UPS 1500VA LCD 230V RM 2U SmartSlot USB Interface Port RJ-45 Serial


Manufacturer	APC
Manufacturer Part No	SMT1500RMI2U

Marketing Description
Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter provides actual kilowatt hours of usage for energy conscious users. Intuitive LCD interface provides clear and accurate information with the ability to configure the UPS locally with easy to use navigation keys. Single switched outlet group may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on / off and non-critical load shedding. Pure sine wave output on battery simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Cold-start capable provides temporary battery power when the utility power is out.
Product Features
Green mode Green mode bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection. Energy meter Provides actual kilowatt hours of usage for energy conscious users. Intuitive LCD interface Provides clear and accurate information with the ability to configure the UPS locally with easy to use navigation keys. Single switched outlet group Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on / off and non-critical load shedding. Pure sine wave output on battery Simulates utility power to provide a high degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics. Cold-start capable Provides temporary battery power when the utility power is out. SmartSlot Customize UPS capabilities with management cards. Temperature-compensated battery charging Prolongs battery life by regulating the charge voltage according to battery temperature. Intelligent battery management Maximizes battery performance, life, and reliability through intelligent, precision charging. Power conditioning Protects connected loads from surges, spikes, lightning, and other power disturbances. Automatic restart of loads after UPS shutdown Automatically starts up the connected equipment upon the return of utility power. Disconnected battery notification Warns when a battery is not available to provide backup power. Network manageable Provides remote power management of the UPS over the network. Audible alarms Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition. Serial connectivity Provides management of the UPS via a serial port. Hot-swappable batteries Ensure clean, uninterrupted power to protected equipment while batteries are being replaced. Predictive failure notification Provides early-warning fault analysis ensuring proactive component replacement. Resettable circuit breakers Enable a quick recovery from overload events. Battery failure notification Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
General
Device Type	UPS - rack-mountable
Height (Rack Units)	2U
Colour	Black
Power Device
UPS Technology	Line interactive
Input Voltage	AC 230 V
Input Voltage Range	AC 160 - 286 V
Input Voltage Range (Adjustable)	AC 151 - 302 V
Frequency Provided	57 - 63 Hz
Frequency Required	47/63 Hz
Input Connectors	Power IEC 60320 C14
Power Output Connectors Details	4 x power IEC 60320 C13
Output Voltage	AC 230 V 57 - 63 Hz
Power Capacity	1 kW / 1500 VA
Output Waveform	Sinewave
Surge Suppression	Yes
Surge Energy Rating	459 Joules
Battery
Technology	Lead Acid
Run Time (Up To)	7.2 min at full load 25.8 min at half load
Recharge Time	3 hours
Networking
Remote Management Interface	RS-232, USB
Expansion / Connectivity
Interfaces	1 x management (RS-232) 1 x management (USB)
Expansion Slots	1 SmartSlot
Miscellaneous
Cables Included	Serial cable USB cable
Rack Mounting Kit	Included
Features	Audible alarm, LCD display, Automatic Voltage Regulation (AVR), cold-start function
Compliant Standards	TUV, C-Tick, VDE, EN 50091-2, RoHS Exemption 7b, EN 50091-1, REACH
Software / System Requirements
Software Included	Drivers & Utilities
Manufacturer Warranty
Service & Support	Limited warranty - 3 years Limited warranty - batteries - 2 years
Environmental Parameters
Min Operating Temperature	0 °C
Max Operating Temperature	40 °C
Humidity Range Operating	0 - 95%
Sound Emission	46 dBA
Dimensions & Weight
Width	43.2 cm
Depth	45.7 cm
Height	8.9 cm
Weight	28.6 kg
Dimensions & Weight (Shipping)
Shipping Width	59.4 cm
Shipping Depth	60.3 cm
Shipping Height	25.1 cm
Shipping Weight	31.9 kg
Compatibility Information
Designed For	P/N: ACCS1000, ACCS1001, ACCS1002, ACCS1003, ACCS1004, ACCS1005, ACCS1006, ACCS1007, ACDC1015, ACDC1016, ACDC1017, ACDC1019, ACDC1020, ACDC1021, ACDC2513, ACF001, ACF002, ACF003, ACF101BLK, ACF102BLK, ACF201BLK, ACF400, ACF600, AP5017, AP5602, AP5606, AP5607, AP5616, AP92200, AP9290, AR100, AR100HD, AR202, AR203A, AR204A, AR2101, AR2102BLK, AR2144BLK, AR2145BLK, AR2200, AR2280, AR2400, AR2400FP1, AR2401, AR2407, AR2480, AR2487, AR2487G, AR2500, AR2507, AR2580, AR2587, AR2900, AR2901, AR3000, AR3100, AR3100G, AR3100SP, AR3100SP1, AR3100SP2, AR3100TAA, AR3100W, AR3100X609, AR3100X610, AR3100X617, AR3101, AR3104, AR3104SP1, AR3105, AR3105SP, AR3105W, AR3107, AR3107G, AR3107SP, AR3107X609, AR3107X610, AR3107X617, AR3130, AR3140, AR3140G, AR3140W, AR3150, AR3150SP, AR3150SP1, AR3150SP2, AR3150W, AR3150X609, AR3150X610, AR3150X617, AR3155, AR3155SP, AR3155W, AR3157, AR3157SP, AR3157X609, AR3157X610, AR3157X617, AR3200, AR3300, AR3300G, AR3300SP, AR3300W, AR3300X609, AR3300X610, AR3300X617, AR3305, AR3305SP, AR3305W, AR3307, AR3307SP, AR3307W, AR3307X609, AR3307X610, AR3307X617, AR3340, AR3340G, AR3340W, AR3347, AR3350, AR3350SP, AR3350W, AR3350X609, AR3350X610, AR3350X617, AR3355, AR3355SP, AR3355W, AR3357, AR3357SP, AR3357X609, AR3357X610, AR3357X617, AR4018, AR4018A, AR4018I, AR4018IA, AR4018IX429, AR4018IX431, AR4018IX432, AR4018SP, AR4018SPX429, AR4018SPX431, AR4018SPX432, AR4018X429, AR4018X431, AR4018X432, AR4024, AR4024A, AR4024I, AR4024IA, AR4024IX429, AR4024IX431, AR4024IX432, AR4024SP, AR4024SPX429, AR4024SPX431, AR4024SPX432, AR4024X429, AR4024X431, AR4024X432, AR4038, AR4038A, AR4038I, AR4038IA, AR4038IX429, AR4038IX431, AR4038IX432, AR4038X429, AR4038X431, AR4038X432, AR7007, AR7050, AR7057, AR8135BLK, NBWL0356A, SCL500RM1UC, SCL500RM1UNC, SMTL1000RM2UC, SMTL750RM2UC, SYAF8KRMTX424
