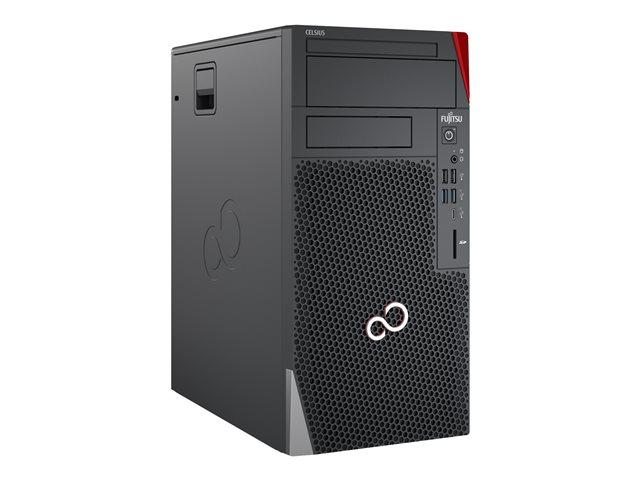

FUJITSU Celsius W5011 Intel i9-11900 32GB DDR4 512GB SSD DVD MultiCard Reader 15IN1 USB3 No Keyboard Opt Mouse PS 680W Plat WPro10
| Product Features |
- No compromise in terms of performance, expandability and price
Designed with CAD customers in mind: performance, reliability and great flexibility - at an affordable price. - VR-ready desktop workstation
Innovative space-saving design - made in Europe. - The smartest micro tower workstation
Ultimate usability, reliability and ease of use. - Multiple application scenarios
Ideal for 3D CAD, CAE, design, multimedia, visualization and manufacturing.
|
| General |
| Type |
Workstation
|
| Product Form Factor |
Micro tower
|
| Embedded Security |
Trusted Platform Module (TPM 2.0) Security Chip
|
| Localisation |
Region: Europe
|
| Processor / Chipset |
| CPU |
Intel Core i9 (11th Gen) 11900
|
| Clock Speed |
2.5 GHz
|
| Max Turbo Speed |
5.2 GHz
|
| Number of Cores |
8-core
|
| CPU Qty |
1
|
| Max CPU Qty |
1
|
| CPU Upgradability |
Upgradable
|
| CPU Socket |
LGA1200 Socket
|
| Chipset Type |
Intel W580
|
| Cache Memory |
| Installed Size |
16 MB
|
| Cache Per Processor |
16 MB
|
| RAM |
| Installed Size |
32 GB / 128 GB (max)
|
| Technology |
DDR4 SDRAM
|
| Effective Memory Speed |
3200 MHz
|
| Rated Memory Speed |
3200 MHz
|
| Slots |
4 (Total) / 2 (empty)
|
| Features |
Unbuffered, dual channel memory architecture
|
| Configuration Features |
2 x 16 GB
|
| Hard Drive |
| Type |
SSD - M.2
|
| Capacity |
1 x 512 GB
|
| Interface Type |
PCI Express 4.0
|
| Features |
Self-Encrypting Drive, NVM Express (NVMe)
|
| Storage Controller |
| Type |
1 x RAID
|
| Controller Interface Type |
SATA 6Gb/s
|
| Channel Qty |
4
|
| RAID Level |
RAID 0, RAID 1, RAID 5, RAID 10
|
| Optical Storage |
| Type |
DVD±RW (±R DL) / DVD-RAM DVD SuperMulti - SATA
|
| Card Reader |
| Type |
15 in 1 card reader
|
| Monitor |
| Monitor Type |
None.
|
| Graphics Controller |
| Graphics Processor |
Intel UHD Graphics 750
|
| Video Interfaces |
DisplayPort
|
| HDCP Compatible |
Yes
|
| Audio Output |
| Sound Output Mode |
5.1 channel surround
|
| Compliant Standards |
High Definition Audio
|
| Input Device |
| Type |
Mouse
|
| Mouse |
| Technology |
Optical
|
| Interface |
USB
|
| Networking |
| Ethernet Controller |
Intel I219-LM
|
| Data Link Protocol |
Ethernet, Fast Ethernet, Gigabit Ethernet
|
| Remote Management Protocol |
DMI, CIM
|
| Features |
Wake on LAN (WoL), PXE 2.1 support
|
| Expansion / Connectivity |
| Bays |
1 (total) / 1 (free) x internal 2.5"
2 (total) / 2 (free) x internal 3.5"
1 (total) / 0 (free) x external 3.5"
1 (total) / 1 (free) x external 5.25" Slim Line
1 (total) / 1 (free) x external 5.25" x 1/2H
|
| Slots |
2 (total) / 1 (free) x M.2 Card - 2280
1 (total) / 1 (free) x M.2 Card - 2230
2 (total) / 2 (free) x PCIe 3.0 x1 - full-height
1 (total) / 1 (free) x PCIe 3.0 x16 (x4 mode)
1 (total) / 1 (free) x PCIe 4.0 x16 - full-height
|
| Interfaces |
1 x audio line-in
1 x audio line-out
1 x headphones (1 in front)
5 x USB 2.0 (2 front, 2 rear, 1 internal)
3 x USB 3.2 Gen 1
4 x USB 3.2 Gen 2 (2 front, 2 rear)
1 x USB-C 3.2 Gen 2x2 (1 in front)
2 x DisplayPort
1 x LAN (Gigabit Ethernet)
|
| Miscellaneous |
| Theft/Intrusion Protection |
Security lock slot (cable lock sold separately), padlock loop
|
| Security Slot Type |
Kensington security slot
|
| Compliant Standards |
TUV, WHQL, RoHS, WEEE
|
| Power |
| Device Type |
Power supply
|
| Voltage Required |
AC 100-240 V (50/60 Hz)
|
| Power Provided |
680 Watt
|
| 80 PLUS Certification |
80 PLUS Platinum
|
| Power Factor Correction |
Yes (active)
|
| Operating System / Software |
| OS Provided |
Windows 10 Pro 64-bit Edition
|
| Software |
Adobe Reader, Microsoft Office (30 days trial), DeskView Client, DeskView Instant BIOS Management, Workplace Protect, McAfee LiveSafe (30 days trial), Fujitsu DeskUpdate, Windows 10 Pro 64-bit recovery DVD
|
| Environmental Standards |
| TCO Certified |
TCO Certified Desktops 8
|
| ENERGY STAR Certified |
Yes
|
| ENERGY STAR Version |
8.0
|
| Manufacturer Warranty |
| Service & Support |
Limited warranty - 3 years - on-site
|
| Dimensions & Weight |
| Width |
18 cm
|
| Depth |
30.4 cm
|
| Height |
37.5 cm
|
| Weight |
10 kg
|
| Dimensions & Weight (Shipping) |
| Shipping Width |
43.9 cm
|
| Shipping Depth |
29.6 cm
|
| Shipping Height |
49.9 cm
|
| Environmental Parameters |
| Min Operating Temperature |
10 °C
|
| Max Operating Temperature |
35 °C
|
| Humidity Range Operating |
5 - 85%
|
