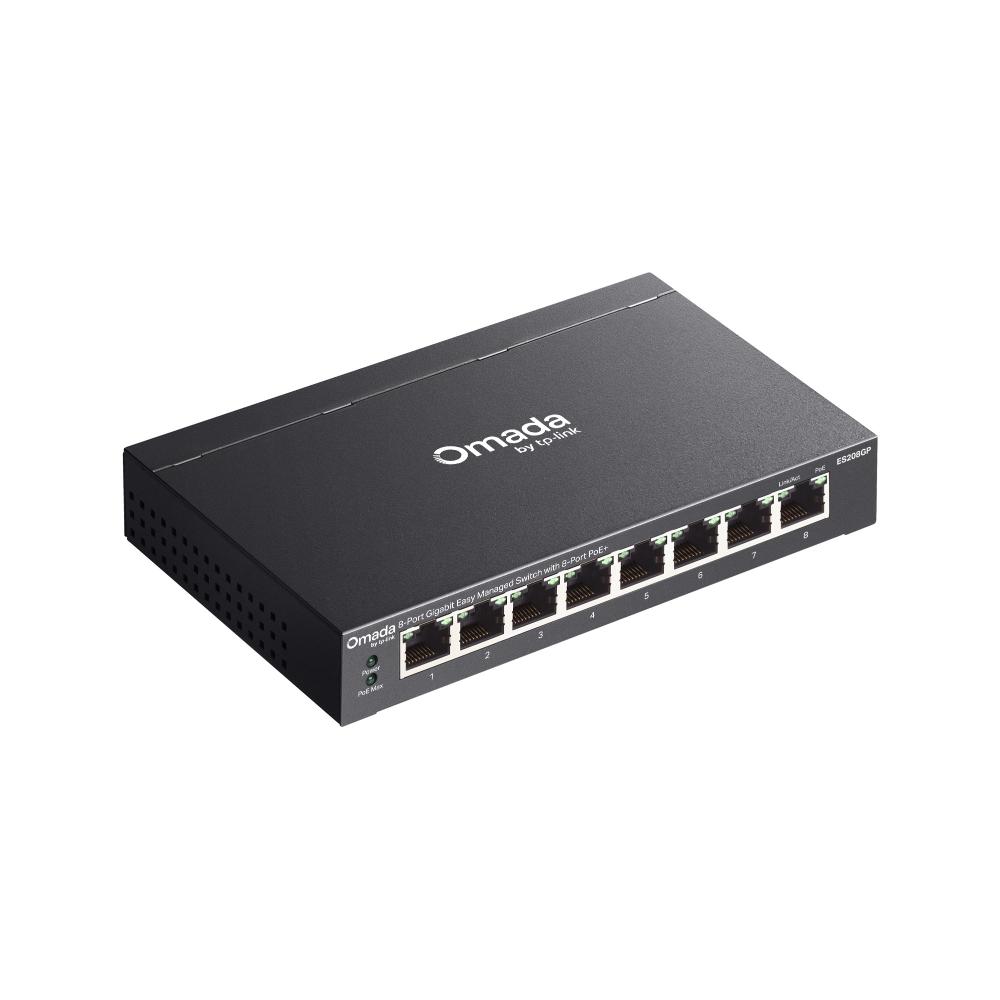

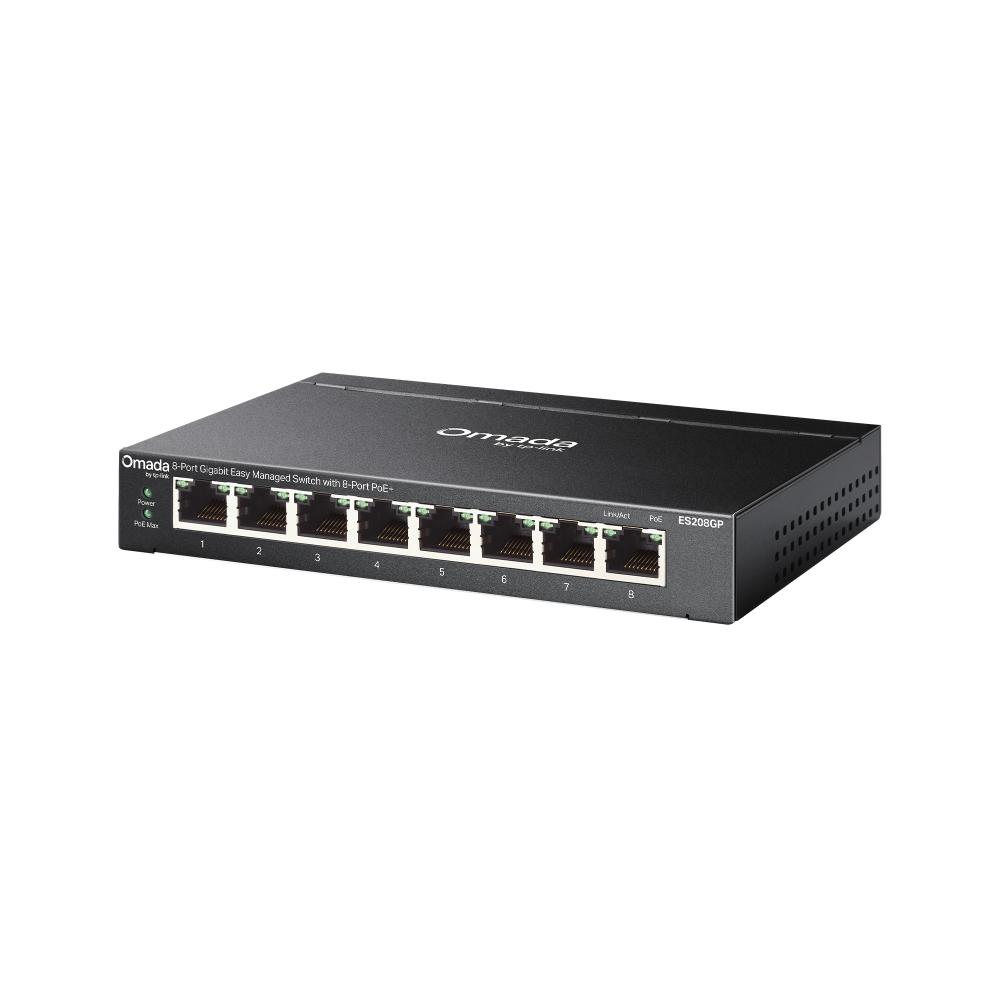

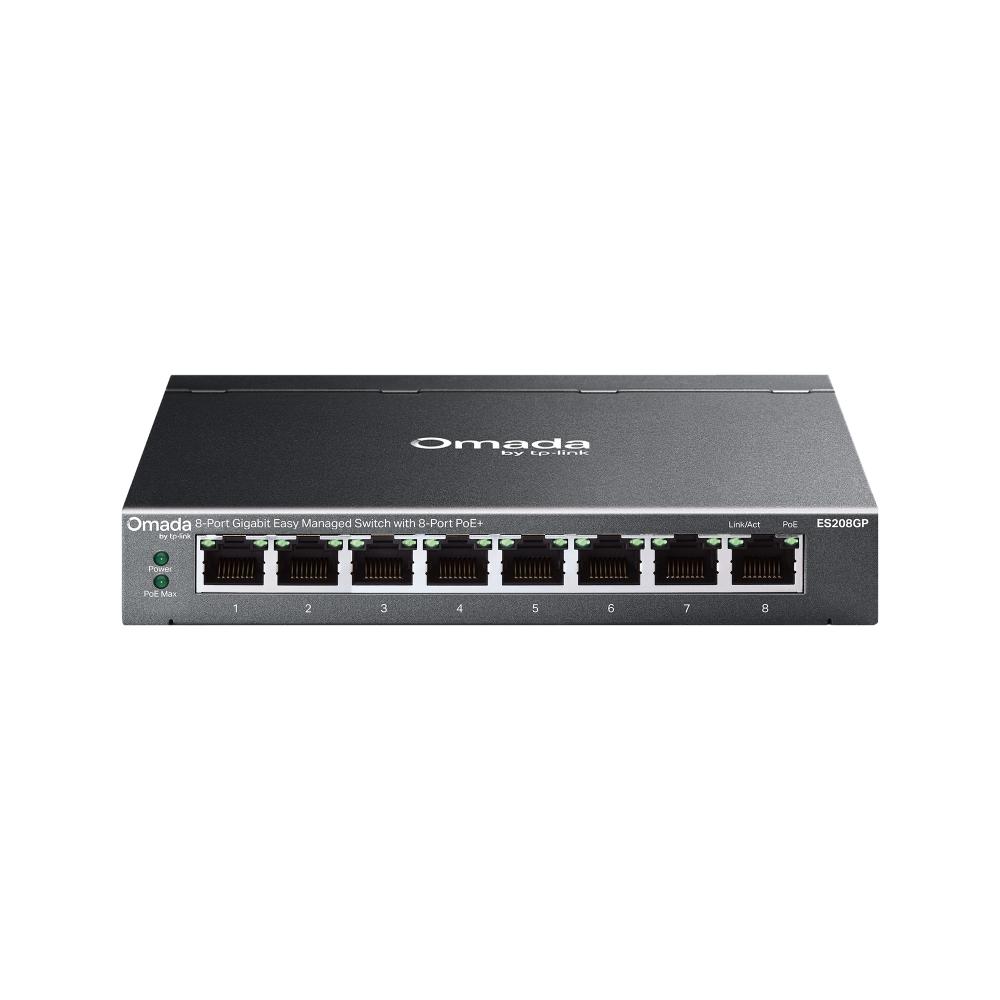

Суич TP-Link Omada ES208GP, 1000 Mbps, 8x 10/100/1000Mbps RJ45 PoE+

TP-Link Omada ES208GP

Omada Cloud Essentials is a free, easy-to-use cloud-based management option for the Omada networking system, covering access points, switches, and gateways. It enables simple, centralized network management and monitoring with essential features, making it ideal for surveillance networks and small businesses that don't require the complexity of larger operations.

Key features

• (8) 10/100/1000Mbps RJ45 port, ((8) 802.3af/at-compliant PoE+)
• 64W Power Budget with up to 30W for each PoE port
• Easy to Use: Supports plug-and-play for instant connectivity and simple configuration for additional features
• Centralised Cloud Management via Omada app
• Up to 250m PoE with 10Mbit speed , QoS, PoE Auto Recovery and Port Isolation for reliable surveillance networking
• Automatic Loop Prevention, VLAN, and IGMP Snooping
• Fanless design for silent operation

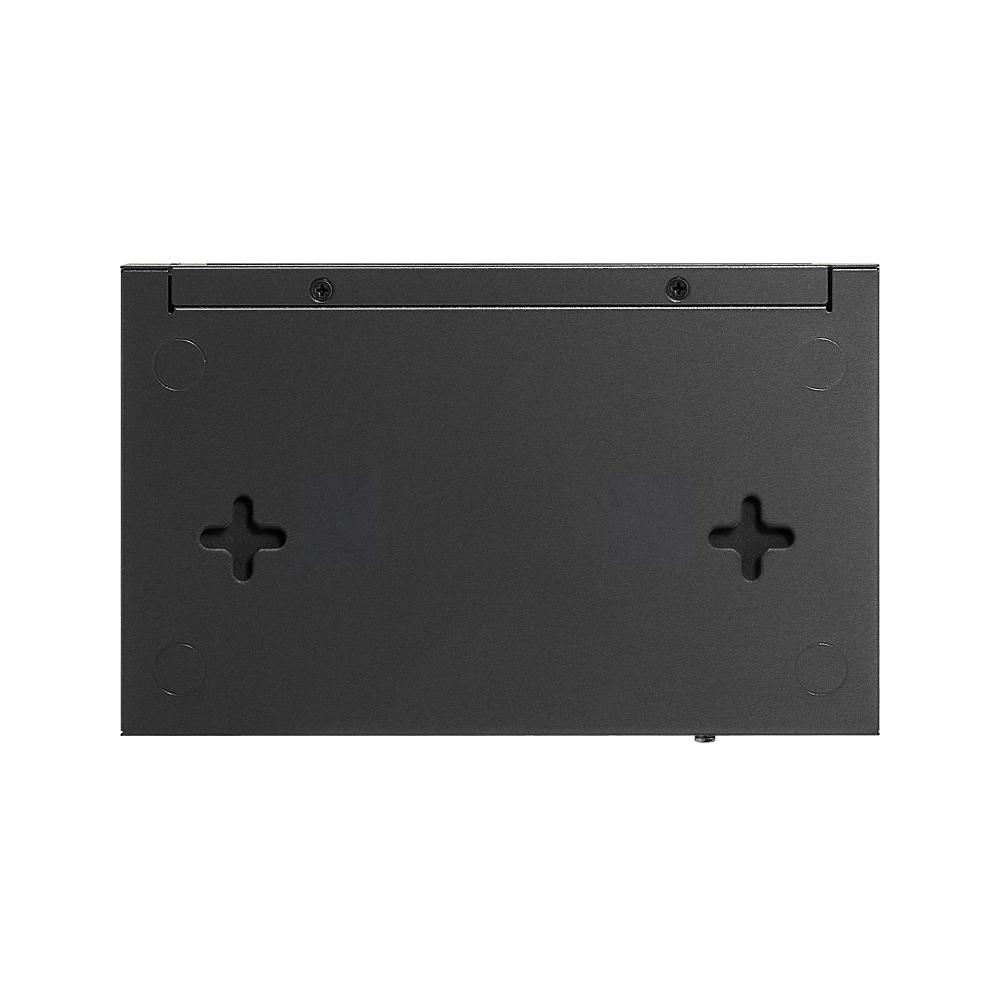

• Durable metal casing and desktop/wall mounting design

LAN ports

Design

On the wall, Desktop

Switchning capacity [Gbps]

16

MAC address table

8000

Jumbo frame [Bytes]

15000

Packet forwarding rate [Mpps]

11,9

Web management

Yes

Features

VLAN, QoS, L2

Power type

DC connector

Fans

No

LAN ports

8

LAN speed

(8) 10/100/1000Mbps

Max. LAN ports speed

1G

PoE type

PoE-Out (only)

RJ45 ports 1G

8

PoE-Out standards

802.3af, 802.3at

PoE Out ports

8

PoE budget [W]

64

Long range PoE - up to 250m

Yes

Max. power consumption [W]

69

Chassis design

Metal

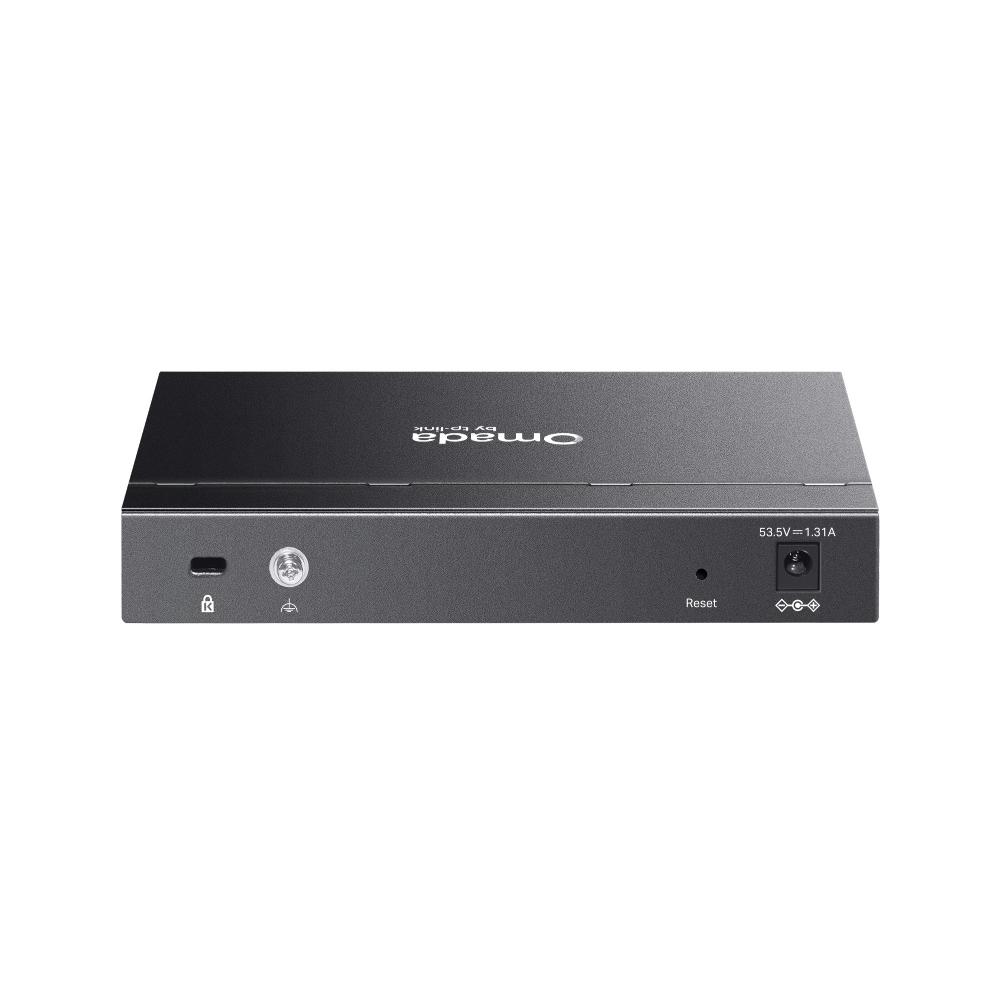

Power via connector/terminal

53,5V/1,31A

Buttons

Reset

Operating temperature [°C]

0 up to 40

Width [mm]

158

Height [mm]

25

Depth [mm]

101

Default IP address

192.168.0.1

Default login and password

admin / admin
