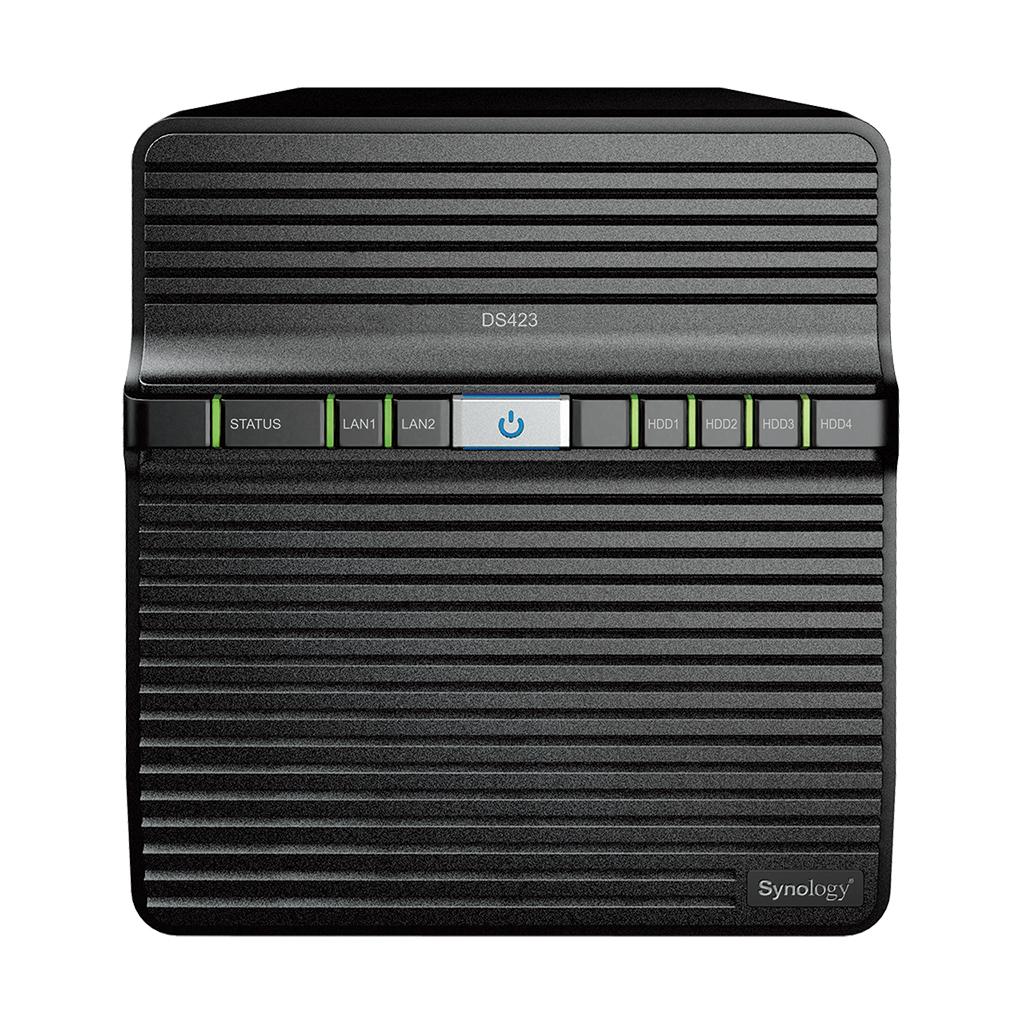

NAS устройство Synology DS423 4-bay, Realtek RTD1619B 4-core 1.7GHz, без HDD/SSD (4x SATA 6Gb/s), 2GB DDR4, 2x RJ-45 1GbE, 2x USB 3.2

SKU: DS423

ID: #46453

Ограничена наличност

Цена: 407,00 €

Цената е с вкл. ДДС

Характеристики

Процесор: Realtek RTD1619B SoC 4C (1.7 GHz)

Памет, GB: 2GB

Памет, тип: DDR4

Включени xард дискове: Не

Брой поддържани твърди дискове: 4

Мрежа: 2x Gigabit Ethernet LAN

Гаранция (месеца): 24

Бърза Поръчка

Съгласявам се с общите условия и обработка на личните ми данни.

Добави за сравнение

Описание

4-bay Synology NAS Server Home and Small office DS423 Realtek RTD1619B, 2GB RAM DDR4, 2x Gbit LAN, 2x USB 3.2

CPU	CPU Model	Realtek RTD1619B
	CPU Quantity	1
	CPU Architecture	64-bit
	CPU Frequency	4-core 1.7 GHz
	Hardware Encryption Engine	V
Memory	System Memory	2 GB DDR4 non-ECC
	Notes	Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
Storage	Drive Bays	4
	Compatible Drive Type* (See all supported drives)	3.5" SATA HDD 2.5" SATA SSD
	Hot Swappable Drive*	V
	Notes	"Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

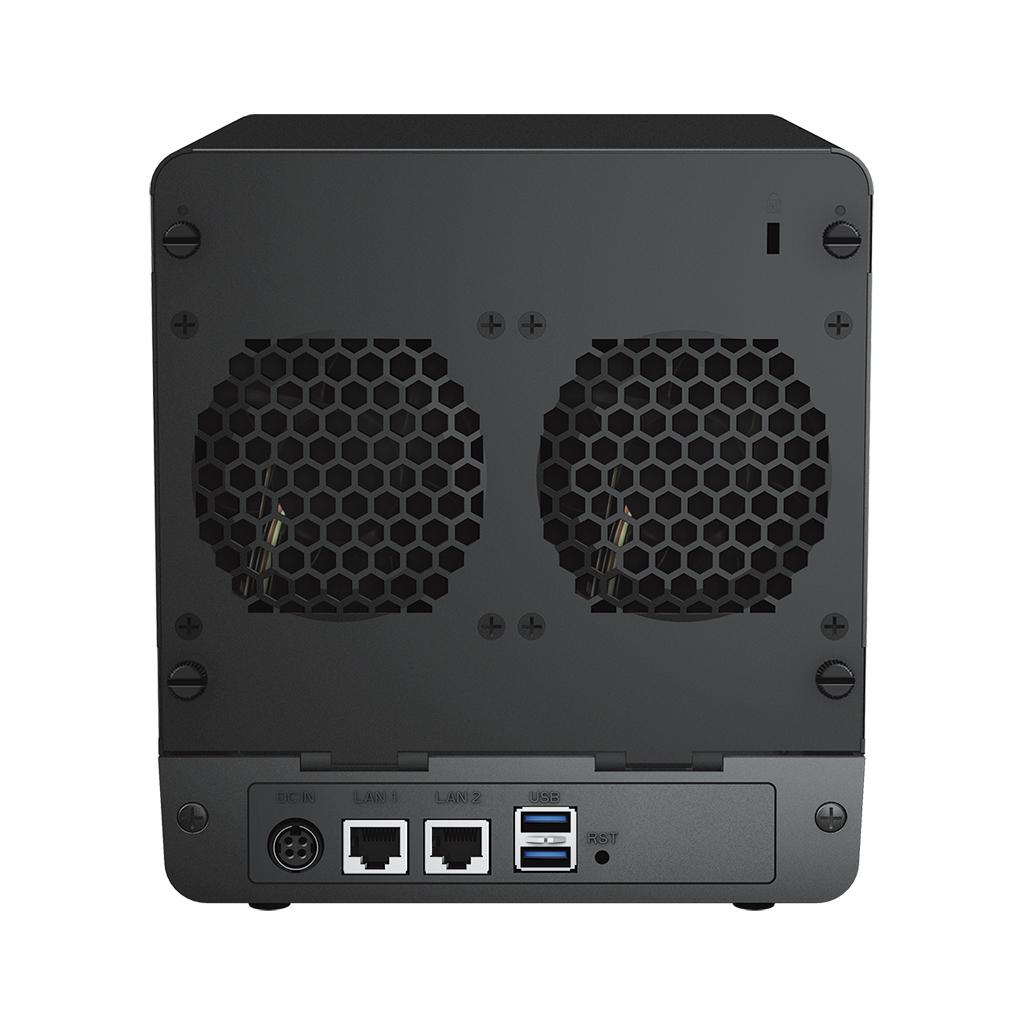

External Ports	RJ-45 1GbE LAN Port*	2 (with Link Aggregation / Failover support)
	USB 3.2 Gen 1 Port*	2
	Notes	This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
File System	Internal Drives	Btrfs EXT4
	External Drives	Btrfs EXT4 EXT3 FAT NTFS HFS+ exFAT
Appearance	Size (Height x Width x Depth)	184 mm x 168 mm x 230 mm
	Weight	2.21 kg
Others	System Fan	80 mm x 80 mm x 2 pcs
	Fan Speed Mode	Full-Speed Mode Cool Mode Quiet Mode
	Brightness Adjustable Front LED Indicators	V
	Power Recovery	V
	Noise Level*	20.6 dB(A)
	Scheduled Power On / Off	V
	Wake on LAN / WAN	V
	Power Supply Unit / Adapter	90 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption	32.41 W (Access) 4.97 W (HDD Hibernation)
	British Thermal Unit	110.52 BTU/hr (Access) 16.95 BTU/hr (HDD Hibernation)
	Notes	For more information on how power consumption is measured, refer to this article. Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Certification	FCC CE BSMI VCCI RCM UKCA EAC CCC KC
Warranty	2-year hardware warranty, extendable to 4 years with Extended Warranty Plus
	Notes	Availability varies by region. Before purchasing, please visit the official web pages of EW201/202 and Extended Warranty Plus for a list of eligible regions. The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Adapter X 1 AC Power Cord X 1 RJ-45 LAN Cable X 2 Quick Installation Guide X 1
Optional Accessories	3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210 VisualStation: VS360HD Surveillance Device License Pack

DSM Specifications
Storage Management	Maximum Single Volume Size*	108 TB
	Maximum Internal Volume Number	64
	SSD TRIM	V
	Supported RAID Type	Synology Hybrid RAID Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	RAID Migration	Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
	Volume Expansion with Larger HDDs	Synology Hybrid RAID RAID 1 RAID 5 RAID 6 RAID 10
	Volume Expansion by Adding a HDD	Synology Hybrid RAID JBOD RAID 5
	Global Hot Spare Supported RAID Type	Synology Hybrid RAID RAID 1 RAID 5
	Notes	Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration.
File Services	File Protocol	SMB/AFP/NFS/FTP/WebDAV
	Maximum Concurrent SMB/AFP/FTP Connections	200
	Windows Access Control List (ACL) Integration	V
	NFS Kerberos Authentication	V
	Notes	The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Account & Shared Folder	Maximum Local User Accounts	1,024
	Maximum Local Groups	256
	Maximum Shared Folder	256
	Maximum Shared Folder Sync Tasks	4
Hybrid Share	Maximum Hybrid Share Folders	5
Log Center	Syslog Events per Second	400
General Specifications	Networking Protocols	SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
	Supported Browsers	Google Chrome Firefox Microsoft Edge Safari
	Supported Language	English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
	Notes	For an updated list of supported browser versions, check the DSM Technical Specifications.
Add-on Packages view the complete package list
Synology Chat	V
Download Station	Maximum Concurrent Download Tasks	80
SAN Manager	Maximum iSCSI Target Number	128
	Maximum LUN	256
	LUN Clone/Snapshot, Windows ODX	V
Media Server	DLNA Compliance	V
Synology Photos	Facial Recognition	V
Snapshot Replication	Maximum Snapshots per Shared Folder	256
	Maximum of System Snapshots	4,096
Surveillance Station	Maximum IP cam (Licenses required)	30 (including 2 Free License) (see all supported IP cameras)
	Total FPS (H.264)	900 FPS @ 720p (1280x720) 600 FPS @ 1080p (1920x1080) 300 FPS @ 3M (2048x1536) 200 FPS @ 5M (2591x1944) 150 FPS @ 4K (3840x2160)
	Total FPS (H.265)	900 FPS @ 720p (1280x720) 800 FPS @ 1080p (1920x1080) 500 FPS @ 3M (2048x1536) 450 FPS @ 5M (2591x1944) 200 FPS @ 4K (3840x2160)
	Notes	Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup. Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.
Synology Drive	Recommended Number of Concurrent Sync Clients	200 (the number of connections that can be maintained when the recommended number of hosted files was reached)
	Recommended Number of Hosted Files	500,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
	Notes	Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.
Synology Office	Maximum Users	200
	Notes	Multiple files were opened for testing and each file was edited by 30 users simultaneously. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM
Video Station	V
VPN Server	Maximum Connections	20
