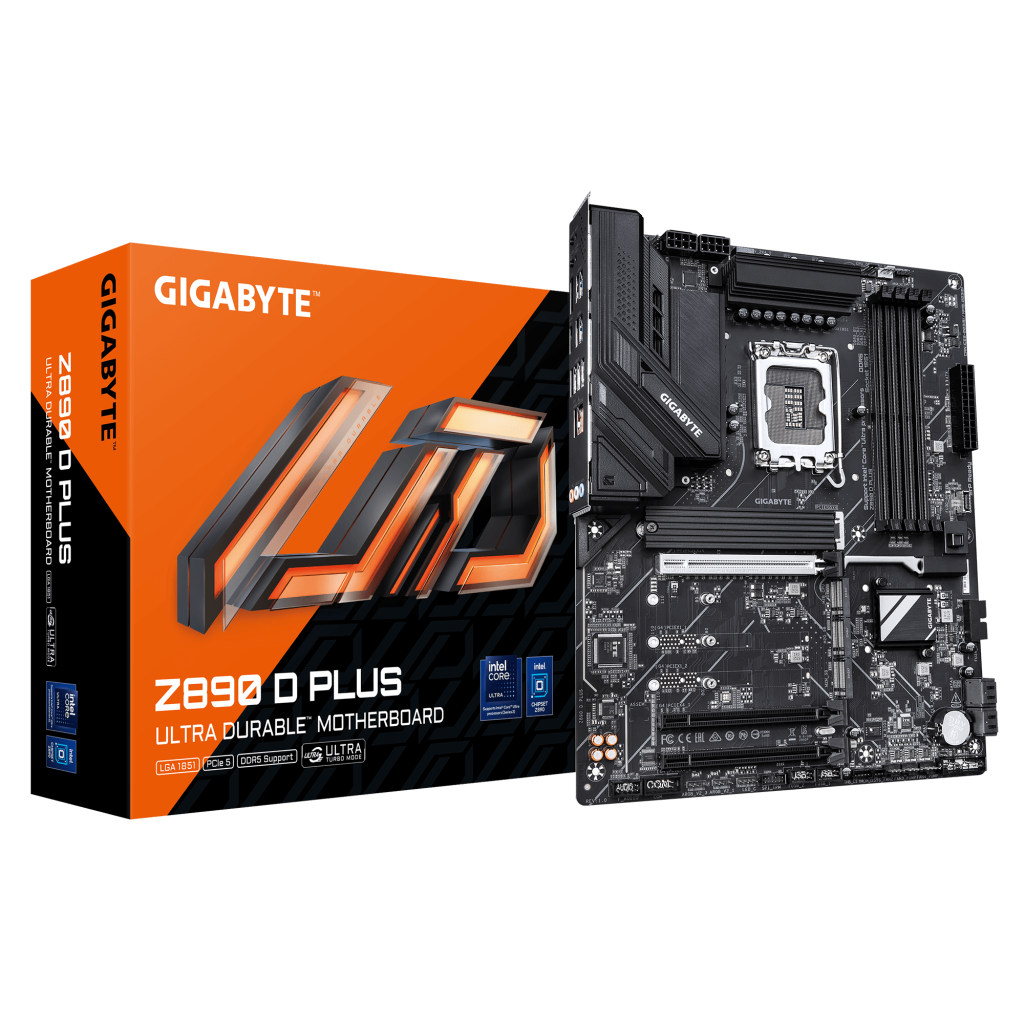

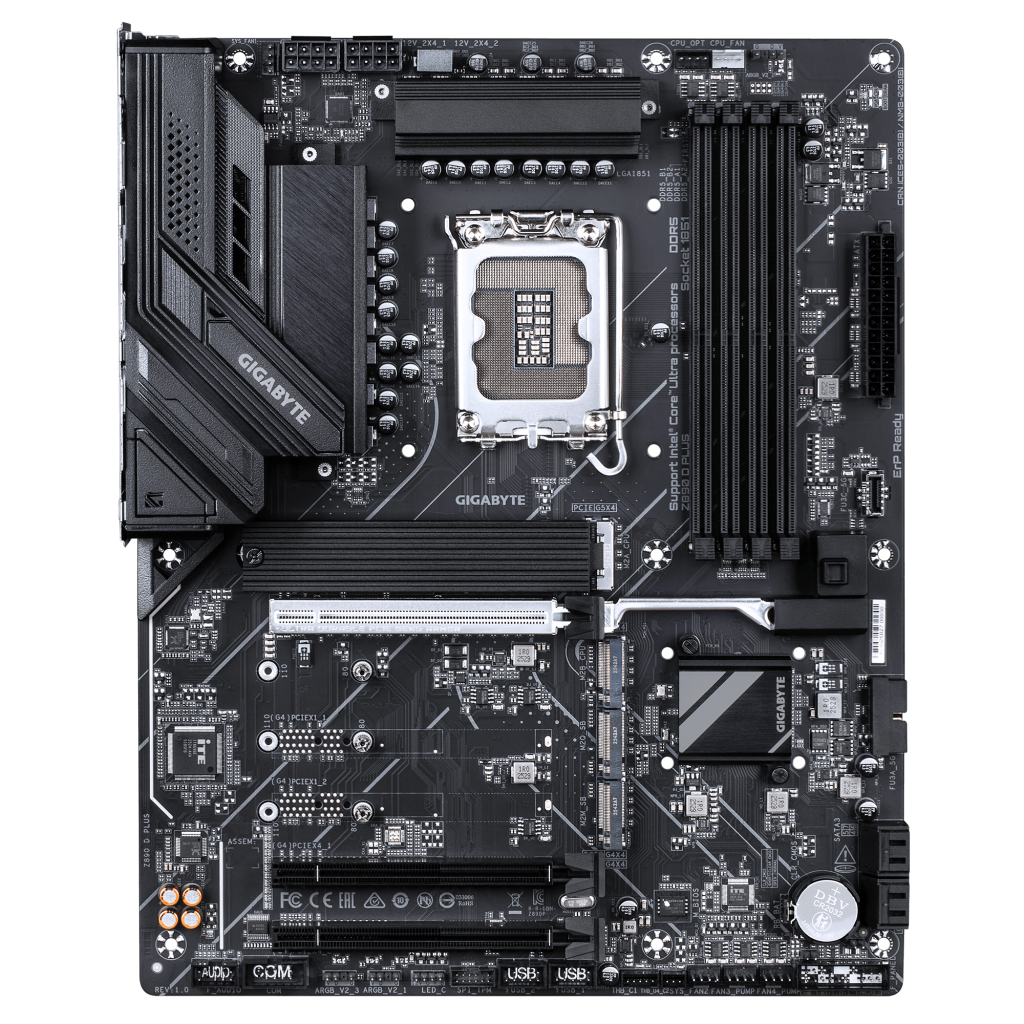

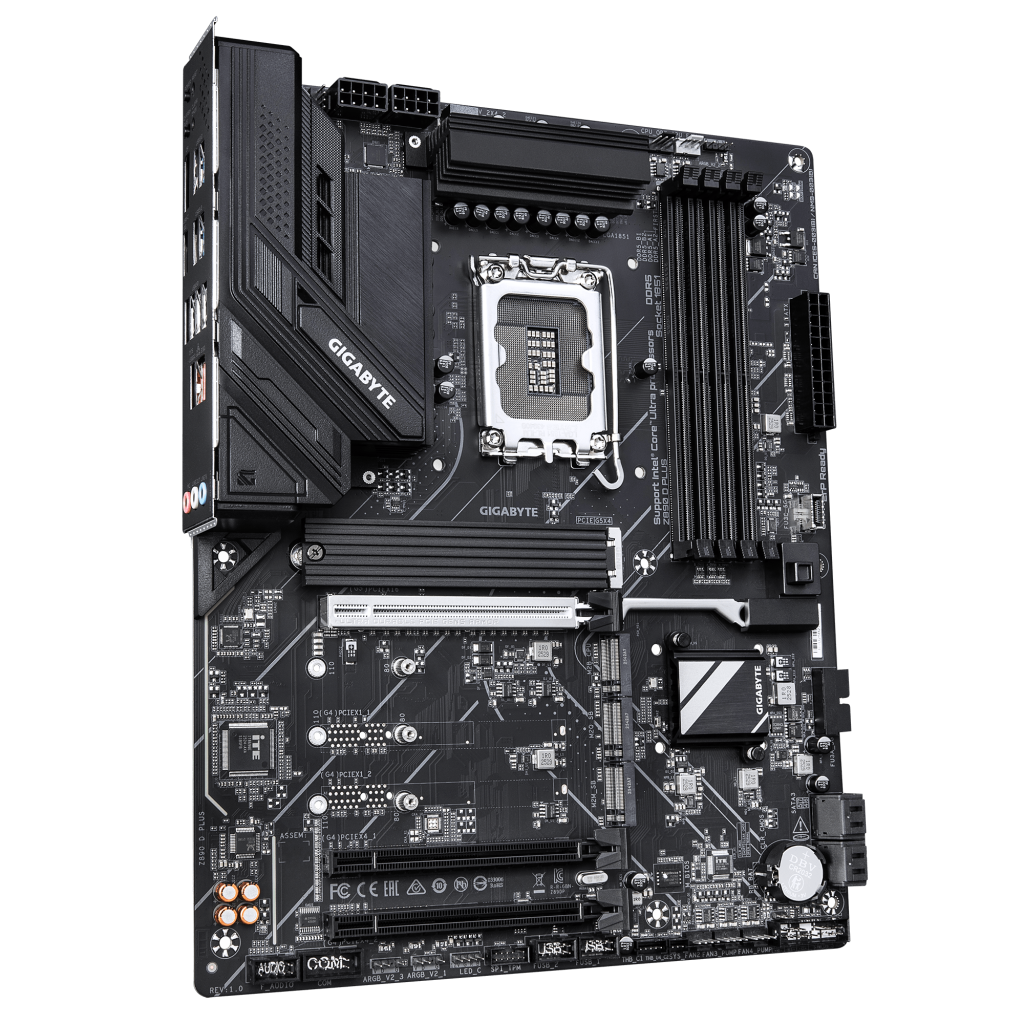

Дънна платка GIGABYTE Z890 D PLUS, LGA1851, 4x DDR5, 4x M.2, 4x SATA 6Gb/s, DisplayPort, ATX
нов продукт
Дънна платка GIGABYTE Z890 D PLUS, LGA1851, 4x DDR5, 4x M.2, 4x SATA 6Gb/s, DisplayPort, ATX
Дънна платка GIGABYTE Z890 D PLUS, LGA1851, 4x DDR5, 4x M.2, 4x SATA 6Gb/s, DisplayPort, ATX
Дънна платка GIGABYTE Z890 D PLUS, LGA1851, 4x DDR5, 4x M.2, 4x SATA 6Gb/s, DisplayPort, ATX
Дънна платка GIGABYTE Z890 D PLUS, LGA1851, 4x DDR5, 4x M.2, 4x SATA 6Gb/s, DisplayPort, ATX

Дънна платка GIGABYTE Z890 D PLUS, LGA1851, 4x DDR5, 4x M.2, 4x SATA 6Gb/s, DisplayPort, ATX

SKU: Z890-D-PLUS
ID: #46533
Наличен
Цена: 210,00 €
Цената е с вкл. ДДС

Характеристики

Поддържани процесори: Intel Core Ultra Processors (Series 2)
CPU Socket: Intel LGA1851
Чипсет: Intel Z890
Максимален капацитет RAM памет: 256 GB
Поддръжка на Dualchannel: Да
Памет, слотове: 4
Поддържана памет: DDR5
M.2 слот: 4x M.2 SSD slot (NVMe PCIe) / 4x SATA 6G
Поддръжка на RAID: SATA RAID 0, 1, 5, 10
Graphics технология: Няма
Мрежа: 10/100/1000/2500 Mbps
Wi-Fi Mодул: Не
DisplayPort: 1
Форм фактор: ATX
Гаранция (месеца): 36

Бърза Поръчка

Описание

  • Процесор
  • LGA1851 socket: Support for Intel® Core™ Ultra Processors
    (Go to GIGABYTE's website for the latest CPU support list.)
    L3 cache varies with CPU
  • Чипсет
  • Intel® Z890 Express Chipset
  • Поддържана памет
  • Support up to DDR5 9466+MT/s (OC)
    4 x DDR5 DIMM slots, Dual Channel
    Max. Capacity 256 GB
    Support Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)
    Supports Intel® Extreme Memory Profile (XMP) memory module
    (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
  • Вградена видеокарта
  • Integrated Graphics Processor-Intel® HD Graphics support:
    - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 2.1 version and HDCP 2.3


    (Graphics specifications may vary depending on CPU support.)
  • Аудио
  • Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 5.1-channel audio, access the audio software for audio settings.

  • LAN
  • Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Слотове за периферни компоненти
  • CPU:
    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset:
    - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)
  • Интерфейс за данни
  • CPU:
    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
    Chipset:
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
    - 4 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
  • USB
  • Chipset:
    - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
    - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
    - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
    - 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    Chipset+2 USB 2.0 Hubs:
    - 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
  • Вътрешни входно-изходни портове
  • 1 x 24-pin ATX main power connector
    2 x 8-pin ATX 12V power connectors
    1 x CPU fan header
    1 x CPU fan/water cooling pump header
    3 x system fan headers
    1 x system fan/water cooling pump header
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x M.2 Socket 3 connectors
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB Type-C® header, with USB 3.2 Gen 1 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    2 x Thunderbolt™ add-in card connectors (For GIGABYTE Thunderbolt™ 5 add-in card only)
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
    1 x serial port header
    1 x reset jumper
    1 x Clear CMOS jumper

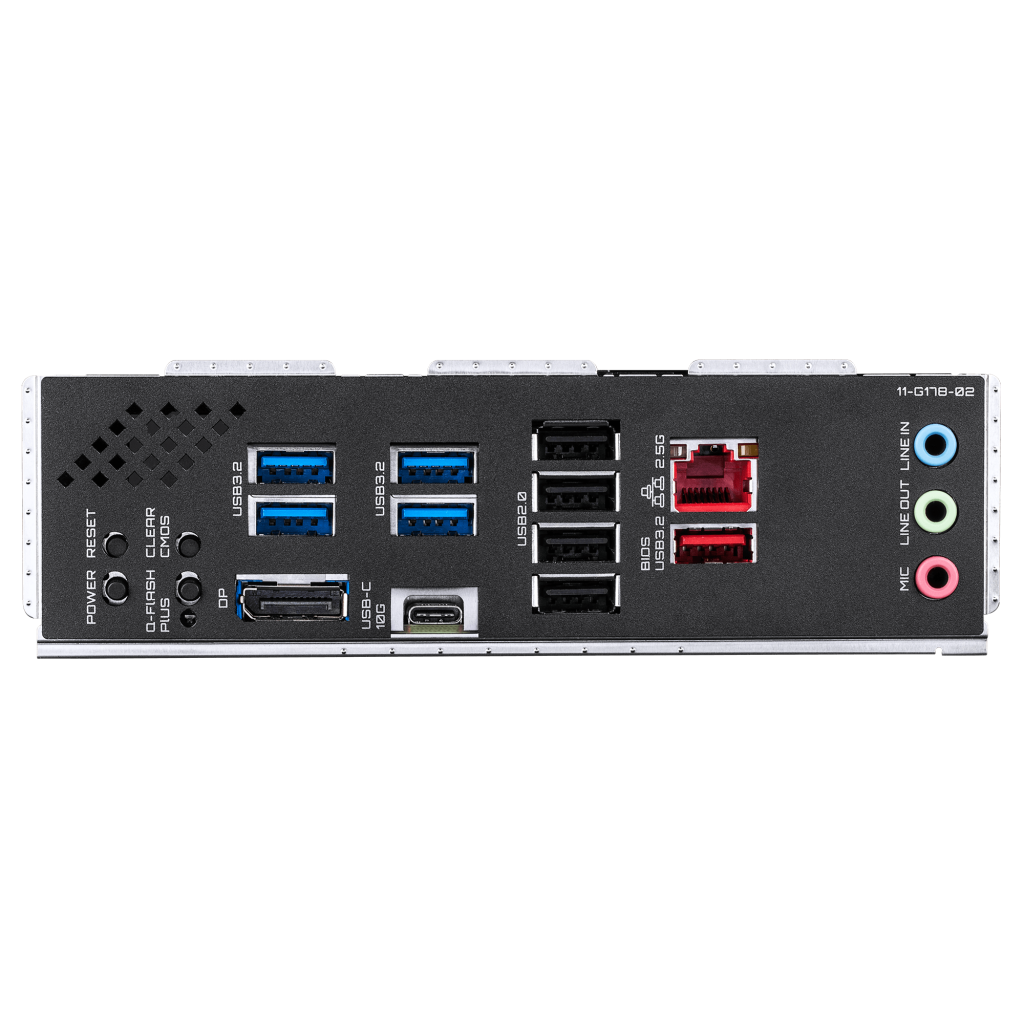

  • Входове / изходи на задния панел
  • 1 x reset button
    1 x power button
    1 x Clear CMOS button
    1 x Q-Flash Plus button
    1 x DisplayPort (Note)
    1 x USB Type-C® port, with USB 3.2 Gen 2 support
    1 x USB 3.2 Gen 2 Type-A port (red)
    4 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks

    (Note) Actual support may vary by CPU.
  • I/O контролер
  • iTE® I/O Controller Chip
  • Хардуерен мониторинг
  • Voltage detection
    Temperature detection
    Fan speed detection
    Water cooling flow rate detection
    Fan fail warning
    Fan speed control

    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

  • BIOS
  • 1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Уникални характеристики
  • Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.


    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
  • Пакетиран софтуер
  • Norton® Internet Security (OEM version)
  • Операционна система
  • Support for Windows 11 64-bit
    Support for Windows 10 64-bit
    * The Intel® NPU driver and Intel® 800 Platform Performance Package Installer are only supported on Windows 11.
  • Форм фактор
  • ATX Form Factor; 30.5cm x 24.4cm
